Installation and Operation

Section 4: Installation and Operation

Mobile Link Kit Numbers

Part No.
G007170-0

Installation

NOTE: Verify correct generator operation and
performance before adding a Mobile Link Wi-
Fi/Ethernet device during a new generator
installation.

Disabling On-Board Wi-Fi

Most generators with Evolution 2.0 controllers
are equipped with a Wi-Fi module on the rear
panel. Wi-Fi functionality (if enabled) must be
disabled before installing a Mobile Link Wi-Fi/
Ethernet device. Proceed as follows to disable
Wi-Fi:

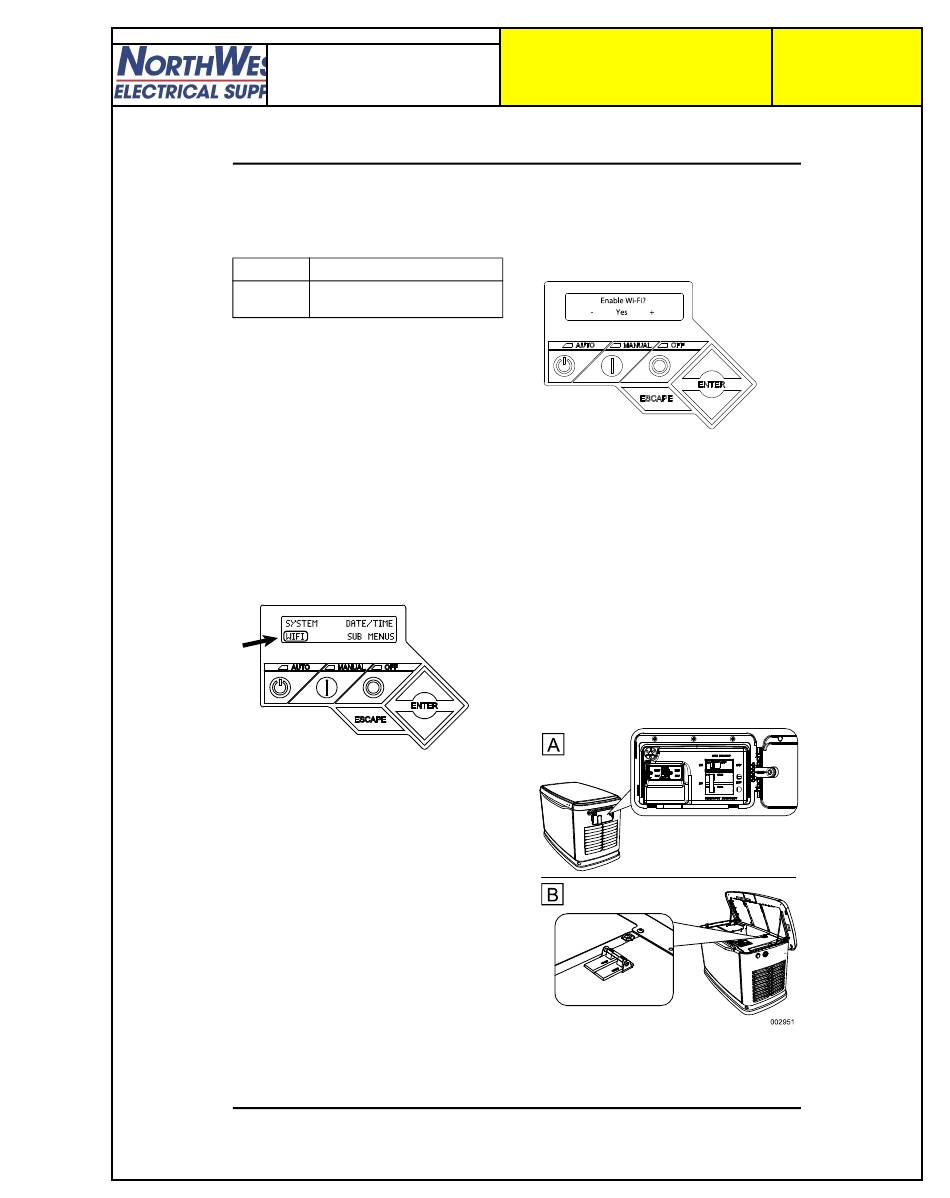

1. See Figure
operating, enter Wi-Fi menu by selecting
“WIFI” on the controller display.
Figure 4-1. Enter Wi-Fi Menu
NOTE: “WIFI” may not appear on the control-
ler display. In either of the following cases,
proceed to
tions:
• Blank space in this area indicates genera-
tor is not equipped with Wi-Fi.
• “WiFi
equipped with built-in Wi-Fi, but functional-
ity is already disabled or has not been set
up.
8
Description
Mobile Link Wi-Fi/Ethernet
Device
4-1. With the generator
009010
Main Line Circuit Breaker Loca-
Setup?” indicates generator
Catalog Number:
7170
Notes: Usual lead time prox 2-3 weeks ARO
2. See Figure 4-2. Use arrow keys to toggle
between “Yes” and “No.” Select “No” and
press ENTER.
Figure 4-2. Enable/Disable Wi-Fi
3. Press ESCAPE to return to default control-
ler display.
NOTE: To enable built-in Wi-Fi:
1. Re-enter the Wi-Fi menu.
2. Toggle “Enable Wi-Fi” option to “Yes.”
3. Press ENTER.
4. Press ESCAPE to return to the default
controller display.

Main Line Circuit Breaker Locations

See Figure 4-3. Depending on the generator
model, the main line circuit breaker (MLCB)
(generator disconnect) is located either in an
external breaker box (A), or internally near the
controller (B).
is
Figure 4-3. MLCB Locations
Installation and User’s Manual for Mobile Link
