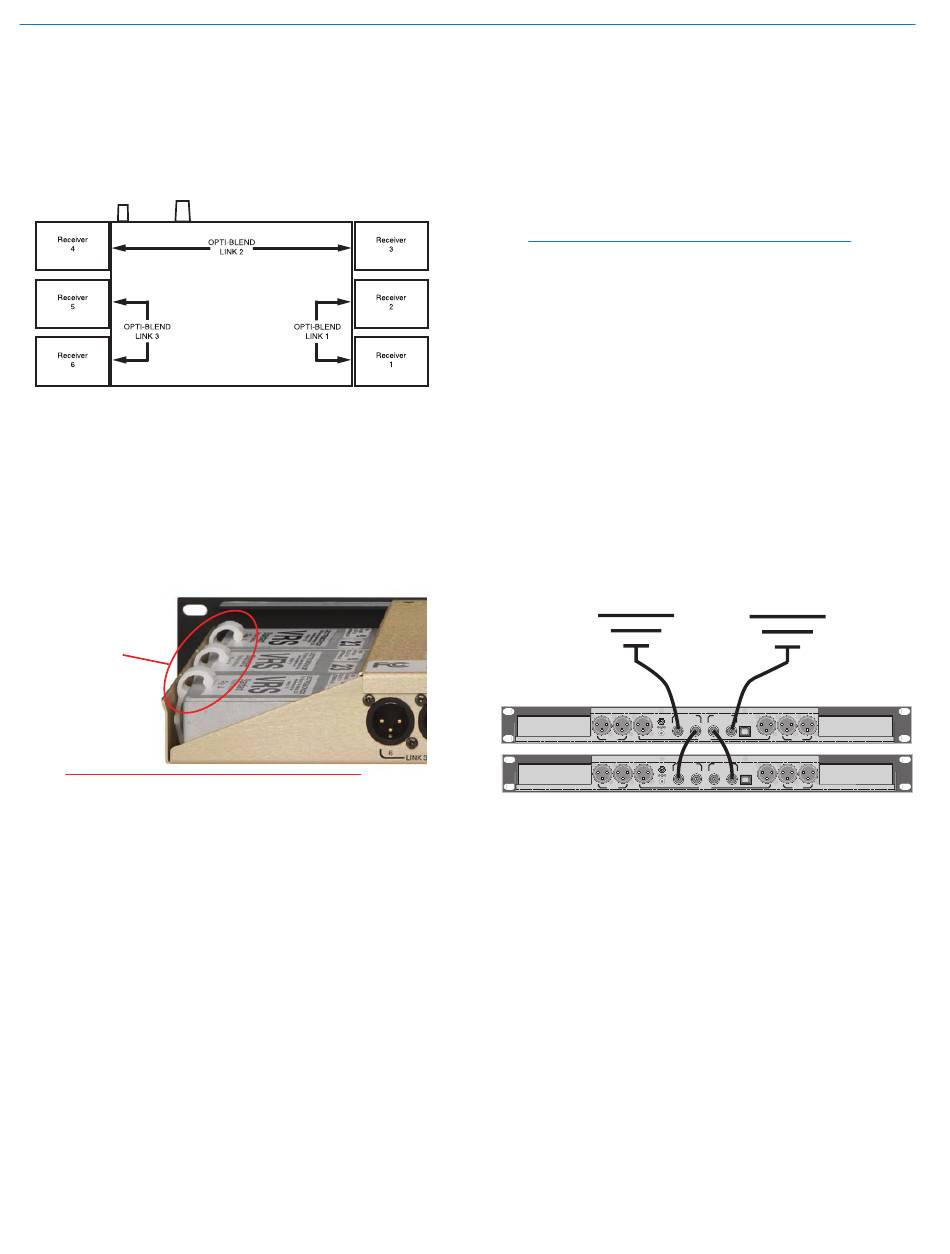

Hardware Installation
Receiver Modules
For ratio diversity operation, the modules are paired in
keeping with the OPTI-BLEND labeling on top of the
chassis housing.
Installing Receiver Modules
1. Turn the power off.
The receiver modules interface with the main as-
sembly through multi-pin connectors on either side
of the chassis. Insert the module straight down and
then slide it toward the main housing to insert the
connector pins. The module should sit flush against
the side of the housing.
Retaining
clips
Caution: Make sure the connectors align
correctly. Do not force the module onto the tab.
Excessive force may damage the connectors.
2. Align the ridge on the retaining clip with the slot in
the chassis and press the clip downward until the
ridge snaps into the slot in the side panel.
Removing Receiver Modules
1. Turn the power off.
2. Remove the retaining clip by pressing on it side-
ways to release it from the slot in the side panel.
Then pull upward to remove it.
3. Pull outward on the module to release the connec-
tor and then lift it upward out of the chassis. Holes
in the underside of the chassis allow you to grip the
module on the top and bottom.
6
Front panel
Rack Installation
1. Mount the receiver(s) in the desired rack location(s).
There are no special ventilation requirements.
2. Connect the antennas or coaxial cables to the
antenna input connectors (outermost) on the rear
panel.
Note: The frequency bandwidth of the antennas
must cover the range of the modules in use.
3. For multiple unit installations, a "loop thru" is avail-
able to feed two receivers from a single antenna
pair. Connect coaxial cables from the multicoupler
outputs on the first receiver to the antenna inputs
on the next receiver in the stack.
The outermost connectors are the inputs connected
to the antennas on the first unit in the stack. The
innermost connectors are the outputs that feed the
next assembly in the rack.
4. Plug the power supply into a suitable outlet and
plug the power connector into the Power Input Jack.
5. Turn down the audio inputs on all the externally
connected equipment, then connect cables to the
appropriate Audio Output XLR Jack.
