- Page 1 Dual Band 802.11ac 1200Mbps Wave 2 Outdoor Wireless AP WDAP-850AC Quick Installation Guide...
-
Page 2: Table Of Contents
Table of Contents 1. Package Contents ..................3 2. Physical Introduction ..................4 3. Hardware Installation ..................5 4. Web Login ..................... 7 Further Information: ..................10... -
Page 3: Package Contents
1. Package Contents Thank you for choosing PLANET Outdoor Wireless AP. Before installing, please verify the contents inside the package box. The device mentioned herein is the brief name of the "Outdoor Wireless AP". WDAP-850AC Quick Guide x 1 RJ45 Waterproof Kit x 1 Let’s get started with your PLANET product... -
Page 4: Physical Introduction

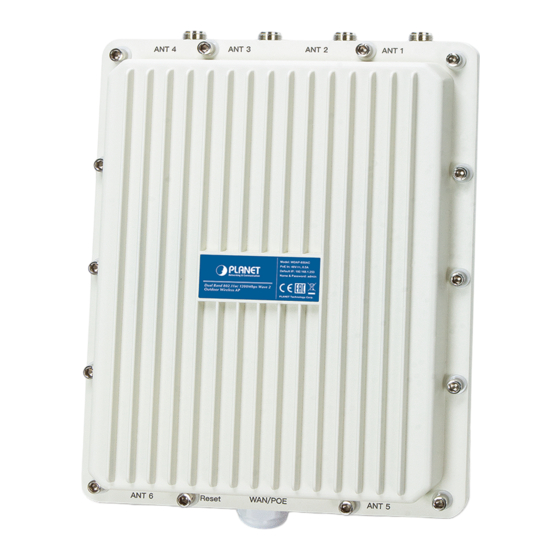

2. Physical Introduction Hardware Description 5GHz N-type (F) Antenna Connectors 2.4GHz N-type (F) Antenna Connectors WAN/PoE Port Ground Terminal... -
Page 5: Hardware Installation
3. Hardware Installation Step 1: 1. Install the backplane to the back of the AP. 2. Attach the L-type bracket to the backplane and fasten it. 3. Place the AP to the pole and fasten it with the U-bolt kit. The AP can be mounted on the pole with a diameter of up to 2”. - Page 6 Step 2: 1. Attach the surge arrestors to each antenna connector. 2. Attach the antenna equipped with N-type (M) connector to each surge arrestor. Otherwise, connect the antenna through the N-male (male pin) to N-male (male pin) cable. 3. Plug the RJ45 Ethernet cable into the PoE port of the AP through the waterproof kit, and plug the other side of the RJ45 cable into the PoE port of the PoE switch to finish the installation.
-
Page 7: Web Login
4. Web Login computer with wired Ethernet connection required first-time configuration of the device. 1. Click the “Start” button located in the lower-left corner of your computer. 2. Click “Control Panel”. 3. Double-click the “Network and Sharing Center” icon. 4. Click “Change Adapter Settings”. 5. - Page 8 Step 1: The Web management allows you to access and manage the device easily. Launch the Web browser and enter the default IP address http://192.168.1.253. Step 2: Step 2 and 3 are based on the firmware version before July 2024. When the login window appears, please enter the password.
- Page 9 The web screen is based on the firmware version after July 2024. When the webpage displays the following message, please set the password according to the rules below. The Password must contain 8 to 32 charac- ters, including uppercase, lowercase, numerals and other symbols. Only these 5 symbols, such as @, #, *, _ and -, can be accepted.
-
Page 10: Further Information
The above steps introduce the simple installations and configurations of the device. For further configurations, please refer to the user manual, which can be downloaded from the website. WDAP-850AC: https://www.planet.com.tw/en/support/downloads?&method=keyword&keyword= WDAP-850AC&view=3#list If you have further questions, please contact the local dealer or distributor where...
