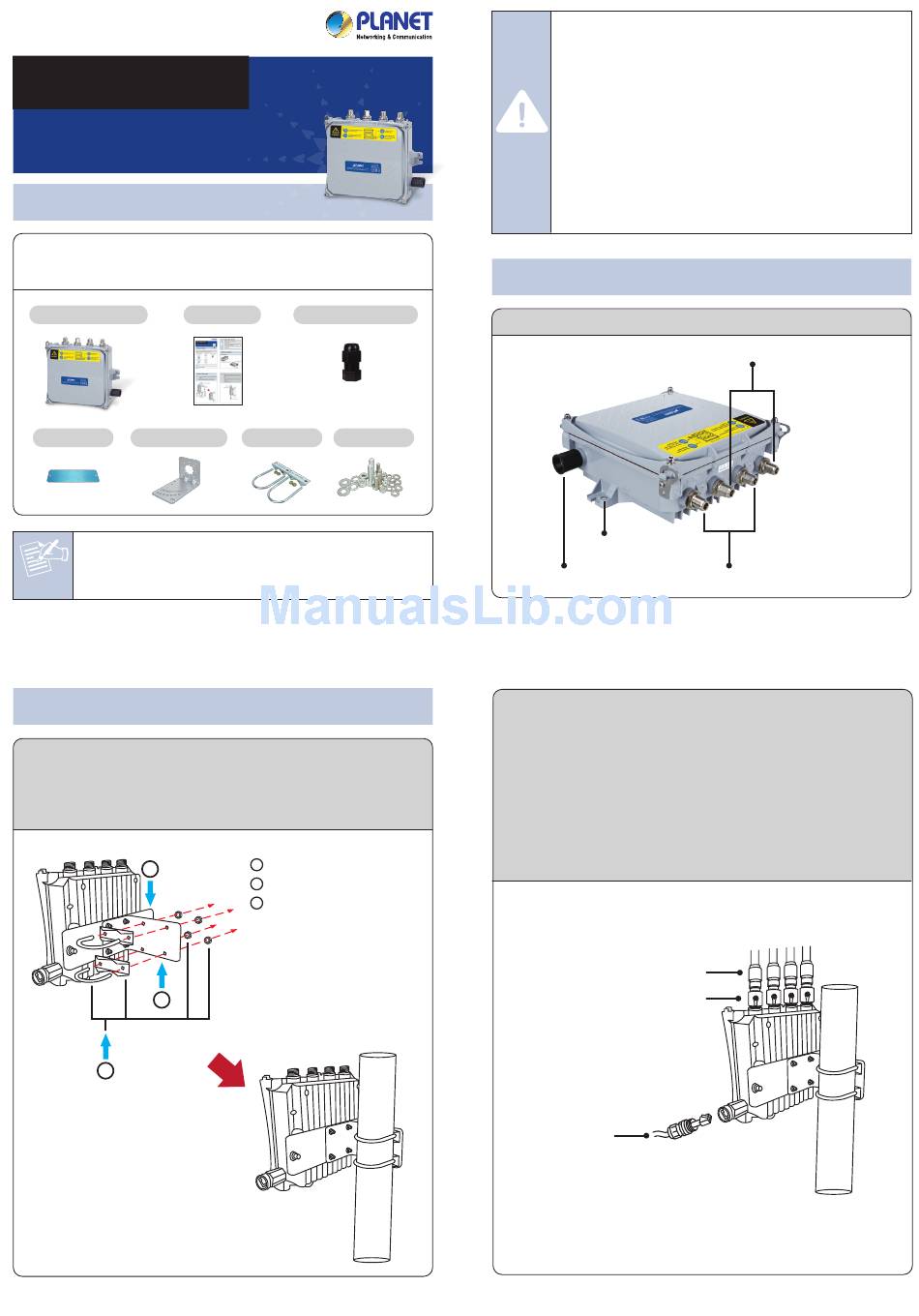

Quick Installation Guide
WDAP-802AC
1200Mbps Dual Band 802.11ac
Outdoor Wireless AP
1. Package Contents
Thank you for choosing PLANET Outdoor Wireless AP. Before installing,
please verify the contents inside the package box. The device mentioned
herein is the brief name of the "Outdoor Wireless AP".

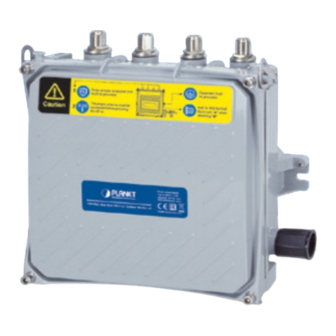

WDAP-802AC
Backplane x 1
L-type Bracket x 1
If there is any item missing or damaged, please contact the
seller immediately.
Note
3. Hardware Installation
Step 1: (1) Install the Backplane to the back of the AP.
(2) Attach the L-type bracket to it.
(3) Assemble the AP to the pole by using the U-bolt kit.
※ The AP can be mounted on an up to 2.5" (O.D.) pole.
1
2
3
Quick Guide
RJ45 Waterproof Kit x 1
U-bolt Kit x 2
Screw Set x 1
– 1 –
Backplane
1
L-Type Bracket
2
U-bolt kits
3
– 3 –
IMPORTANT SAFETY PRECAUTIONS:
1) LIVES MAY BE AT RISK! Please be aware of the
electrical wires around. Carefully read the section
"OUTDOOR INSTALLATION WARNING" in the manual
before installation.
2) Users MUST complete grounding wired with the device;
otherwise, a sudden lightning could cause fatal damage to
the device. EMD (Lightning) DAMAGE IS NOT COVERED
UNDER WARRANTY.
3) Users MUST power off the device first before connecting
the antenna to it; otherwise, damage might be caused to
the device itself.
4) The Antenna and Surge Arrestor are required for each
antenna connector, and must be purchased separately.
2. Physical Introduction
Hardware Description
5GHz N-Type (F) Antenna Connector
Ground Terminal
PoE LAN Port
Step 2: (1) Attach the surge arrestors to each antenna connector.
(2) Attach the antenna equipped with N-type (M) connector to
each surge arrestor. Otherwise, connect the antenna
through the N-male (male pin) to N-male (male pin)
cable.
(3) Plug the RJ45 Ethernet cable into the PoE port of the AP
through the waterproof kit, and plug the other side of the
RJ45 cable into the PoE port of the PoE switch to finish the
installation.
※ Please remember to finish grounding by consulting the
local electrical experts.
Antenna
Surge Arrestor
To PoE Switch
2.4GHz N-Type (F) Antenna Connector
– 2 –
– 4 –
