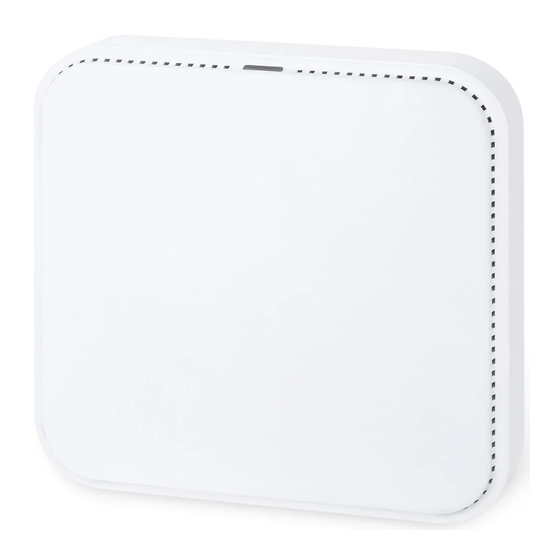

Planet WDAP-C3000AX Quick Installation Manual

Dual band 802.11ax 3000mbps ceiling-mount wireless access point w/802.3at poe+ and 2 10/100/1000t lan ports
Hide thumbs Also See for WDAP-C3000AX:
Table of Contents

Advertisement

Quick Links

Download this manual
Dual Band 802.11ax 3000Mbps Ceiling-mount
Wireless Access Point w/802.3at PoE+
and 2 10/100/1000T LAN Ports
WDAP-C3000AX
Quick Installation Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WDAP-C3000AX and is the answer not in the manual?

Questions and answers

Related Manuals for Planet WDAP-C3000AX

Summary of Contents for Planet WDAP-C3000AX

  • Page 1 Dual Band 802.11ax 3000Mbps Ceiling-mount Wireless Access Point w/802.3at PoE+ and 2 10/100/1000T LAN Ports WDAP-C3000AX Quick Installation Guide...

  • Page 2: Table Of Contents

    3. Hardware Installation ................5 4. Connecting the AP (for Windows OS) ............. 6 5. Wired Network Configuration (Windows 10 and Windows 11) ....7 6. Entering into the Web Management ............8 7. Wireless Network Connection ..............9 8. AP Discovery through PLANET NMS Controller (NMS-500/NMS-1000V) ..10 9. PLANET CloudViewer/CloudViewerPro App (Android & iOS) ..... 11 Further Information: ................14...

  • Page 3: Package Contents

    1. Package Contents Thank you for choosing PLANET WDAP-C3000AX. Before installing the AP, please verify the contents inside the package box. The WDAP-C3000AX should contain the following items in the package: WDAP-C3000AX QR code sheet Let’s get started with your PLANET product WDAP-C3000AX Please scan the QR code to browse our online User’s Manual or Quick Installation Guide and follow the instructions to complete the setup.

  • Page 4: Physical Introduction

    2. Physical Introduction Front Panel Power (Red) SYS (Blue, Green) Rear Panel WAN/PoE Port LED LNK/ACK 12V DC IN (5.5x2.1mm) LAN Port LED LNK/ACK Reset Button WAN/PoE...

  • Page 5: Hardware Installation

    3. Hardware Installation Step 1: Take the mounting bracket, put it on the target place by aligning the holes and fix it with the supplied screws. Step 2: Load the device into the mounting bracket, and be sure the device is mated with fixed screws. Then, lock the device in position and plug the Ethernet cable into the WDAP-C3000AX. Step 3: Plug the other end of the Ethernet cable into the PoE switch.

  • Page 6: Connecting The Ap (For Windows Os)

    4. Connecting the AP (for Windows OS) As the default setting of connection type of WDAP-C3000AX is DHCP, your computer’s IP address has to be the same network segment as the wireless AP. To find the IP address of the AP, use the utility of “Smart Discovery Lite”, which can be found on PLANET official website.

  • Page 7: Wired Network Configuration (Windows 10 And Windows 11)

    6. Select “Internet Protocol Version 4 (TCP/IPv4)” and click “Proper- ties”. 7. Select “Use the following IP address” and then click the “OK” button twice to save the configuration. For example, the default IP address of the WDAP-C3000AX is 192.168.1.253 and the router is 192.168.1.254. You may choose from 192.168.1.1 to 192.168.1.252.

  • Page 8: Entering Into The Web Management

    6. Entering into the Web Management Default IP Address: 192.168.1.253 (The default IP address will be 192.168.1.253 if there is no DHCP server in the local network.) Default Username: admin Default Password: admin Default SSID (2.4GHz): PLANET_2.4G Default SSID (5GHz): PLANET_5G Step 1: The Web management allows you to access and manage the wireless AP easily.

  • Page 9: Wireless Network Connection

    Step 1: Right-click on the network icon displayed in the system tray. Step 2: Highlight the wireless network (SSID) to connect and click the [Connect] button. Step 3: Enter the encryption key of the WDAP-C3000AX if necessary. You have already finished the configuration of the WDAP-C3000AX. Now you can use your smart phone, tablet, laptop, or any other Wi-Fi device to connect with it wirelessly and start surfing the internet.

  • Page 10: Ap Discovery Through Planet Nms Controller (Nms-500/Nms-1000V)

    8. AP Discovery through PLANET NMS Controller (NMS-500/NMS-1000V) The WDAP-C3000AX is the Smart AP series which can be centrally managed by PLANET NMS Controller. Follow the steps below to discover the managed AP through PLANET NMS controller (NMS-500/NMS-1000V). Please ensure each managed AP uses a different static IP in the same subnet before physically connecting to the managed network.

  • Page 11: Planet Cloudviewer/Cloudviewerpro App (Android & Ios)

    9. PLANET CloudViewer/CloudViewerPro App (Android & iOS) The WDAP-C3000AX is the Smart AP series which can be monitored by PLANET CloudViewer/CloudViewerPro app. Step 1: Download PLANET CloudViewer/CloudViewerPro app Get the PLANET CloudViewer/CloudViewerPro app from the Apple App Store or Google play, or simply scan the QR code.  ...
  • Page 12 PLANET CloudViewer/CloudViewerPro app. If you don’t have an account, register an account with an e-mail address first. Register Step 3: Bind Devices 1. Log in and go to the device NMS page 2. Select and enable the PLANET CloudViewer Server – Internet function 3. Fill in PLANET CloudViewer account (e-mail address) and password.    ...
  • Page 13 Step 4: Log in CloudViewer/CloudViewerPro After you get a Success indication from your device, you may now log in the app again to find your device in the list.

  • Page 14: Further Information

    : / / w w w . p l a n e t . c o m . t w / e n / s u p p o r t / d o w n l o a d . php?&method=keyword&keyword=WDAP-C3000AX&view=3#list PLANET Network Management Solution (NMS): https://www.planet.com.tw/en/products/network-management If you have further questions, please contact the local dealer or distributor where you purchased this product.
