Sony XR-C210MK2 Service Manual

Sony XR-C210MK2 Service Manual

Fm/mw/lw/sw cassette car stereo

Advertisement

Quick Links

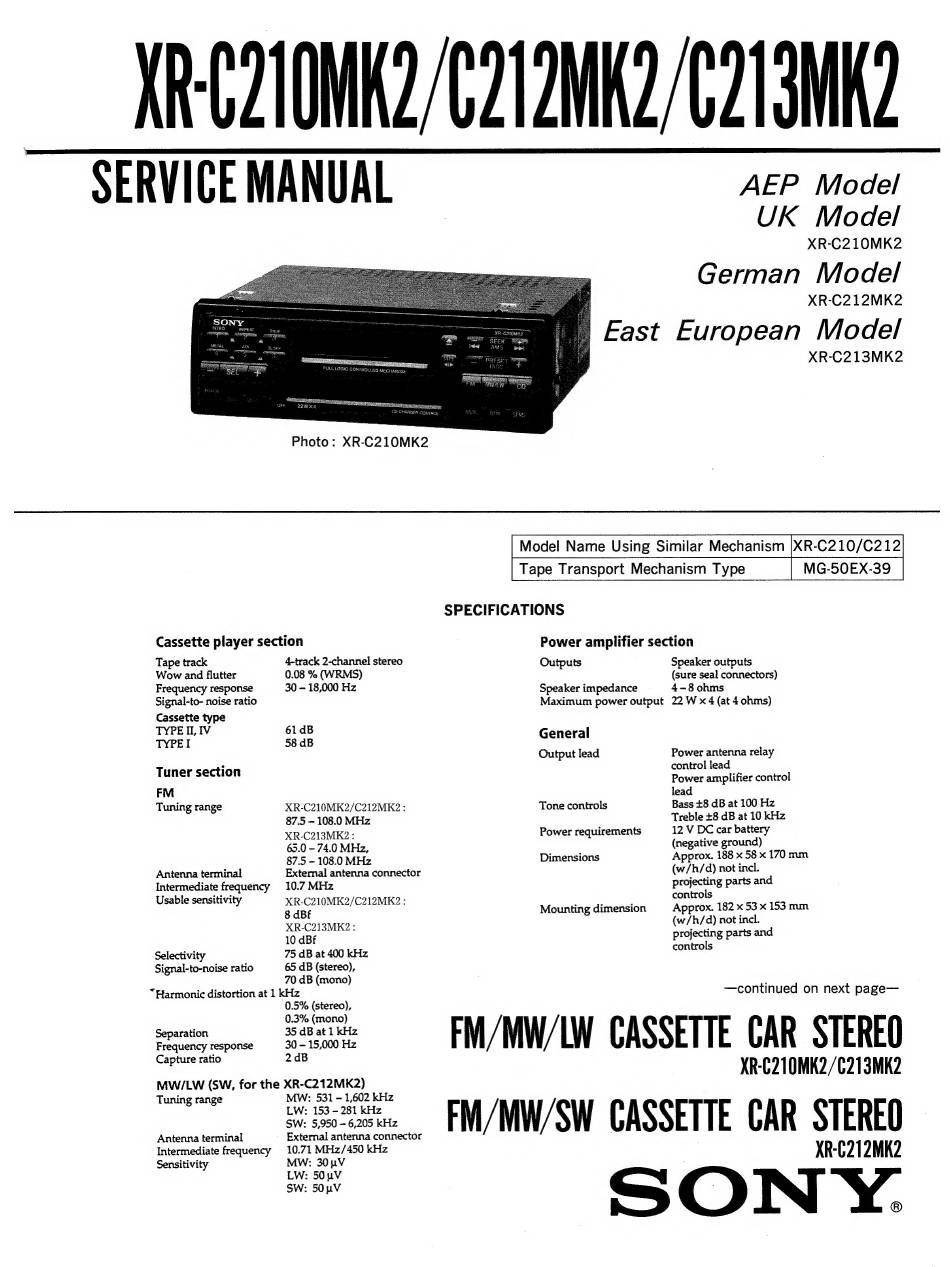

MR-CZIOMK2/C212MK2/C213MK2
SERVICE MANUAL
Photo: XR-C210MK2
Cassette player section
Tape track
4-track 2-channel stereo
Wow and flutter
0.08 % (WRMS)
Frequency response
30 ~ 18,000 Hz
Signal-to- noise ratio
Cassette type
TYPE I, IV
61 dB
TYPE I
58 dB
Tuner section
FM
Tuning range
XR-C210MK2/C212MK2 :
87.5 — 108.0 MHz
XR-C213MK2:
65.0 - 74.0 MHz,
87.5 - 108.0 MHz
Antenna terminal
External antenna connector
Intermediate frequency
10.7 MHz
Usable sensitivity
XR-C210MK2/C212MK2 :
8 dBE
XR-C213MK2 :
10 dBf
Selectivity
75 dB at 400 kHz
Signal-to-noise ratio
65 dB (stereo),
70 dB (mono)
"Harmonic distortion at 1 kHz
0.5% (stereo),
0.3% (mono)
Separation
35 dB at 1 kHz
Frequency response
30 - 15,000 Hz
Capture ratio
2 dB
MW/LW (SW, for the XR-C212MK2)
Tuning range
MW: 531 - 1,602 kHz
LW: 153 - 281 kHz
SW: 5,950 - 6,205 kHz
Antenna terminal
External antenna connector
Intermediate frequency
10.71 MHz/450 kHz
Sensitivity
MW: 30pV
LW: 50 pV
SW: 50pnV
East
SPECIFICATIONS
Model Name
Using Similar Mechanism
|XR-C210/C212
Tape Transport Mechanism Type
MG-50EX-39
AEP Model
UK Model
XR-C210MK2
German
Model
XR-C212MK2
European Model
XR-C213MK2
Power amplifier section
Outputs
Speaker impedance
Maximum power output
General
Output lead
Tone controls
Power requirements
Dimensions
Mounting dimension
Speaker outputs
(sure seal connectors)
4-8 ohms
22 W x 4 (at 4 ohms)
Power antenna relay
control lead
Power amplifier control
lead
Bass +8 dB at 100 Hz
Treble +8 dB at 10 kHz
12 V DC car battery
(negative ground)
Approx. 188 x 58 x 170 mm
(w/h/d) not incl.
projecting parts and
controls
Approx. 182 x 53 x 153 mm
(w/h/d) not incl.
projecting parts and
controls
—continued on next page—
FM/MW/LW CASSETTE CAR STEREO
XR-C210MK2/C213MK2
FM/MW/SW CASSETTE CAR STEREO
XR-C212MK2
