Icom IC-28H Instruction Manual page 14

Ш АМТЕММА
Ш COAXIAL CABLE

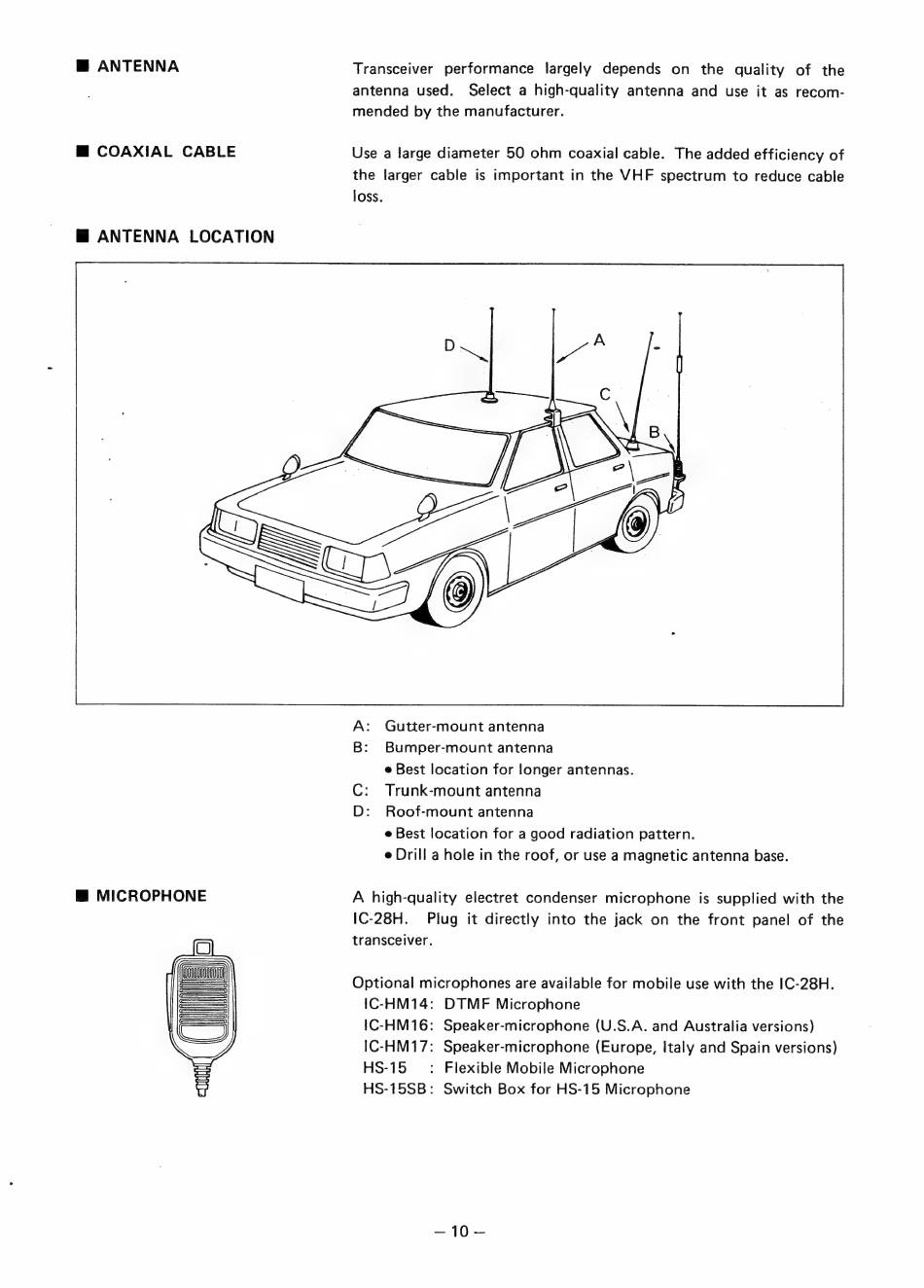

Ш ANTENNA LOCATION
Transceiver performance largely depends on the quality of the
antenna used. Select a high-quality antenna and use it as recom-
mended by the manufacturer.
Use a large diameter bO ohm coaxial cable. The added efficiency of
the larger cable is important in the VHF spectrum to reduce cable
loss.
B MICROPHONE
=
ши!
Gutter-mount antenna
Bumper-mount antenna
о р
e Best location for longer antennas.
C: Trunk-mount antenna
D: Roof-mount antenna
e Best location for a good radiation pattern.
e Drill a hole in the roof, or use a magnetic antenna base.
A high-quality electret condenser microphone is supplied with the
IC-28H. Plug it directly into the jack on the front panel of the
transceiver.
Optional microphones are available for mobile use with the 1С-28Н.
IC-HM14: DTMF Microphone
IC-HM16: Speaker-microphone (U.S.A. and Australia versions)
IC-HM17: Speaker-microphone (Europe, Italy and Spain versions)
HS-15 : Flexible Mobile Microphone
HS-15SB: Switch Box for HS-15 Microphone
