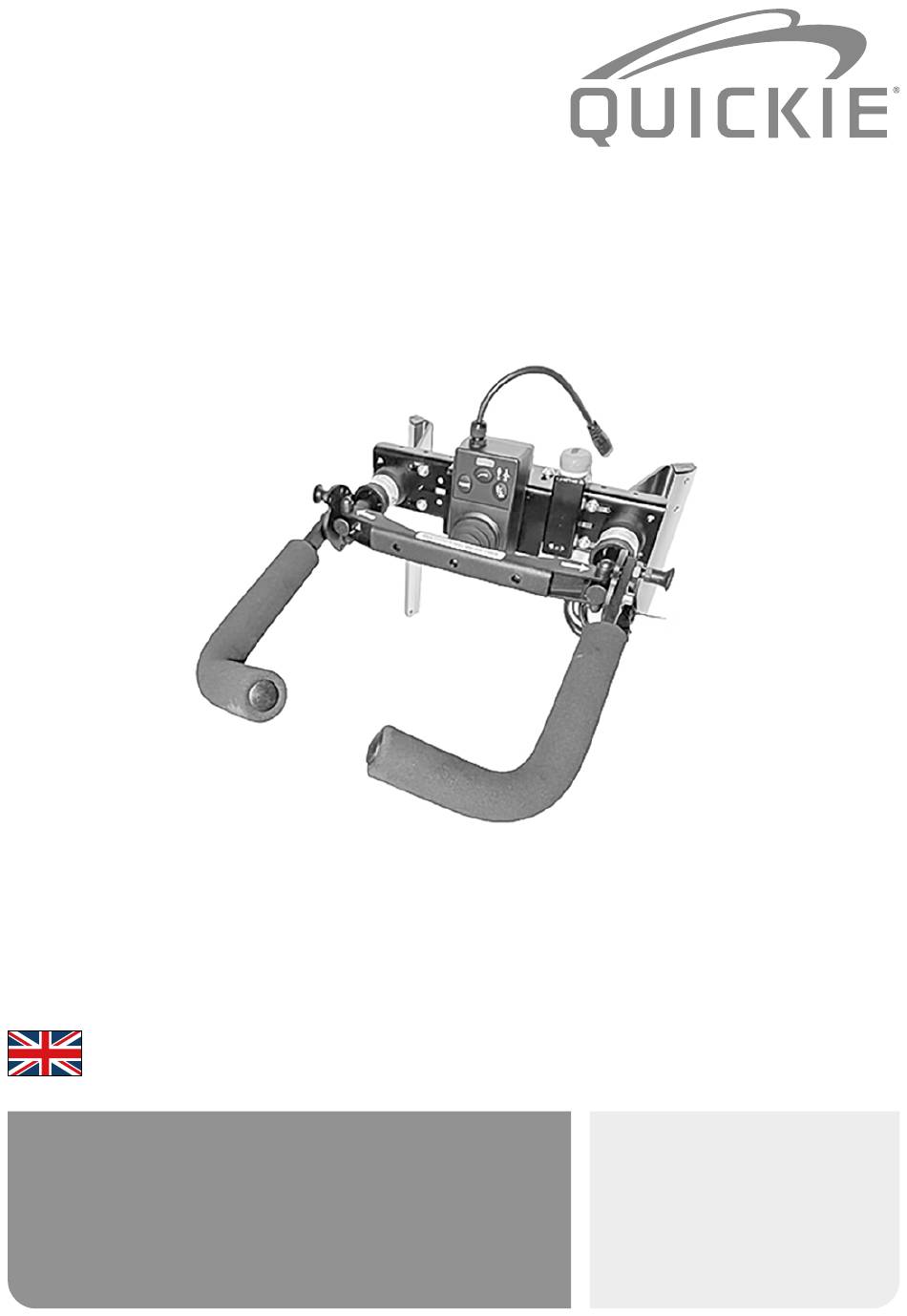

- Page 1 Attende attendant control by Attende AS Q300/Q500/Q700 000690771.GB with Sedeo Pro or Kids / Teens seating system USER AND Attende ASSEMBLY GUIDE attendant control...
- Page 2 Wheelchair Components We at SUNRISE MEDICAL have been awarded the ISO-13485 certificate, which affirms the quality of our products at every stage, from R & D to production. Options or accessories shown are available at extra cost. ISO 7010-M002 Instruction manual/booklet must be read! (Blue Icon) Attende attendant control | Rev.
- Page 3 If you have any queries about the use, maintenance or safety of your seating system, please contact your local approved Sunrise Medical service agent. If you do not know of an approved dealer in your area or have any other questions...
-
Page 4: Table Of Contents
Contents 1.0 User information ..........5 1.1 Article number for complete Scoot attendant control including mounting mechanism �������������������5 1.2 Prerequisite for safe use �������������������������������������������5 1.3 Danger during use ����������������������������������������������������5 1.4 Emergency stop button ��������������������������������������������5 If you are visually impaired, this 1.5 Before each use of the attendant control ����������������5 document can be viewed in PDF 1.6 Adjustment of the attendant control attachment ����6 format at www.SunriseMedical.co.uk 2.0 Usage ... -
Page 5: User Information
1.0 User information The attendant control can be adjusted in angle and height in the mechanics. This can pose a risk of finger/hand entrapment during adjustment and use. Ensure that the attendant handle To ensure complete usage and operation of Attende attendant and control switches are never subjected to clash with mechanism refer to Attende Owner manual. -
Page 6: Adjustment Of The Attendant Control Attachment
2.0 Usage: Check also always the function of the emergency stop button before driving the chair: Always drive the wheelchair at a speed that ensures safety Press down the emergency stop button while the chair is for the person sitting in the chair, the person operating the turned off. -
Page 7: Cleaning
3.0 Cleaning: 3.2 Periodic Inspection: The attendant control and its mounting should be regularly The attendant control can be regularly cleaned with a lightly checked for wear, potential malfunctions, damage, and dampened cloth. No joints require lubrication but must be material defects. -
Page 8: Parts And Options Attende Mechanisms
4.0 Parts and Options Attende mechanisms: 5.0 Attende attendant Control Mechanism on Sedeo Seat Systems There are 3 different attachments designed for various back 555546-1 Forus Sedeo Pro fixation variants of the Sedeo seat systems. For these 3 attachments, there is a common modular system for attaching various control panels, switches, additional control boxes, etc., for use in conjunction with the attendant control. -
Page 9: Baseplate
5.2 Baseplate (Fig.5.1) Fig. 5.1 The baseplate has holes for mounting various modules, additional control boxes, and other accessories that can be used in combination with the attendant control. 5.3 Attende onto Sedeo Pro back (Fig.5.2) Remove the top covers (A) at the end of each back tube. Then, Fig. -
Page 10: Attende Onto Sedeo Pro Advanced Back
5.4 Attende onto Sedeo Pro Advanced back (Fig.5.4) Fig. 5.4 Remove the top cover located on the back tubes by unscrewing the screws (A) on each side of the back. Next, mount the bracket into the rail with sliding nuts in the back tubes. - Page 11 English | Rev. A | Attende attendant control...
- Page 12 OM_ATTENDE_Attendant control_EU_ EN_RevA_2024-06-06 www.SunriseMedical.com www.attende.no...
