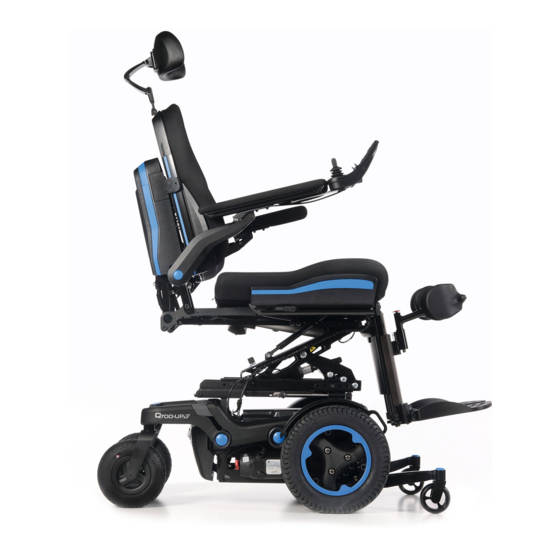

Quickie Q700 -UP M
This manual must be given to the user of this
Supplier:
wheelchair.
User:
Before using this wheelchair read this entire
manual and save for future reference.
®
Quickie Q700 -UP M
Este manual debe ser entregado el usuario de
Distribuidor:
esta silla de ruedas.
Usuario:
Antes de usar esta silla de ruedas, lea este manual
en su totalidad y guárdelo para futura referencia.
Cada una de las sillas se envía con un manual de instrucciones en inglés. El manual en español y francés
está disponible en formato PDF en nuestra página en Internet: www.SunriseMedical.com. Ingrese a la
página del producto específi co para descargar el manual, o comuníquese con el proveedor autorizado
de Sunrise Medical.
®
Quickie Q700 -UP M
Ce manuel doit être remis à l'utilisateur de ce
Au Fournisseur:
fauteuil roulant.
Avant d'utiliser ce fauteuil roulant, lisez l'intégralité
Utilisateur:
de manuel et conserver pour référence future.
Chaque fauteuil est livré avec un manuel d'instructions en anglais. Les versions en espagnol et en
français sont à votre disposition en format PDF sur le site : www.SunriseMedical.com. Veuillez vous rendre
à la page de votre produit pour télécharger le manuel dans la langue souhaitée, ou contactez un
fournisseur agréé Sunrise Medical.
QUICKIE Q700 -UP M
Seating Manual
®
®
®
®
®
Owner's Manual
Manual de
Instrucciones
Manuel
d 'instructions
P/N 247556 Rev. B
Instructions for Use

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Quickie Q700-UP M and is the answer not in the manual?

Questions and answers

Related Manuals for Sunrise Medical Quickie Q700-UP M

Summary of Contents for Sunrise Medical Quickie Q700-UP M

  • Page 1 à votre disposition en format PDF sur le site : www.SunriseMedical.com. Veuillez vous rendre à la page de votre produit pour télécharger le manuel dans la langue souhaitée, ou contactez un fournisseur agréé Sunrise Medical. P/N 247556 Rev. B Instructions for Use ®...

  • Page 2: Introduction

    Sunrise dealer. Please feel free to write or call us at the address and telephone number below: SUNRISE MEDICAL (US) LLC Customer Service Department 2842 N. Business Park Avenue...

  • Page 3: Table Of Contents

    ® Quickie Q700-UP M Seating Manual II. TABLE OF CONTENTS INTRODUCTION ..................2 SETTING UP THE WHEELCHAIR ............11 TABLE OF CONTENTS ................3 5.1 Seating system ..................11 5.2 Seat height ....................11 USER INFORMATION ................4 5.3 Set seat depth ..................11 1.1 This user manual ................4 5.4 Control system program ...............11 1.2 For further information ..............4 5.5 Set armrest width ................12...

  • Page 4: User Information

    Do not use your wheelchair until this entire manual (all booklets) has been read and understood! If one of the user manuals was not included with your wheelchair, please contact your Sunrise Medical authorized dealer immediately. 1.2 For further information Please contact your Sunrise Medical authorized dealer if you have any questions regarding the use, maintenance or safety of your wheelchair.

  • Page 5: Safety

    They must remain present and clearly legible throughout the entire lifespan of Fig. 2.1 the wheelchair. Replace or repair all illegible or damaged signs, symbols, and instructions immediately. Please contact your Sunrise Medical authorized dealer for assistance. Fig. 2.1: Warning – Danger of fi nger entrapment (pinch point). Fig. 2.2: Warning –...

  • Page 6: Safety: General Warnings

    The vent tray must be placed and maintained by a Sunrise Medical Never try a new maneuver on your own unless you are sure it is safe.

  • Page 7: General Description

    The wheelchair should be adjusted by a qualifi ed specialist. Incorrect settings may have negative consequences for the user. INTENDED USE: The Sunrise Medical Quickie Q700-UP M power wheelchairs provide seating standing function. This chair is intended for patients with spinal cord injury, spina bifi...

  • Page 8: Warnings For Components And Options

    Use positioning belts only with a rider who can cooperate. Ensure the rider WARNING! or attendant can easily remove the belts in case of emergency. If you use parts or make changes not authorized by Sunrise Medical it may create a NEVER use positioning belts: safety hazard and will void the warranty.

  • Page 9: Power Seating Safety

    Remain Clear During Power Accessory Operation 4.17 On/Off switch Please stay clear of any powered actuator while the component is in motion. Sunrise Medical power mechanisms move over large ranges of travel. Users WARNING! should be aware of their surroundings while components are in motion.

  • Page 10: Standing Position

    ® Quickie Q700-UP M Seating Manual 4.0 WARNINGS: COMPONENTS AND OPTIONS 4.19 Standing position WARNING! Elevating to a standing position and operation in standing position must only be done on a fl at surface. When the chair is in elevated position, never reach out from the chair, due the higher tipping risk. The operation of the standing function (and other predefi...

  • Page 11: Setting Up The Wheelchair

    Sunrise Medical authorized dealer, unless explicitly stated otherwise. Tool and calibration marks An M5 Allen key is supplied with the seating system. This can be used by a Sunrise Medical authorized dealer for adjusting all of the seating system settings.

  • Page 12: Set Armrest Width

    ® Quickie Q700-UP M Seating Manual 5.0 SETTING UP THE WHEELCHAIR 5.5 Set armrest width Fig.5.4 Set the armrest width Remove the two screws (A) using 5mm Allen key (included with chair) on the traversing tube as shown (Fig. 5.4) Move the armrest receiver brackets to the desired position.

  • Page 13: Set Leg Rests And Footplates

    ® ® Quickie Q700-UP M Seating Manual 5.0 SETTING UP THE WHEELCHAIR 5.7 Set leg rests and footplates WARNING! Be aware of your environment to ensure you do not injure your legs when leg rests are extended. Always ensure that the leg rests or footplates do not come into contact with the casters before driving the wheelchair.

  • Page 14: Pre-Set Headrest

    ® Quickie Q700-UP M Seating Manual 5.0 SETTING UP THE WHEELCHAIR 5.8 Pre-set headrest DANGER! If a headrest is part of the options selected for the user/chair, never drive the chair without the headrest attached. Never use the chair without a headrest if a person is transported with the chair in a vehicle. Headrest height (Fig.

  • Page 15: Pre-Set Fi Xed / Swing Away Controller

    5.10 Check after setup and/or adjustment of wheelchair After the initial setup by the Sunrise Medical authorized dealer or after making any adjustments to the wheelchair a check to confi rm that no interferences exist must be completed. Interferences can happen (but not limited to) adjustments to the joystick, armrest, specialty control mounts, leg rest, headrest, etc.

  • Page 16: Seating Positioning Accessories

    ® Quickie Q700-UP M Seating Manual 6.0 SEATING POSITIONING ACCESSORIES 6.1 Lap strap / seating positioning belt (Fig. 6.1) DANGER! This product is only to be used to position a single person in a wheelchair. Lap straps are not suitable for transit purposes. Approved occupant restraint systems must be used. Failure to heed these warnings may result in severe injury or death.

  • Page 17: Using The Seating System

    7.0 USING THE SEATING SYSTEM 7.1 Making a transfer Fig.7.1 Sunrise Medical recommends that you consult your health care provider for assistance in developing your personal front or side transfer technique to best suit your needs and avoid any personal injury. DANGER! To prevent a fall: Ensure controller is switched off...

  • Page 18: Curves

    ® Quickie Q700-UP M Seating Manual 7.0 USING THE SEATING SYSTEM 7.2 Curves DANGER! Full speed turns should not be attempted. If you need to turn sharply you must reduce your speed with the joystick or speed setting. This is particularly important when traveling across or down a slope. Disregarding this advice could lead to your wheelchair tipping over.

  • Page 19: Powered Seating Options

    Please stay clear of any powered actuator while the component is in motion. Sunrise Medical power mechanisms move over large ranges of travel. Users should be aware of their surroundings while components are in motion.

  • Page 20: Electric Standing Function

    Movement of the seat can be stopped at any time by releasing the joystick. The Quickie Q700-UP M has an electric standing function. This function makes it During a stop period, another memory position can be selected with a right possible for the user to stand in the wheelchair.
  • Page 21 ® ® Quickie Q700-UP M Seating Manual 7.0 USING THE SEATING SYSTEM 7.7.4 Delete custom programmed memory position (Fig. 7.11 - Fig. 7.14) Fig.7.11 Remove the rear cover of the backrest and connect a Switch with a 3.5mm Jack to the socket on the CxSM (Complex Seating Module).

  • Page 22: Standing Function

    7.8.2 Using a chest strap WARNING! The chest strap may only be assembled and adapted by a Sunrise Medical authorized dealer. Before operating the standing function, the chest strap and the positioning belt must be buckled in accordance with these user instructions.
  • Page 23 ® Quickie Q700-UP M Seating Manual 7.0 USING THE SEATING SYSTEM Adaptation adjustment Seat the user into the wheelchair. Feed the buckle on the chest strap through the loop. (Fig. 7.16) Pull the chest strap so that it fully supports the user’s upper body fi rmly and comfortably. (Fig. 7.17) Ensure that chest strap is not too tight.

  • Page 24: Maintenance And Cleaning

    Sunrise Medical Customer Service. Checking controller The contact details of your local Sunrise Medical Service Center can be found on Check the thin rubber gaiter or boot around the base of the joystick shaft the inside front cover of this booklet.

  • Page 25: Cleaning Your Seating System

    ® Quickie Q700-UP M Seating Manual 8.0 MAINTENANCE AND CLEANING 8.2 Cleaning your seating system WARNING! The wheelchair should be wiped over once per week with a slightly damp, not Always read the label on any commercial or domestic cleaning wet, cloth and any fl...

  • Page 26: Maintenance And Inspection Schedule

    * Daily = Before each use of the wheelchair. Quarterly = Every three (3) months. If fasteners are found to be loose a Sunrise Medical authorized dealer should tighten the fastener to the torque setting per size detailed below, unless stated otherwise in all appropriate owner’s manuals or instruction sheets (if applicable).

  • Page 27: Sunrise Limited Warranty

    Record your serial number here for future reference: WHAT AUTHORIZED DEALER MUST DO - 1. Obtain from Sunrise Medical, while this warranty is in eff ect, prior approval for return or repair of covered parts. Contact Customer Service for a Returned Material Authorization (RMA) number and ____________________________________________ information as to where to return the product.
  • Page 28 Customer Service: 800.333.4000 In Canada 800.263.3390 Sunrise Medical 2842 Business Park Ave. Fresno, CA 93727 • USA 247556 Rev. B ©2022 Sunrise Medical (US) LLC 03.2022 P/N 247556 Rev. B...
