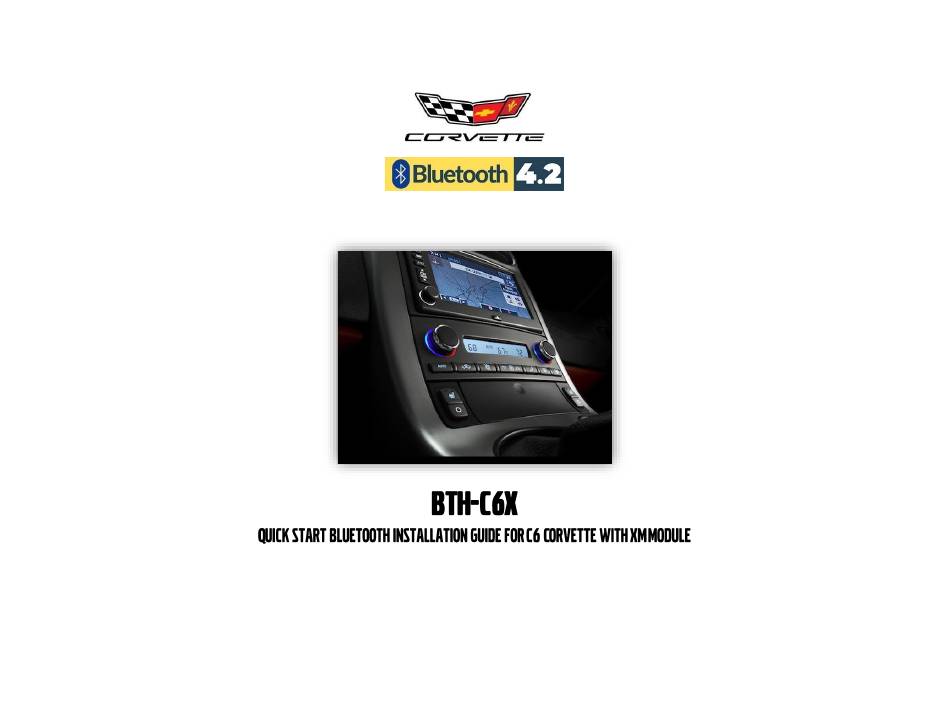

Discount Car Stereo BTH-C6X Quick Start Manual

For c6 corvette with xm module
Hide thumbs
1
2
3
4
5
6
7
8

Advertisement

Quick Links

Download this manual
Courtesy of: DiscountCarStereo.com
Serving the internet community since 1995
Driving without distraction is a necessity for a safer driving experience.
Created: September 17, 2024
Revised September 30, 2024

Advertisement

loading
Need help?

Need help?

Do you have a question about the BTH-C6X and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Discount Car Stereo BTH-C6X

Summary of Contents for Discount Car Stereo BTH-C6X

  • Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 Driving without distraction is a necessity for a safer driving experience. Created: September 17, 2024 Revised September 30, 2024...
  • Page 2 (e.g., Bluetooth and XM). Thanks to the BTH-C6X kit users able to keep factory radio and XM subscription while enjoying Bluetooth features only available on newer cars. If XM subscription has expired;...
  • Page 3 Fig. 4 5. Connect installation harness 16-pin plug (See Fig. 2A) to XM module 16- Fig. 2A pin socket vacated in step 1(See Fig. 3) 6. Route harness end toward the dashboard, armrest etc. 7. Go to internal fuse panel under passenger side toe board and connect/tap red wire to HTD Seat/WPR RLY (heated seat/wiper relay) fuse or any alternate 12V accessory source circled in red.
  • Page 4 8. Select an accessory fuse (see suggestions below) for the Add-A-Fuse circuit (See Fig. 6) 9. Remove that fuse from fuse box 10. Insert factory fuse (from step 8) into Add-a-fuse circuit empty slot (See Fig. 6) 11. Insert accessory wire to Add-a-fuse butt connector and crimp with crimping tool or pliers 12.
  • Page 5 16. Connect microphone right angle plug to module “MIC” input. (See Fig. 11) Optional USB extension cable installation Wind noise will negatively affect phone audio. Users are advised to install Notes: 1. Optional 6 ft. dash mount USB extension cable is not required for microphone away from wind/ventilation ducts etc.

  • Page 6: Installation

    Installation 2: Convertibles XM module located in console (waterfall) rear end between seats. Remove two 15mm Torx screws from cover 2. Remove 3 plastic pins holding from carpet panel 3. Complete the rest of the install by returning to step 3 on page 2. 4.

  • Page 7: Operation

    NO; XM ready means radio is capable of controlling optional XM module but tuner is not currently installed. Early C6 were pre-wired for the U2K option, but for the BTH-C6x to work vehicle must have an XM module (with or without subscription).
  • Page 8 Email support@discountcarstereo.com © 1995-Sep-24 Discount Car Stereo, Inc. All rights reserved. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks or registered trademarks of their respective companies or mark holders.
