- Page 1 Courtesy of: DiscountCarStereo.com Serving the internet community since 1995 BTH-JAG98 QUICK START BLUETOOTH INSTALL GUIDE FOR 1997-06 XK (X100) AND 1998-03 XJ (X308) WITH CD CHANGER Created August 16, 2024 Revised: November 21, 2024...
-
Page 2: Installation
Remove (2) 7mm bolts on right and left side (See Fig. 1A, 1B) PRODUCT SAFETY & DISCLAIMER READ ALL INSTRUCTIONS CAREFULLY BEFORE INSTALLING, FAILURE TO DO SO MAY CAUSE Remove (2) 7mm bolts from top (See Fig. 1A, 1B) PERSONAL INJURY OR DAMAGE TO PRODUCT AND/OR PROPERTY •... - Page 3 2. Pull inner frame out. 3. On CD changer, locate short black pigtail cable (it’s the only cable on CD changer) See Fig. 2 Fig. 4 Fig. 2 7. Connect 90-degree male plug (See Fig. 4a) to CD changer female socket (See Fig.
- Page 4 To minimize connecting errors, locate single pigtail on the CD auto changer Connecting harness to something other – (See Fig.4) than CD auto changer will result in low or no audio playback, no power to radio etc. 8. Carefully route install harness plug to center console (armrest/center glovebox) area.
-
Page 5: Module Installation

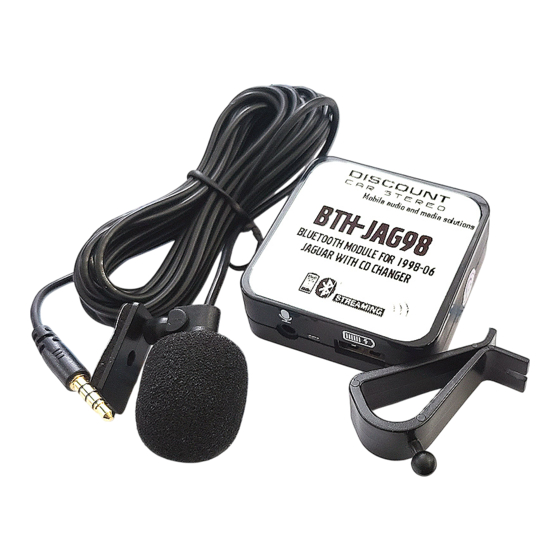

2. Prior to November 1, 2024: Module installation Tap installation harness red wire to 12V accessory switched supply (Do not We recommend installing the Bluetooth module (black box) in center armrest or connect to battery supply) glovebox. (Fig. 9). This area is also home to factory phone plug (See Fig. 10) and May we suggest tapping factory phone plug (if equipped). - Page 6 Accessory supply available at: F3, F4, and F5 (pre-2002) and F11, F13 (post 2002) XK/XKR F3, F5 (XJ) Please start engine, turn on the radio, press CD button to test for noise prior to finalizing install. Note: Fuse F5 (XJ) protects Jaguar cigar lighter sockets and prone to engine noise especially if used as a USB-type charging port.
- Page 7 3. Connect one end of included 3.5mm audio cable (See Fig. 14) to “AUX” Optional USB extension cable installation jack and connect the other end to audio device (within 3 ft.) Note: 1. Optional 6 ft. USB dash mount extension cable is not required for Proceed to installation step 5 operation, however it extends USB charging port (See Fig.
- Page 8 Pairing module Pairing varies among devices but basic steps are the same. This process is done upon initial install and will not have to be repeated Turn ignition and radio “ON” From your Bluetooth enabled device, turn the Bluetooth ON and search for Bluetooth devices.
-
Page 9: Feature Comparison Chart
Feature comparison chart Bluetooth operation Turn ignition to “ACC” or “ON” Turn radio ON. Feature BTA-JAG98 BT45-JAG BTH-JAG98 BTH-JAG98R Press “CD” button on radio to switch to Bluetooth mode Requires CD changer ✓ ✓ ✓ ✓ Retains CD playback ✓... -
Page 10: Frequently Asked Questions And Troubleshooting
To listen to CD’s or AUX, press play/pause button on remote or from audio device. 6. Can I connect the BTH-JAG98 to the back of the radio? What is the difference between the BTH-JAG98 and BTH-JAG98R? the BTH-JAG98 harness plugs into the CD changer plug in luggage The BTH-JAG98R connects behind the dash/radio and applicable to standard compartment or hatch and the module installs beneath armrest. - Page 11 • Professional installation recommended For help email support@discountcarstereo.com © 1995-Nov-24 Discount Car Stereo, Inc. All rights reserved. Information in this document is subject to change without notice. Other products and companies referred to herein are trademarks Fig. 24 or registered trademarks of their respective companies or mark holders.
