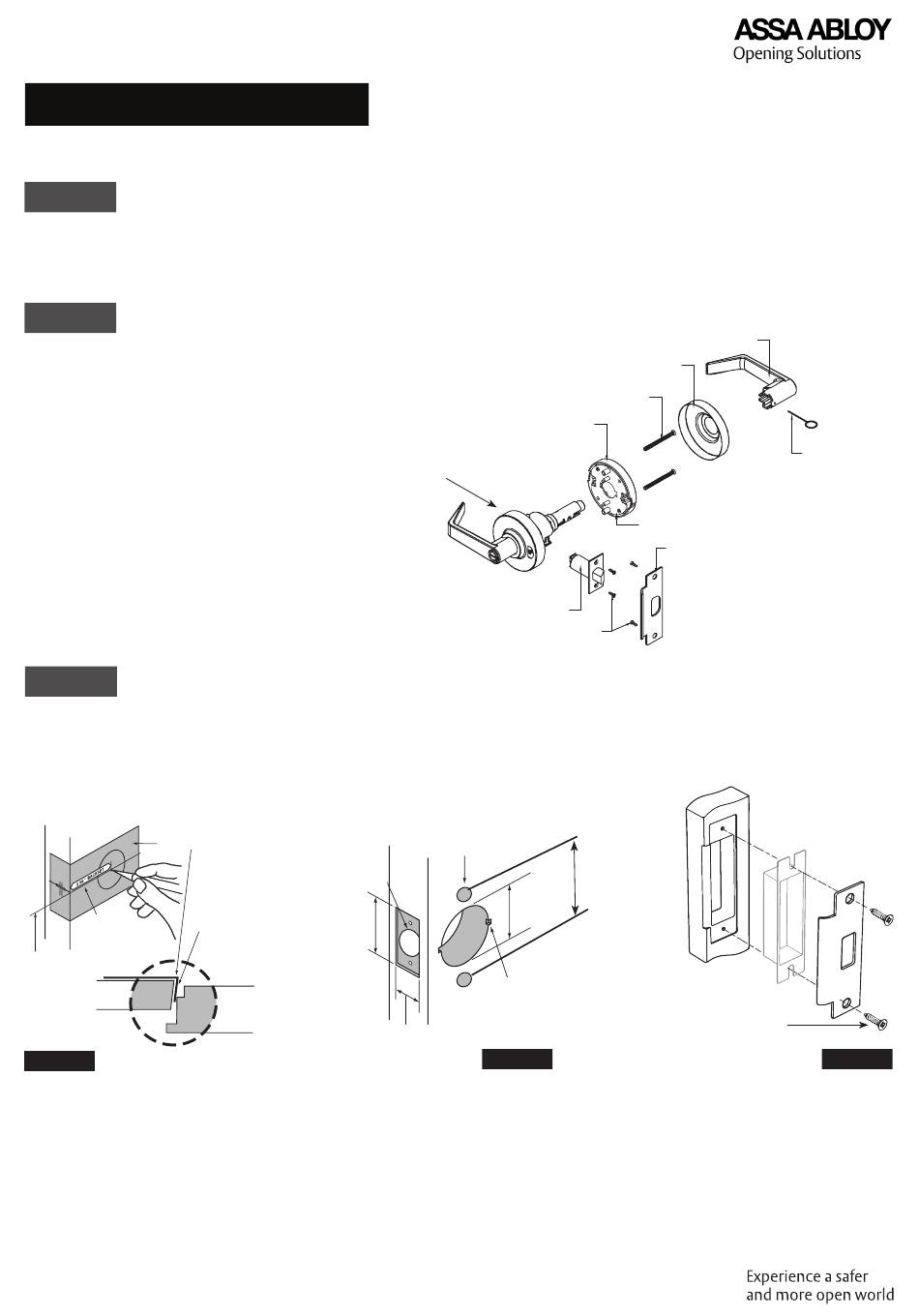

Assa Abloy YPL02 Installation Instructions

Installation Instructions
Cylindrical Indicator Lockset
Tools Required
1
• #2 Phillips Head Screwdriver
Product Components
2
Important: Do not remove
outside lever and rose assembly
from lockbody.
Door Preparation
3
1. Use template provided to mark the door (Figure 1).
2. Drill the door according to the template.
3. Verify the dimensions (Figure 2).
4. Install the strike (Figure 3).
Template
Backset must
match latch
Desired
height
above
DOOR
floor
FRAME
Figure 1
IMPORTANT
• The accuracy of door preparation is critical for proper functioning and security of this lever handle lock. Misalignment can
cause premature wear and a lessening of security.
• Be sure to verify backset before marking and drilling door.
For installation assistance contact Arrow Lock & Door Hardware at 1-800-327-8539 or Yale Locks & Hardware at 1-855-557-5078
Copyright © 2021-2023 ASSA ABLOY Access and Egress Hardware Group, Inc. All rights reserved. Reproduction in whole or in part without
the express written permission of ASSA ABLOY Access and Egress Hardware Group, Inc. is prohibited.
• Push pin tool (provided)
Outside Trim Assembly
1" (25mm)
hole
2-1/4"
(57mm)
Door bevel
• 5/16" drill bit • 1/8" drill bit
Through-bolt Screws #10-32 x 2-1/4
Inside Rose Support
Latch
Latch & Strike Screws
5/16" (8mm) hole
2-1/8"
(54mm)
hole
5/32" (4mm)
1-1/8"
(29mm)
Figure 2
• 5/32" drill bit
Inside Lever
Inside Rose
"
Inside Plate
Strike
2-3/4"
(70 mm)
Attaching Screws
#12 -24 x 13/16"
MEMN15 01/23
Lever Release
Push Pin
Figure 3
