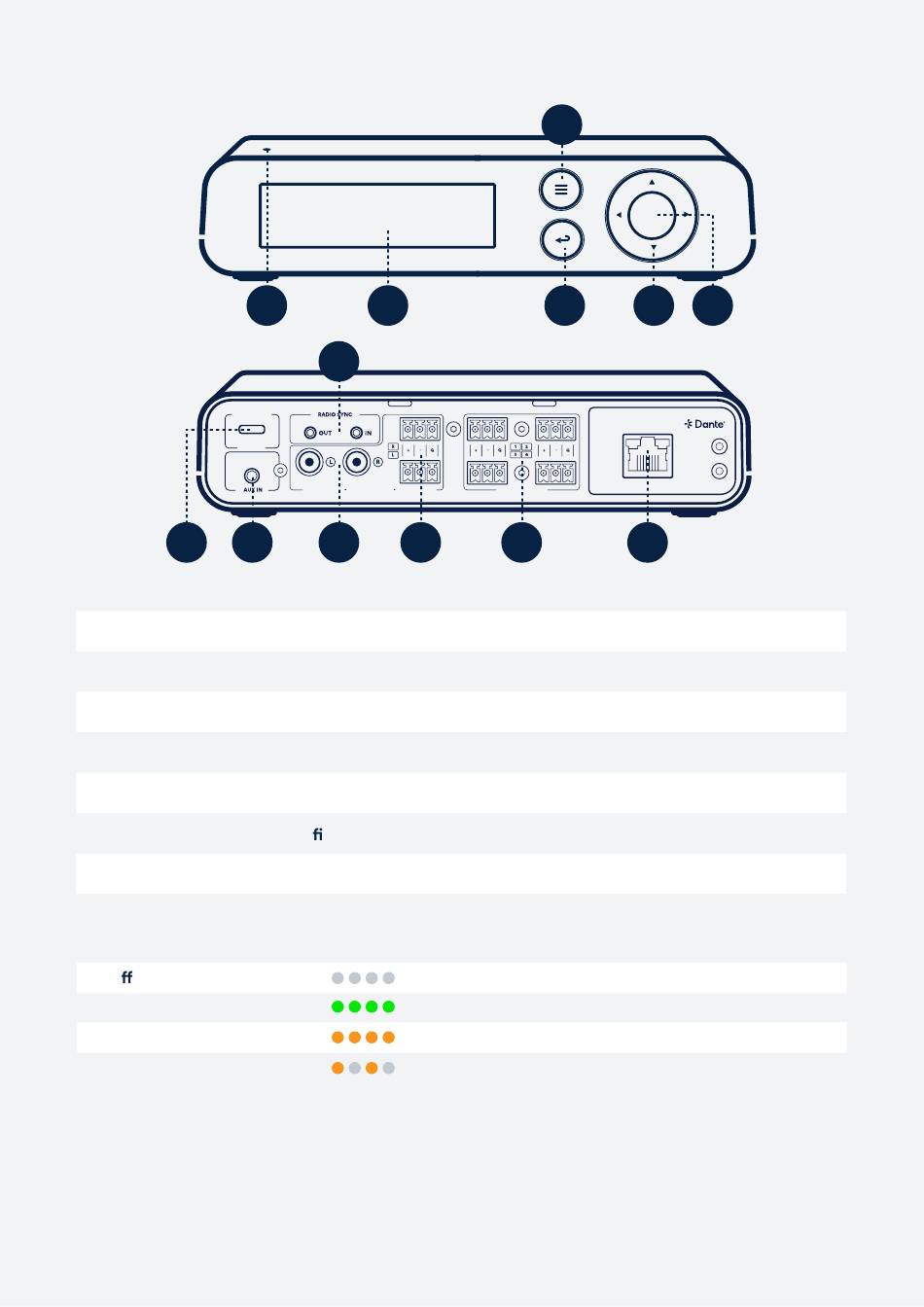

3.4 Channel screen, inputs and outputs

AUTOMIX
Audio IN/OUT
Power
7 8
1. Status LED
2. Display
3. System menu
4. Back button
5. Navigation buttons
6. Press to open or to con rm
7. Automix Audio In/Out, Power, USB-C

3.5 Hub DSP Receiver status LED behavior

O
Green
Orange
Orange blinking
1 2
9
Unbalanced AUTOMIX Balanced
10 11
Not powered
Power on, Transmitters paired to Hub
Power on, No transmitters connected to Hub
In pairing mode
3
4 5
Network/PoE
MIC
12 13
8. AUX in 3.5mm
9. Radio sync In/Out
10. Automix - RCA, unbalanced, Line level
11. Automix - L&R, 3-pin, balanced, Mic level
12. Mic (1-4), 3-pin, balanced, Mic level
13. Network, PoE, Dante Audio in & out (4x4)
