Summary of Contents for Catchbox Plus
-
Page 1: Table Of Contents

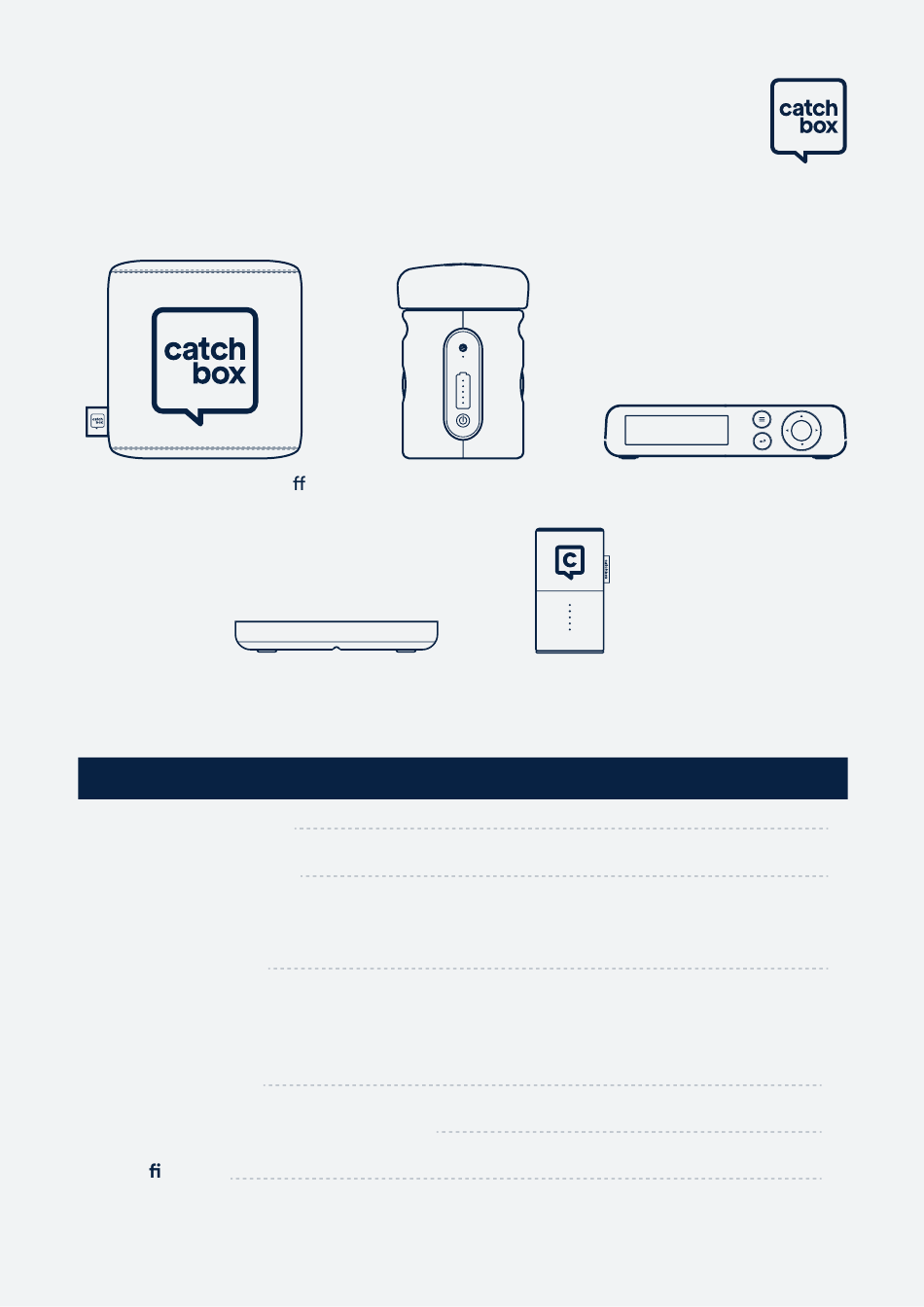

Catchbox Plus User Manual Copyright 2022 Catchbox SIA version 1.0 Cube Cover with ViralO ™ Cube Transmitter Hub Receiver Cube Wireless Charger Clip Transmitter Contents 1. Safety instructions 2. Product description 2.1. Overview 2.2. DECT Wireless Standard 3. System products 3.1. -
Page 2: Safety Instructions
1. Safety instructions Notice Before using the product, read and understand the user manual and inform others of proper usage. Follow all warnings and instructions on the product and in this manual. Keep this user manual and always include it when passing the equipment on to third parties. Warning Not heeding these warnings may lead to serious injury or property damage. - Page 3 Throwing the Cube To throw the Cube microphone, nd someone in the audience who wants to ask a question or make a comment. Make sure that the person and those around them are aware of the situation and are prepared to catch. Short, underhand passes of up to 5 m / 16 ft distance are recommended.
-
Page 4: Product Description
DECT-enabled devices such as cordless phones or translation systems may cause interference if used close to the Catchbox Plus system. The wireless range of Catchbox Plus product is 100 m / 330 ft under ideal working conditions (Line of Sight). However, indoor obstacles like walls, furniture and people may reduce the e ective range. -
Page 5: System Products
3. System products 3.1. Hub Receiver The Hub is a two-channel microphone receiver at the heart of the Plus system. Manage your mics through the intuitive graphical UI, connect and monitor your systems via API or utilize built-in Dante™ audio over IP 3.1.1. - Page 6 For using each wireless channel separately use Balanced audio outputs Mic 1 and Mic 2. For using Mixed audio output use Unbalanced audio output RCA OUT. Mixed audio output mixes both wireless channels, Auxiliary-in and USB-In if the Catchbox Hub is selected as a Output device on your computer.
- Page 7 3.1.4. Hub displays Hub screen displays are structured into Output and Input screens. Output screen gives an easy access to control volume levels for all of the outputs of the Hub and Input screen allows to manage wireless channel gain level and channel settings as well as gives an overview of other inputs Output screen The Output screen appears when the Hub is switched-on or after a long press of Back button.
- Page 8 9. Settings of selected Input channel 3.1.5. Hub menu Settings Initiate pairing Select the Wireless channel in which you want to pair a new Catchbox transmitter. Go into the channel setting, choose "Pairing" and activate it by selecting "Start". Mute function To activate Mute for any input or output channel select the desired channel and press Con rm button.
-
Page 9: Cube Transmitter
3.2. Cube Transmitter Make sure everyone can be heard and all participants can contribute to the conversation. The throwable cube microphone makes it easy to 'mic the whole room' in a dynamic, enjoyable and cost-e ective way. 3.2.1. Cube operating elements and connections 1. - Page 10 3.2.3. Cube locking mechanism The locking mechanism is composed of two magnets that attract each other when correctly aligned. Remove the Transmitter from the outer Cover by twisting it 90 degrees and pulling upwards. This motion will misalign the internal magnets and allow for easy removal of the Transmitter unit. 3.2.4.
- Page 11 3.2.5. Charging Cube Charging Cube with USB cable Plug the Power supply to AC mains outlet and connect it to the USB-C socket located on the rear of the Transmitter. LEDs on the front of the Transmitter will light up indicating the state of charge of the battery.
-
Page 12: Clip Transmitter
3.3. Clip Transmitter Our innovative Clip microphone houses a powerful omnidirectional microphone in a compact, user-friendly design. Clip can be worn by a teacher or meeting leader to ensure seamless speech and powerful presentations. 3.3.1. Clip operating elements and connections 1. - Page 13 3.3.2. Clip Status LED behaviour Not powered Green Power on, Transmitters paired to Hub Amber Power on, No transmitters connected to Hub Amber blinking In pairing mode 3.3.3. Using Clip Wear it attached to clothing To use the Clip, simply clip it on the collar or a lapel of clothing. An optimal distance of 20 cm / 8 in will provide the clearest sound.
- Page 14 3.3.4. Charging Clip Charging Clip with USB cable Plug the Power supply to AC mains outlet and connect it to the USB-C socket located on the bottom of the Clip. LEDs on the front of the Clip will light up indicating the state of charge of the battery.
-
Page 15: Troubleshooting
4. Troubleshooting No sound The Transmitter and the Receiver Pair the Transmitter and the Receiver are not paired. units. The Transmitter or the Receiver is not powered. Turn on the Transmitter. Plug the Receiver into a wall socket and turn on. Volume on the Receiver is on mute. -
Page 16: Maintenance, Storage And Disposal
5. Maintenance, Storage, and Disposal Proper maintenance and storage of the Catchbox Plus wireless system will help ensure the product remains operational and safe to use. Improper maintenance or storage, in turn, can lead to equipment failure which can cause serious injury during use. Always refer to this user manual for proper maintenance, storage, and disposal instructions and do not throw away this user manual. - Page 17 5.4. Maintenance of the lithium-ion battery This product contains rechargeable lithium-ion battery. Please follow these guidelines: Do not open or modify Cube transmitter to access or replace the battery. If it is necessary to replace Clip battery, purchase the original lithium-ion battery from manufacturer or registered partners.
-
Page 18: Certi Cation
6. Certi cation Catchbox Plus system consists of: Catchbox Cube (Model #:CBPLTX002) Catchbox Clip (Model #: CBPLCL001) Catchbox Hub (Model #: CBPLRX002) Catchbox Wireless Charger (Model #: CBWCH002) Catchbox Cube (Model #:CBPLTX002) Catchbox Clip (Model #: CBPLCL001) Catchbox Hub (Model #: CBPLRX002)
