Rugged Ridge 11541.13 Manual

JK Wrangler Modular XHD Aluminum Front Bumper Winch Plate
Contents:
1. Winch Plate (1)
2. Nut plate (2)
3. M10 Hex Bolts (2)
4. M10 Flat Washers (2)
Note: Bumper will need to be removed if previously installed.

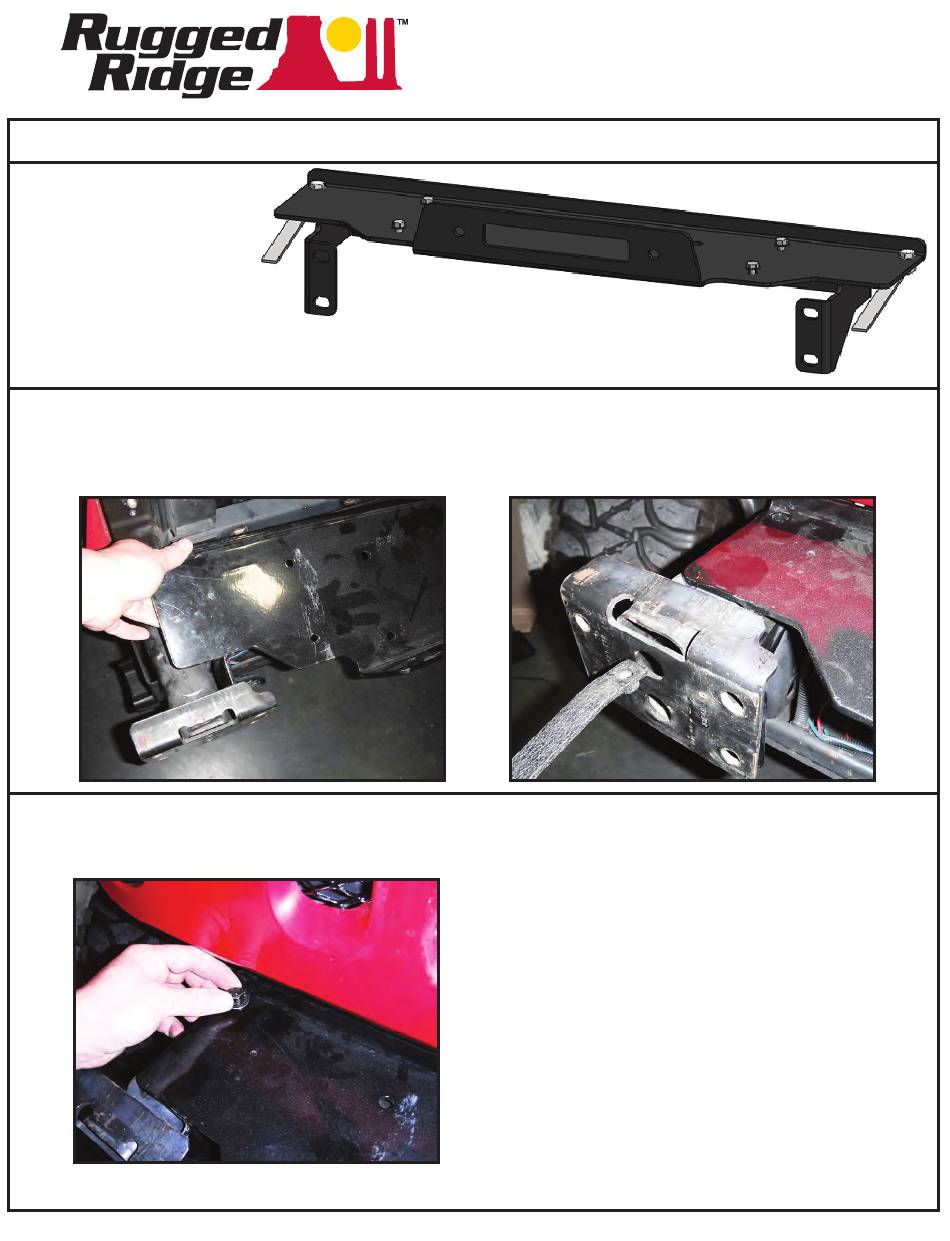

1. Install the winch plate on top of the frame horns behind the front mounting plates. Fit winch plate
snug to the backside of the frame bumper mounting plates.
2. Insert the nut plate into the top hole of the frame. Nut should be on the bottom side of the plate.
Repeat for opposite side.
3. Insert a M10 hex bolt and M10 washers thru the hole of the winch plate and frame threading into the
nut plate. Tighten. Repeat for opposite side.
4. Install bumper. Refer to bumper mounting instructions.
Rev. 8/11
© Copyright Omix-Ada 2011
Page 1 of 1
