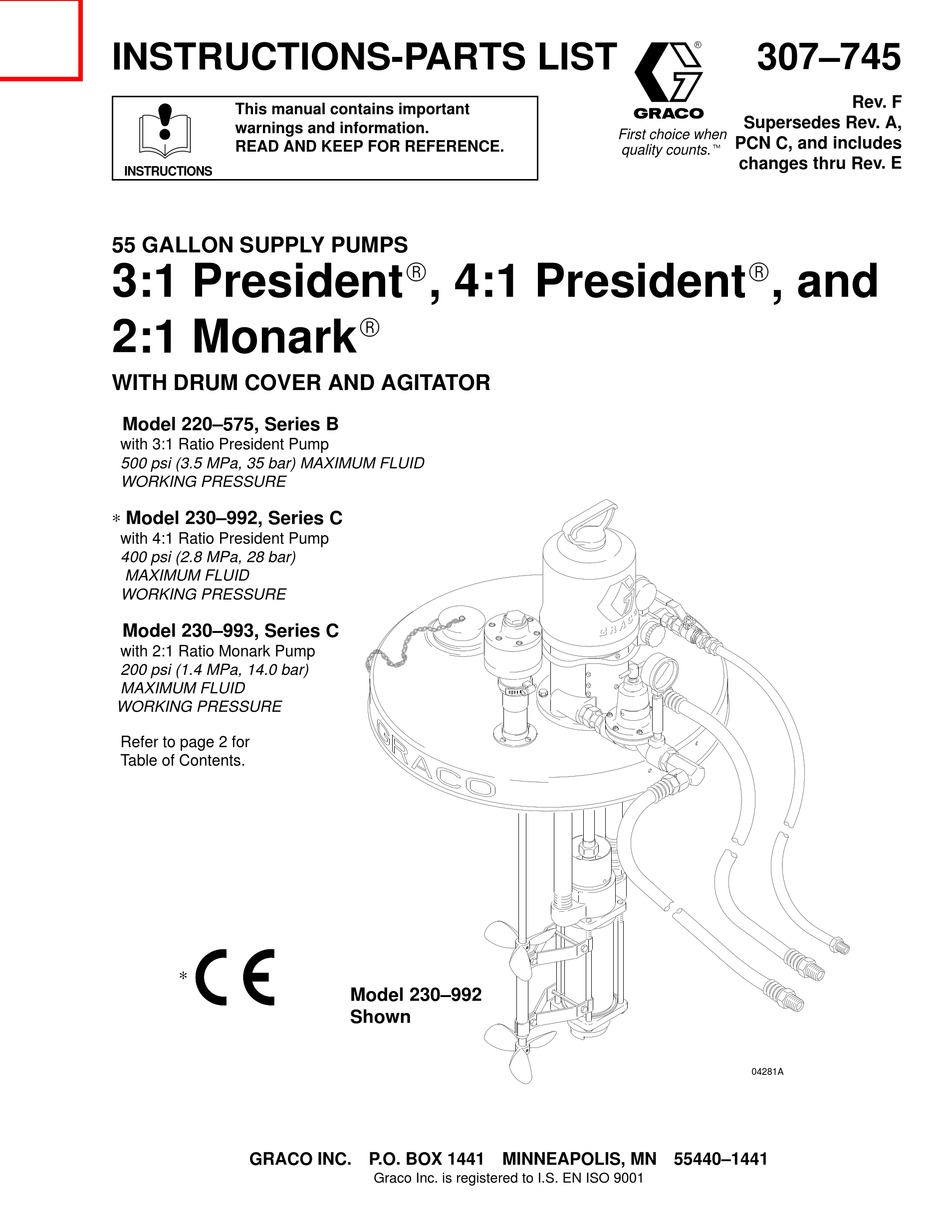

INSTRUCTIONS-PARTS LIST
This manual contains important
warnings and information.
READ AND KEEP FOR REFERENCE.
INSTRUCTIONS
55 GALLON SUPPLY PUMPS
3:1 President , 4:1 President , and
2:1 Monark
WITH DRUM COVER AND AGITATOR
Model 220–575, Series B
with 3:1 Ratio President Pump
500 psi (3.5 MPa, 35 bar) MAXIMUM FLUID
WORKING PRESSURE
∗ Model 230–992, Series C
with 4:1 Ratio President Pump
400 psi (2.8 MPa, 28 bar)
MAXIMUM FLUID
WORKING PRESSURE
Model 230–993, Series C
with 2:1 Ratio Monark Pump
200 psi (1.4 MPa, 14.0 bar)
MAXIMUM FLUID
WORKING PRESSURE
Refer to page 2 for
Table of Contents.
∗
GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441
Model 230–992
Shown
Graco Inc. is registered to I.S. EN ISO 9001
307–745
Supersedes Rev. A,
First choice when
PCN C, and includes
quality counts.
changes thru Rev. E
04281A
Rev. F
Advertisement
Table of Contents
Related Manuals for Graco B Series
Summary of Contents for Graco B Series
- Page 1 200 psi (1.4 MPa, 14.0 bar) MAXIMUM FLUID WORKING PRESSURE Refer to page 2 for Table of Contents. ∗ Model 230–992 Shown 04281A GRACO INC. P.O. BOX 1441 MINNEAPOLIS, MN 55440–1441 Graco Inc. is registered to I.S. EN ISO 9001...
-
Page 2: Table Of Contents
Read all instruction manuals, tags, and labels before operating the equipment. Use the equipment only for its intended purpose. If you are not sure, call your Graco distributor. Do not alter or modify this equipment. Use only genuine Graco parts and accessories. -
Page 3: Warnings
WARNING MOVING PARTS HAZARD The air motor piston can pinch or amputate your fingers. The rotating blades of the agitator can pinch or amputate your fingers or other body parts and can cause splashing in the eyes or on the skin. Always shut off the agitator and disconnect the air line before adjusting the angle of the agitator, removing the agitator from the drum, or checking or repairing any part of the agitator. - Page 4 WARNING FIRE AND EXPLOSION HAZARD Improper grounding, poor ventilation, open flames or sparks can cause a hazardous condition and result in a fire or explosion and serious injury. Ground the equipment and the object being sprayed. Refer to Grounding on page 5. If there is any static sparking or you feel an electric shock while using this equipment, stop spray- ing immediately.
-
Page 5: Setup
Solvent pails used when flushing: Follow your local parts drawing. code. Use only metal pails, which are conductive, Accessories are available from your Graco placed on a grounded surface. Do not place the pail representative. If you supply your own... -
Page 6: Connecting The Unit And Accessories
Setup The installation shown in Fig. 2 is only a guide for selecting and installing system components and accessories. Contact your Graco representative for assistance in designing a system to suit your particular needs. Connecting the Unit and Accessories The fluid line must include a fluid drain valve (K),... -
Page 7: Operation
Operation Pressure Relief Procedure Flush the pump before first use. The pump is tested with lightweight oil, which is left in to protect the pump parts. If the fluid you are using may be WARNING contaminated by the oil, flush it out with a compatible solvent. -
Page 8: Adjusting The Unit
Operation 8. Shut off the air to the pump, open the bleed–type 5. When the paint returns through the return line in a master air valve, and open the drain valve (K). steady stream, turn on the air to one gun, open Leave the solvent in the system overnight or, if both fluid shutoff valves (C) near the gun, and possible, all weekend. -
Page 9: Shutdown And Care Of The Pump
7. Circulate the fluid in the lines often enough during the shutdown to prevent the paint from drying. 2. If using a Graco fluid pressure regulator at the gun, reverse its regulating key and thread it into NOTE: To drain the circulating lines and flush the the regulator cap as far as it will go. -
Page 10: Parts Drawing
Parts Drawing Model 230–992, Series B Model 230–993, Series B 4:1 Ratio President Carbon Steel 2:1 Ratio Monark Carbon Steel 55 Gallon Drum System 55 Gallon Drum System Includes items 1 to 4, and 6 to 12 Includes items 2 to 6, and 11 Ref. -
Page 11: Parts List
Parts List Model 230–992, Series B Ref No. 4 Regulator and Hose Kit 4:1 Ratio President Carbon Steel Includes items 201 to 207 55 Gallon Drum System Ref. Includes items 1 to 4, and 6 to 12 Part No. Description Qty. - Page 12 Parts Drawing Model 220–575, Series B Remove and discard 1/2 x 3/8 npt nipple from outlet of 3:1 Ratio President Stainless Steel air regulator (5a), and replace with 1/2 npt nipple (5c). Then 55 Gallon Drum System connect air regulator assy to pump air inlet. Includes items 1–35 Agitator (3) is tilted at a 6 angle.
- Page 13 Parts List Model 220–575, Series B 3:1 Ratio President Stainless Steel 55 Gallon Drum System Part Part Description Description 220–564 PUMP, President 185–393 TUBE, return; sst; 1” npt(m) See 308–793 for parts 178–941 NUT, hex; 1–5/8–18 unef–2b 237–309 COVER, drum, 55 gal. (200 liter) 185–394 ADAPTER, return;...
- Page 14 Notes 307–745...
-
Page 15: Technical Data
Technical Data Category Model 220–575 Model 230–992 Model 230–993 Ratio Maximum fluid working 500 psi (3.5 MPa, 35 bar) 400 psi (2.8 MPa, 28 bar) 200 psi (1.4 MPa, 14 bar) pressure Maximum air input 166 psi (1.2 MPa, 11.6 100 psi (0.7 MPa, 7 bar) 100 psi (0.7 MPa, 7 bar) pressure... -
Page 16: Warranty
Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
