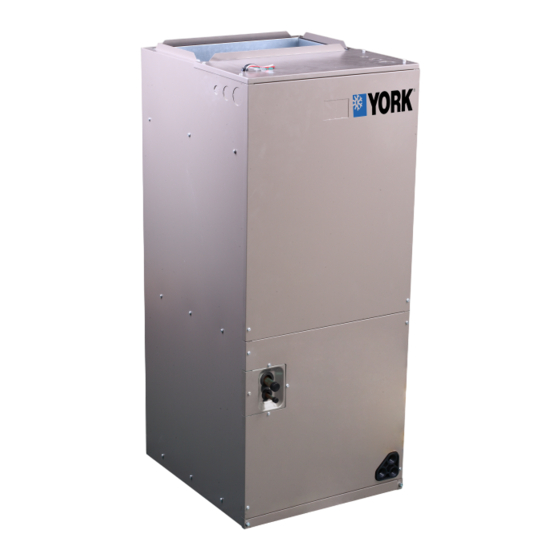

Ahu air conditioner, high efficiency air handlers 1.5-5tons

Advertisement

Quick Links

INSTALLATION MAN UAL
AHU Air Conditioner
Read this manual before installation and operation
Make sure that it is well kept for later reference
YMSFXH018BAAK--X
YMSFXH036BAAK--X
YMSFXH048BAAK--X

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the YORK YMSFXH018BAAK Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Johnson Controls YORK YMSFXH018BAAK Series

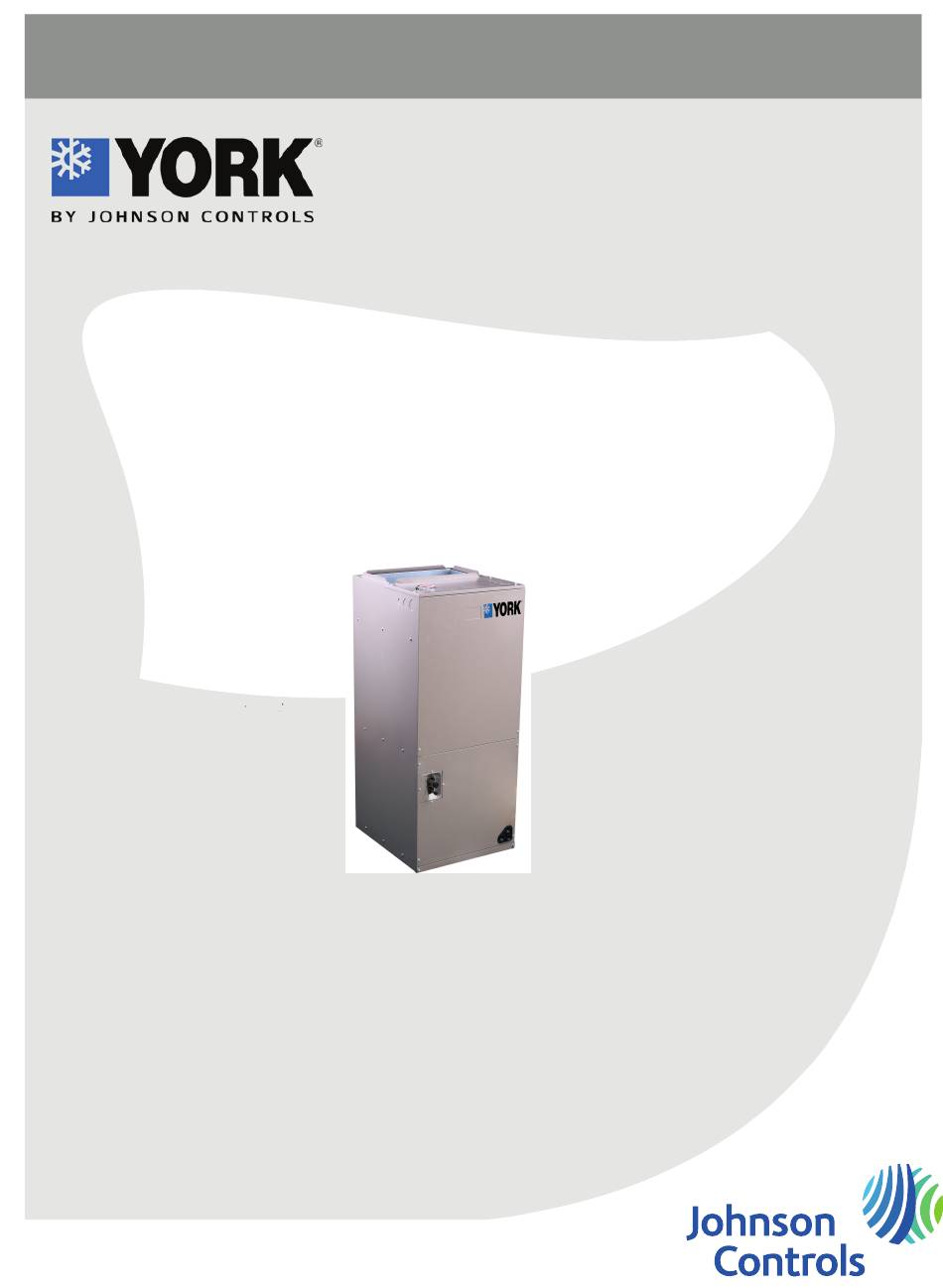

  • Page 1 INSTALLATION MAN UAL AHU Air Conditioner YMSFXH018BAAK--X YMSFXH036BAAK--X YMSFXH048BAAK--X Read this manual before installation and operation Make sure that it is well kept for later reference...
  • Page 2 INSTALLATION INSTRUCTIONS HIGH EFFICIENCY AIR HANDLERS 1.5-5Tons FEATURING R-410A OR R22 REFRIGERANT RECOGNIZE THIS SYMBOL AS AN INDICATION OF IMPORTANT SAFETY INFORMATION WARNING These instructions are intended as an aid to qualified licensed service personnel for proper installation, adjust- ment and operation of this unit. Read these instructions thoroughly before attempting installation or operation.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS 1.0 SAFETY.........................3 2.0 GENERAL......................5 2.1 UNIT DIMENSIONS..................6 3.0 APPLICATIONS....................7 3.1 VERTICAL UPFLOW..................7 3.2 VERTICAL DOWNFLOW.................7 3.3 HORIZONTAL....................8 3.4 INSTALLATION IN AN UNCONDITIONED SPACE........10 4.0 ELECTRICAL WIRING..................10 4.1 POWER WIRING...................10 4.2 CONTROL WIRING..................11 4.3 GROUNDING....................11 4.4 ELECTRICAL DATA..................11 4.5 ELECTRIC KIT MCA/MOP DATA..............12 5.0 AIRFLOW PERFORMANCE................13 6.0 DUCTWORK......................15...
  • Page 4: Safety

    This document is customer property and is to remain with this unit. These instructions do not cover all the different variations systems nor does it provide for every possible contingency to be met in connection with installtion. All phases of this installation must comply with NATIONAL STATE AND LOCAL CODES.
  • Page 5 WARNING The unit must be permanently grounded. Failure to do so can result in electrical shock causing personal injury or death. WARNING PROPOSITION 65: This appliance contains fiberglass insulation. Respirable particles of fiberglass are known to State of California to cause cancer. All manufacturer products meet current federal OSHA Guidelines for safety.
  • Page 6: General

    WARNING The first 36 inches of supply air plenum and ductwork must be constructed of sheet metal as required by NFPA 90B. The supply air plenum or duct must have a solid sheet metal bottom directly under the unit with no openings, registers or flexible air ducts located in it.
  • Page 7: Unit Dimensions

    NOTE: 25” CLEARANCE IS REQUIRED IN THE FRONT 2.1 UNIT DIMENSIONS OF THE UNIT FOR FILTER AND COIL MAINTENANCE. ELECTRICAL CONNECTIOS MAY EXIT TOP OR EITHER SIDE SUPPLY AIR HIGH VOLTAGE CONNECTION 7/8”, FLANGES ARE PROVIDED 1-23/64”, 1-23/32” DIA KNOCK OUTS FOR FIELD INSTALLATION LOW VOLTAGE CONNECTION BREAKER SWITCH...
  • Page 8: Applications

    3.0 APPLICATIONS 3.1 VERTICAL UPFLOW Vertical Upflow configuration is the factory set on all models (see Fig 1). If a side return air opening is required, field fabricate a return air plenum with an opening large enough to supply unit and strong enough to support unit weight. If return air is to be ducted, install duct flush with floor.
  • Page 9: Horizontal

    Using a screwdriver or pencil, lift blue plastic tab with hole away from breaker until breaker releases from mounting opening. With breaker held in hand, rotate breaker so that “on” position is up, “off” position is down with unit in planned vertical mounting position. insert right wire bundle into top right breaker lug, ensuring all strands of all wires are inserted fully into lug, and no wire insulation is in lug.
  • Page 10 ENSURE THE RETAINING CHANNEL IS FULLY ENGAGED WITH THE COIL RAIL. DETAIL A RAILS RAILS Fig.3 VERTICAL DOWNFLOW & HORIZONTAL LEFT APPLICATIONS (lower front service panel removed “view”.) STRAPS TOP AIR STOP REAR WATER CATCHER HORIZONTAL ADAPTER KIT FRONT WATER CATCHER AUXILIARY HORIZONTAL VAPOR LINE CONNECTION...
  • Page 11: Installation In An Unconditioned Space

    CAUTION Horizontal units must be configured for right hand air supply or left hand air supply. Horizontal drain pan must be located under indoor coil. Failure to use the drain pan can result in property damage. Conversion in Horizontal Direction: Horizontal left-hand supply can be changed to horizontal right-hand supply by removing the indoor coil and reinstalling 180°...
  • Page 12: Control Wiring

    4.2 CONTROL WIRING IMPORTANT: Class 2 low voltage control wiring should not be run in conduit with main power wiring and must be separated from power wiring, unless class 1 wire of proper voltage rating is used. • Low voltage control wiring should be 18 Awg. color-coded. For lengths longer than 100 ft., 16 Awg.
  • Page 13: Electric Kit Mca/Mop Data

    4.5 ELECTRIC KIT MCA/MOP DATA MAX.Fuse or Breaker Fan speed MIN. Circuit Ampacity Air Handler (kW)Electric Heat Kit (AC/HP) (HACR) Ampacity Model Heat Model Low Medium High • • • 27.2 24.6 EHK05A • • 40.8 36.9 EHK08A • 54.4 49.2 EHK10A •...
  • Page 14: Airflow Performance

    Electric Heater Kits Kit# Description Ref. Air Handler use EHK05A 5kW Heat Strip 18,24,30,36,42,48,60 EHK08A 18,24,30,36,42,48,60 7.5kW Heat Strip EHK10A 18,24,30,36,42,48,60 10kW Heat Strip EHK15B 15kW Heat Strip, Double Breaker's panel 36,42,48,60 EHK20B 20kW Heat Strip, Double Breaker's panel 36,42,48,60 5.0 AIRFLOW PERFORMANCE Airflow performance data is based on cooling performance with a coil and no filter in place.
  • Page 15 CFM(Watts) Model Motor External Static Pressure-Inches W.C.[kPa] Number Speed 0[0] 0.1[.02] 0.16[.04] 0.2[.05] 0.3[.07] 0.4[.10] 0.5[.12] 0.6[.15] 0.7[.17] 0.8[.20] Watts 1.39 1.35 1.32 1.26 1.22 1.19 Amps 1094 1043 1012 Middle Watts 1.46 1.43 1.38 1.35 1.26 Amps 1374 1311 1268 1240 1164...
  • Page 16: Ductwork

    The air distribution system has the greatest effect on airflow. The duct system is totally controlled by the contractor. For this reason, the contractor should use only industry-recognized procedures. Heat pump systems require a specified airflow. Each ton of cooling requires between 350 and 450 cubic feet of air per minute (CFM), or 400 CFM nominally.
  • Page 17: Refrigerant Connections

    7.0 REFRIGERANT CONNECTIONS Keep the coil connections sealed until refrigerant connections are made. See the Installation Instructions for the outdoor unit for details on line sizing, tubing installa- tion, and charging information. Coil is shipped with “No charge”. Evacuate the system before charging with refriger- ant.
  • Page 18: Air Filter (Not Factory-Installed)

    • Install drain lines so they do not block service access to front of the unit. Minimum clearance of 24 inches is required for filter, coil or blower removal and service access. • Make sure unit is level or pitched slightly toward primary drain connection so that water will drain completely from the pan.
  • Page 19: Filter Installation Dimensions

    9.0 FILTER INSTALLATION DIMENSIONS FILTER RAILS UNIT MUST BE SLIGHTLY INCLINED FILTER COVER “H” MANUAL BOLT NOTE: Air filter is factory supplied (optional) Fig. 6 EXTERNAL FILTER BASE DIMENSIONAL DATA Return length FILTER SIZE Return width MODEL "W" IN [mm] "D" IN [mm] "H"...
  • Page 20: Wire Diagram

    10.0 WIRING DIAGRAM 1. To avoid the electrical shock, please connect the air conditioner with the ground lug. The main power plug in the air conditioner has been joined with the ground wiring, please don't change it freely. 2. The power socket is used as the air conditioner specially. 3.
  • Page 21 FOR OPTIONAL ELECTRIC HEAT LINE VOLTAGE FACTORY STANDARD FIELD INSTALLED FACTORY OPTIONAL VOLTAGE FACTORY STANDARD FIELD INSTALLED FACTORY OPTIONAL USE COPPER CONDUCTORS ONLY WARNING CABINET MUST BE PERMANENTLY MOTOR GROUNDED AND ALL WIRING TO CONFORM TO I.E.C,N.E.C,C.E.C,C.L.C,AND LOCAL CODES AS APPLICABLE REPLACEMENT WIRE MUST BE THE SAME GAUGE AND INSULATION TYPE AS ORIGINAL WIRE...
  • Page 22 Fig.10: Indoor Unit Wiring Diagram for Electric Heat. E L E C T R I C W I R I N G G A U G E Wiring gauge for A/C systems 30/36 Model(Btu/h) 18/24 Single Phase Power 208/230, 60Hz Voltage/frequency Input Current Fuse Indoor unit (A)
  • Page 23 Wiring gauge for H/P systems 30/36 Model(Btu/h) 18/24 Single Phase Power 208/230V, 60Hz Voltage/frequency Input Current Fuse Indoor unit (A) Line Quantity Indoor Unit Power Line Line Diameter(AWG) Line Quantity Outdoor Unit Power Lines Line Line Diameter(AWG) Gauge Line Quantity Outdoor -Indoor Signal Line Line Diameter(AWG)
  • Page 24 202000171930...
  • Page 25 2014 Johnson Controls, Inc. www. johnsoncontrols.com AMSFXHAAV-140930 Johnson Controls reserve the right to change product features without prior notice.
