Johnson Controls YORK YMSFXH018BAAK Series Installation Manual page 10

A
1:4

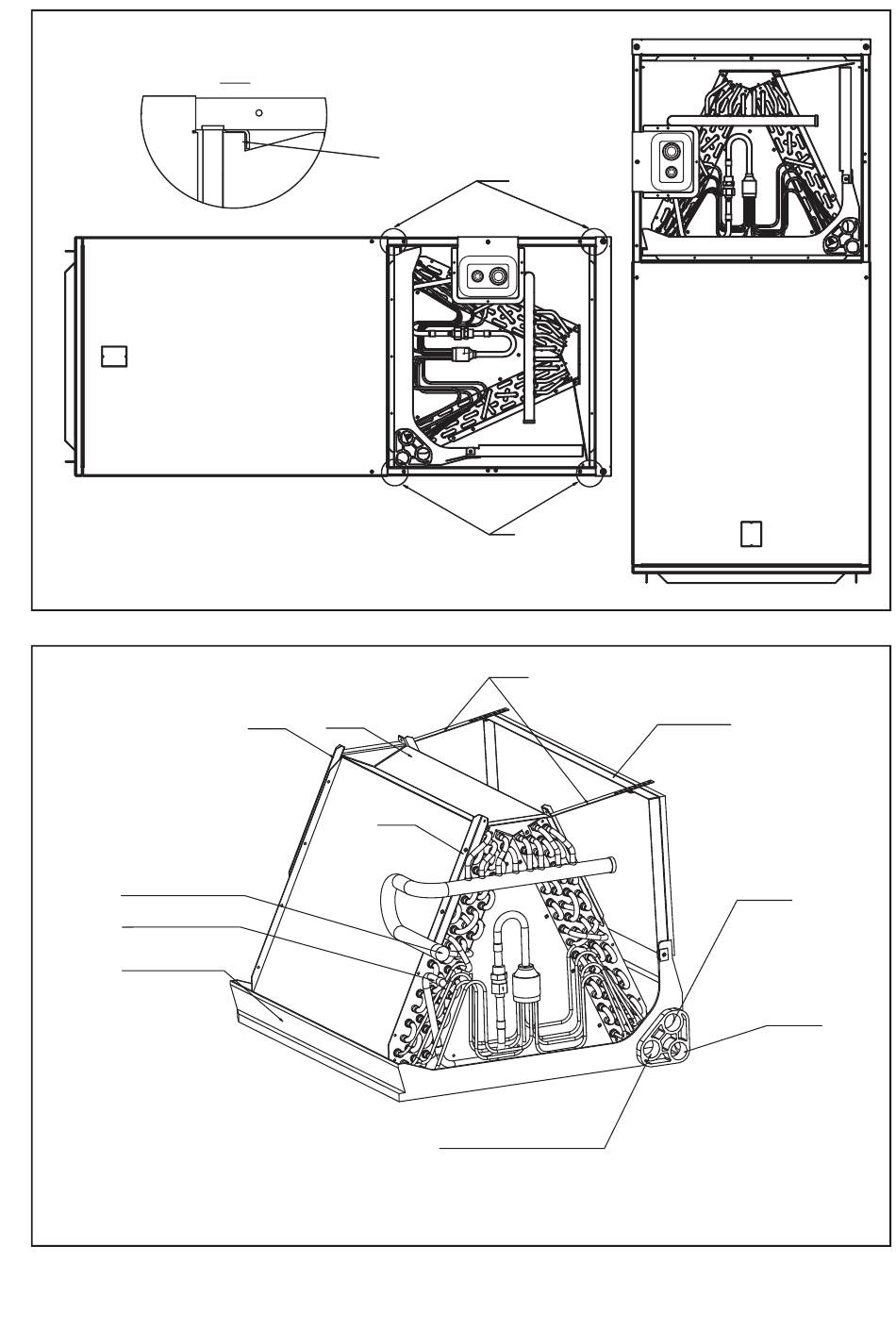

Fig.3 VERTICAL DOWNFLOW & HORIZONTAL LEFT APPLICATIONS
REAR WATER CATCHER
VAPOR LINE CONNECTION
LIQUID LINE CONNECTION
VERTICAL DRAIN PAN
The Max. resistant pressure of evaporator is up to 16MPa (2320PSI)
ENSURE THE RETAINING
CHANNEL IS FULLY ENGAGED
WITH THE COIL RAIL.
DETAIL A
A
(lower front service panel removed "view".)
TOP AIR STOP
FRONT WATER
CATCHER
AUXILIARY UPFLOW/DOWNFLOW
DRAIN CONNECTION
Fig.4 INDOOR COIL AND DRAIN PAN SET-UP
RAILS
RAILS
STRAPS
HORIZONTAL ADAPTER KIT
AUXILIARY HORIZONTAL
DRAIN CONNECTION
PRIMARY DRAIN
CONNECTION
9
