2.1 UNIT DIMENSIONS

ELECTRICAL CONNECTIOS
MAY EXIT TOP OR EITHER SIDE
HIGH VOLTAGE CONNECTION 7/8",
1-23/64", 1-23/32" DIA KNOCK OUTS
LOW VOLTAGE CONNECTION
BREAKER SWITCH
(FOR ELECTRIC HEATER ONLY)
VAPOR LINE CONNECTION COPPER (SWEAT)
LIQUID LINE CONNECTION COPPER (SWEAT)
AUXILIARY DRAIN CONNCECTION 3/4"
FEMALE PIPE THREAD (NPT)
AUXILIARY DRAIN CONNECTION 3/4"
FEMALE PIPE THREAD (NPT)
PRIMARY DRAIN CONNCETION 3/4"
FEMALE PIPE THREAD (NPT)
DIMENSIONAL DATA
MODEL SIZE
18
24
30
36
42
48
60
6

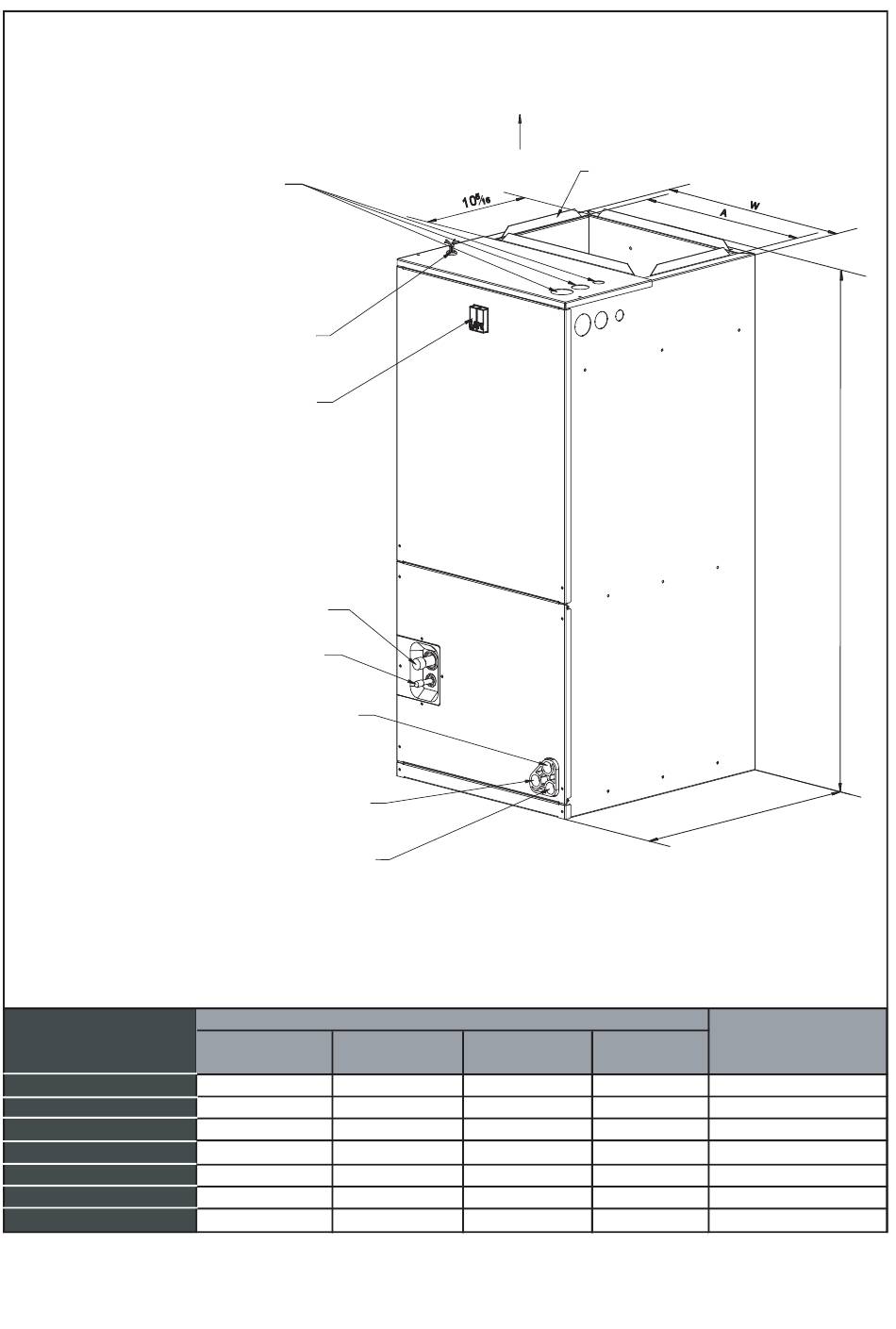

Fig.1 DIMENSIONS
Dimensions inch [mm]
UNIT HEIGHT UNIT WIDTH
"H" IN. [mm] "W" IN.[mm]
41-3/8"[1050] 18-1/8"[ 460]
41-3/8"[1050] 18-1/8"[ 460]
41-3/8"[1050] 18-1/8"[ 460]
46-1/2"[1180]
19-5/8"[500]
46-1/2"[1180] 19-5/8"[500]
54-1/2"[1385] 22"[560]
54-1/2"[1385] 22"[560]
NOTE: 25" CLEARANCE IS REQUIRED IN THE FRONT
OF THE UNIT FOR FILTER AND COIL MAINTENANCE.
SUPPLY AIR
UPFLOW UNIT SHOWN;
UNIT MAY BE INSTALLED UPFLOW, DOWNFLOW,
HORIZONTAL RIGHT, OR LEFT AIR SUPPLY.
UNIT LENGHT
"D" IN.[mm]
20-1/2"[520]
20-1/2"[520]
20-1/2"[520]
21-5/8"[550]
21-5/8"[550]
24"[610]
24"[610]
FLANGES ARE PROVIDED
FOR FIELD INSTALLATION
D
UNIT WEIGHT
SUPPLY /SHIPPING WEIGHT
DUCT "A" (LBS.[kg])
16"[406]
103/116 [47]/[53]
16"[406] 106/117 [48]/[53]
16"[406]
110/123 [50]/[56]
135/146 [61]/[66]
18"[456]
18"[456]
135/146 [61]/[66]
19-1/2"[496] 170/185 [77]/[84]
172/187 [78]/[85]
19-1/2"[496]
H
