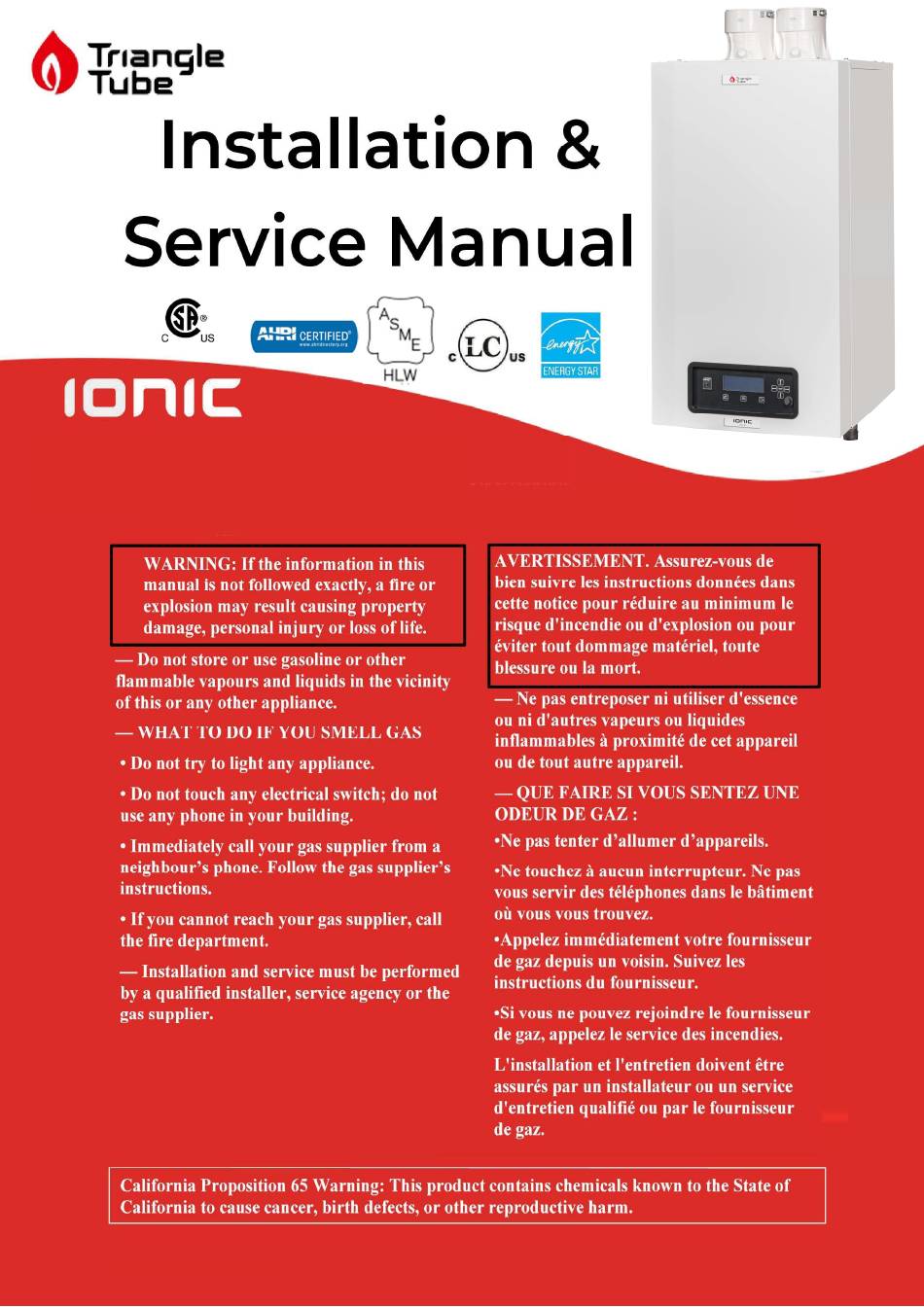

TriangleTube Ionic Series Installation And Service Manual
  1. Manuals
  2. Brands
  3. TriangleTube Manuals
  4. Water Heater
  5. Ionic Series
  6. Installation and service manual

TriangleTube Ionic Series Installation And Service Manual

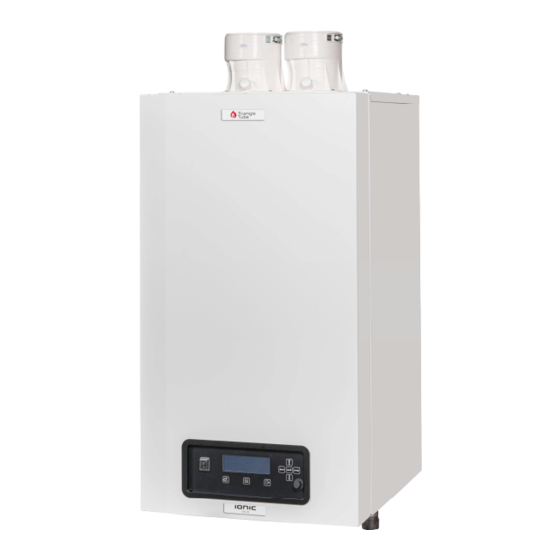

Wall mount volume water heater
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
NSF/ANSI/CAN 372
WWH
WH 299W-WH 399W-
WH 470W-WH 499W
E93.1805.034 – E126100003
Low NOx certified to SCAQMD 1146.2
- This manual must be left with owner
and must be hung on or adjacent to the
water heater for reference.
- Customer must register unit within
thirty (30) days of installation in order to
gain warranty coverage. See Warranty
Card
E93.1805.034 WH Installation manual
- When receiving the Ionic unit, any claims for damage
or shortage in shipment must be filed immediately
against the transportation company by the consignee.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Ionic Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for TriangleTube Ionic Series

Summary of Contents for TriangleTube Ionic Series

  • Page 1 Low NOx certified to SCAQMD 1146.2 NSF/ANSI/CAN 372 - This manual must be left with owner and must be hung on or adjacent to the water heater for reference. - Customer must register unit within WH 299W-WH 399W- thirty (30) days of installation in order to - When receiving the Ionic unit, any claims for damage WH 470W-WH 499W gain warranty coverage.
  • Page 3 Customer must register unit within thirty (30) days of installation in order to gain warranty coverage. See Warranty Card for details NOTICE Leave all documentation received with appliance with the owner for future reference. To maintain the safety & longevity of your appliance, read and follow the maintenance schedule information throughout this manual.

  • Page 4: Table Of Contents

    TABLE OF CONTENTS IMPORTANT WARNINGS ..........................8 definitions ................................. 8 General warnings..............................9 SAFETY GUIDELINES ...........................10 English version ............................... 10 Version français ..............................11 Specific warnings ..............................12 For installations in the Commonwealth of Massachusetts ..................13 Water heater warnings ............................14 INTRODUCTION .............................15 Explanations ................................
  • Page 5 10 WATER HEATER RESISTANCE GRAPHS ....................48 10.1.1 Water heater resistance graph WH 299W ...................... 48 10.1.2 Water heater resistance graph WH 399W ...................... 48 10.1.3 Water heater resistance graph WH 470W ...................... 49 10.1.4 Water heater resistance graph WH 499W ...................... 49 10.2 Minimum required pump head.
  • Page 6 14 WATER HEATER DISPLAY AND BUTTONS....................88 14.1 Explanation of the buttons ............................88 14.2 Display configuration .............................. 89 14.3 Starting the water heater............................90 14.3.1 Changing the DHW Setpoint ........................... 90 14.3.2 Entering the menu ............................90 14.3.3 Protected menu items .............................
  • Page 7 20 ADJUSTING AND SETTING THE WATER HEATER ..................127 20.1 Introduction ................................127 20.1.1 Combustion table ............................127 20.1.2 Combustion table Low NOx .......................... 128 20.1.3 Setting screws venturi- and gas valves: drawings ..................129 20.2 Adjustment procedures ............................ 130 20.3 Safety shutoff test ..............................

  • Page 8: Important Warnings

    IMPORTANT WARNINGS definitions IMPORTANT READ ALL OF THE FOLLOWING WARNINGS AND STATEMENTS BEFORE READING THE INSTALLATION INSTRUCTIONS DANGER Danger Sign: indicates the presence of an imminently hazardous situation that will cause death, serious personal injury or substantial property damage. WARNING Warning Sign: indicates the presence of a hazardous situation which can cause death, seri- ous personal injury or substantial property damage.

  • Page 9: General Warnings

    General warnings WARNING This Water heater must be installed by a qualified installer, service agency, or the gas sup- plier or the Warranty is void. Failure to properly install this unit may result in property damage, serious injury to occupants, or possibly death. WARNING Avoid electrical shock when servicing the appliance, by disconnecting the electrical supply prior to performing maintenance.

  • Page 10: Safety Guidelines

    SAFETY GUIDELINES English version Use only your hand to turn the manual shutoff valve. Never use tools. If the manual valve will not turn by hand, don’t try to repair it, call a qualified sevice technician. Force or attempted repair may result in a fire or explosion STOP! Read the safety information above on this label.

  • Page 11: Version Français

    Version français N’utilisez que votre main pour tourner la vanne d’arrêt manuelle. N’utilisez jamais d’outils. Si la vanne manuelle ne tourne pas à la main, n’es- sayez pas de la réparer, appelez un technicien se- vice qualifié. La force ou la tentative de réparation peut entraîner un incendie ou une explosion.

  • Page 12: Specific Warnings

    Specific warnings This water heater is equipped with a pressure switch. In the event of a blocked vent the water heater will lockout. No attempt by the user/owner should be made to put the water heater back into operation. A qualified service technician should be notified of the issue. The water heater should only be reset by a qualified service technician after they have diagnosed and cor- CAUTION rected the issued that caused the safety lockout of the water heater.

  • Page 13: For Installations In The Commonwealth Of Massachusetts

    For installations in the Commonwealth of Massachusetts The following local requirements apply in addition to all other applicable NFPA requirements: For direct-vent water heaters, mechanical-vent heating appliances or domestic hot water equipment, where the bottom of the vent terminal and the intake is installed below four feet above grade the following requirements must comply: 1) If not present on each floor level where there are bedrooms, a carbon monoxide detector and alarm must be placed in a living area outside the bedrooms.

  • Page 14: Water Heater Warnings

    Water heater warnings ° To meet commercial hot water requirements, the water heater setpoint is adjustable up to 185°F (85 . How- ever, water temperatures over 125°F (52°C) can cause severe burns instantly or death from scalds. This is the preferred starting point for setting the control for supplying general purpose hot water. WARNING: Water temperatures over 125°F (52°C) can cause severe burns instantly or death from scalding.

  • Page 15: Introduction

    Make sure to reference the unit’s model number and serial number from the rating label when inquiring about service or troubleshooting. Triangle Tube reserves the right to change the technical characteristics, components and features of its products without prior notice. Check for an updated version of this manual at www.triangletube.com. WWH Installation manual...

  • Page 16: Important Technical Warnings And Guidelines

    Important technical warnings and guidelines Visually inspect the venting system for proper size and horizontal pitch and determine there is no blockage or restriction, leakage, corrosion and other deficiencies which could cause an unsafe condition. Maintenance and inspection of the water heater should be carried out at the following occasions: ...

  • Page 17: Pressure Relief Valve

    Firing the water heater without water flow (but filled with water) will cause a boiling noise. The outlet and inlet temperature are checked continuously. The temperature difference must not exceed the pro- grammed value belonging to the actual power mode. If it does, the water heater will go into a lock-out. The applied DHW pump must be controlled only by the Ionic WWH water heater control.
  • Page 18 Hot water could be released when the pressure relief valve is opened. This can result in severe personal injury. Before operating the pressure relief valve manually, check that it will discharge in a safe place. If water does not flow freely from the end of the discharge pipe, turn the gas supply and power OFF and call a qualified person to determine the cause.

  • Page 19: Technical Data Ionic Wwh Water Heaters

    TECHNICAL DATA IONIC WWH WATER HEATERS Functional introduction The Ionic WWH series are water heaters with a maximum high efficiency. Such a performance can be reached by, amongst other things, using a special heat exchanger made of stainless steel. This allows the flue gases to cool down below the condensation point, and so release extra heat.

  • Page 20: Technical Specifications Datasheet

    Technical specifications datasheet GENERAL Water heater, category IV, direct vent WATER HEATER MODEL WH 299W WH 399W WH 470W WH 499W Dimensions (h x w x d) inch (mm) 33.3 x 17.3 x 21.2 (845 x 440 x 539) Water content (estimated) Gallon (liter) 1.77 (6.7) 2.19 (8.3)

  • Page 21: High Altitude Operation

    WATER HEATER MODEL WH 299W WH 399W WH 470W WH 499W INSTALLATION ΔT = 30 °F 12 (3.7) 14 (4.3) 14 (4.3) 15 (4.6) ft.head (m.WC) Resistance water heater ΔT = 22.5 °F 20 (6.1) 21 (6.4) 21 (6.4) 23 (7.0) ft.head (m.WC) Pressure water heater min-max.

  • Page 22: Ahri Specifications

    AHRI specifications Table 4.3 IONIC WWH series Input rate Model Recovery rate 100ºF MBTU/h number (gal/h) Thermal efficiency (%) WH 299W WH 399W WH 470W WH 499W Listed Input ratings are at minimum vent lengths at Sea Level. Numbers will be lower with longer venting and/or altitudes greater than 2000 feet [610 m].

  • Page 23: Water Heater Dimensions

    WATER HEATER DIMENSIONS WH 299W Figure 5.1 Vent connection Connections WH 299W Hot water outlet NPT 1½” Cold water inlet NPT 1½” Condensate Flexible hose Ø 1.06 ” (26.9 mm) NPT 1” Table 5.1 Figure 5.2 WWH Installation manual...

  • Page 24: Wh 399W

    WH 399W Figure 5.3 Vent connection Connections WH 399W Hot water outlet NPT 1½” Cold water inlet NPT 1½” Condensate Flexible hose Ø 1.06” (26.9 mm) NPT 1” Table 5.2 Figure 5.4 WWH Installation manual...

  • Page 25: Wh 470W / Wh 499W

    WH 470W / WH 499W Vent connection Figure 5.5 Connections WH 470W / WH 499W Hot water outlet NPT 1½” Cold water inlet NPT 1½” Condensate Flexible hose Ø 1.06” (26.9 mm) NPT 1” Table 5.3 Figure 5.6 WWH Installation manual...

  • Page 26: Unpacking And Accessories

    UNPACKING AND ACCESSORIES Unpacking The Ionic WWH water heater will be supplied with the following documents and accessories:  One “Installation and service instructions” manual for the installer (inside the water heater, at the sidepanel)  One User Manual (inside the water heater, at the sidepanel) ...
  • Page 27 MAGNA1 40-80 GF N CIR14 MAGNA3 40-80 GF N Note: requires E361100003 Modulating circulator signal converter CIR15 (PWM to 0-10V) MAGNA1 40-120 GF N (Note: requires Circulator relay kit for 1 circulator E361100006) CIR16 UPS 43-100 SF (Note: requires Circulator relay kit for 1 circulator E361100006) CIR17 MAGNA3 40-120 GF N (Note: requires E361100003 Modulating circulator signal converter CIR18...

  • Page 28: Installation Location Of The Wh

    INSTALLATION LOCATION OF THE WH Installation Clearances On all sides of the water heater at least 2” of clearance must be applied to walls or wall units, 14” above the top side of the water heater and 10” from the bottom of the water heater. All Models Clearances to wall, ceiling and floor Distances –...

  • Page 29: Water Heater Installation Location Requirements

    Water heater Installation Location Requirements:  The installation of this water heater when installed using room air must comply to the latest edition of NFPA 54 / ANSI Z223.1 and / or CAN / CSA B149.1 Natural gas and propane installation code. ...

  • Page 30: Mounting The Water Heater

    Mounting the water heater Before mounting and installing the water heater the following connections should be considered:  Flue gas system and the flue gas pipe connections  Air supply system and connections  Cold water inlet and hot water outlet pipe connections ...

  • Page 31: Connections

    CONNECTIONS Water heater connections 1 – Water outlet / Flow 2 – Water inlet / Return 3 – Gas 4 – Condensate trap clean out. 5 – Condensate drain 6 – Automatic air drain. 2 3 4 5 6 Figure 8.1 Gas pipe connection Gas supply piping must conform to all local codes and regulations and/or National Fuel Gas Code, ANSI Z223.1/ NFPA 54.
  • Page 32 No appreciable drop in line pressure should occur when any unit (or in the instance of a cascade installation when all of the installed units) lights or runs. Use ANSI Z223.1 / CSA B149.1 gas line sizing practices. Make sure the gas pressure is within specification during all conditions.

  • Page 33: Condensate Drain Connection

    Condensate drain connection The condensate drain is placed at the center and at the bottom of the water heater and has a ¾ inch hose discharge. Connect this flexible hose to the sewer system. Use only plastic parts with the condensate drain. Metal lines are not allowed.

  • Page 34: Pressure Relief Valve

    Pressure relief valve The water heater has no internal pressure relief valve, but a relief valve, specially selected for this water heater, is added to the water heater shipment and can be found in the box. This must be installed close to the water heater in the flow pipe of the water heater and no shut off valve shall be placed between the pressure relief valve and the water heater.

  • Page 35: Water Heater Water Quality

    Water heater water quality In direct water heating appliances, the domestic hot water flows directly through the heat exchanger of the water heater. Because all the time fresh water, containing dissolved minerals, is heated, scaling may occur. To prevent this, water quality must meet a number of standards. The values are the following: Water temperature max.

  • Page 36: Automatic Air Purging Of The Heat Exchanger

    8.10 Automatic air purging of the heat exchanger The De-Air sequence is a safety function starting at every power ON and is used to remove the air from the heat- exchanger. The De-Air sequence does not start after a general reset (as the locking error reset or 24 hours reset) The display will show ‘dAir’...

  • Page 37: The Hw Sanitairy System: Installation Instructions

    THE HW SANITAIRY SYSTEM: INSTALLATION INSTRUCTIONS The HW system The WH water heaters are designed for use with one or more hot water tanks, because the water heater needs a minimum amount of water flow. To get an output temperature of 140°F, the temperature of the return should be within the range 110.3 –...

  • Page 38: Stand-Alone Set-Up

    Stand-alone set-up The basic form of a HW installation is one water heater with one tank. WH 299W WH 399W WH 470W WH 499W Water heater flow at ΔT = 30°F (gpm) 18.0 24.0 28.5 30.0 Nominal pipe size at ΔT = 30°F 1 ½”...

  • Page 39: Wh Setup With Tank

    SAFETY COMPONENTS The pictures show examples of functional installations. This figure is meant to illustrate the piping concept only, the installer is responsible for the correct installation of all equipment. The qualified installer must follow all manufacturer’s instructions for each component. It is the responsibility of the qualified installer to follow all local applicable codes of the authority having jurisdiction.

  • Page 40: Alternative Setup With One Tank

    9.3.2 LTERNATIVE SETUP WITH ONE TANK TANK SENSOR SYSTEM SENSOR Example of one water heater and one tank Figure 9.2 Explanation of figure 9.2: hot water recirculation is fed into the pipe from PUMP the water heater to the tank. If the tank has a separate connection for re- NON- RETURN VALVE circulation, use that connection preferably.

  • Page 41: Cascade Set-Up

    Cascade set-up HW water heaters and tanks can be installed cascaded in a number of possible combinations according to the instruc- tions below. TANK SENSOR SYSTEM SENSOR Example of a combination of three water heaters and two tanks Figure 9.3 For the installation of cascaded water heaters and tanks always consult your supplier.

  • Page 42: Cascade Calculations

    Water Water Water heater heater heater TANK SENSOR SYSTEM SENSOR Example of a combination of three water heaters and two tanks Figure 9.4 Notes:  Connections on the water heater side should always be executed as reverse return piping (Tichelmann system). This way, the installation of balancing valves can be avoided. ...
  • Page 43 Diameters D ( = TANK in- and outlet) number of cascaded water heaters number of cascaded water heaters WH 299W ΔT = 30°F ΔT = 22.5°F 1 tank 1 ½” 2” 2 ½” 1 ½” 2” 2 tanks 1 ¼” 1 ½”...
  • Page 44 Diameters D ( = Connection between water heaters and tank(s)) number of cascaded water heaters number of cascaded water heaters WH 299W ΔT = 30°F ΔT = 22.5°F 1 tank 1 ½” 2” 2 ½”” 1 ½” 2” 2 tanks 1 ½”...

  • Page 45: Examples

    Examples To elaborate the examples in this section, the rules of §§ 9.3 and 9.4 are repeated below: 1. Codes to a one water heater installation:  There’s only one flow pipe and one return pipe. For the right diameter value see table 9.1 in § 9.3. 2.
  • Page 46 9.5.2 WH 299W WATER HEATERS WITH TWO GALLON TANKS Example 2 COLD IN WH 299W 125 gallon Figure 9.7 Water heater connections, figure 9.7 Number the water heaters: water heater 1 is the water heater furthest from the tank(s).. Number the connection pipes directly connected to the water heaters: D1. Number the horizontal connection pipes: ...

  • Page 47: Pump Control

    Pump control The applied pump must be a bronze or stainless steel pump and controlled only by the WWH water heater control. If, for any reason, an external pump control is applied without written approval of Trian- gle Tube then the complete warranty on the WWH water heater and all delivered parts will become void.

  • Page 48: Water Heater Resistance Graphs

    WATER HEATER RESISTANCE GRAPHS 10.1.1 W WH 299W ATER HEATER RESISTANCE GRAPH Resistance graph WH 399W Resistance graph WH 299W Resistance graph WH 299W ∆T = 30°F ∆T = 22.5°F Figure 10.1 10.1.2 W WH 399W ATER HEATER RESISTANCE GRAPH Resistance graph WH 399W ∆T = 30°F ∆T = 22.5°F...

  • Page 49: Water Heater Resistance Graph Wh 470W

    10.1.3 W WH 470W ATER HEATER RESISTANCE GRAPH Resistance graph WH 470W ∆T = 22.5°F ∆T = 30°F Figure 10.3 10.1.4 W WH 499W ATER HEATER RESISTANCE GRAPH Resistance graph WH 499W ∆T = 30°F ∆T = 22.5°F Flowrate (gallons (US) / minute) Figure 10.4 WWH Installation manual...

  • Page 50: Minimum Required Pump Head

    10.2 Minimum required pump head. To prevent calcification of the heat exchanger, the flow of the water needs to be high. The design flow of the system should be at a delta T of either 30 or 22.5°F at high fire, depending on the water hardness. To calculate the minimum required pump head, take the resistance of the water heater and add the resistance of the piping and tank to make a good design.
  • Page 51 Because the maximum allowed burner controller amperage of 2 amps is exceeded when using the larger on/off circulators like the Grundfos UPS 43-100, an extra relay is required to switch the power to the circulator on and off (connection 6-7-PE). See the accessories list for available relay kits.

  • Page 52: Flue Gas And Air Supply System

    FLUE GAS AND AIR SUPPLY SYSTEM 11.1 General venting. The water heater has a positive pressure vent system. The water heater is for either direct vent installation or for installation using indoor combustion air, category IV, appli- ance with sealed combustion requiring certain venting systems. All combustion air is drawn from outdoors or indoor. All products of combustion are vented directly outdoors.

  • Page 53: Vent And Air Inlet Resistance Table

    11.1.2 V ENT AND AIR INLET RESISTANCE TABLE Minimum and maximum allowable combined vent and air inlet length: - Minimum venting length: two feet (2 ft) for all water heaters - Maximum venting length: see table below. Maximum Exhaust Length / Maximum Combustion Air Intake Length WH 299W WH 399W WH 470W / WH 499W...

  • Page 54: Approved Manufacturers

    11.2.1 A PPROVED MANUFACTURERS CPVC venting: * IPEX System 636 Polypropylene venting: * Duravent - PolyPro Stainless steel venting: * Duravent - FasNSeal, FasNSeal W2, FasNSeal Flex, Duraseal DS, DSD, DSID * Security Chimneys - Secure seal SS/SSD/SSID * Heat Fab – Saf-T EZ Seal Other manufacturers are allowed, as long as they comply to table 11.4 (paragraph 11.2 (page 52) and comply to local codes and regulations.

  • Page 55: Instructions For Cementing Pvc/ Cpvc Pipe Connections

    Failure to properly support the vent system can cause the venting system to fail, resulting in substantial property damage, serious injury, or death PVC exhaust venting: When using PVC venting, the first part of exhaust venting is required to always be approved CPVC.

  • Page 56: Polypropylene

    Near water heater PVC/ CPVC venting. The starter piece must have a minimum length according table 11.7 "PVC Exhaust Venting" (page 54) IN CPVC Never insert a PVC/CPVC street elbow directly into the vent adapter on the appliance, doing so could result in substantial property damage, serious injury, or death.

  • Page 57: Reducer

    Contact approved polypropylene vent manufacturer for a copy of their installation instructions. Read, understand and follow all of the vent manufacturer’s instructions before beginning the installation. Contact vent manufacturer if you require any technical support. Failure to properly install and support the vent system can cause the venting system to fail, resulting in substantial property damage, serious injury, or death.
  • Page 58 All vent connections MUST be secured by the vent manufacturer's joint connector. The installer must use a specific vent starter adapter at the flue collar connection. The adapter is supplied by the vent manufacturer to adapt to its vent system. Installations must comply with applicable national, state, and local codes.

  • Page 59: Stainless Steel

    11.5 Stainless steel This product has been approved for use with stainless steel vent using the manufacturers listed. Approved stainless steel vent pipe and fittings. SUPPLIER TYPE Duravent FasNSeal, FasNSeal W2, FasNSeal Flex, Duraseal DS, DSD and DSID Security Chimneys Secure Seal SS/SSD/SSID Heat Fab Saf-T EZ Seal...

  • Page 60: Sealed Combustion Air Supply

    11.6 Sealed Combustion Air supply When an air supply pipe is connected from the outside of the building to the water heater, the water heater will operate as a sealed combustion water heater. The air supply duct can be made of PVC, CPVC, PP or Stainless steel 11.6.1 C OMBUSTION AIR QUALITY Combustion air must be free of contaminants.

  • Page 61: Air Inlet Pipe Materials

    11.6.4 A IR INLET PIPE MATERIALS The air inlet pipe(s) must be sealed. Choose acceptable combustion air inlet pipe materials from the following list: - PVC, CPVC or PP - Flexible propylene air intake - Galvanized steel vent pipe with joints and seams sealed as specified in this section. - Type “B”...

  • Page 62: Room Air

    11.7 Room air Commercial applications utilizing the water heater can be installed as a category IV appliance with a single pipe carrying the flue products to the outside while using combustion air from the equipment room. In order to use the room air venting option, the following conditions and considerations must be followed: •...

  • Page 63: Proper Vent Installation And Type Of Gas Vent Or Vent Connector

    Corrosive Contaminants and Sources Products to avoid: Spray cans containing chloral/fluorocarbons Permanent wave solutions Chlorinated waxes/cleaners Chlorine-based swimming pool chemicals Calcium chloride used for thawing Sodium chloride used for water softening Refrigerant leaks Paint or varnish removers Hydrochloric acid/muriatic acid Cements and glues Antistatic fabric softeners used in clothes dryers Chlorine-type bleaches, detergents, and cleaning solvents found in household laundry...

  • Page 64: Install Vent And Combustion Air Piping

    11.9 Install vent and combustion air piping • The water heater must be vented and supplied with combustion and ventilation air as de- scribed in this section. Ensure the vent and air piping and the combustion air supply comply with these instructions regarding vent system, air system, and combustion air quality. See also §...

  • Page 65: 11.11 Direct Venting Options

    11.11 Direct venting options Two pipe wall Two pipe vertical See § 11.12 for more details. See § 11.13 for more details. Figure 11.5 Figure 11.6 Single pipe wall (room air) Single pipe roof (room air) See § 11.7 for more details See §...
  • Page 66 Concentric wall - two pipe to water heater Concentric wall - concentric to water heater Water heaters WH 299W, WH 399W only. Water heaters WH 299W, WH 399W only. See § 11.12 for more details. See § 11.12 for more details. Figure 11.9 Figure 11.10 Concentric vertical - two pipe to water heater...

  • Page 67: 11.12 Wall (Horizontal) Direct Venting

    11.12 Wall (Horizontal) direct venting. 11.12.1 V AIR TERMINATION WALL Follow instructions below when determining vent location to avoid possibility of substantial pro- perty damage, severe personal injury, or death. A gas vent extending through an exterior wall shall not terminate adjacent to a wall or below WARNING building extensions such as eaves, parapets, balconies, or decks.

  • Page 68: Positions

    4. Properly support the PVC/CPVC using pipe metal strap hangers or equivalent pipe hangers suitable for plastic pipe. 5. The installer must comply with all local codes for isolating the vent pipe as it passes through floors and walls. 6. The installer must seal all exterior openings around penetration with an exterior silicon caulk 11.12.4 P OSITIONS 1.
  • Page 69 note 3: Maintain 12” of clearance above the highest anticipated snow level or grade or, whichever is greater. Please refer to your local codes for the snow level in your area note 4: For clearances not specified in ANSI Z223.1 / NFPA 54, clearance is in accordance with local installation codes and the requirements of the gas supplier.
  • Page 70 Figure 11.17 Multiple vent/air terminations 1. When terminating multiple water heaters, terminate each vent/air connection as described in this manual (figure below). All vent pipes and air inlets must terminate at the same height to avoid possibility of severe personal injury, death, or substantial property damage. WARNING 2.
  • Page 71 Wall termination – low profile Description and usage: Two pipe termination. Both combustion air and exhaust vent pipes must attach to the termination kit. The termination kit must terminate outside the structure and must be installed as shown below in Figures 11.19 and 11.20.
  • Page 72 Ensure termination location clearance dimensions are as shown in figures 11.21 and 11.22 NOTICE DO NOT use field-supplied couplings to extend concentric terminations. Airflow restriction will occur and may cause intermittent operation. CAUTION Multi venting wall terminations When two (2) or more direct vent appliances are vented near each other, each appliance must be individually vented . NEVER common vent or breach vent this appliance.

  • Page 73: 11.13 Roof (Vertical) Direct Venting

    11.13 Roof (Vertical) direct venting. 11.13.1 V – AIR TERMINATION VERTICAL Follow instructions below when determining vent location to avoid possibility of severe per- sonal injury, death or substantial property damage. WARNING 11.13.2 D ETERMINE LOCATION Locate the vent/air terminations using the following guidelines: 1.
  • Page 74 8. Locate terminations so they are not likely to be damaged by foreign objects, such as stones or balls, or subject to buildup of leaves or sediment. Multiple vent/air terminations 1. When terminating multiple water heaters, terminate each vent/air connection as described in this manual (figures 11.23, 11.24 and 11.25).
  • Page 75 Concentric Vertical Termination. Water heaters WH 299W and WH 399W only Minimum clearance above snow level (18” for Canada) Maximum 24” above roof or snow level. Figure 11.26 Do Not Install U-Bend or elbow on a concentric termination Figure 11.27 Do not operate the appliance with the rain cap removed on the concentric terminations or recirculation of combustion products may occur.
  • Page 76 Concentric vent and combustion air vertical termination multiple water heaters. NOTICE a minimum distance of 24 in. (61 cm) to wall or parapet. Figure 11.28 60“ MIN Figure 11.29 WWH Installation manual...

  • Page 77: Common Vent Cascading

    COMMON VENT CASCADING 12.1 Introduction All WH water heaters have an internal flue gas valve for a positive pres- sure category IV common vent system. This device is needed to prevent recirculation of the flue gases. If common venting is required contact Triangle Tube. Triangle Tube offers a factory supplied certified common venting system designed by Duravent to work with the water heaters.

  • Page 78: Existing Common Venting Guidelines

    12.2 Existing Common Venting Guidelines Do not common vent the WWH water heater with the vent pipe of any other water heater or appliance. However, when an existing water heater is removed from an existing common venting system, the common venting system is likely to be too large for proper venting of the appliances remaining connected to it.

  • Page 79: Electrical Installation

    ELECTRICAL INSTALLATION 13.1 General  For operation, the water heater requires a dedicated 120VAC/15A service.  The water heater mains supply connection is polarity sensitive.  The wiring for the connections should be routed at the bottom of the water heater through the wiring knock- outs.

  • Page 80: Additional Safety Limits

    13.3.1 A DDITIONAL AFETY IMITS The water heater has low voltage connections for three external safety limits that can be field wired, LWCO Ex- tern, Safety Switch 1, and Safety Switch 2. All three create manual reset lockouts in the control. The following accessory safety limits are available from the factory: ...

  • Page 81: Explanation Of The Low Voltage Connections

    13.5 Explanation of the low voltage connections. DO NOT USE Do not connect wires to these terminals SYSTEM SENSOR It is mandatory (single and cascaded heaters) to use a pipe strap-on sensor besides the DHW sensor. This system (Strap-on) sensor has to be connected to connections 3-4 “System Sensor” (Cascaded heaters need one system sensor connected to the managing water heater only.) The system sensor is included in the water heater delivery.

  • Page 82: Explanation Of The Mains Voltage Connections

    13.6 Explanation of the mains voltage connections. 1-2-3-PE DO NOT USE Do not connect wires to these terminals 4-PE-5 DO NOT USE Do not connect wires to these terminals 6-PE-7 GENERAL or WATER HEATER PUMP Connections for the power supply of a water heater pump. (P1, see chapter 8.5 for detailed electrical specifi- cations).

  • Page 83: Ladder / Logic Diagram

    13.7 Ladder / Logic diagram Figure 13.3 WWH Installation manual...

  • Page 84: Electrical Schematics

    13.8 Electrical schematics Figure 13.4 WWH Installation manual...
  • Page 85 Figure 13.5 WWH Installation manual...

  • Page 86: Sensor Availability

    13.9 Sensor availability The following table shows the sensor availability for all DHW control modes. Sensors not mentioned in the table are optionally available for other functions DHW Mode N.A. 2 N.A. 3 N.A. 4 N.A. 5 N.A. 6 N.A. 7 N.A.

  • Page 87: 13.11 Programmable In- And Outputs

    13.11 Programmable in- and outputs It is possible to re-program some in- and outputs to other functions. To do this use below list and go to: Menu\settings\boiler settings\"1122" (installer password) \boiler parameters. Several IO’s are already in use and cannot be changed. These IO’s are signed with N.A. boiler parameter Name default setting...

  • Page 88: Water Heater Display And Buttons

    WATER HEATER DISPLAY AND BUTTONS. 13:56 Standby T3:98 °F 55 Psi 90 °F DHW Store Setpoint Figure 14.1 14.1 Explanation of the buttons ON/OFF. On/off switch. Switches electrical power to the water heater COMPUTER. Connector for computer cable RESET. Reset lockout error MENU.

  • Page 89: Display Configuration

    14.2 Display configuration The Status overview has three different sections that show specific information: 13:56 Header Standby Middle section T3: 98°F 55 Psi Footer DHW Store Setpoint 90°F Figure 14.3 Header Left: For cascade systems the cascade icon is shown, with the cascade manager indication (M) or the dependent number.

  • Page 90: Starting The Water Heater

    14.3 Starting the water heater. If the water heater is not on make sure the gas switch beneath the water heater is open and the power is wired into the mains, use the on/off button to switch the water heater on. The following screen will occur: Initializing Figure 14.4 This screen is active during power up until communication with the main Control has been established.

  • Page 91: Protected Menu Items

    If you are inside the menu (or a menu item) and want to return directly to the Status overview press MENU or ESC If you want to go back one step in the menu press BACK/LEFT ← . 14.3.3 P ROTECTED MENU ITEMS he display supports 3 different access levels;...

  • Page 92: Language Settings

    14.3.5 L ANGUAGE SETTINGS The display supports the following languages:  Chinese  German  Romanian  Croatian  Greek  Russian  Czech  Hungarian  Slovak  Dutch  Italian  Slovene  English  Polish  Spanish Table 14.1 ...

  • Page 93: Error Logging

    14.5 Error logging. Error logging is available. This functionality is linked to the Real-Time Clock functionality. Errors will be logged for a stand-alone system or for a complete cascade system (based on the cascade settings). The PB display will monitor the error codes it receives from the water heater(s) and if an error code is a new error code the error will be stored in the error log.

  • Page 94: Reset The Service Reminder

    14.6.2 R ESET THE SERVICE REMINDER It is possible to reset the Service reminder counters before the Service reminder was actually active. This must be done when the appliance was serviced before the Service reminder was active. This means an overdue counter of 0 hours will be stored on the log (which makes sense because the service was not overdue but ahead of schedule).

  • Page 95: Frost Protection

    14.7.2 ROST PROTECTION The Frost protection function protects the water heater and water heater loop from freezing. The T_Supply, T_Supply_2 and T_Return sensors are checked for generating a Frost protection demand. • When any of the sensors drop below FP_Start_Pump the water heater loop pump is switched ON for CH. •...

  • Page 96: Ignition Cycle

    14.8 Ignition cycle During the ignition cycle multiple safety checks are active Figure 14.14 The table below shows the states of the burner ignition cycle, as shown in the diagram above: Burner state Actions INIT  Controller initialization RESET  Software reset (and initialization) STANDBY ...

  • Page 97: Control Functions

    During the ignition cycle multiple safety checks are active; none of the timing settings are adjustable at the water heater: False flame detection If flame is detected at the end of the pre-spark period (Pre_Ignit) a lockout error will occur. Re-ignition If at the end of the safety period no flame is detected the control will go to Post_Purge to remove any unburned gas.

  • Page 98: On Board Hmi And Led Colors

    14.8.2 O N BOARD COLORS On the burner controller a basic on-board Human Interface (HMI) is available which consists of a push button and a 2 color (red/green) LED. These are used to indicate basic status information about the control. Status LED Reset button Figure 14.16...

  • Page 99: Demand For Domestic Hot Water

    14.9 Demand for Domestic Hot Water HOT WATER CAN SCALD! Water temperature over 125ºF can cause severe burns instantly or death from scalds. - Children, disabled and elderly are at highest risk of being scalded. - Never leave them unattended in or near shower, bathtub or sink. - Never allow small children to use a hot water faucet or draw their own bath.
  • Page 100 6. When using a DHW store setpoint above 158°F (70°C) use a fixed setpoint for the pump because the water heater will not condensate at high temperatures. Repeat point 1 and 2 and lower the % until delta T is above 30°F (16.5°C) or 22.5°F (12.5°C) now increase the fixed setpoint by one step (10%).

  • Page 101: Anti-Legionella Protection

    14.9.2 LEGIONELLA PROTECTION Anti-Legionella protection is enabled for DHW modes with an external tank with a sensor. To prevent legionella a special function is implemented in the software. The Anti-Legionella protection will be checked on the tank sensor. At least once every 168 hours (7 days) the tank sensor must reach a temperature above Anti_Legionella_Setpoint for a time specified by Anti_Legionella_Burn_Time.
  • Page 102 The diagram below shows how the state machine for Anti-Legionella is implemented. Load waiting period 120 minutes 168 hour Figure 14.17 Status information Every time an anti-legionella demand ends the Anti_Legionella_Active_Counter is incremented to indicate how many anti-legionella actions have been performed. This counter can be found in the ‘Boiler History’ screen in LabVision PC software.

  • Page 103: 14.10 Display Menu Structure

    14.10 Display menu structure Menu structure Display: Access Description: level 1. Central Heating (CH) User Enter the Central Heating (CH) menu 2. Domestic Hot Water (DHW) User Enter the Domestic Hot Water (DHW) menu 3. Information User Enter the Information menu 4.
  • Page 104 3.2 Boiler status min. max. Default unit Access Description: level Flow Temperature °F (°C) User Actual supply flow temperature Flow 2 Temperature °F (°C) User Actual supply 2 flow temperature Return Temperature User Actual return temperature DHW Temperature °F (°C) User Actual DHW temperature DCW Temperature...
  • Page 105 4.1.1 Language min. max. Default unit Access Description: level English User Select the English language Italiano User Select the Italian language Pусский User Select the Russian language Hrvatski User Select the Croatian language User Select the Chinese language 中文 Français User Select the French language Español...
  • Page 106 4.1.5 Other settings min. max. Default unit Access Description: level Status Overview Settings User Configure which information is shown on the Status overview Modbus Address 0…255 User Select the Modbus communication address Modbus Stop bits 1 – 2 User Select the number of Modbus communication stop bits 4.1.5.1 Status Overview min.
  • Page 107 4.2.1 Boiler parameters min. max. Default unit Access Description: Dis- level play CH mode Installer Set the CH mode CH Setpoint °F Installer Set the CH setpoint (20) (90) (82) (°C) Calc. Setp. Offset °F Installer Set the offset for CH mode 1 / 2 cal- (-10) (10) (°C)
  • Page 108 cont.: 4.2.1 Boiler min. max. Default unit Access Description: Dis- parameters level play DHW Setpoint °F Installer Set the DHW setpoint (39) (70) (60) (°C) DHW Store Setpoint °F Installer Set the DHW storage setpoint (90) (60) (°C) DHW Hysteresis Down 0 (0) 36 (20) 5.4 (3)
  • Page 109 4.2.2 Module Cascade min. max. Default unit Access Description: Dis- Settings level play Burner Address Mana- Installer Set the cascade burner address ging Permit Emergency Mode Yes/No Installer Enable/disable the cascade emer- gency mode Emergency Setpoint °F Installer Set the emergency mode setpoint (20) (90) (50)
  • Page 110 Parameters for cascading are found in the Module Cascade Settings menu, submenu of the Boiler settings menu. Parameters in the Boiler Cascade Settings menu should not be used. 4.2.3 Boiler Cascade min. max. Default unit Access Description: Dis- Settings level play Boiler Address stand alone...

  • Page 111: Temperature Protection

    TEMPERATURE PROTECTION The difference between Supply temperature and Inlet Temperature is continuously monitored. Too large of a differ- ence can indicate a defective pump or a clogged heat exchanger. To protect the water heater, the burner controller reduces the input when the temperature difference ΔT becomes too high: At maximum water heater input ΔT is limited to 32°F (18°C) = (Hx_Diff_DeltaT_Max ) In between 32°F (18°C) and 47°F (26°C) water heater input modulates between minimum and maximum.

  • Page 112: Lockout Codes

    16.2 Lockout codes Lock- Error Description Cause Solving code EEPROM Read Error Internal software error wrongly programmed BCU reset BCU or replace BCU and / or or PB display unit Ignition Error Five unsuccessful ignition no gas, wrongly adjusted check gas supply and adjust gas attempts in a row gas valve, faulty position valve, reset BCU, check distance...
  • Page 113 Lock- Error Description Cause Solving code Instruction Error Internal software error wrongly programmed BCU reset BCU or replace BCU and / or or PB display unit Ion Check Failed Internal software error wrongly programmed BCU reset BCU or replace BCU and / or or PB display unit Flame Out Too Late...

  • Page 114: Blocking Codes

    16.3 Blocking codes Blocking Error Description Cause Solving code WD Error Ram Internal software error wrongly programmed reset BCU or replace BCU and / or BCU or PB display unit WD Error Rom Internal software error wrongly programmed reset BCU or replace BCU and / or BCU or PB display unit WD Error Stack...
  • Page 115 Blocking Error Description Cause Solving code T Outdoor Open Outdoor sensor open malfunctioning outdoor check connection to BCU or sensor or not con- check resistance NTC sensor or nected or wrong CH- change CH-mode mode programmed T Return Shorted Return sensor shorted malfunctioning return check connection to BCU or sensor or short circuit-...

  • Page 116: Warnings

    16.4 Warnings Error no. Error Description Cause Solving Comm. Lost with Cascade System: Managing cas- connection between Check wiring between water module cade control lost communication cascaded water heater or distance between wa- with one of the depending. heaters is interrupted ter heaters is too big.

  • Page 117: Cascading

    CASCADING 17.1 System setup NOTE: for proper functioning of the system, some settings have to be changed, see § 17.5.2 "Emergency mode". The water heater controller can control multiple water heaters in a cascade setup. The sensors (DHW sensor and system sensor) are equal to a stand alone water heater and should only be con- nected to the managing water heater.

  • Page 118: Quick-Guide Cascade Set-Up

    17.2 Quick-guide cascade set-up Below a quick set-up, all settings are described in detail in the successive chapters Link the water heaters with a 2-wire cable in parallel. Connect 20 on the managing water heater to 10 on the dependent water heaters and connect 21 on the managing water heater to 11 on the dependent water heaters.

  • Page 119: Water Heater Cascade Communication Setup

    17.3 Water heater cascade communication setup. In order for the system to work for cascade the communication busses must be parallel linked together. The managing water heater uses the AL-bus connection 20-21 for the cascade. The depending water heaters must be connected to the managing water heater on the 10-11 connection terminals.

  • Page 120: Setting The Cascade Parameters

    17.3.2 S ETTING THE CASCADE PARAMETERS 1. Enter the main menu by pushing the menu button 2. Now select Boiler Settings and enter the right now select settings by toggling the up and down password to continue. arrow and enter settings by pushing the enter button.

  • Page 121: Cascade - Start/Stop Sequence

    The managing water heater provides the calculated setpoint to all dependent water heaters. The modulating power of the dependent water heaters is PID controlled based on the calculated setpoint and dependent water heater supply temperature. Cascade HW setpoint adaption When the system temperature is not high enough the setpoint for all water heaters will be adjusted. The water heater setpoint will be increased when the system temperature drops below Cascade_Setpoint and de- creased when it rises above Cascade_Setpoint temperature.

  • Page 122: First Module To Start Selection

    17.4.1 F IRST MODULE TO START SELECTION When the cascade Module_Rotation_Interval has passed the control will perform the cascade rotation. At this moment the next available control based on the current First_Module_To_Start is selected. A depending control is available when the control is present on the communication bus and the control is not blocked by an error.

  • Page 123: Emergency Mode

    17.5.2 E MERGENCY MODE Managing water heater error When the managing water heater is in error mode, the depending water heaters can go into the "Emergency_Mode", if enabled. In emergency mode the system setpoint is set to the temperature of the Emergency_Setpoint and all cascaded water heaters start burning on this setpoint.

  • Page 124: System Test

    SYSTEM TEST. For testing the system at fixed power rates, a system test can be activated via the Installer menu. Via the system test the water heater can be started without CH or DHW demand being present. The system test has priority. The following modes are available: System test mode Description...

  • Page 125: Commissioning The Water Heater

    COMMISSIONING THE WATER HEATER 19.1 First: flushing the water heater with water After installation of the water heater the first step, before commissioning, is to flush the water heater and the whole installation with fresh water to remove pollution, debris and other materials that might cause a blocking. This must also be done with installations, where only the water heater is replaced.

  • Page 126: Checking Gas Pressure

    When the water heater receives a heat demand the electronics will start the operation of the water heater. Before the water heater is used, the combustion must be adjusted and set at the minimum and maximum load. 19.5 Checking gas pressure Check the gas pressure available at the gas connection pipe of the water heater.

  • Page 127: Adjusting And Setting The Water Heater

    ADJUSTING AND SETTING THE WATER HEATER Before carrying out any adjusting of the burner, carefully read this complete chapter. The initial lighting of the appliance must be performed by a licensed Gas Technician. Failure to follow these instructions may result in property damage, serious injury or death. As soon as the appliance has been fully installed (with regard to hydraulics, filling and de- aeration of installation, gas, flue gas, air intake, wiring etc.) according to the preliminary instal- lation instructions, the water heater may then be wired to an electrically grounded power sup-...

  • Page 128: Combustion Table Low Nox

    20.1.2 C OMBUSTION TABLE Table: O / CO values for maximum and minimum load, where NOx values are less than 20 ppm at 3% O gas type Water heater type / CO / CO High Fire Low Fire natural gas WH 299W, WH 399W 5.3 / 8.8 5.3 / 8.8...

  • Page 129: Setting Screws Venturi And Gas Valves Drawings

    20.1.3 S ETTING SCREWS VENTURI AND GAS VALVES DRAWINGS Location of the setting screws: Gas pressure High Fire: nipple [3] screw [2] Low Fire: screw [1] Figure 20.1 High Fire: venturi adjustment screw: use hex key 4 mm (5/32 Allen wrench) High Fire: screw [2] Figure 20.2 Low Fire: gas valve adjustment screw: Torx T40.

  • Page 130: O 2 Adjustment Procedures

    20.2 Adjustment procedures Procedure 1: adjust at High Fire Carry out the next steps: 1. From status screen, press MENU . → "Central Heating/ Information/ Settings/ System Test" 2. Press UP/DOWN ↑↓ to select "System Test" Press CONFIRM 3. Password needed to continue 4.

  • Page 131: Venturi Replacement Adjustment

    20.4 Venturi Replacement Adjustment A new venturi is shipped with an unknown setting. It must be adjusted before it can be used in the water heater.  First, turn setting screw [2] on the venturi clockwise until you feel resistance. This means that the valve is fully open, do not try to turn the screw any further.
  • Page 132 2. Set fan speed The fan speed must be changed in the software of the water heater according to the tables below:. fan speed high fire Fan speed low fire parameter 92 parameter 93 Water heater type Propane Nat. gas Propane Nat.

  • Page 133: Start Up Checklist

    Water heater information After filling in form please send a Model copy by e-mail to: Serial number info @triangletube.com Installation date or send a copy to address: New water heater or replacement Triangle Tube Cascade installation (Y/N) (YES / NO)
  • Page 134 Water circulation & temperature regulation (for DHW) Piping diameter Total length of straight pipe between water heater & tank Number of elbows Number of tees Temperature rise between inlet and outlet after 5 min. cold-start operating max. power °C / °F Water temperature setpoint Test of Water Flow Switch (DHW) ? (YES / NO)

  • Page 135: Inspection, Maintenance And Service

    INSPECTION, MAINTENANCE AND SERVICE. 21.1 General For a good, safe and long-time operation of the water heater and to maintain warranty it is mandatory to carry out inspection, maintenance and service on the water heater at least once a year. Inspection, maintenance and service of the water heater should also be carried out on the next occasion ...
  • Page 136 gas supplier who must read and follow the Installation, Operation, and Service Manual before performing any work on this water heater. Improper installation, adjustment, alteration, service or maintenance can cause property damage, serious injury (exposure to hazardous materials) or death. AVOID Breathing Fiber Particulates and Dust Precautionary Measures: Do not remove or replace RCF parts or attempt any service work involving RCF without following the guidelines and...

  • Page 137: Inspection, Maintenance And Service

    21.3 Inspection, maintenance and service. Inspection, maintenance and service including the replacement of water heater parts must only be carried out by a licensed professional, service agency or the gas supplier. Apart from the maintenance proceedings it is required to maintain a service log for each water heater that includes all of the following information: ...
  • Page 138 Dismount complete burner unit The complete burner unit consists of the fan, venturi, gas valve, the burner plate and the internal burner. To make more space to transport the burner unit pull down the burner controller unit. To dismount this part for an internal heat exchanger check: remove the six M6 nuts, the ignition cable, the thermal fuse cables and the gas valve cable.
  • Page 139 Ignition / ionization electrode When the burner burner is removed, it is easy to check the ignition electrode. First check if the distances between the electrodes and between the electrode and the burner are according to the figure below. When these are not correct, try to bend the electrodes into the right position.
  • Page 140 Burner door gasket If any part of the gasket has discolored, changed texture, hardened, the rubber has cured and/or has damages, the gasket must be replaced. Notice: only use the gaskets that are supplied by the water heater manufacturer. Burner door gasket replacement: Figure 21.6 - Remove the old gasket - Place a new gasket in its groove.
  • Page 141 Warning Crystalline Silica – Read instructions of § 21.2 carefully Rear wall insulation disk If the insulation disk is degraded or damaged, it has to be replaced. - let the heat exchanger cool down, wait a few hours after burning. In this way, the protective film of the new insulation disc will not stick to the rear wall of the heat exchanger.
  • Page 142 When the fan blades are polluted and dirty, carefully clean the blades with a soft brush. Notice: do not use too much force on the blades or else the fan might be out of balance and run irregularly, causing noises and fan failures. Check the fan also for any water damage.

  • Page 143: Decalcifying Of The Heat Exchanger

    21.3.1 D ECALCIFYING OF THE EAT EXCHANGER Cleaning the heat exchanger (Every 2-year maintenance or as needed based on water quality) The heat exchanger should be cleaned at the service interval every 2 years. Failure to flush the heat exchanger will cause damage to it.

  • Page 144: Mounting The Burner Door

    21.3.2 M OUNTING THE BURNER DOOR IMPORTANT: Tighten in given order. Before mounting the burner door, make sure that its gaskets and insulation are in excellent shape. - torque value = 70.8-inch lbs. (8 Nm) If any signs of damage or ageing are present, these parts must be replaced.

  • Page 145: Maintenance Checklist

    21.5 Maintenance Checklist Allowing the water heater to operate with a dirty combustion chamber will hurt operation. Failure to clean the heat exchanger as required by the manual and dictated by the operating location could result in water heater failure, property damage, personal injury, or death. WARNING Such product failures ARE NOT covered under warranty Periodic maintenance should be performed once a year by a qualified service technician to assure that all the...

  • Page 146: Spare Parts

    SPARE PARTS. WWH Installation manual...
  • Page 147 WWH Installation manual...

  • Page 148: Part Numbers

    22.1 Part numbers POS. DESCRIPTION Part Number WH 299W WH 399W WH 470W WH 499W Set. Universal maintenance kit E153000001 Set. Electronics holder E144000001 Set. Anchoring bar WH 299W E111000001 Set. Anchoring bar WH 399W E111000003 Set. Anchoring bar WH 470W, WH 499W E111000004 Clip for WPS 10bar E115100001...
  • Page 149 POS. DESCRIPTION Part Number WH 299W WH 399W WH 470W WH 499W Check valve + seat E152000008 Venturi WH 299W E158100002 Venturi WH 399W E158100003 Venturi WH 470W, WH 499W E158100004 Modulating gas valve VR4615 (120VAC) E158000004 Radial Blower RG148/300W (120VAC) E152000002 Mounting plate silencer E114100001...
  • Page 150 POS. DESCRIPTION Part Number WH 299W WH 399W WH 470W WH 499W EPDM seal 10x12 self adhesive L=5m E123100004 Hose clamp Ø23,83 (DW15) E137100003 Air pressure switch DL 2 ET with S-clip (US) E141100010 Quick-action clamp E115100006 Ty-Rap Hitte bestendig 3,5x200 mm E115100007 Hose clamp Ø20,62 (DW13) E137100004...
  • Page 152 E126100003...
