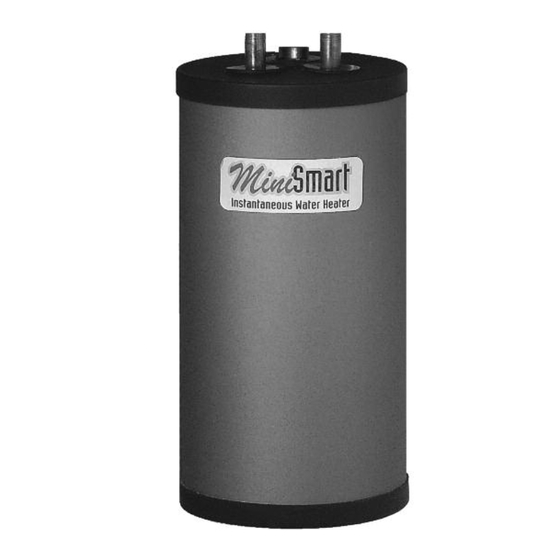

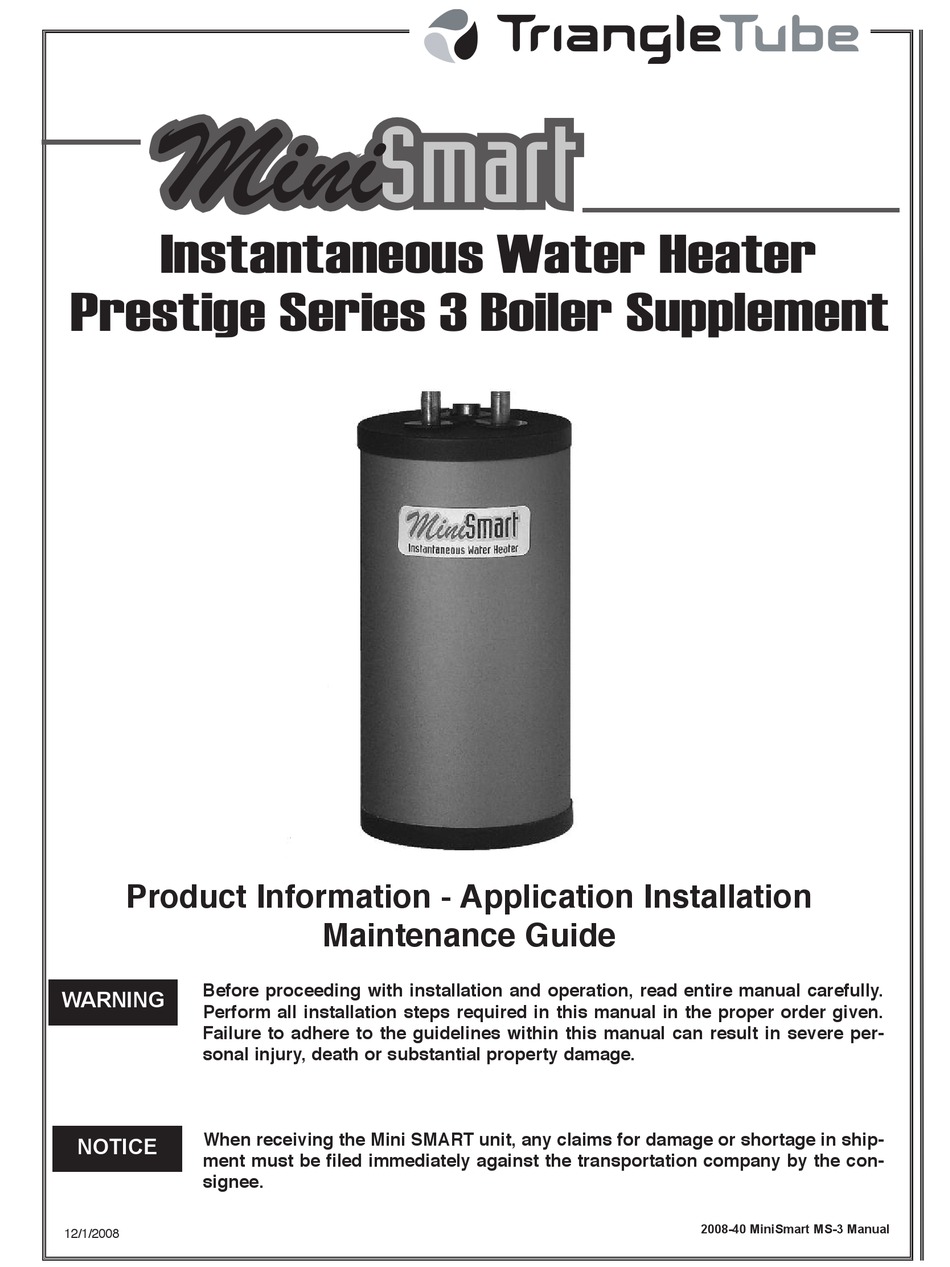

Mini
Instantaneous Water Heater
Prestige Series 3 Boiler Supplement
Product Information - Application Installation
Before proceeding with installation and operation, read entire manual carefully.
WARNING
Perform all installation steps required in this manual in the proper order given.
Failure to adhere to the guidelines within this manual can result in severe per-
sonal injury, death or substantial property damage.
When receiving the Mini SMART unit, any claims for damage or shortage in ship-
NOTICE
ment must be filed immediately against the transportation company by the con-
signee.
12/1/2008
Smart
Maintenance Guide
2008-40 MiniSmart MS-3 Manual
Advertisement
Table of Contents
Related Manuals for TriangleTube MiniSmart
Summary of Contents for TriangleTube MiniSmart
- Page 1 When receiving the Mini SMART unit, any claims for damage or shortage in ship- NOTICE ment must be filed immediately against the transportation company by the con- signee. 2008-40 MiniSmart MS-3 Manual 12/1/2008...
-
Page 2: Table Of Contents
Table of Contents PRODUCT AND SAFETY INFORMATION Definitions ............1 Product Safety Notices . - Page 3 Table of Contents OPTIONAL AQUASTAT INSTALLATION Optional Aquastat Installation -Various Boilers ......18 Optional Aquastat Wiring - Various Boilers.
-
Page 4: Product And Safety Information
Product and Safety Information DEFINITIONS The following terms are used throughout this manual to NOTICE bring attention to the presence of potential hazards or to important information concerning the product. Indicates special instructions on installation, opera- tion or maintenance, which are important to the equipment but not related to personal injury hazards. -
Page 5: Product Safety Notices
Product and Safety Information • Water drained from the system drain valves DANGER may be extremely hot. To avoid injury: Make sure all connections are tight HOT WATER CAN SCALD! Direct water flow away from any person • Water temperatures over 125°F can cause severe burns instantly or death from scalding •... -
Page 6: Pre-Installation Items
Pre-Installation Items CODE COMPLIANCE LOCATION / MOUNTING CONSIDERATIONS This product must be installed in accordance with the This water heater is not intended for outdoor installations instructions in this manual and where applicable: Maintain minimal piping distance between the boiler and With all local, state, provincial and national the water heater to: codes, laws, regulations and ordinances... -
Page 7: General Installation
General Installation GENERAL INSTALLATION REQUIREMENTS MOUNTING INSTALLATION – STUD WALLS Ensure all plumbing / piping meets or exceeds 1. Locate a wall stud in the general location of the all local, state or national codes. water heater placement. Use isolation valves to isolate system compo- 2. -
Page 8: Mounting Installation - Solid Walls
General Installation MOUNTING INSTALLATION – SOLID WALLS 5. Mount the bracket onto the water heater using the provided mounting bolts. Ensure the mounting bolts are fully tightened and the bracket is securely fas- 1. Locate the general location of the water heater tened to the water heater. -
Page 9: Domestic Piping Installation
Domestic Piping Installation GENERAL REQUIREMENTS Should not contain any shut-off valves or obstructions. No shut-off valve should be piped All plumbing must meet or exceed local, state or between the water heater and the relief valve. national plumbing codes. Support all piping using hangers. DO NOT sup- WARNING port piping by the unit or by system components Failure to comply with the guidelines on installing... -
Page 10: Domestic Piping Diagram
Domestic Piping Installation Cold Cold Fig. 3 : Mini Smart Domestic Piping 1. Isolation valve 4 Pressure relief valve - 150 psi 2. Backflow preventer or pressure reducing valve 5. Mixing valve (May be required by code) 6. Check valve 3. -
Page 11: Boiler Piping Installation
Boiler Piping Installation GENERAL REQUIREMENTS Reference Fig. 4 for a typical boiler piping dia- gram. All plumbing must meet or exceed local, state or Reference the PRESTIGE Boiler Installation national plumbing codes. Manual for additional information and require- Support all piping using hangers. DO NOT sup- ments regarding boiler piping. -
Page 12: Idwh Sensor Installation & Wiring
IDWH Sensor Installation & Wiring IDWH SENSOR INSTALLATION 2. Remove the front jacket panel of the PRESTIGE by removing the thumb screw along the upper edge of the jacket panel. Once the thumb screw is removed, Install the IDWH Sensor (provided with water heater) pull the panel slightly forward and lift up. -
Page 13: Program Access Of The Mcba Control
Program Access of the MCBA Control PROGRAM ACCESS OF THE MCBA The display should read (XX should be CONTROL a random number from 00 to 99) NOTICE 5. Press the + or - button to change the display num- C_54 to read . -
Page 14: To Change A Parameter Setting
Program Access of the MCBA Control Once a particular parameter is reached, release the NOTICE STEP button. Wait a second and the display will show the current setting for that parameter in the right two dis- Once a parameter setting value has been revised play digits. -
Page 15: Idwh Sensor Parameters
IDWH Sensor Parameters IDWH SENSOR PARAMETER DANGER 1. Once the access code number has been stored and accepted in the control module, change the display readout to “Parameter” mode by pressing MODE HOT WATER CAN SCALD! PARA until the display shows •... -
Page 16: Dhw Temperature Setting
IDWH Sensor Parameters WARNING NOTICE The performance specifications listed are based on Parameter 46 has several other possible settings a DHW storage temperature setting of 140 F. Setting available. The factory setting of the IWH is aquastat other then the factory setting of 140 F will effect the actual performance of the water heater. -
Page 17: Dhw Detection On Parameter
IDWH Sensor Parameters 4. Press the + or - button until the desired “DHW Set To revise the parameter setting within the PRESTIGE Value” setting is achieved. Press STORE to save Control Module for DHW “Detention ON” control, the the setting. The display will flash when the revised installer must activate the access code for the control setting is accepted. -
Page 18: Additional Dhw Features
IDWH Sensor Parameters DANGER The Frost Protection feature is designed to protect the UNIT from a potential freeze up. The protection is acti- vated once the IDWH Sensor records a domestic tem- The “Detection OFF” setting of Parameter 39 greatly perature of 38 F. -
Page 19: Prestige Parameter Information
Prestige Parameter Information PRESTIGE FACTORY SETTINGS FOR PARAMETERS... -
Page 20: Accessing Boiler Information
Prestige Parameter Information Accessing Boiler Information NOTICE Information mode The ignition counters and burner hours are split into three two digit numbers. For example: To switch from STANDBY mode to INFORMA- TION mode, press MODE twice. J 12 Key: Display Pressing MODE once MODE Pressing MODE twice... -
Page 21: Optional Aquastat Installation -Various Boilers
Optional Aquastat Installation OPTIONAL AQUASTAT INSTALLATION - OPTIONAL AQUASTAT WIRING - VARIOUS VARIOUS BOILERS BOILERS. In lieu of the factory supplied sensor the installer may opt WARNING to use an aquastat, for this type of application the fol- lowing parts must be supplied by the installer: ELECTRICAL SHOCk HAZARD. -
Page 22: Product Specifications
Product Specifications Domestic Boiler Supply 3/4” NPSC Boiler Return 1/2” NPSC IDWH Sensor Connection Wall Surface Bottom View Wall Surface Boiler Return 3/4” NPSC 9 1/4” OD Boiler Supply Front View 1/2” NPT 1/2” NPT Domestic hot Domestic Cold 1 1/2” Top View NOTE: 1. - Page 23 Computerized sizing available from Triangle Tube/Phase III Available in capacities from 25,000 BTU/hr to 5,000,000 BTU/hr Member of Freeway Center - 1 Triangle Lane - Blackwood, NJ 08012 Tel: (856) 228 8881 - Fax: (856) 228 3584 E-mail: Sales@triangletube.com Group...
