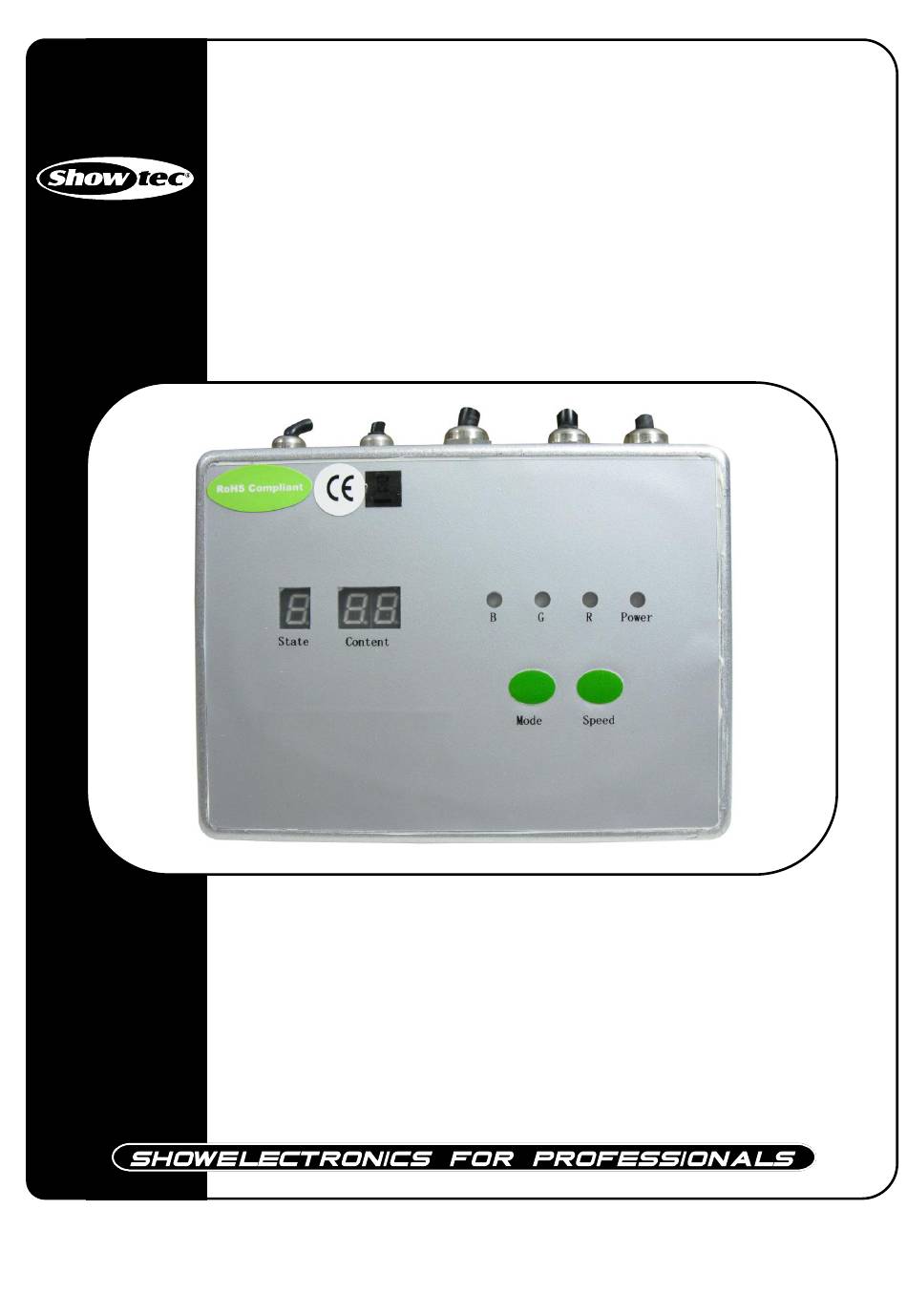

- Page 1 DMX Controller NeonFlex ORDERCODE 42055...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec DMX Controller NeonFlex Product Guide ™ Warning..…...................…………………………………………....Safety-instructions…………………………………………………………………………………….…..... Operating Determinations……………………………………………………………………………...... Rigging………………………………………………………………………………………………………………….… Return Procedure……………………………………………………………………………........Claims……………………………………………………………………………............Description..…................……….……………………………….…....Features…….……………………………………………………………………………………….……..…....Set Up and Operation..............……..…………………………….…....Functions..........……………......……..……………………………………………..… Connecting...……………..............……..……………………………………………… Maintenance.................………..………….…….……………....Troubleshooting................………………….………………….…....Product Specifications..............……………….…….………………….... -
Page 4: Warning
Your shipment includes: • Showtec DMX Controller for RGB LED NeonFlex (A) • 2 x Electronic fuse (B) • 1 x DMX-cable 1 m. (C) •... -
Page 5: Operating Determinations
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Rigging
• The maximum ambient temperature t = 45°C must never be exceeded. • The relative humidity must not exceed 50 % with an ambient temperature of 45° C. • If this device is operated in any other way, than the one described in this manual, the product may suffer damages and the warranty becomes void. -
Page 7: Description

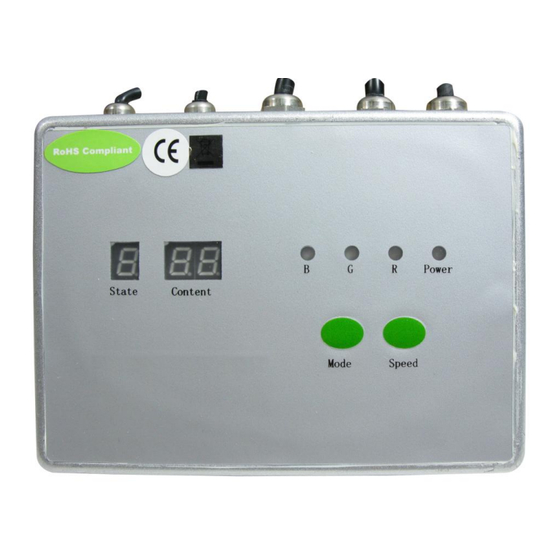

Description of the device Features The Showtec DMX Controller is a controller for the LED NeonFlex with great effects. • Must be used together with the Powercord 240V (42050) and LED NeonFlex • Control up to 120m of LED NeonFlex •... -
Page 8: Set Up And Operation
Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. Damages caused by non-observance are not subject to warranty. -
Page 9: Functions
Connect the cable as follow: – Red Yellow – Yellow White – White Blue -- Blue Connect the stripped cable from the controller (42055) to the stripped cable from the 42050. Be sure to use shrink-sleeve. Note: Do not use a connector, because these are not waterproof. FUNCTIONS When, after turning the power on, there is no external input signal within 10 seconds, the software of the controller will automatically set up controller #1 address as the master controller. -
Page 10: Connecting
#2 address holds 4, 5, 6 channels. CH 1 = DMX 1, 2, 3; CH2 = DMX 4, 5, 6, etc. Maintenance The Showtec DMX Controller requires almost no maintenance. However, you should keep the unit clean. Disconnect the mains power supply, and then wipe the cover with a damp cloth. Do not immerse in liquid. -
Page 11: Product Specifications
Product Specification Model: Showtec DMX Controller for RGB NeonFlex (42055) Power supply: 240V-50Hz (CE) Max. power consumption: 2640W Max. current: <6A in one circuit, <12A total in two circuits. Signal connector: 4-pin female connector DMX512 connector: 3-pin connector Protection rating: IP44 Operating temperature: -20°C—45°C...
