Summary of Contents for SHOWTEC 43121

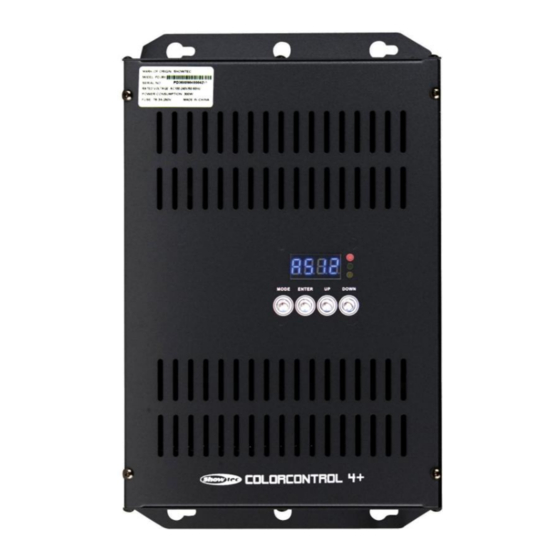

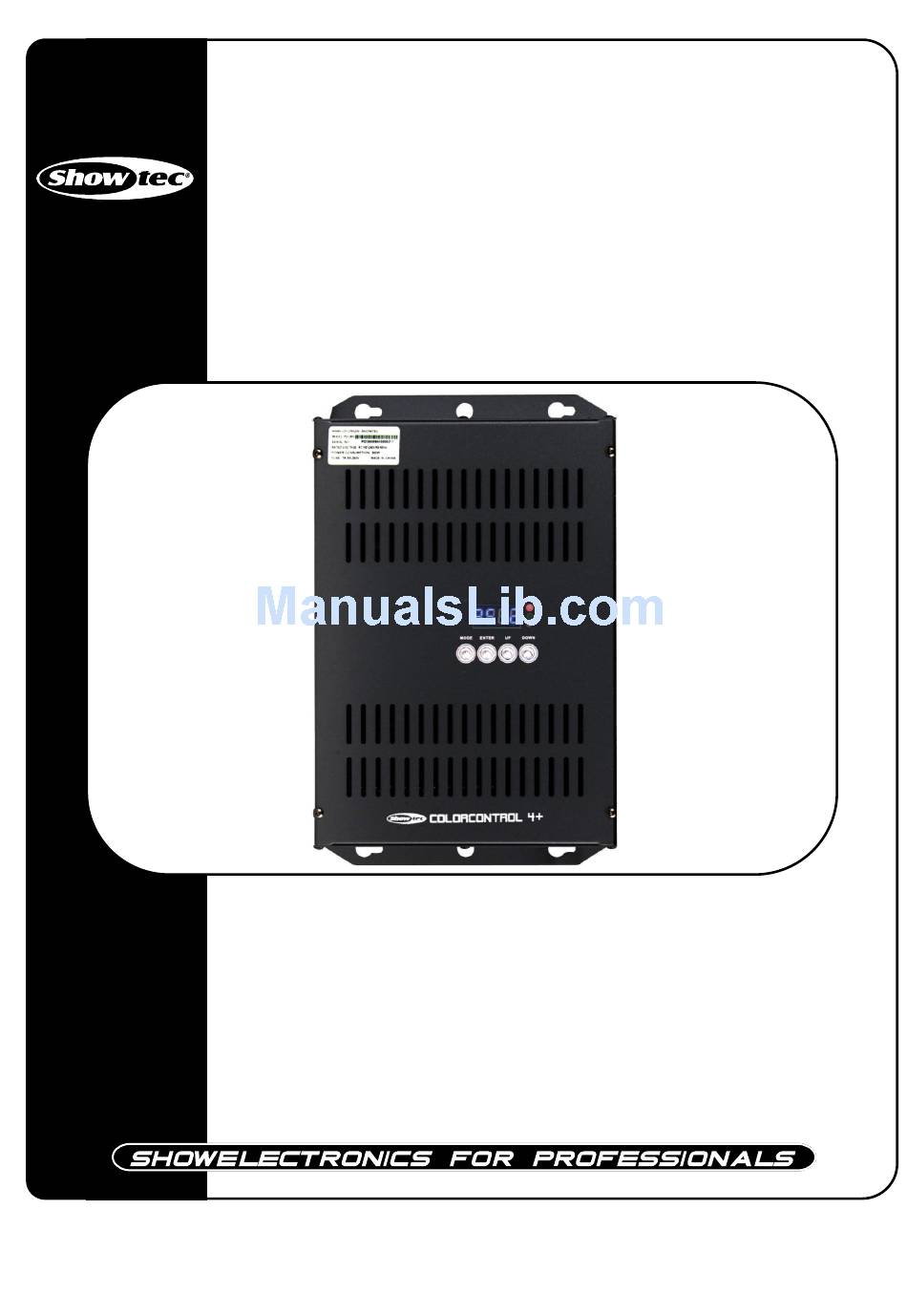

- Page 1 Controller for LED Colorline ORDERCODE 43121...
- Page 2 For more information: iwant@showtec.info You can get some of the best quality, best priced products on the market from Showtec. So next time, turn to Showtec for more great lighting equipment. Always get the best -- with Showtec ! Thank you!
-
Page 3: Table Of Contents
Showtec Showtec ColorLine Controller Product Guide ™ Warning.................…...……………..…………………………….……………….. Safety-instructions…………………………………………………………………………………………………………….. Operating Determinations.………………………………………………………………………………………….... Rigging.………………………………………………………………………………………………………………….... Return Procedure……………………………………………………………………………..........Claims……………………………………………………………………………..............Description................…...………………………………………….………………. Features and Overview ………………………………...….……………….………….……….……….………………….. Colorline Series………………………………………………..…...….……………….…………………...….…………………. Mounting the ColorLine Series…………………………………..…...….……………….…………………...….……………. Connection of the Colorline Series……………………………………………………………………...….…………………. Accessories………………………………………………...….……………….………….……….……….…………………. Values………………………………………………...….……………….………….……….……….…………………... Installation................…...…………………………………….…………………….. Set Up and Operation..............……..…………………………….……………………. DMX-controllable………..………………………………………………………………………..….………….…………… DMX-serial Data Link………………………………………………………………………..….………….…………………. -
Page 4: Warning
Your shipment includes: • Showtec Controller for LED Colorline with 1,6m powercable • 2x connector for DMX control • 4x connectioncable 5m. -
Page 5: Operating Determinations
If your Showtec device fails to work properly, discontinue use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service. -
Page 6: Rigging
Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself ! Always let the installation be carried out by an authorized dealer ! Procedure: If a ColorLine is lowered from the ceiling or high joists, professional trussing systems have to be used. -
Page 7: Return Procedure
Return Procedure Returned merchandise must be sent prepaid and in the original packing, call tags will not be issued. Package must be clearly labeled with a Return Authorization Number (RMA number). Products returned without an RMA number will be refused. Highlite will not accept the returned goods or any responsibility. Call Highlite 0031-455667723 or mail aftersales@highlite.nl and request an RMA prior to shipping the fixture. -
Page 8: Description
Description of the device Features The ColorLine Controller is designed for the more demanding user: • Standalone • DMX-512 • Power consumption: max. 300 Watt • Stand-alone Operation: Master/Slave Mode Manual Color mixing Manual chases with adjustable speed and fade 9 chases •... -
Page 9: Colorline Series
Colorline Series LED ColorLine 150+ (43110) LED ColorBoard 300+ (43112) LEDs (5 Red, 5 Green, 5 Blue, 5 White) LEDs (36 Red, 36 Green, 36 Blue, 36 White) LED ColorLine 300+ (43111) LED ColorDot 50+ (43113) LEDs (9 Red, 9 Green, 9 Blue, 9 White) LEDs (5 Red, 5 Green, 5 Blue, 5 White) Accessories Mountingstrip for ColorLine (43130) -
Page 10: Mounting The Colorline Series
Determine the desired mounting surface, place the included plastic spacers under the ColorDot 50+. Then use 2 screws to mount the ColorDot 50+ onto the surface through spacer. Controller for LED ColorLine (43121) Screw the 4 included screws through the installation holes located on each corner of the ColorLine. -
Page 11: Connection Of The Colorline Series
Connection of the Colorline Series Warning !!! Each controller can drive a maximum of 4,032 LEDs. Exceeding this number will damage the main controller board and LED board, then the warranty will become void. Colorline 150+ (43110) ColorBoard 300 (43112) Maximum: 156X 43110 Maximum: 28X 43112 Colorline 300+ (43111) -
Page 12: Set Up And Operation
Set Up and Operation Follow the directions below, as they pertain to your preferred operation mode. Before plugging the unit in, always make sure that the power supply matches the product specification voltage. Do not attempt to operate a 120V specification product on 230V power, or vice versa. You can operate this device as: 1. -
Page 13: Function Overview
Function Overview DMX Addressing Manual Color mixing Master / Slave Chase Modes DMX Modes... -
Page 14: Main Menu Options
Main Menu Options Auto DMX address Manual Color mixing Master / Slave Chase Modes DMX Modes DMX addressing 1. Press the MODE button to scroll through the menu, until the display shows 2. Use the UP/DOWN buttons to select the DMX address from Stand-alone Manual Color Mixing Make color adjustment manually using the MODE button. -
Page 15: Auto Chase Mode
Auto Chase Mode 1. Press the MODE button to scroll through the menu, until the display shows 2. Use the UP/DOWN buttons to select the Chase from 3. Use the ENTER button to select in the submenu. 4. Use the UP/DOWN buttons to set Fade and Speed values . Select Chase from 1 –... -
Page 16: Menu Functions
MENU FUNCTIONS RGB MODE 3 channel mode DMX channel function: CH1 Red, CH2 Green, CH3 Blue. [output 1-4] 6 channel mode, control two set of two outputs. DMX channel function: CH1 Red, CH2 Green, CH3 Blue. [output 1 & 2] CH4 Red, CH5 Green, CH6 Blue. -
Page 17: Dfn4 Mode
MENU FUNCTIONS RGBW MODE 4 channel mode DMX channel function : CH1 Red, CH2 Green, CH3 Blue, CH4 White. [output 1-4] 8 channel mode, control two set of two outputs. DMX channel function : CH1 Red, CH2 Green, CH3 Blue, CH4 White, [output 1 &... -
Page 18: Dmx Channels Rgb
DMX Channels RGB DMX Basic (3 Channels) Channel 1 – Red 0-255 Gradual adjustment Red from 0 – 100% Channel 2 – Green 0-255 Gradual adjustment Green from 0 – 100% Channel 3 – Blue 0-255 Gradual adjustment Blue from 0 – 100% DMX Standard (4 Channels) Channel 1 –... -
Page 19: Dmx Channels Rgbw
DMX Channels RGBW DMX Basic (4 Channels) Channel 1 – Red 0-255 Gradual adjustment Red from 0 – 100% Channel 2 – Green 0-255 Gradual adjustment Green from 0 – 100% Channel 3 – Blue 0-255 Gradual adjustment Blue from 0 – 100% Channel 4 –... -
Page 20: Maintenance
Response: Suspect tree potential problem areas: the power supply, the fuse. 1. Power supply. Check that the unit is plugged into an appropriate power supply. 2. The LEDs. Return the Dynamic LED to your Showtec dealer. 3. The fuse. Replace the fuse. See page 18 for replacing the fuse. -
Page 21: Product Specifications
Product Specification Model: Showtec ColorLine Controller (43121) Voltage: DC 24V input Power: 300W 6 PIN Connector for LED output 3 PIN Connector for DMX input and output. Control: DMX, Manual RGBW, Master/Slave, Auto Chase. Dimensions: 330 x 190 x 80 mm (LxWxH)
