- Page 1 series USER MANUAL V. 05.07...
- Page 2 Lynx Pro Audio S.L. shall not be liable to the purchaser of this product or to third parties for any damages, losses, costs, or expenses incurred by the purchaser or third parties as a result of an accident, misuse, or abuse of this product, nor for any modifications, repairs, or alterations to it, or for failing to strictly adhere to the operating and maintenance instructions of Lynx Pro Audio S.L.
-
Page 3: Table Of Contents
CONTENTS 1. INTRODUCTION ..............................6 2. CONTROLS Front panel ........................7 Rear panel ..........................8 3. INSTALLATION AND OPERATION Connections ........................9 Dual Channel Mode ....................10 Link Channel Mode ....................11 4. TROUBLESHOOTING............................12 5. TECHNICAL SPECIFICATIONS .........................14 LYNX PRO AUDIO GUARANTEE........................15... - Page 4 The SBA Series become a working tool of great value, providing the user with the best solutions in the market with the highest level of accuracy and a host of features for the professional.
- Page 5 Before unpacking your new amplifier, verify that the box does not show any damage or deformation. If this happens, please claim the damage to your fordwarder. Once unpacked and verified its correct operation, keep the original box in case you need to ship it back to your provider. SBA Series | User Manual...
-
Page 6: Introduction
1. INTRODUCTION The SBA series has been designed with the aim of offering the proper and more reliable amp to users of very big subwoofers with no concessions. Their output performances (270V/70A) are more than needed to push your subs as far as their maximum limits accept. -
Page 7: Controls

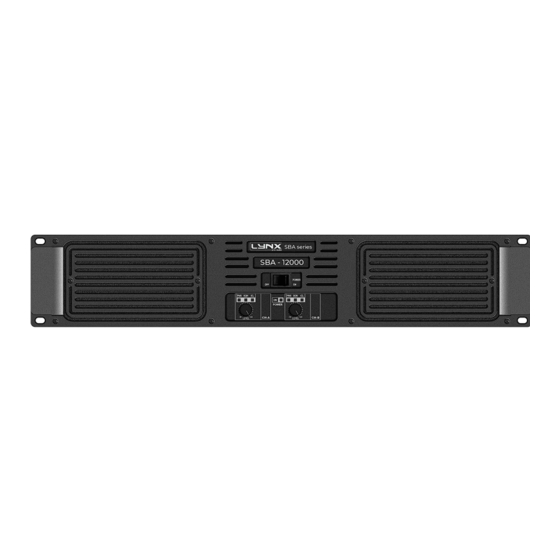

- SIGNAL: This LED indicates presence of signal at the inputs. - ICL: LED indicating Intelligent Clip Limiter in operation. 02.MAIN POWER SWITCH - Position I: Connects the amplifier’s current feed. - Position O: Disconnects the Power. Front Panel SBA Series SBA - 18000 SBA Series | User Manual... -
Page 8: Rear Panel
GAIN SELECTION MINIDIPS: Gain Selection minidips 1 and 2: Three positions for 32, 38 or 44dB Gain, (Default setting 32dB). MODE SELECTION MINIDIPS: With minidips 3 and 4 you chose operation mode: Link or Dual. Rear Panel SBA Series | User Manual... -
Page 9: Installation And Operation
The amplifiers provides, for each channel, a female XLR Connector (Signal Input) paralleled to a male XLR to daisy chain several amplifiers with the same signal line (LINK). SBA Series | User Manual... -
Page 10: Dual Channel Mode
- Connect the speakers’ lines to the corresponding Speakon on the amp respecting the polarity. - Use the level control knob on the front panel to adjust each channel independently. - Each signalling LED group will show its corresponding channel status. Dual Channel 2 Ch models SBA Series | User Manual... -
Page 11: Link Channel Mode
LINK Channel mode - Set the rear minidips in Link position (3 and 4 up). - Operate as Dual Channel Mode with the signal input linked to another adjacent channel. Link Inputs 2 Ch models SBA Series | User Manual... -
Page 12: Troubleshooting
- The amplifier is in power-on sequence, where output is inhibited until the amp circuits are ready to operate. - The internal temperatures rise to near thermal shutdown point due to unfavourable operating conditions. - Excessive mains current consumption. SBA Series | User Manual... - Page 13 ICL2™ - Intelligent Clip Limiter The Lynx Pro Audio ICL2 is an anticlip system to avoid speaker failure and provide more acceptable sound quality even when clipping occurs. With the ICL2 system you don’t lose the music “punch” but the speakers are kept under control.
-
Page 14: Technical Specifications
W x H x D (inches) Weight Net (kg - lbs) 12-26.5 12-26.5 Soft-start, Turn-on Turn-off transients, Muting at turn-on, Protections Over-heating, DC, RF, Short-circuit, Open or mismatched loads, Overloaded power supply, Mains Overvoltage, ICL™, PMS™ , SSP™ and FCM™ SBA Series | User Manual... -
Page 15: Lynx Pro Audio Guarantee
Lynx Pro Audio S.L. In the case that the product could not be returned to the factory for checking and repairing, Lynx Pro Audio S.L. would supply all the necessary parts. - Page 16 DECLARATION OF CONFORMITY Lynx Pro Audio S.L. declares that ionic series are in conformity with the following EC directives: Low Voltage Directive 2006/95/EC Electromagnetic Compatibility EMC 2004/108/EC RoHS Directive 2002/95/EC In accordance with Harmonized European Norms: EN 60065:2002 Audio, video and similar electronic apparatus. Safety requirements EN 55103-1:1996 Electromagnetic compatibility.
