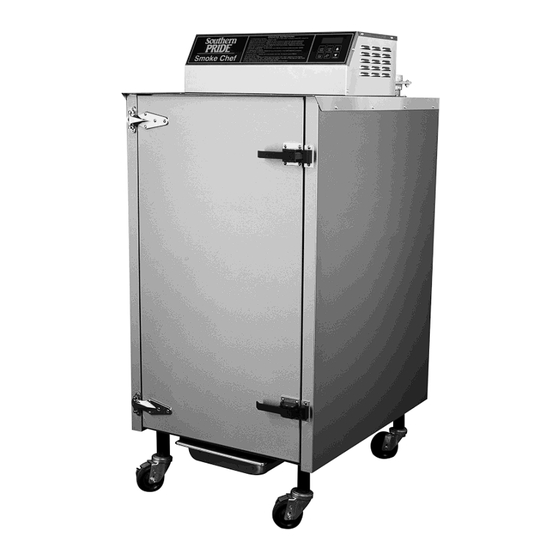

- Page 1 OWNER’S MANUAL Electric Woodchip-Burning Stationary Rack Barbecue Smoker SC-100 Southern Pride Distributing, LLC Phone: (731) 696-3175 401 S Mill St www.southernpride.com Alamo, TN 38001 © 2024 Revision 0...
-
Page 2: Table Of Contents
Wiring Diagram ....................13 Warranty ......................14 Please read this Manual carefully prior to installation, operation, and maintenance of your Southern Pride smoker. Proper installation, operation, and maintenance are essential for your satisfaction and safe operation. KEEP THIS MANUAL FOR REFERENCE NOTE: An Electrical Diagram for this appliance can be found on the inside of the electrical cover. -
Page 3: Safety Information And Precautions
SAFETY INFORMATION AND PRECAUTIONS This Manual should be considered a permanent part of this smoker. THE SMOKER MUST BE INSTALLED BY A QUALIFIED SERVICE TECHNICIAN. All troubleshooting guides, component views, and parts lists included in this manual are for general reference only and are intended for use by qualified technical personnel. DANGER: Improper installation, adjustment, alteration, service or maintenance can cause property damage, injury or death. -
Page 4: Diagram Of Smoker
DIAGRAM OF SMOKER 1. Main power switch (on/off) 2. Thermostat (100 - 325°F) 3. Smoker switch (on/off) 4. Drain pan 5. Flue 6. Data plate 7. Tether / wall anchor bolt mounting 8. Electrical compartment cover 9. Thermocouple and high-limit 10. -
Page 5: Installation
INSTALLATION RECEIVING THE SMOKER The smoker will be shipped via Common Carrier. Once the smoker arrives you will need a forklift to unload the crated smoker from the truck, or utilize lift gate delivery service. Approximate weight uncrated: 170 lbs. (77 kg) Approximate weight crated: 205 lbs. - Page 6 Placement under a common hood shared with other appliances may be prohibited. • Southern Pride recommends a minimum canopy overhang of 6” (152mm) on all sides. • Exhaust fan size must be determined by a ventilation contractor specifically for your application. Hood...
-
Page 7: Operation
OPERATION The smoker should be operated in the following order (with all operations according to the subsequent instructions): 1. Ensure that the drain pan is empty and installed in the pan rails located under the smoker drain hole. 2. Load the woodchip box with the desired woodchips. 3. - Page 8 OPERATION CAUTION The woodchip box must be installed on the smoke element at all times during operation of the smoker. Failure to do so can damage the smoke element and/or result in terminal failure of the smoker. CAUTION • Remove coals and ashes from previous cook cycle before loading new woodchips into the woodchip box.
- Page 9 OPERATION WARNING Never empty ash/coals from the smoker into a common trash dumpster. Embers from ash/ coals could ignite materials, resulting in a fire. CAUTION Be sure smoker product loading door is secured in the closed position immediately following a cook cycle and during non-use periods. ASH REMOVAL INSTRUCTIONS 1.
-
Page 10: Maintenance
2. Check the product door hinges and the product door latches. Tighten screws and align as needed. AS NEEDED EXTERIOR: Southern Pride smokers are known for their attractive appearance. We achieve this by selecting only the finest grade of type 304 stainless steel and applying exacting workmanship. •... - Page 11 MAINTENANCE WARNING It is extremely important to follow the below maintenance procedures. Grease or solids buildup inside the smoker could result in a fire hazard. AS NEEDED: (Frequency will depend on usage and local health department’s requirements): INTERIOR: • Use a commercial product service detergent/degreaser to clean the smoker interior. Follow the product manufacturer’s instructions for proper use, cautions and warnings.
- Page 12 MAINTENANCE REPLACEMENT PARTS LIST Gaskets Door Hinges/Closers Product door gasket 070103 Product door hinge 870003 Heating element gasket 073013 Door latch and catch 871013 Smoke element gasket 073012 Product Racks/Hangers Electrical Nickel chrome product rack 970024 Thermostat 433001 Product rack hanger 977014 Main power and smoker switch 441003...
-
Page 13: Wiring Diagram
WIRING DIAGRAM 750 watts 300 watts 750 watts Revision 0... -
Page 14: Warranty
IN NO EVENT WILL SOUTHERN PRIDE OR ANY COMPANY/INDIVIDUAL AFFILIATED WITH IT BE LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES. In no event shall Southern Pride be liable for loss of use, loss of revenue or profit, or loss of product, or for any indirect, incidental or consequential damages.
