Southern Pride SC-300 Owner's Manual

Southern Pride SC-300 Owner's Manual

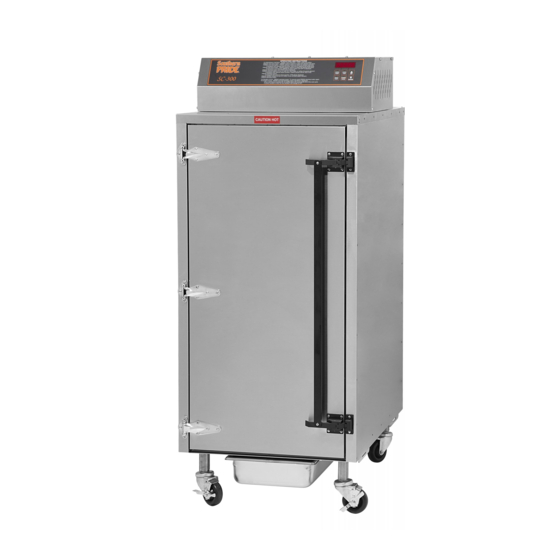

Electric woodchip-burning stationary rack bbq smoker smoke chef
Hide thumbs Also See for SC-300:

Advertisement

Electric Woodchip-Burning
Stationary Rack BBQ Smoker
OWNER'S MANUAL
230 VAC / 50 Hz UNITS
SC-300
Smoke Chef
401 South Mill Street , Alamo, Tennessee 38001
731-696-3175
http://www.southern-pride.com
1 of 24
Copyright 2019 by Southern Pride Distributing, LLC Revision 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SC-300 and is the answer not in the manual?

Questions and answers

Summary of Contents for Southern Pride SC-300

  • Page 1 Electric Woodchip-Burning Stationary Rack BBQ Smoker OWNER’S MANUAL 230 VAC / 50 Hz UNITS SC-300 Smoke Chef 401 South Mill Street , Alamo, Tennessee 38001 731-696-3175 http://www.southern-pride.com 1 of 24 Copyright 2019 by Southern Pride Distributing, LLC Revision 1...
  • Page 2 2 of 24 Copyright 2019 by Southern Pride Distributing, LLC Revision 1...
  • Page 3 10. Ashes removed from the woodchip boxes should be stored in a non-combustible container with a sealed lid only. Store ashes in a well ventilated area. FUMES COULD BE HAZARDOUS. 3 of 24 Copyright 2019 by Southern Pride Distributing, LLC Revision 1...
  • Page 4 CONGRATULATIONS! In selecting Southern Pride, you have chosen the finest, most advanced and most fully automatic woodchip burning barbecue smoker available. With us, “It’s simply a matter of Pride”. Please read this Manual carefully prior to installation, operation and maintenance of your Southern Pride smoker.
  • Page 5: Table Of Contents

    Daily ........................18 Monthly ......................18-19 As Needed ...................... 20-21 Wiring Diagram ....................22 Replacement Parts List ..................23 Before You Call For Service ................23 Limited Warranty ....................24 5 of 24 Copyright 2019 by Southern Pride Distributing, LLC Revision 1...
  • Page 6: Diagram Of Controls & Components

    DIAGRAM OF CONTROLS AND COMPONENTS Front View Rear View Top View Left Side View Inside View 6 of 24 Copyright 2019 by Southern Pride Distributing, LLC Revision 1...
  • Page 7 On units without the optional steam feature there is another woodchip box / smoke element on the right side of the cabinet. Woodchip box must be on the smoke element during smoker operation. 7 of 24 Copyright 2019 by Southern Pride Distributing, LLC Revision 1...
  • Page 8: Installation

    Flue dampers • SITE INSTRUCTIONS The Southern Pride smoker must be installed in a location that will permit the smoker to function for its intended purpose and to allow adequate clearance for ventilation, proper cleaning, and maintenance access. 8 of 24...
  • Page 9: Electrical Instructions

    Verify correct voltage at the main terminal block and replace the access panel.  The restraining device must be installed.  9 of 24 Copyright 2019 by Southern Pride Distributing, LLC Revision 1...
  • Page 10: Installation Instructions For Restraining Device

    6. Note: To provide strain relief the restraining cable must be shorter than the power supply cord. The restraining device should always be connected when the smoker is in use. Figure A Figure B 10 of 24 Copyright 2019 by Southern Pride Distributing, LLC Revision 1...
  • Page 11: Venting Instructions

    Placement under a common hood shared with other appliances may be prohibited. • Southern Pride recommends a minimum canopy overhang of 6 inches on all sides. • Exhaust fan size must be determined by a ventilation contractor specifically for your application. Hood •...
  • Page 12: Operation

    5. Close the woodchip box lid and slide the boxes onto the smoke element. 6. If the cook menu was paused, a press of the start button is required to resume the menu.. 12 of 24 Copyright 2019 by Southern Pride Distributing, LLC Revision 1...
  • Page 13: Steam Pan Filling Instructions

    Repeat steps 2 and 3 until all product is loaded into the smoker. Product height will determine how many rack slide spaces you need to maintain an air gap between each loaded product rack. 13 of 24 Copyright 2019 by Southern Pride Distributing, LLC Revision 1...
  • Page 14: Control Operating Instructions

    12. After each cook cycle the ashes should be removed from the woodchip boxes, and the grease emptied from the drain pan. Refer to Ash Removal Instructions and Grease Removal Instructions on page 17. 14 of 24 Copyright 2019 by Southern Pride Distributing, LLC Revision 1...
  • Page 15 13. After each cook cycle the ashes should be removed from the woodchip boxes, and the grease emptied from the drain pan. Refer to Ash Removal Instructions and Grease Removal Instructions on page 17. 15 of 24 Copyright 2019 by Southern Pride Distributing, LLC Revision 1...
  • Page 16: Product Unloading Instructions

    2. Carefully open the product loading door just enough to release the smoke from the cabinet, then wait approximately 5 seconds before fully opening the product loading door. 3. Product should be removed from top rack to the bottom rack. 16 of 24 Copyright 2019 by Southern Pride Distributing, LLC Revision 1...
  • Page 17: Ash Removal Instructions

    1. Immediately empty the grease pan after each cook cycle. CAUTION: Grease will be hot. 2. Grease should be poured into an approved grease recycling bin. WOOD STORAGE INSTRUCTIONS The solid fuel should be stored in accordance with local codes. • 17 of 24 Copyright 2019 by Southern Pride Distributing, LLC Revision 1...
  • Page 18: Maintenance

    Be sure there is no solids or creosote buildup. Clean as needed. 2. Check the product door hinges and the product door latches. Tighten screws and align as needed. 18 of 24 Copyright 2019 by Southern Pride Distributing, LLC Revision 1...
  • Page 19 To re-install repeat the above steps in reverse order. Be sure to tighten the blower wheel set screw against the flat portion of the convection motor shaft with the hub of the blower wheel flush with the bottom of the fan shaft. 19 of 24 Copyright 2019 by Southern Pride Distributing, LLC Revision 1...
  • Page 20: As Needed

    To dry the interior of the smoker leave product door open and allow to air dry. • Note: Consult with the appropriate state or local health department regarding all applicable cleaning and sanitation requirements for equipment. 20 of 24 Copyright 2019 by Southern Pride Distributing, LLC Revision 1...
  • Page 21 Always use the proper cleaning agent at the manufacturer’s recommended strength. EXTERIOR: Southern Pride smokers are known for their attractive appearance. We achieve this by selecting only the finest grade of type 304 stainless steel and applying exacting workmanship.
  • Page 22: Wiring Diagram

    WIRING DIAGRAM Revision 3 22 of 24 Copyright 2019 by Southern Pride Distributing, LLC Revision 1...
  • Page 23: Replacement Parts List

    Verify that the fan shroud and air channels are properly seated. • Error 10 appears on the control Plug the meat probe into the probe receptacle, or turn the meat probe • off by pressing the up arrow. 23 of 24 Copyright 2019 by Southern Pride Distributing, LLC Revision 1...
  • Page 24: Limited Warranty

    (expressed or implied) or otherwise based on contract, on tort or any other theory of liability, and regardless of any advice or representations not in writing that may have been rendered by Southern Pride concerning the sale, use or installation of the products. In the event the above warranty fails to correct purchaser’s performance problems caused by defects in workmanship and/or materials, purchaser’s exclusive remedy shall be limited to payment...
