Summary of Contents for Webb WEH12R-A

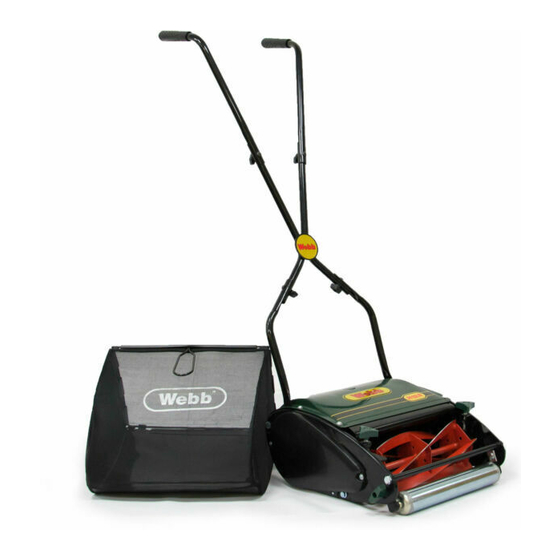

- Page 1 30cm Rear Roller Hand Push Lawnmower WEH12R-A 193814002 Operator’s Manual & Parts List Please read & understand this manual, paying particular attention to the safety instructions, before use. 10 Nov 2015...
-
Page 3: Table Of Contents
SAFETY INSTRUCTIONS MAINTENANCE & STORAGE COMPONENTS ASSEMBLY OPERATION TROUBLE SHOOTING PARTS DIAGRAM & LIST WARRANTY DECLARATION OF CONFORMITY For Spares or Support of your Webb product, please contact us: Tel: 01793 333212 (Mon – Fri 8.30am to 5.00pm) Email: customerservice@webblawnmowers.co.uk www.webblawnmowers.co.uk... -
Page 4: Specifications
INSTRUCTION MANUAL SPECIFICATIONS Model WEH12R-A Product Number 193814002 Height of Cut 13mm-23.5mm Collector 18 litre Number of Blades Blade Material Hardened Steel Overall Dimensions (mm) H - 1200, W-420, L-930 Weight 11.1kgs The manufacturer reserves the right to change the product specification and livery according to... -
Page 5: Safety Instructions
SAFETY INSTRUCTIONS Read and understand the owner’s manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product. - Page 6 INSTRUCTION MANUAL INSPECT YOUR MACHINE Check all bolts, nuts, and screws for tightness before each use, especially those securing guards and drive mechanisms. Vibration during use may cause these to loosen. Replace damaged, missing or failed parts before using. Warning labels carry important information. Replace any missing or damaged warning labels.
-
Page 7: Maintenance & Storage
MAINTENANCE & STORAGE WARNING Improper maintenance & storage of the machine may void your warranty. Keep the machine clean for better and safer performance. MAINTENANCE Before each use, check all nuts & bolts to be sure they are sufficiently tightened. We recommend only manufacturer original parts are used when maintaining this machine. - Page 8 INSTRUCTION MANUAL COMPONENTS...
-
Page 9: Assembly
ASSEMBLY It is recommended that think gardening gloves are worn, when unpacking, adjusting, assembling and maintaining the lawnmower. Remove the Mixer and contents from the carton. Be sure the carton is empty before discarding. If you require any assistance with regards to the contents of the lawnmower contact us: Tel: 01793 333212 - Mon –... - Page 10 INSTRUCTION MANUAL INSTRUCTION MANUAL STEP 2 – ASSEMBLING THE GRASS COLLECTOR 1. Insert the two side Frames into the square collection box main frame. 2. Insert the support arm into the two side frames. 3. Fit the fabric collector over the frame, ensuring the split securing plastic u-shape is secured around the frame.
- Page 11 STEP 4 – SETTING UP YOUR CYLINDER CAUTION This operation has to be undertaken close to the cutting cylinder blade. We strongly recommend the use of thick gardening gloves on both hands and the lawnmower body is secured to stop the cutting cylinder blade from rotating.
- Page 12 INSTRUCTION MANUAL STEP 6 – ADJUSTING THE DELIVERY PLATE If the grass is not being delivered to the grass collector sufficiently, the delivery plate can be adjusted. 1. Slacken the two screws (A) 2. Move the delivery plate forwards or backwards, to improve the delivery projection. 3.
- Page 13 My mower is not moving freely? Drive Chain adjustment required Go to STEP 7 The cut is uneven? The blade may be damaged Visit your local Webb dealer to have the blade inspected. Blade adjustment required Go to STEP 4 Height adjustment required...
- Page 14 PARTS DIAGRAM...
- Page 15 PARTS LIST PART NO DESCRIPTION PART NO DESCRIPTION TH133-1 Chain Case Cover TH133-28 Bearing TH133-2 Bolt TH133-29 Bearing Cup 2 TH133-3 Washer TH133-30 Bearing Cup TH133-4 Lock Nut TH133-31 Adjuster Spring TH133-5 Chain TH133-32 Roller Bracket TH133-6 Sprocket Wheel Assembly TH133-33 U Shape Washer TH133-7...
- Page 16 Ltd - SN3 5HY (Importer) declare that the product: Designation: Hand Push Rear Roller Lawnmower Model(s): WEH12R-A Type/Serial No. As per rating label on machine Complies with the following directives: 98/37/EC - Machinery Directive as last amended by EEC directive 2006/42/EC...
- Page 17 NOTES...
- Page 18 INSTRUCTION MANUAL This Service Book is provided with your Webb, to help you look after your purchase to our recommendations and enable you to take advantage of the 2 year manufacturer domestic warranty*. * Commercial/Professional & Hire users receive a 90 day warranty Present this service book to your authorised Webb repair dealer, whenever a service or a warranty appraisal is required.
- Page 19 SERVICE BOOK 1. Users Statement of Warranty Each new machine is warranted against defective material or assembly of material under normal usage. The warranty applies to the original purchaser, is not transferable and covers faulty parts and the labour involved in replacing and repairing those parts, which are of original manufacture.
- Page 20 It is the owner’s responsibility to ensure that their Webb machine is maintained at specific intervals. Any approved Webb service dealer can undertake a service, which are specialised in our products and will be aware of your particular machine and any technical updates which will save valuable time &...
- Page 21 SERVICE BOOK Your servicing Webb approved dealer will stamp & date the below relevant sections, when the correct service actions have been completed. PLEASE ENSURE THE SERVICE BOOK IS AVAILABLE FOR THE DEALER, DURING SERVICE WORK. 12 Months Date 24 Months...
- Page 22 INSTRUCTION MANUAL 48 Months 60 Months Date Date 72 Months 84 Months Date Date 96 Months 108 Months Date Date 120 Months 132 Months Date Date...
- Page 23 & services we provide, including information that we believe is relevant to your and/or your machine. We value your trust by giving us this information about yourself and we are committed to protecting your privacy. From time to time Webb, its associated companies, authorised dealers or third parties working on our behalf may wish to contact you regarding our products, services, offers, technical improvements or just opinions, which may be used for marketing, research or analysis purposes.
- Page 24 Webb Lawnmowers Murdock Road Dorcan Swindon Wiltshire SN3 5HY...
