Webb WEER36 Original Instructions Manual

1600w 36cm electric rotary lawnmower
Hide thumbs Also See for WEER36:
Table of Contents

Advertisement

Quick Links

v

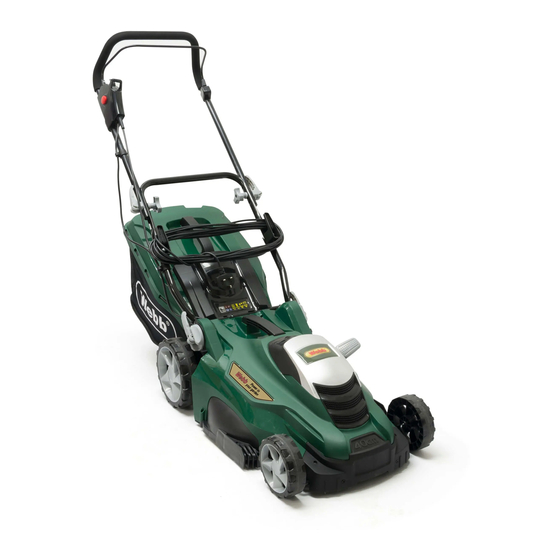

1600W 36cm Electric Rotary Lawnmower
WEER36
1938123002
1800W 40cm Electric Rotary Lawnmower
WEER40
1938124003
en - Original Instructions
ASSEMBLY REQUIRED
Minimum Two Persons
Save these instructions
Sales & Support: 01793 333212
Before use please read & understand this manual; paying particular attention to the safety instructions before use.
Incorrect use of the product could put the operator or machine in danger.
Whilst every eff ort has been made to ensure the accuracy of information contained in this manual, our policy of continuous improvement
determines the right to make modifi cations without prior warning.
Images are used for illustration purposes only.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WEER36 and is the answer not in the manual?

Questions and answers

Kevin Harding
June 30, 2025

Is the blade retaining bolt left or right hand thread?

0

Subscribe to Our Youtube Channel

Related Manuals for Webb WEER36

Summary of Contents for Webb WEER36

  • Page 1 1600W 36cm Electric Rotary Lawnmower WEER36 1938123002 1800W 40cm Electric Rotary Lawnmower WEER40 1938124003 en - Original Instructions ASSEMBLY REQUIRED Minimum Two Persons Save these instructions Sales & Support: 01793 333212 Before use please read & understand this manual; paying particular attention to the safety instructions before use.
  • Page 2 INSTRUCTION MANUAL 27 Jan 2022 Copyright Notice Copyright © Handy Distribution Permission is granted to reproduce this publication for personal & educational use only. Commercial copying, redistribution, hiring or lending is prohibited. No part of this publication may be stored in a retrieval system or transmitted in any other form or means without written permission from Handy Distribution.

  • Page 3: Table Of Contents

    CONTENTS SPECIFICATION IMPORTANT INFORMATION GENERAL SAFETY INSTRUCTIONS KNOW YOUR MACHINE SET UP & PREPARATION FOR OPERATION ASSEMBLY OPERATION ELECTRICAL CONNECTION MAINTENANCE, CLEANING & STORAGE TROUBLE SHOOTING PARTS DIAGRAM & LIST DECLARATION OF CONFORMITY WARRANTY ASSEMBLY IS REQUIRED - MINIMUM TWO PERSONS •...

  • Page 4: Specification

    INSTRUCTION MANUAL SPECIFICATION Model No. WEER36 WEER40 Product No. 1938123002 1938124003 Motor 230-240V~ 50Hz Rated Power 1600W 1800W No Load Speed 3700rpm Cutting Width 36cm 40cm Height of Cut 20-70mm Height Adjustments Collector Capacity Cable Length Sound Power Level 96 dB(A) Vibration 1.47m/s...

  • Page 5: Important Information

    IMPORTANT INFORMATION INTENDED USAGE The basic version of the equipment is a lawnmower intended for private use, i.e. for use in home and domestic gardening environments. It is designed for cutting natural grass in from small sized gardens. Any use not expressly permitted in this manual may damage lawnmower and pose a serious danger to the user.

  • Page 6: General Safety Instructions

    INSTRUCTION MANUAL GENERAL SAFETY INSTRUCTIONS It is important that you read and understand the owner’s manual and labels affixed to the machine. Learn its application and limitations as well as the specific potential hazards. Retain these instructions for future reference. The operator is responsible for following the warnings & instructions in this manual and on the product.
  • Page 7 IMPORTANT SAFETY WARNINGS WARNING Before you put the machine into operation, you must read this instruction manual. When using this machine, observe the following safety instructions to remove the risk of personal injury or material damage. Please also observe the special safety instructions in the respective chapters. Where applicable, follow the legal directives or regulations for the prevention of accidents in relation to the use of this machine.
  • Page 8 INSTRUCTION MANUAL The blade continues to rotate for a few seconds after you release the trigger. Never place any part of the body in the cutting area until you are sure the blade has stopped rotating and the electrical plug has been removed from the power source and contact cannot be made between the two.
  • Page 9 DO NOT MODIFY THE MOTOR To avoid serious injury or death, do not modify the motor in any way. Tampering with the motor settings can cause it to operate at unsafe speeds and lead to premature failure. Never tamper with factory settings of the motor.

  • Page 10: Know Your Machine

    INSTRUCTION MANUAL KNOW YOUR MACHINE * Image may vary from actual machine 1. OPC/Brake Lever 2. Quick Fold Handle 3. Cable Winder 4. Lower Handle 5. Height Adjuster 6. Collector 7. Cable Clip 8. Safety Button 9. Top Handle 10. Cable Tidy...

  • Page 11: Set Up & Preparation For Operation

    SET UP & PREPARATION FOR OPERATION This product must be assembled correctly before use. Carefully remove the product and any accessories from the carton. Inspect the product carefully to make sure there are no breakages or missing items during shipping. Do not discard the packing material and carton until you have carefully inspected and satisfactorily operated the product.
  • Page 12 INSTRUCTION MANUAL HANDLES 1. The lower handles will arrive inserted into the deck of the machine. Rotate the handle up away from the lawnmower, ensuring the electrical cables are not trapped of crimped. 2. Secure the lower handle by folding the quick release handle upwards and repeat on both sides. 3.
  • Page 13 10. Secure the electric cable to the handle assembly, using the cable clips provided. They are placed on the right side of the handle assembly, placing the leg of the cable clip into the two pre- drilled holes on the inner side of the handle assembly.

  • Page 14: Operation

    INSTRUCTION MANUAL OPERATION WARNING Always switch the motor off and remove the electrical plug from the power source before making any adjustments, repairs, or maintenance. ELECTRICAL CABLE 1. Always route the electrical cable away from the work area, to prevent it from meeting the cutting device. Your machine is supplied with a cable tidy, built into the safety button assembly (A).
  • Page 15 STARTING THE MOTOR WARNING The cutting blade begins to rotate as soon as the motor is started. A rotating cutting unit can cause injuries. 1. Connect the lawnmower to the power supply. Ensure it meets the recommended requirements above. 2. Ensure the lawnmower is within the grassed area to be worked. 3.
  • Page 16 INSTRUCTION MANUAL ADJUSTING CUTTING HEIGHT 1. The single height adjustment lever is located on the left side of the lawnmower. 2. Push the lever away towards the wheel and lift up or down the five settings, depending on your needs. 3.
  • Page 17 MOWING TIPS WARNING The operation of any lawnmower can result in foreign objects being thrown into eyes, which can cause severe damage. Always wear safety glasses or goggles while operating the lawnmower, or while performing any adjustments or repairs on it. Shut the motor off and wait until the lawnmower comes to a complete stop before cleaning the cutting deck and discharge areas.

  • Page 18: Electrical Connection

    INSTRUCTION MANUAL ELECTRICAL CONNECTION The electrical motor installed is connected and ready for operation. The connection complies with the applicable VDE and DIN provisions. The customer‘s mains connection as well as the extension cable used must also comply with these regulations. Damaged electrical connection cable The insulation on electrical connection cables is often damaged.

  • Page 19: Maintenance, Cleaning & Storage

    MAINTENANCE, CLEANING & STORAGE WARNING Improper maintenance & storage of the machine may void your warranty. Keep the machine clean for better and safer performance. Turn off the motor and remove the electrical plug from the power source before performing any maintenance.
  • Page 20 INSTRUCTION MANUAL REMOVE OR REPLACE THE BLADE 1. Block the rotation of the blade, using a good-sized piece of wood, which the blade cannot cut. 2. Hold the blade using gardening gloves (not provided) and spanner (not provided) rotating the spanner anti-clockwise.
  • Page 21 MOTOR CARE WARNING Do not use a water hose or pressure washer to clean the machine. Water can damage the motor. Do not use hard or pointed objects for cleaning the machine. • Always keep the lawnmower, wheels axles and air vents clean. Use a brush or cloth to clean it, avoid cleaners and solvents.

  • Page 22: Trouble Shooting

    MAINTENANCE INFORMATION Please note that the following parts of this product are subject to normal or natural wear and that the following parts are therefore also required for use as consumables. Wear & Tear parts*: Carbon brushes, cutting blade, collector (* Not necessarily included in the scope of delivery!) DISPOSAL &...
  • Page 23 Notes...
  • Page 24 INSTRUCTION MANUAL PARTS DIAGRAM - WEER36 1938123002 NOTE: Parts Lists are supplied for information purposes only, not all parts are stocked individually & we recommend you contact our Spares Team on 01793 333212 for expert advice.
  • Page 25 PARTS LIST - WEER36 1938123002 Item Item Webb Part No. Webb Description Webb Part No. Webb Description WE125-4080063 Switch Box Assembly WE125-103050259 Rear Axle WE125-103080444 Top Handle (With Foam) WE124-301070916 Grass Flap WE125-0301062831 Switch Box Small Cap WE125-301070924 Rear Wheel...
  • Page 26 INSTRUCTION MANUAL PARTS DIAGRAM - WEER40 1938124003 NOTE: Parts Lists are supplied for information purposes only, not all parts are stocked individually & we recommend you contact our Spares Team on 01793 333212 for expert advice.
  • Page 27 PARTS LIST - WEER40 1938124003 Item Item Webb Part No. Webb Description Webb Part No. Webb Description WE126-4080061 Switch Box Assembly WE126-301070903 Grass Flap WE125-103080444 Top Handle (With Foam) 1 WE126-301062836 Rear Wheel WE125-0301062831 Switch Box Small Cap WE125-104010258 Washer...
  • Page 28 EC DECLARATION OF CONFORMITY We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product: Designation: Electric 1600W 36cm Rotary Lawnmower Model(s): WEER36 Product No.: 1938123002 Type/Serial No. As per rating label on machine Complies with the following directives:...
  • Page 29 EC DECLARATION OF CONFORMITY We Handy Distribution Ltd - SN3 5HY (Importer) declare that the product: Designation: Electric 1600W 36cm Rotary Lawnmower Model(s): WEER40 Product No.: 1938124003 Type/Serial No. As per rating label on machine Complies with the following directives: Machinery Directive 2006/42/EC The conformity assessment procedure followed was in accordance with: EN 60335-1;...
  • Page 30 INSTRUCTION MANUAL This Service Book is provided with your Webb, to help you look after your purchase to our recommendations and enable you to take advantage of the conditional manufacturer domestic warranty*. Present this service book to your authorised Webb repair dealer, whenever a service or a warranty appraisal is required.
  • Page 31 2. Period of Warranty - valid from 1 January 2020 Webb (excludes Dynamic, Legacy & Heritage), 2 year conditional warranty from the original date of sale to the fi rst domestic user.

  • Page 32: Warranty

    It is the owner’s responsibility to ensure that their Webb machine is maintained at specifi c intervals. Any approved Webb service dealer can undertake a service, which are specialised in our products and will be aware of your particular machine and any technical updates which will save valuable time &...
  • Page 33 SERVICE BOOK Your servicing Webb approved dealer will stamp & date the below relevant sections, when the correct service actions have been completed. PLEASE ENSURE THE SERVICE BOOK IS AVAILABLE FOR THE DEALER, DURING SERVICE WORK. 1st Service This must be stamped by an approved service dealer to qualify for a free second year warranty.
  • Page 34 Service Record INSTRUCTION MANUAL 48 Months 60 Months Date Date 72 Months 84 Months Date Date 96 Months 108 Months Date Date 120 Months 132 Months Date Date...
  • Page 35 Email From time to time Webb, its associated companies, authorised dealers or third parties working on our behalf may wish to contact you regarding our products, services, off ers or just opinions, which may be used for marketing, research or analysis purposes.
  • Page 36 Webb Lawnmowers Murdock Road Dorcan Swindon Wiltshire SN3 5HY...
