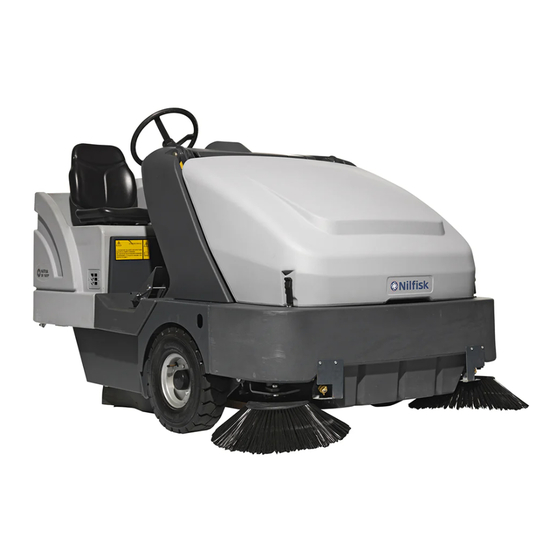

- Page 1 05/2012 DEUTSCH FRANÇAIS ENGLISH 33021402 NEDERLANDS Model: 13300175 BETRIEBSANLEITUNG ORIGINALANLEITUNG MANUEL D’UTILISATION INSTRUCTIONS D’ORIGINE SR 1601 D3 HD USER MANUAL ORIGINAL INSTRUCTION USER MANUAL GEBRUIKSAANWIJZING ORIGINELE INSTRUCTIES...
- Page 2 Тип / Typ / Typ / Type / Tipo / Tüüp / Type / Tyyppi / Type / Τύπος / SR 1601 D3 HD Típus / Tipo / Tipas / Tips / Type / Type / Tipo / Typ / Tip / Тип / Typ / Typ / Tip / Tip : Сериен...
-
Page 3: Table Of Contents
DUST GUARD SYSTEM WATER FILTER CLEANING (OPTIONAL) .................... 27 HYDRAULIC OIL ................................... 28 ENGINE OIL ....................................28 ENGINE AIR FILTER CLEANING ..............................29 ENGINE COOLANT ..................................29 FUSE CHECK/REPLACEMENT/RESET ............................30 TROUBLESHOOTING ..............................31 SCRAPPING .................................. 32 33021402 - SR 1601 D3 HD... -
Page 4: Introduction
All necessary operating, maintenance and repair procedures must be performed by qualified personnel or by Nilfisk Service Centers. Only original spare parts and accessories must be used. Contact Nilfisk for service or to order spare parts and accessories, specifying the machine model and serial number. SR 1601 D3 HD - 33021402... -
Page 5: Changes And Improvements
Drive the machine slowly on inclines. Use the brake pedal (35) to control machine speed while descending inclines. Do not turn the machine on an incline; drive straight up or down. The maximum rated incline during transport with a 3 cylinder model is 15%. 33021402 - SR 1601 D3 HD... -
Page 6: Safety
It indicates a caution or a remark related to important or useful functions. Pay careful attention to the paragraphs marked by this symbol. NOTE It indicates a remark related to important or useful functions. CONSULTATION It indicates the necessity to refer to the User Manual before performing any procedure. SR 1601 D3 HD - 33021402... -
Page 7: General Instructions
– Lead batteries (WET) are installed on this machine, do not tilt the machine more than 30° from its horizontal position to prevent the highly corrosive acid to leak out of the batteries. When the machine is to be tilted to perform maintenance procedures, remove the batteries. 33021402 - SR 1601 D3 HD... - Page 8 – Do not allow any object to enter into the openings. Do not use the machine if the openings are clogged. Always keep the openings free from dust, hairs and any other foreign material which could reduce the air flow. SR 1601 D3 HD - 33021402...
- Page 9 – If chemical products have to be used in the water tank, it is mandatory to apply the relevant information and caution labels of the product. 33021402 - SR 1601 D3 HD...
-
Page 10: Hopper Safety Support
After pushing/towing the machine, turn the socket head screw 1/4 of a turn clockwise (D) to reset the hydrostatic lock and hydraulic functions. NOTE If the screw is left in unlocking position (C), the hydraulic pump cannot drive the machine. P100320Z Figure 1 SR 1601 D3 HD - 33021402... -
Page 11: Machine Description
29. Dust guard system water tank plug (optional) Closed pocket filter (optional) 30. Water filter (optional) 13. Filter shaker assembly mounting knobs 31. Engine model and serial number plate 14. Hydraulic oil filter 15. Left side broom (optional) P100317Z 33021402 - SR 1601 D3 HD... - Page 12 38. Fuse panel (see the Fuse Check/Replacement/Reset 48. Fuses (see the Fuse Check/Replacement/Reset paragraph) paragraph) 39. Hopper safety support handle 49. Fire extinguisher (optional) • Pull backward to lock the support • Push forward to unlock the support P100318Z SR 1601 D3 HD - 33021402...
-
Page 13: Operating Controls
59. Hopper overtemperature warning light 72. Turn signal switch (optional) 60. Clogged hopper filter warning light 73. Steering wheel adjustment lever (optional) 61. Low engine oil pressure warning light 62. Battery warning light P100319Z 33021402 - SR 1601 D3 HD... -
Page 14: Accessories/Options
SAE 10W-30 Engine coolant quantity (**) 4.2 qt (4 litres) For other engine data/values, see the Engine Manual. (**) For engine oil and coolant data, and for technical specifications refer to the Engine Manual. SR 1601 D3 HD - 33021402... -
Page 15: Wiring Diagram
Hopper temperature sensor (optional) Gage Vacuum system/filter shaker switch Horn switch Driver’s seat microswitch Reverse gear proximity (optional) Water pump switch (if equipped) Filter shaker timer Filter shaker timer 2 Driver’s seat timer Glow plug timer 33021402 - SR 1601 D3 HD... - Page 16 ENGLISH USER MANUAL WIRING DIAGRAM (Continues) P100330Z SR 1601 D3 HD - 33021402...
-
Page 17: Hydraulic Diagram
Manifold 3 levers 22. Left side broom cylinder (optional) 10. Hopper lifting cylinder 23. Radiator 11. Skirt cylinder 24. Oil filter 12. Main broom motor 25. Vacuum system motor 13. Main broom cylinder ENGINE P100328Z 33021402 - SR 1601 D3 HD... -
Page 18: Preparing The Machine For Use
– The internal combustion engine of this machine can emit carbon monoxide. – Do not inhale exhaust gas fumes. – Only use indoors when adequate ventilation is provided, and with the help of an assistant. SR 1601 D3 HD - 33021402... -
Page 19: Operating The Machine
To stop the machine, release the pedal (37). To stop the machine quickly, press also the brake pedal (36). Turn off the machine by turning the ignition key (66) to “O”, then remove it. Engage the parking brake. 33021402 - SR 1601 D3 HD... -
Page 20: Parking Brake
(47) is full. The hopper (47) should be dumped after each working period and whenever it is full (see the procedure in the next paragraph). SR 1601 D3 HD - 33021402... -
Page 21: Hopper Dumping
Move the machine back until the hopper will clear the receptacle. 10. Lift the hopper with the lever (54), pull the locking handle (39) forward until the safety support (5) disengages, then lower the hopper. 33021402 - SR 1601 D3 HD... -
Page 22: After Using The Machine
WARNING! To perform maintenance procedures, turn off the machine, remove the ignition key, engage the parking brake and disconnect the batteries. Before performing any maintenance procedure, carefully read the instructions shown in Safety chapter. SR 1601 D3 HD - 33021402... -
Page 23: Scheduled Maintenance Table
(1) For the relevant procedure, see the Service Manual. (2) Or more often in dusty areas. (3) Maintenance procedures to be performed by an authorised KUBOTA dealer. (4) Change the hydraulic oil for the first time after 500 hours, then every year. 33021402 - SR 1601 D3 HD... -
Page 24: Main Broom Maintenance
Make sure the lugs on the idler arm engage the slots (G) (right side) of the main broom core. 12. Place the right side skirt back to its position and close the right panel (18) until the lock lever engages. P100321 Figure 2 SR 1601 D3 HD - 33021402... - Page 25 Repeat steps 2-7 until the polished strip is 2 - 3 in (50-75 mm) wide. NOTE If the broom pattern cannot be properly adjusted, because the broom pressure differs from one end to another, see the adjustment procedure in the Service Manual. P100322 Figure 3 33021402 - SR 1601 D3 HD...
-
Page 26: Side Broom Maintenance
For optimal performance, the side broom should be replaced when the bristles are worn to a length of 75 mm (3 in). When replacing the side brooms, adjust the height. P100323 P100324 Figure 4 Figure 5 SR 1601 D3 HD - 33021402... - Page 27 Release the spring to remove the mounting pin (A, Fig. 6) and remove the side broom (B) from the motor shaft. Install the new broom on the motor shaft, align the hole with the mounting pin and engage the mounting pin (A). P100325 Figure 6 33021402 - SR 1601 D3 HD...
-
Page 28: Dust Filter Maintenance (Panel Filter)
If the filter gasket is damaged or missing, it must be replaced. NOTE Before replacing filter clear debris from dust plate located under filter. Check that the debris skirt at the rear of the dust plate swings freely. SR 1601 D3 HD - 33021402... -
Page 29: Dust Filter Maintenance (Closed Pocket Filter)
Remove the transparent cover (B) with the gasket (C), then remove the filter strainer (D). Clean and install them on the support (E). NOTE Install the gasket (C) and the filter strainer (D) in the housings of the cover and the support (E). Assemble in the reverse order of disassembly. P100329 Figure 7 33021402 - SR 1601 D3 HD... -
Page 30: Hydraulic Oil
(see the procedure in the Service Manual). According to the air temperature, use the type of oil indicated below: TEMPERATURE RANGE TYPE OF OIL Above 60°F (15°C) SAE 10W-30 Below 60°F (15°C) SAE 5W-30 SR 1601 D3 HD - 33021402... -
Page 31: Engine Air Filter Cleaning
Let the engine and engine coolant cool down, then open the radiator cap (23) with great care, to release the pressure. Remove the radiator cap (23) and check the coolant. If the level is low, add a mixture of half water and half automotive type anti-freeze, as shown in the Engine Manual. 33021402 - SR 1601 D3 HD... -
Page 32: Fuse Check/Replacement/Reset
• (J): F10 (50 A), alternator • (K): F11 (1 A), hood inner light (optional) Replace any open fuse. Install the cover. Close the engine compartment hood (1). P100326 P100327 Figure 10 Figure 11 SR 1601 D3 HD - 33021402... -
Page 33: Troubleshooting
Replace The fuse is tripped Reset the tripped fuse Procedure to be performed by Nilfisk Service Center. For further information contact a Nilfisk Service Center, where it is possible to consult the Service Manual. 33021402 - SR 1601 D3 HD... -
Page 34: Scrapping
Engine oil – Hydraulic system oil – Hydraulic system oil filter – Plastic hoses and components – Electrical and electronic components (*) Refer to the nearest Nilfisk Center especially when scrapping electrical and electronic components. SR 1601 D3 HD - 33021402... - Page 36 Nilfisk-Advance S.p.A. Registered office: Via F. Turati 16/18, 20121 Milano Administrative office: Strada Comunale della Braglia n° 18 - 26862 Guardamiglio (Lodi) Phone: +39 0377 451124 - Fax: +39 0377 51443 www.nilfisk.com...
