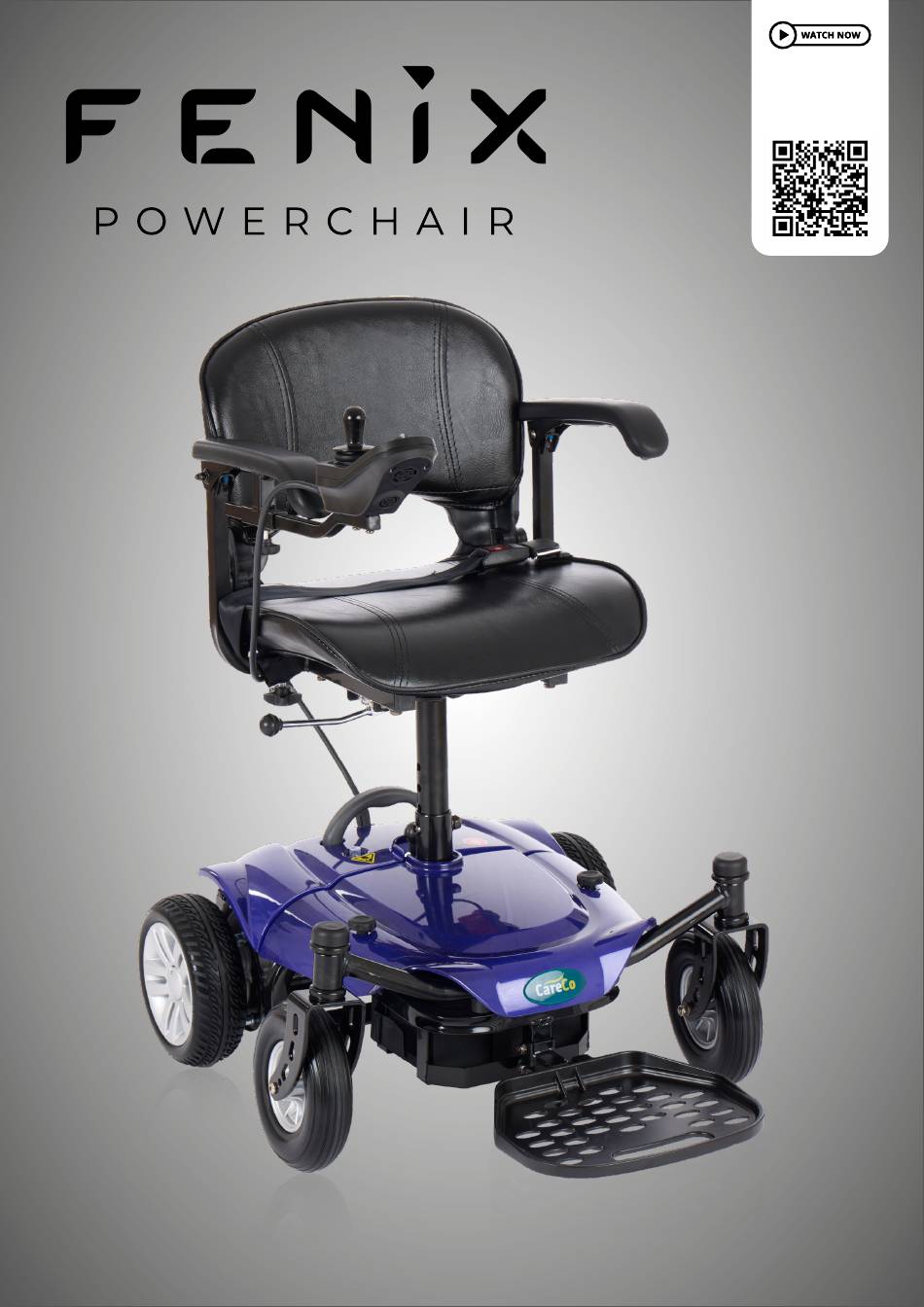

Scan me on your
phone camera
to watch our
assembly video.

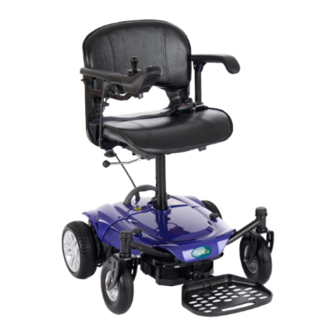

USER MANUAL
PC01010006
PRODUCT CODE:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fenix and is the answer not in the manual?

Questions and answers

Related Manuals for CareCo Fenix

Summary of Contents for CareCo Fenix

  • Page 1 Scan me on your phone camera to watch our assembly video. USER MANUAL PC01010006 PRODUCT CODE:...
  • Page 2 No claims can be made based on the data or illustrations in this user manual. The Fenix Powerchair is a Class I Medical Device, Class A: Powered Wheelchair, limited to a maximum speed of 4MPH.
  • Page 3 Operate the powerchair at a lower speed before gradually increasing to a higher speed. If any additional assembly, disassembly and/or operation assistance is required, please contact CareCo. Keep this user manual in a safe place for future reference. KEY DEFINITIONS...

  • Page 4: Table Of Contents

    PC01010006 PRODUCT CODE CONTENTS GETTING STARTED CARTON CONTENTS PRODUCT COMPONENTS SETTING UP YOUR FENIX POWERCHAIR HOW TO USE YOUR POWERCHAIR USER INSTRUCTIONS BRAKING TYPES JOYSTICK CONTROLS JOYSTICK SAFETY BELT FOOTPLATE POWERCHAIR MODES EMERGENCY BRAKING YOUR POWERCHAIR BATTERY BATTERY INSTALLATION & REMOVAL...
  • Page 5 OPTIONAL EXTRAS POWERCHAIR ACCESSORY PACK LOOKING AFTER YOUR POWERCHAIR PRELIMINARY CHECKS CLEANING MAINTENANCE MAINTENANCE SCHEDULE REPAIRS TROUBLESHOOTING WARNINGS & TECHNICAL INFORMATION SPECIFICATIONS ELECTROMAGNETIC INTERFERENCE (EMI) PROGRAMMING PRODUCT RE-ISSUING RECYCLING & DISPOSAL INTENDED USE INTENDED USER INTENDED ENVIRONMENT PRODUCT IDENTIFICATION DEFINITIONS GENERAL WARNINGS EXPECTED LIFETIME WARRANTY...

  • Page 6: Getting Started

    PC01010006 PRODUCT CODE GETTING STARTED CARTON CONTENTS Contact CareCo immediately if ITEM NUMBER DESCRIPTION QUANTITY any of the listed contents are Fenix powerchair missing. Seat We strongly recommend that Armrest set you keep the box and internal Seat post packaging for the duration of Seat post bolt your warranty period.

  • Page 7: Setting Up Your Fenix Powerchair

    SETTING UP YOUR FENIX POWERCHAIR 1. Remove all powerchair components from 2. Lift the rear section spring pin, then locate the outer packaging and place them onto the front section half onto the rear section a level surface. hooks. 3. Remove the battery cover thumbscrews, 4.
  • Page 8 PC01010006 PRODUCT CODE 5. Replace the battery cover, then secure 6. Insert the seat post into the base stem of using the thumbscrews. the powerchair. 7. Secure the seat post at a suitable height 8. Lift and hold the underseat lever, then using the bolt and hardware kit provided.
  • Page 9 9. Loop the safety belt over the armrest(s) 10. Insert the armrest(s) into the base of the stem(s). seat plate, then secure using the star knob(s) provided. 11. Insert the joystick bracket into the under- 12. Connect the joystick cable to the rear of arm fixture, then secure using the star the joystick.
  • Page 10 PC01010006 PRODUCT CODE 13. Connect the joystick cable to the rear 14. Charge the powerchair for 12-16 hours section of the powerchair. before first use. SUGGESTION Subsequent charging times range from 8-12 hours. Visit “CHARGING YOUR POWERCHAIR” for more information.

  • Page 11: How To Use Your Powerchair

    HOW TO USE YOUR POWERCHAIR USER INSTRUCTIONS TRANSFERRING TO & FROM Always ensure the powerchair is switched [OFF] and in [DRIVE] mode before getting on/off the powerchair. METHOD 1 TRANSFER TO Position your body as close to the powerchair as possible.
  • Page 12 PC01010006 PRODUCT CODE METHOD 3 TRANSFER TO Lift the seat swivel lever and rotate and rotate the seat 90 Degrees away from the footplate. Support your body using the armrests, before lowering into the seat. 90° Lift the seat swivel lever and rotate your body towards the footplate.
  • Page 13 GRADIENTS Ascending Gradients Tilt your upper body forward when travelling up gradients for increased stability. Descending Gradients Tilt your upper body back when travelling down gradients for increased stability. The maximum safe slope of incline is 6°. STAIRS, ESCALATORS AND LIFTS The powerchair is not designed to travel up/down stairs and escalators.

  • Page 14: Braking Types

    PC01010006 PRODUCT CODE BRAKING TYPES REGENERATIVE BRAKING • Slows the powerchair when the joystick returns to the centre position • Slows the powerchair when the speed limiter is exceeded PARKING BRAKE • Activates after the powerchair has come to a stop. •...

  • Page 15: Joystick Controls

    JOYSTICK CONTROLS ON/OFF BUTTON SPEED ADJUSTMENT Push to activate or deactivate the powerchair. DIAL ON/OFF BUTTON HORN HORN Push to sound the horn. BUTTON SPEED ADJUSTMENT DIAL JOYSTICK Twist the dial clockwise/anticlockwise to increase/decrease the powerchairs speed. JOYSTICK The joystick is used to control the powerchair’s movement including its speed and direction (forwards, backwards, left, and right).

  • Page 16: Safety Belt

    PC01010006 PRODUCT CODE SAFETY BELT FASTENING Insert the male buckle into the female buckle. RELEASING Press the red button to release the male buckle. FOOTPLATE LIFTING Lift the footplate upwards to assist the user when leaving the powerchair and when storing. LOWERING Lower the footplate to assist the user when travelling in the powerchair.

  • Page 17: Powerchair Modes

    POWERCHAIR MODES DRIVE MODE FREEWHEEL MODE (ELECTRONIC ASSISTED BRAKING) Lift the red lever(s) upwards to engage Freewheel Mode. Push the red lever(s) downwards to engage Drive Mode. (The powerchair will be able to be pushed manually). (The powerchair will not be able to be pushed manually).

  • Page 18: Your Powerchair Battery

    PC01010006 PRODUCT CODE YOUR POWERCHAIR BATTERY BATTERY INSTALLATION & REMOVAL INSTALLING REMOVING 1. Place the battery back into the battery 1. Remove the battery cover thumbscrews. tray. 2. Lift the battery cover away from the 2. Connect the battery cable & power cable powerchair base.

  • Page 19: Charging Your Powerchair

    CHARGING YOUR POWERCHAIR HOW TO CHARGE YOUR POWERCHAIR BATTERY 1. Insert the chargers 3-pin output into the socket on the underside of the joystick. 2. Insert the outlet plug into a wall socket. 3. Switch [ON] the wall socket. 4. Charge for 8-12 hours. When charging is completed, switch [OFF] the wall socket, then remove the outlet plug from the wall before removing the charger from the...

  • Page 20: Charger Information

    PC01010006 PRODUCT CODE CHARGER INFORMATION The battery charger is fitted with a smart LED indicator that indicates when the battery is charging and when charging is complete. LED Indicator Charging Status GREEN Charged Charging WARNING! Do not use the supplied charger with any other electrical device. Only charge the powerchair with the supplied charger or an official replacement.

  • Page 21: Disassembling Your Powerchair, Transportation & Storage

    DISASSEMBLING YOUR POWERCHAIR, TRANSPORTATION & STORAGE DISASSEMBLY INSTRUCTIONS WARNING! Ensure the powerchair is switched [OFF] and in [DRIVE] mode before disassembling. 1. Disconnect the power cable from the base 2. Loosen the star knob, then remove the of the powerchair and the joystick. joystick and bracket from the underside of the armrest.
  • Page 22 PC01010006 PRODUCT CODE 5. (Optional) Remove the seat post and 6. Lift the spring-loaded pin to separate the fixings using the supplied hardware kit. powerchair front and rear sections.

  • Page 23: Transportation

    TRANSPORTATION LAND TRANSPORT Securely stow the folded/disassembled components in the boot of a vehicle. Ensure any adjustable parts are properly secured before transport to avoid transit damage. AIR TRANSPORT This powerchair is suitable for air transport. Prior to your journey, contact your airline in ad- vance to confirm their flight-specific requirements.

  • Page 24: Comfort Adjustments

    PC01010006 PRODUCT CODE COMFORT ADJUSTMENTS JOYSTICK POSITION ADJUSTMENT 1. Loosen the star knob by rotating it anticlockwise. 2. Move the joystick forwards/backwards until it is in a suitable and comfortable position. 3. Tighten the star knob by rotating it clockwise. WARNING! Ensure the joystick bracket is secure before using the powerchair.
  • Page 25 POWERCHAIR ACCESSORY PACK The Powerchair Accessory Pack includes everything you need to get started with your electric wheelchair. Includes: • Mobility Poncho • Powerchair Joystick Cover • Gel Comfort Cushion • Crutch Walking Stick Bag Contact CareCo for more information.
  • Page 26 PC01010006 PRODUCT CODE LOOKING AFTER YOUR POWERCHAIR PRELIMINARY CHECKS • Ensure the powerchair is in [DRIVE] mode before setting off. • Ensure the powerchair is switched [OFF] before getting off or out. • Check tyres for wear. • Check all fixings are secure. CLEANING Regular use of the powerchair will accumulate dirt and debris over time.
  • Page 27 REPAIRS Certain powerchair components can be repaired by the user with guidance provided by CareCo. Other components can only be repaired/replaced by a service technician. If for any reason the powerchair requires repair due to a defect, contact CareCo immediately.
  • Page 28 The joystick and/or its associated wiring Switch [OFF] the powerchair. has a fault. Disconnect, then reconnect the joystick cable. Switch [ON] the powerchair. Contact CareCo. Power/Configuration error Charge the powerchair for 8-12 hours. Contact CareCo. The LHS motor and/or its associated Contact CareCo.
  • Page 29 WARNINGS & TECHNICAL INFORMATION SPECIFICATIONS OVERALL LENGTH (MM) OVERALL WIDTH (MM) OVERALL HEIGHT (MM) 835-910 FRONT WHEEL DIAMETER (IN) REAR WHEEL DIAMETER (IN) TOTAL WEIGHT INCLUDING BATTERIES (KG) 50.4 MAXIMUM SPEED (MPH) WEIGHT CAPACITY (KG) GROUND CLEARANCE (MM) MAXIMUM CLIMBABLE ANGLE (_°) MAXIMUM CURB HEIGHT CLIMBABLE (MM) SEAT WIDTH (MM) SEAT WEIGHT (KG)
  • Page 30 PC01010006 PRODUCT CODE ELECTROMAGNETIC INTERFERENCE (EMI) Powerchairs and mobility scooters may be susceptible to electromagnetic interference (EMI). Electromagnetic energy (EM) is emitted from sources such a radio stations, TV stations, amateur radio (HAM) transmitters, two-way radios, and cellular phones. The interference (from radio wave sources) can cause the powerchair/mobility scooter to release its brakes, move by itself, or move in unintended directions.
  • Page 31 Electronic Equipment policies (W.E.E.E). For battery disposal, users should follow local disposal/recycling regulations. Contact CareCo if further advice is needed regarding recycling & disposal. INTENDED USE This product is intended for users who experience difficulty in walking and/or have reduced mobility.
  • Page 32 PC01010006 PRODUCT CODE PRODUCT IDENTIFICATION The product identification label is located within the battery tray. Deep Purple Fenix PC01010006.DEP 9 7 3 1 3 4 7 8 0 0 2 2 Fixed Base Powerchairs P P O O 86527 086527F 32308001 23-08 Y.
  • Page 33 GENERAL WARNINGS • Powerchair users should take appropriate safety measures and obey local pedestrian traffic rules. CareCo are not responsible for personal injury and/or product damage caused by improper use. • Use safety equipment such as reflectors, reflective clothing, and lighting when in low lit areas.
  • Page 34 PC01010006 PRODUCT CODE EXPECTED LIFETIME The Expected Lifetime is the estimated period of time for which the powerchair is expected to function according to its intended use. Various items such as weight capacity, user behaviour, external conditions and intensity of use can affect the expected lifetime.
  • Page 35 Parts that have been purchased by the end user after the original warranty period has expired have a warranty period of 12 months. CareCo is not responsible if the powerchair requires repair or replacement as a direct result of: •...
  • Page 36 PC01010006 PRODUCT CODE NOTES...
