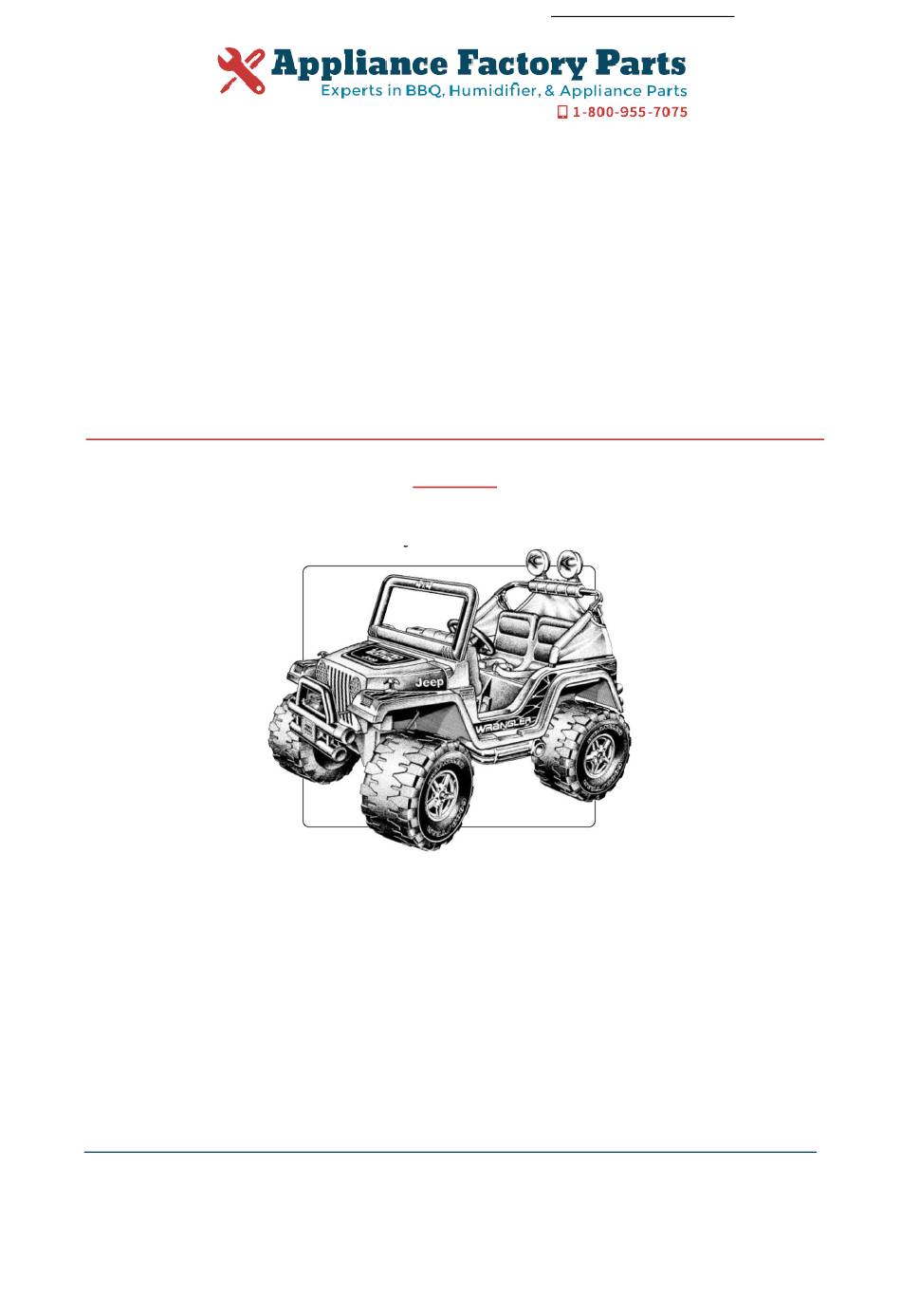

  • Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. FISHER PRICE 75598 Owner's Manual Shop genuine replacement parts for FISHER PRICE 75598 Find Your FISHER PRICE Ride On Parts - Select From 999 Models -------- Manual continues below --------...
  • Page 2 JEEP and the Jeep grille design are registered trademarks of DaimlerChrysler Corporation and are used under license. ©DaimlerChrysler Corporation Goodyear (and winged foot design) and Wrangler (for tires) are trademarks of The Goodyear Tire & Rubber Company, used with permission. Fisher-Price, Power Wheels and Power Wheels by Fisher-Price are U.S. trademarks of Mattel, Inc. Owner’s Manual with Assembly Instructions Please read this manual and save it with your original sales receipt.

  • Page 3: Table Of Contents

    • Use this vehicle ONLY outdoors. Most interior floor- ing can be damaged by riding this vehicle indoors. the Authorized Service Center list beginning on page 32 Fisher-Price ® will not be responsible for damage to to find the authorized service center nearest you, or call 1-800-348-0751.

  • Page 4: Warnings And Cautions

    Warnings and Cautions ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery clamp. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system.

  • Page 5: Parts

    Parts • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded.
  • Page 6 Parts Rear Bumper Knob Plate Seat Dash Cap Nut Assembly Tool Steering Wheel Steering Column Dash Knob – 2 Key Assembly Hood Sound Box Brush Guard Spacer Tube – 2 Hood Latch – 2 Steering Wheel Cover...
  • Page 7 Parts Windshield Frame - Front Windshield Frame - Back Windshield Hinge Pin – 2 Sport Bar Sport Bar Support - 2 Sport Bar Bracket Set Windshield Bracket – 2 Brush Guard Right Sidepipe Canopy Left Sidepipe Not Shown: Label Sheet - 2...
  • Page 8 Parts " x " Machine Screw - 2 #8 x 4" Screw – 2 #8 x 1" Screw – 11 #10 x " Screw – 2 #10 x 1" Screw – 7 #8 x " Screw – 6 #8 x 1 "...

  • Page 9: Parts Diagram

    Parts Diagram Note: Some parts shown are assembled on both sides of the vehicle.
  • Page 10 Parts Diagram Part Quantity Part Quantity Vehicle Body Windshield Frame, Front Windshield Bracket Steering Column Sport Bar .354 Cap Nut Sport Bar Support Hood Latch Sport Bar Bracket 12 Volt Battery Battery Clamp Unit #6 x 1 " Screw " x "...

  • Page 11: Battery Charging

    Battery Charging ELECTRICAL HAZARD About Thermal Fuses Your Power Wheels ® 12 volt battery is equipped with a built-in thermal fuse. The thermal fuse is a self-resetting WARNING safety device which automatically “trips” and shuts down operation of the vehicle if the vehicle is overloaded or the driving conditions too severe.

  • Page 12: Assembly

    Battery Charging Assembly WARNING Battery Children can be harmed by small parts, sharp edges and sharp points in the vehicle’s unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should not handle parts, including the battery, or help in assembly of the vehicle.
  • Page 13 Assembly Rear of Vehicle Battery Left Sidepipe Clamp Unit Vehicle Body Screw Pegs • Insert two #10 x 1" screws through the holes in the • Turn the vehicle body upside down. battery clamp unit and into the pegs in the dash. •...
  • Page 14 Assembly Battery Dash Knob Plate Compartment Door Pocket Battery Compartment Key Assembly Microphone Cord Sound Box T-End Dash View 1.5V x 3 • Bend the end of the microphone cord so that it forms a “T”. “AA” (LR6) • Insert the end of the microphone cord through the square opening in the dash pocket.
  • Page 15 Assembly Holes Cap Nut Steering Wheel Steering Column Cap Nut Assembly Tool Steering “UP” Column Bottom View • Turn the vehicle body upright. • Position the steering wheel upright (see inset). • Wipe the steering column with a paper towel to remove •...
  • Page 16 Assembly Wide Tab Headlight Lens Wide Notch Lens Guard • Fit the wide notch in the side of a headlight lens under Brush Guard Front Bumper the wide tab on a lens guard. • Press firmly on the inside of the headlight lens to snap it into the lens guard.
  • Page 17 Assembly Windshield Frame - Front Hood Latch Hole Slots Tabs Tabs Hood Latch Hole • Insert a hood latch into one of the holes in the vehicle • Align the slots in the front half of the windshield frame body, near the hood area. with the tabs on the windshield brackets.
  • Page 18 Assembly Short Seat T-Loop (pull through slot) Windshield Frame – Back Belt Strap Fastener End T-Loops Slots Slots Windshield Frame – Front Seat Slot • Turn the seat upside down. • Insert the fastener end of a short seat belt strap through the slot near the outer edge of the seat.
  • Page 19 Assembly Seat Canopy Sleeves Canopy Seat Back Tab Sleeves PUSH HERE Canopy Tabs Slot Tabs Sport Bar • With the seat at an angle, insert the tabs on the front edge of the seat into the slots in the foot-well wall •...
  • Page 20 Assembly Light Sport Bar Bracket Rack - Back Half Ring Tabs Side Leg Tunnel Sport Bar Sport Bar Support Light Rack - Front Half • Position the sport bar with the ends on a flat surface, • Using safety scissors, remove the sport bar brackets from as shown.
  • Page 21 Assembly Sport Bar Side Legs Rear Bumper PUSH HERE Side Fender Tabs Rear Bumper Support Lower Rail PULL UP HERE • Face the rear of the vehicle. • Fit the lower rail on the rear bumper over the rear bumper supports. •...
  • Page 22 Assembly Bumper Tabs Bumper Gas Cap Tether • Position the gas cap so that its tether points down. • Lift the rear of the vehicle. • Insert and “snap” the gas cap into the opening on the • Align the holes in the bumper tabs with the screw pegs on rear bumper.

  • Page 23: Label Decoration

    Label Decoration Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind: • Wash your hands before applying the labels. • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils.

  • Page 24: Battery Installation

    Battery Installation IMPORTANT! Use only a Power Wheels ® 12 volt battery. Use of any other battery will damage your vehicle. Make Battery sure that you charge the battery for at least 18 hours using Battery the enclosed Power Wheels ®...

  • Page 25: Battery Care And Disposal

    Battery Care and Disposal Battery Installation Care If a battery leak develops, avoid contact with the leaking Hood acid and place the damaged battery in a plastic bag. See information below for proper disposal. If acid comes in contact with skin or eyes, flush with cool water for at least 15 minutes and call a physician.

  • Page 26: Rules For Safe Driving

    Rules for Safe Driving RIDING HAZARD WARNING Prevent Injuries and Deaths • Direct Adult Supervision Required • Keep Children Within Safe Riding Areas These areas must be: - away from swimming pools and other Use vehicle on generally level ground ONLY! bodies of water to prevent drownings - generally level to prevent tipovers 7.

  • Page 27: How To Operate Your Vehicle

    How to Operate Your Vehicle IMPORTANT! Use this vehicle ONLY outdoors. Most interior flooring can be damaged by riding this vehicle indoors. Fisher-Price ® will not be responsible for damage to the floor if the vehicle is used indoors. To Back Up...

  • Page 28: Caring For Your Vehicle

    How to Operate Your Vehicle Caring For Your Vehicle Advanced Use - High Speed Drive • Check all screws, cap nuts and protective coverings Disconnecting the High Speed Lock-Out regularly and tighten as required. Check plastic parts on a regular basis for cracks or broken pieces. •...

  • Page 29: Problems And Solutions Guide

    Problems and Solutions Guide IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels ® Consumer Relations, toll-free at 1-800-348-0751 between 8 AM and 6 PM (EST) Monday through Friday. Or, contact your local Power Wheels authorized service center.
  • Page 30 Problems and Solutions Guide Problem Possible Cause Solution Vehicle was running but Loose wire or loose connectors Check all wires and connectors. Make sure the motor suddenly stopped harness connector is plugged into the battery, and that there are no loose wires around the motors. Tripped thermal fuse Each Power Wheels ®...
  • Page 31 Problems and Solutions Guide Problem Possible Cause Solution Vehicle runs sluggishly Undercharged battery Charge the battery. A new battery should have been charged for at least 18 hours before using the vehicle for the first time. After first-time use, recharge the battery for at least 14 hours after each use.
  • Page 32 Problems and Solutions Guide Problem Possible Cause Solution When the foot pedal is pressed, Loose wire or connector Check all wires around the motors and all connectors the vehicle won’t run without to make sure they are tight. a push “Dead Spot”...

  • Page 33: Limited Warranty

    Bumper-to-Bumper* Limited Warranty *One year limited warranty from the date of purchase on the Power Wheels ® vehicle. Six month limited warranty on the 12 volt battery. For the original purchaser, this one year limited warranty covers the Power Wheels ®...
  • Page 34 Authorized Service Centers PANAMA CITY - Callaway Vacuum & Sewing, GRANITE - Midwest Golf Car & Equipment Co., OWENSBORO - Kuester’s Hardware, 1210 Carter 221 N. Tyndall Prkwy., 32404, (904) 763-6333 904 Thorngate Road, 62040, (618) 797-2278 Road, 42301, (270) 685-4916 PENSACOLA - Foster’s Appliance Repair, HAMILTON - Discount Battery Sales, #80 S 2nd Rte.
  • Page 35 Authorized Service Centers GAYLORD - Alpine Electronics, 604 West Main, NEW HAMPSHIRE GREENSBORO - Little Creek Electronics, 49735, (989) 732-5004, (800) 244-6633 3310 N. Church Street, 27406, (336) 375-9890, MARLBOROUGH- Electronics Aid Inc., 32 Roxbury (877) 446-7144 Road P.O. Box 325, 03455, (603) 876-4161 GRAND RAPIDS - Superior Appliance Service Co., 1050 Scribner Avenue, NW, 49504, (616) 459-3271 HICKORY- Power Tool &...
  • Page 36 Authorized Service Centers HARRISBURG - C.A. Juillard, Inc., 2301 North SOUTH DAKOTA UTAH Seventh Street, 17110, (717) 233-3488, WINNER - Nelson’s Electronics Inc., 422 West 2nd OREM - The Mending Shed, 1735 South State Street, (800) 633-3488 Street P.O. Box 369, 57580, (605) 842-1611, 84058, (801) 225-8012, (800) 339-9297 (888) 842-1699 JOHNSTOWN - Cambria Hardware, West Hills...
  • Page 37 Authorized Service Center. For the location nearest you, refer to the Authorized Service Center list in this manual. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052, U.S.A. ©2002 Mattel, Inc. All Rights Reserved. Printed in Mexico...
