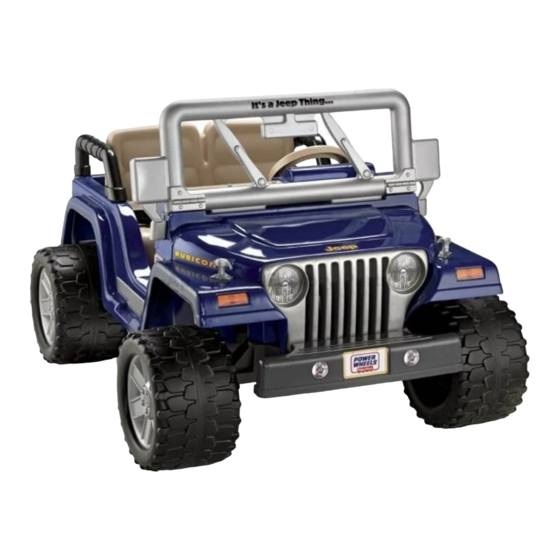

Page 1 This Owner's Manual is provided and hosted by Appliance Factory Parts. FISHER PRICE N1476 Owner's Manual Shop genuine replacement parts for FISHER PRICE N1476 Find Your FISHER PRICE Ride On Parts - Select From 999 Models -------- Manual continues below --------...
Page 2 Please read this manual and save it Please read this manual and save it with your original sales receipt. with your original sales receipt. Tool needed for assembly: Tool needed for assembly: Phillips screwdriver (not included). Phillips screwdriver (not included). Use only with a Power Wheels Use only with a Power Wheels ®...
Page 3 • Use this vehicle ONLY outdoors. Most interior flooring can be warranty repairs for a minimal charge. To find the authorized damaged by riding this vehicle indoors. Fisher-Price ® will not...
Page 4: Warnings And Cautions
WARNINGS AND CAUTIONS ELECTRICAL HAZARD WARNING • Battery can fall out and injure a child if vehicle tips over. Always use battery retainer. • PREVENT FIRE - Never modify the electrical system. Alterations could cause a fire resulting in serious injury and could also ruin the electrical system.
Page 5 PARTS • If you experience a problem with this product, or are missing a part, please call us at 1-800-348-0751, rather than return this product to the store. • Please identify all parts before assembly and save all packaging material until assembly is complete to ensure that no parts are discarded. •...
Page 6 TABLE OF CONTENTS PARTS #10 x " Screw - 10 #8 x 1" Screw - 2 12 Volt Battery #10- 32 x 1" Screw – 2 #8 x " Screw - 1 x 1 ½" Pin - 1 For your convenience, we included extra fasteners! 12 Volt Battery Charger Note: Tighten and loosen all screws with a Phillips screwdriver.
Page 7: Parts Picture
TABLE OF CONTENTS PARTS PICTURE Parts Not Shown Vehicle Seat Windshield Steering Column Cap Steering Wheel Cap Dash #10 x ¾" Screw - 10 #8 x ¾" Screw - 1 Hood Latch - 2 x 1 ½" Pin - 1 Hood #8 x 1"...
Page 8: Battery Charging
BATTERY CHARGING ELECTRICAL HAZARD WARNING CAUTION • Battery can fall out and injure a child if Use the charger in dry locations only. vehicle tips over. Always use battery retainer. About Thermal Fuses • PREVENT FIRE Your Power Wheels ® 12 volt battery is equipped with a built-in - Never modify the electrical system.
Page 9: Front View
BATTERY CHARGING ASSEMBLY WARNING Children can be harmed by small parts, sharp edges and sharp points in the vehicle's unassembled state, or by electrical items. Care should be taken in unpacking and assembly of the vehicle. Children should 12V Battery not handle parts, including the battery, or help in assembly of the vehicle.
Page 10: Bottom View
ASSEMBLY Steering Dash Wheel Assembly Steering Steering Column Column INSIDE VIEW • Insert and “snap” the key assembly into the opening in the dash, as shown. • Turn the vehicle upright. • Position the steering wheel so that the large opening and the Steering Steering tab on the steering wheel stem are both up.
Page 11 ASSEMBLY Steering Steering Wheel Cap Wheel Cap Hood Latch Slot Hood Latch Hood Latch • Fit the steering wheel cap into the center of the steering wheel. FRONT VIEW • Insert two #8 x 1" screws and tighten. • Insert a hood latch into one of the slots near the hood on the front of the vehicle.
Page 12: Top View
ASSEMBLY Seat Seat Wipers Wipers Windshield Windshield Seat Back Seat Back Tabs Tabs Tabs Tabs Large Tab Large Tab Large Tab Large Tab Large Slots Large Slots TOP VIEW • Position the windshield so that the molded detail on the wipers faces the front of the vehicle.
Page 13 ASSEMBLY Grab Bars Grab Bars #10 x ¾" Screws #10 x ¾" Screws • Fit a grab bar onto each side of the vehicle, as shown. BOTTOM VIEW • Turn the vehicle on its side. • Insert four #10 x ¾" screws in the holes (in front of and behind each rear wheel) in the underside of each rear wheel well, through the vehicle and into the ends of the grab bars.
Page 14 TABLE OF CONTENTS DECORATION Proper label application will help to keep the labels looking their best! When applying labels, keep the following guidelines in mind: • Wash your hands before applying the labels. • Before applying the labels, wipe the surface of the vehicle with a clean, dry cloth to remove any dust or oils. •...
Page 15: Back View
DECORATION BACK VIEW N1476pr-0920...
Page 16: Battery Installation
BATTERY INSTALLATION IMPORTANT! Use only a Power Wheels ® 12 volt lead-acid rechargeable battery. Use of any other battery will damage your vehicle. Make sure that you charge the battery for at least 18 hours using the enclosed Power Wheels 12 volt charger before ®...
Page 17: Battery Care And Disposal
BATTERY CARE AND DISPOSAL Care Disposal If a battery leak develops, avoid contact with the leaking acid • Your Power Wheels ® battery is a non-spillable, sealed and place the damaged battery in a plastic bag. See information lead-acid battery. It must be recycled or disposed of in an below for proper disposal.
Page 18: Safe Driving Rules
SAFE DRIVING RULES Teach Safety Rules to Children RIDING HAZARD While children can quickly develop the skill necessary to drive this vehicle, it is important to remember that their judgment skills are WARNING still very immature. Unsupervised driving by children can lead to serious injury.
Page 19: Vehicle Operation
VEHICLE OPERATION Stop IMPORTANT! Use this vehicle ONLY outdoors. Most interior floor-ing can be damaged by riding this vehicle indoors. Fisher-Price ® will not be responsible for damage to the floor if the vehicle is used indoors. Beginner Use - Low Speed Drive As assembled, your vehicle is ready to roll in low speed mph, maximum).
Page 20 VEHICLE OPERATION VEHICLE CARE • Check all screws, cap nuts and their protective coverings Advanced Use - High Speed Drive regularly and tighten as required. Check plastic parts on a regular basis for cracks or broken pieces. • During snowy or rainy weather, the vehicle should be stored inside or under a protective cover.
Page 21: Limited Warranty
LIMITED WARRANTY Bumper-to-Bumper* Limited Warranty *One year limited warranty from the date of purchase on the Power Wheels ® vehicle. Six month limited warranty on the 12 volt battery. For the original purchaser, this one year limited warranty covers the Power Wheels ®...
Page 22: Problems And Solutions Guide
PROBLEMS AND SOLUTIONS GUIDE IMPORTANT! If you experience a problem with your vehicle, first check the Problems and Solutions Guide below. If you still experience a problem, please contact Power Wheels ® Consumer Relations, toll-free at 1-800-348-0751 between 9 AM and 7 PM (EST) Monday through Friday or 11 AM and 5 PM (EST) Saturday.
Page 23 PROBLEMS AND SOLUTIONS GUIDE PROBLEM POSSIBLE CAUSE SOLUTION Vehicle was running but Loose wires or loose connectors Check all wires and connectors. Make sure the suddenly stopped motor harness connector is tightly plugged into the battery, and that there are no loose wires around the motors. Tripped thermal fuse The built-in thermal fuse may "trip"...
Page 24 PROBLEMS AND SOLUTIONS GUIDE PROBLEM POSSIBLE CAUSE SOLUTION Vehicle runs sluggishly Undercharged battery Charge the battery. A new battery should have been charged for at least 18 hours before using the vehicle for the first time. After first-time use, recharge the battery for at least 14 hours after each use.
Page 25 For the location nearest you, visit us on-line at www.powerwheels.com. Fisher-Price, Inc., a subsidiary of Mattel, Inc., East Aurora, New York 14052 U.S.A. ©2008 Mattel, Inc. All Rights Reserved. ® and ™ designate U.S. trademarks of Mattel, Inc., unless otherwise indicated.
