- Page 1 TRINITY 2 Pan Axis Module OPERATING MANUAL August 2024 • 1.0 • English D4510008317...
- Page 3 In no event shall ARRI or its subsidiaries be liable for or have a remedy for recovery of any special, direct, indirect, incidental, or consequential damages, including, but not limited to lost...
- Page 4 The information and intellectual property contained herein is confidential between ARRI and the client and remains the exclusive property of ARRI. If you find any problems in the documentation, please report them to us in writing. ARRI does not warrant that this document is flawless.
-
Page 5: Table Of Contents
Power ON / OFF ........................31 Cleaning, Maintenance and Repair......................32 Cleaning Instructions........................... 32 Maintenance and Repair ........................32 Transportation, Storage and Disposal ..................... 33 Transportation and Storage ........................ 33 Disposal .............................. 33 ARRI Service Contacts ..........................34 TRINITY 2 Pan Axis Module Operating Manual... -
Page 6: About This Document
Please enter the following searchkeys in the search bar to retrieve the documents for the product: TRINITY 2 Pan Axis Module , K2.0050764 ARRI documentation portal For more details about the product, please refer to the ARRI website at: TRINITY 2 product page 1.2 How to Use this Manual... -
Page 7: Safety Instructions
NOTICE indicates a potentially harmful situation. If not avoided, the equipment or something in its surrounding may be damaged. Always follow the recommended measures to avoid this situation. HINT Not relevant to safety, HINT provides additional information to clarify or simplify a procedure. TRINITY 2 Pan Axis Module Operating Manual... - Page 8 Risk of Injury through High Torque and Unbalanced Load Keep in mind that the TRINITY 2 Pan Axis Module stabilized remote head is a fully stabilized Gimbal based device with a payload capacity of up to 25 kg / 55 lbs. The amount of available torque is very high.
- Page 9 WARNING Falling System Parts Do not built up or assemble the TRINITY 2 Pan Axis Module the wrong way. It can fall down and cause serious injuries and damage to the device or property. Installation and operation must only be carried out by approved persons who know the device.
- Page 10 Do not put the device on an unstable trolley or hand truck, stand, tripod, bracket, table or any other unstable support device. Always put the device on dedicated support devices. Use only accessories approved by ARRI. The use of accessories not approved by ARRI is at your own risk. Please obey all related safety guidelines. WARNING Overloading the TRINITY 2 Pan Axis Module by Persons or Objects Risk of injury caused by the TRINITY 2 Pan Axis Module tipping over.
- Page 11 Hot Surfaces During extended operation and / or operation at high ambient temperatures, the surface of the TRINITY 2 Pan Axis Module can get hot. Direct sunlight can result in housing temperatures above 60° C (140° F). Always use an approved mount to fasten the TRINITY 2 Pan Axis Module to the system.
-
Page 12: About This Product

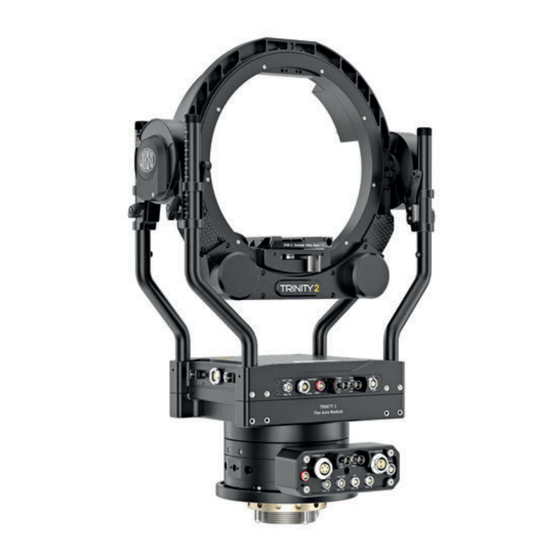

3.1 Intended Use The stabilized remote head TRINITY 2 Pan Axis Module is a camera support system. It can be mounted to a hoist, a mast or a structure. It has three axles (Pan, Tilt, Roll) which are remotely controlled by the user to focus the camera dynamically. -
Page 13: Identification
PID parameters. The correct adjustment of these PID values is crucial for the proper functioning of the system. An unbalanced camera setting puts more strain on the motors of the TRINITY 2 Pan Axis Module. The system requires more force to move the load, and this sometimes increases the possibility that the load will become unstable and that the remote head will overcompensate or wobble and oscillate. -
Page 14: Environmental Conditions
3 | About this Product 3.4 Environmental Conditions The TRINITY 2 Pan Axis Module should only be used and stored under certain environmental conditions. Check the following conditions before commissioning and operation: Permissible Operating Temperature -20° C to +45° C / -4° F to +133° F Permissible Storage Temperature -30°... -
Page 15: Dimensional Drawing
Always store, ship and dispose according to local regulations. ARRI is not liable for consequences from inadequate storage, shipment or disposal. On delivery, please check if package and content are intact. Never accept a damaged or incomplete delivery. -
Page 16: Certification And Safety Standards
• 1x K2.0021428, SRH High Capacity Battery Power Cable, 12 V, 4pin XLR, 10 m / 33 ft • 1x K2.0038756, Wrench for SRH Castle Nut, Mitchell Mount For scope of warranty, please ask your local ARRI Service Partner. ARRI is not liable for consequences from inadequate shipment, improper use or use of third-party products. -
Page 17: Product Layout
4 Aux Out / 3pin Fischer (12 V max. 3 A) 5 Loop In / BNC 6 Main Cable In 7 FS CAN Bus In 8 Aux Out / 2pin Lemo (12 V max. 3 A) TRINITY 2 Pan Axis Module Operating Manual... - Page 18 + 12 V Pin 3 Tally *Shown from mating side 12 V Aux Power Lemo 0B 2pin (12 V max. 3 A) Pin 1 Ground Pin 2 12 V *Shown from mating side TRINITY 2 Pan Axis Module Operating Manual...
-
Page 19: Power Supply
K2.0019302 SRH FS CAN Bus Cable, 10 m / 32.8 ft K2.0019301 SRH FS CAN Bus Cable, 25 m / 82 ft K2.0019300 SRH FS CAN Bus Coupler, 0.2 m / 0.65 ft TRINITY 2 Pan Axis Module Operating Manual... -
Page 20: Wiring Power Supply
Battery Power Cable 12 V, 3pin XLR, 10 m / 33 ft 4pin XLR, 10 m / 33 ft K2.0021427 K2.0021428 Post Main Cable, Lemo 3B, 16pin K2.0040332 12 V / 24 V Block Batteries TRINITY 2 Pan Axis Module Operating Manual... -
Page 21: Mounting And Assembly
• Position the Mitchell Mount at the base of the Pan Axis Module. • Use a 4 mm Hex key to tighten the six screws. NOTICE A loose Mitchell Mount inevitably leads to unwanted vibrations. TRINITY 2 Pan Axis Module Operating Manual... -
Page 22: To Mount The Trinity2 Head
4.1.2 To Mount the TRINITY2 Head • The main cable needs to be connected first to the TRINITY 2 head. • Guide the main cable from the top through the Pan Axis Module. TRINITY 2 Pan Axis Module Operating Manual... - Page 23 Mounting and Assembly | 4 • Now carefully position the TRINITY 2 head on the Pan Axis Module. • The two communication sockets on the left- hand side and the spirit level and safety hook on the back are used for orientation.
- Page 24 • Plug the Main Cable into the Junction Box after the Mitchell Mount has been mounted on a crane or dolly. • First connect the Power Cable (K2.0019306). • Then, connect the 4-pin 12 V and 3-pin 24 V power cables. TRINITY 2 Pan Axis Module Operating Manual...
- Page 25 Junction Box and the RCP-3 with the FS CAN cable. To establish communication between the TRINITY 2 remote head and the RCP-3, please switch on the main power switch at the TRINITY 2 head and press and hold the power switch at the RCP-3.
-
Page 26: To Calibrate The Pan Axis Assembly
To achieve this, simply turn the TRINITY remote head to the desired position and touch OK. As a guide, we recommend positioning the TRINITY Remote Head 90 degrees to the junction box. TRINITY 2 Pan Axis Module Operating Manual... -
Page 27: Trinity2 Remote Head Attachment
Mitchell mount is optimized for the SRH-3, SRH-360, 360 EVO and TRINITY2 Remote Head. Order codes KK.0039359 Vibration Isolator for SRH, Gen. 2, metric, Basic Set KK.0041936 Vibration Isolator for SRH, Gen.2, Imperial, Basic Set TRINITY 2 Pan Axis Module Operating Manual... -
Page 28: Remote Control Panel Rcp-3
The RCP-3 is a compact and lightweight remote control that can be programmed and controlled via a 5-inch touch panel. The Graphic User Interface is used to set up and control the TRINITY 2 system, the Pan Axis Module and Lens Control. -
Page 29: Dimensional Drawing
Remote Control Panel RCP-3 | 5 5.4 Dimensional Drawing 165 / 6.49 66 / 2.59 154 / 6.06 105 / 4.12 125 / 5.03 All dimensions in mm / inch. Drawing not to scale. TRINITY 2 Pan Axis Module Operating Manual... -
Page 30: Overview
Fischer 4pin Data / 12 V max. 3 A 12 V Lemo 0B 2pin 12 V max. 3 A FF CAN Bus Fischer 4pin Data / 12 V max. 3 A USB-C 5.2 V TRINITY 2 Pan Axis Module Operating Manual... -
Page 31: Mounting And Assembly
• Make sure both screws are tightened. 5.7.3 Power ON / OFF press & hold • To turn the RCP-3 on and off, press and hold down the jog-wheel until the ARRI logo appears or disappears on the display. TRINITY 2 Pan Axis Module Operating Manual... -
Page 32: Cleaning, Maintenance And Repair
Risk of injury and damage. Do only carry out maintenance work that is describes in this operating manual. Do not try to repair the device yourself. Repairs may only be carried out by authorized ARRI service partners. For repairs and maintenance work on the device, please contact the ARRI Service. -
Page 33: Transportation, Storage And Disposal
PARLIAMENT AND OF THE COUNCIL of June 4, 2012 on waste electrical and electronic equipment (WEEE II). Accordingly, this product must not be disposed of with household waste. There are the respective country-specific disposal rules that must be observed. TRINITY 2 Pan Axis Module Operating Manual... -
Page 34: Arri Service Contacts
8 ARRI Service Contacts Please see the current list of service partners at service contacts. Arnold & Richter Cine Technik GmbH & Co. ARRI Cine + Video Geräte Ges. m. b. H. Betriebs KG Pottendorferstraße 23-25/3/2/1 Herbert-Bayer-Str. 10 1120 Vienna... - Page 35 India Dubai, UAE +91 (0)22 42 10 9000 +971 (0) 45570477 Business hours: Business hours: Mo. - Sa. 10:00 am - 06:00 pm (IST) Sa. - Th. 10:00 am- 06:00 pm arrisupportindia@cineom.in arriservice.me@cineom.com TRINITY 2 Pan Axis Module Operating Manual...
