Summary of Contents for Bartscher 700 GN210

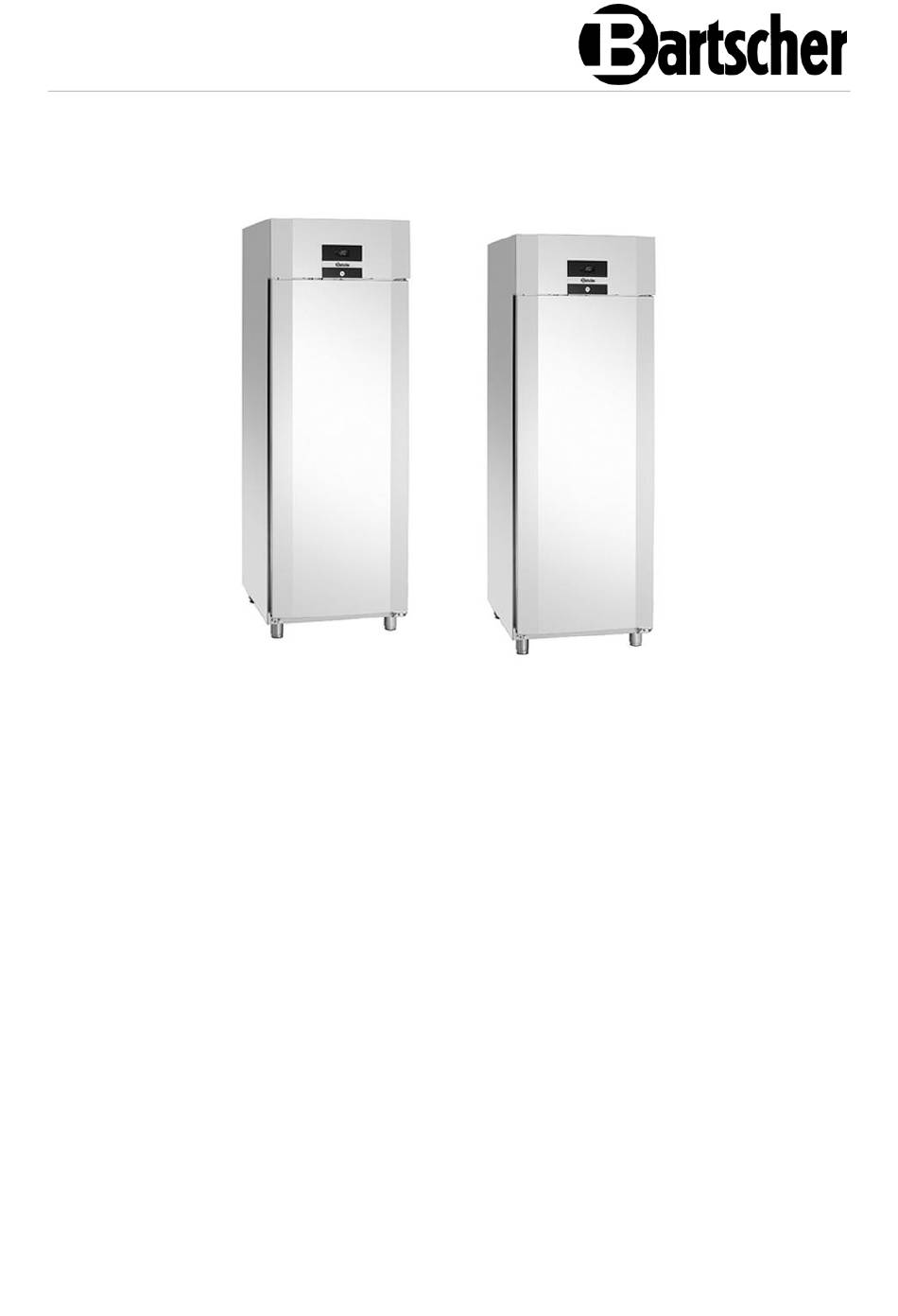

  • Page 1 700 GN210 - 700 GN210 700903 - 700904...
  • Page 2 Bartscher GmbH Phone: +49 5258 971-0 Franz-Kleine-Str. 28 Fax: +49 5258 971-120 Technical Support Hotline: +49 5258 971-197 D-33154 Salzkotten Germany www.bartscher.com Version: 1.0 Date of preparation: 2023-11-16...

  • Page 3: Table Of Contents

    Original instruction manual Safety ......................2 Explanation of Signal Words ..............2 Safety instructions..................3 Intended Use ................... 6 Unintended Use ..................6 General information ..................7 Liability and Warranty ................7 Copyright Protection ................7 Declaration of Conformity ................ 7 Transport, Packaging and Storage ..............

  • Page 4: Safety

    Safety Diese Bedi enungsanlei tung besc hrei bt di e Installation, Bedi enung und Wartung des Geräts und gilt als wic htige Infor mationsquelle und N achschl agewer k. Di e Kenntnis aller enthaltenen Sic herheits hinweis e und H andlungs anweisungen schafft die Vorauss etz ung für das sichere und s ac hger echte Ar beiten mit dem Gerät. D arüber hi naus müs sen die für den Ei ns atz ber eic h des Geräts geltenden ör tlichen Unfall verhütungs vorsc hriften und allgemeinen Sicherheits besti mmungen eing ehalten wer den. Dies e Bedi enungs anleitung is t Bes tandteil des Produkts und muss i n unmi ttelbarer N ähe des Ger äts für das In¬s tall ations-, Bedi enungs-, Wartungs- und R einigungspers onal jederzeit z ugänglich auf¬bewahrt werden. Wenn das Ger ät an eine dritte Pers on weiterg egeben wird, muss die Bedi enungsanlei tung mit ausgehändigt wer den.

  • Page 5: Safety Instructions

    Safety WARNING! The signal word WARNING warns against hazards that may lead to moderate or severe injuries or death if the hazards are not avoided. CAUTION! The signal word CAUTION warns against hazards that may lead to light or moderate injuries if the hazards are not avoided. , di e IMPORTANT! The signal word IMPORTANT indicates possible property damages,...
  • Page 6 Safety • Always completely unwind the power cord. • Never place the appliance or other objects on the power cord. • Always take hold of the plug to disconnect the appliance from the power supply. • Check the power cord regularly for damage. Do not use the appliance if the power cord is damaged.
  • Page 7 Safety Operating Personnel • The appliance may only be operated by qualified personnel and trained specialist personnel. • This appliance may not be operated by persons (including children) with limited physical, sensory or mental capabilities, nor by persons with limited experience and/or limited knowledge.

  • Page 8: Intended Use

    Safety Intended Use As described below, every use of the appliance for a purpose differing and/or diverging from its intended standard use, is prohibited and considered to be an unintended use. The following is an intended use: – cooling and storage of suitable beverages and foods (refrigerator) –...

  • Page 9: General Information

    General information General information Liability and Warranty All information and instructions in this instruction manual account for legal regulations in force, current level of technical engineering knowledge as well as our expertise and experience, developed over the years. If special models or additional options are ordered, or state-of-the-art technical solutions were implemented, the actual scope of delivery of the appliance may, in some circumstances, differ from descriptions and numerous drawings in this instruction manual.

  • Page 10: Transport, Packaging And Storage

    Transport, Packaging and Storage Transport, Packaging and Storage Delivery Check Immediately upon reception, check the delivery for completeness and possible shipping damage. In the case of visible transport damage refuse to accept the appliance or accept it conditionally. Mark and note the scope of damage in shipping documents/consignment list of the shipping company and lodge a complaint.

  • Page 11: Technical Data

    – acoustic signal if door is left open for too long More information on the appliance is available in our website www.bartscher.com or, pursuant to the Regulation (EU) 2015/1094-IV, in our product data base at https://energy-label.ec.europa.eu/. Enter article number for a given model.
  • Page 12 Technical Data Name: Deep freezer 700 GN210 700903 Art. No.: Material: CNS 18/10 Inner material: CNS 18/10 Volume, in l: Temperature range, min.–max., in °C: -18 - -22 Ambient temperature, max., in °C: Coolant, amount in kg: R290 / 0,125...

  • Page 13: Functions Of The Appliance

    Technical Data Name: Refrigerator 700 GN210 700904 Art. No.: Material: CNS 18/10 Inner material: CNS 18/10 Volume, in l: Temperature range, min.–max., in °C: -2 - +8 Ambient temperature, max., in °C: Coolant, amount in kg: R600a / 0,105 Climate class: Energy efficiency class: A (EU Nr.

  • Page 14: List Of Components Of The Appliance

    Technical Data List of Components of the Appliance 700903 / 700904 Fig. 1 1. Electronics compartment 2. Digital temperature controller 3. Door lock 4. Door 5. Door seal 6. Height-adjustable feet (4 pcs) 7. Shelves (4 pcs) 8. Housing 9. Fan 10.

  • Page 15: Installation And Operation

    Installation and operation Installation and operation Installation CAUTION! Incorrect installation, positioning, operation, maintenance or misuse of the appliance may lead to personal injury or property damage. Positioning and installation, as well as repairs may be performed by authorised technical service only and in compliance with the applicable national law.
  • Page 16 Installation and operation – sufficiently large, and thus enabling usage of the appliance with no problems; – easily accessible; – well ventilated. • Nie nal eż y umies zcz ać urządz eni a w g orąc ym otoczeniu ani w pobliż u materiał ów łatwopalnyc h. •...
  • Page 17 Installation and operation Changing the Hinge Side • The door hinge may be changed from right to left, as needed. • Engage at least one more person to change the deep freezer door's hinge side. ATTENTION! Do not place the appliance in horizontal position in order to change the door's hinge side.
  • Page 18 Installation and operation 16 / 28 700903...

  • Page 19: Operation

    Installation and operation Power supply connection • Verify if technical data of the appliance (see rating plate) correspond with the local electric power grid specification. • Connect the appliance to a single, properly grounded mains socket with protective contact. Do not connect the appliance to a multi-socket. •...
  • Page 20 Installation and operation Freezing of food products in the deep freezer • Deep-freeze only food products that are suitable to this end and withhold low temperatures well. • Deep-freeze only fresh food products. • A suitable packaging should be selected for each food product and the product should be packed well.
  • Page 21 Installation and operation • Partially or fully thawed food products should be immediately used. Low temperature preserves food products, but it does not eradicate micro-organisms. They reactivate at an accelerated pace and food products turn rapidly. Partial thawing reduces the nutritional value of food products, especially the nutritional value of fruits and vegetables, as well as ready-made meals.
  • Page 22 Installation and operation Functions of operating elements and displays LED fan indicator LED on: the fan is operating LED blinks: delay after defrosting LED defrosting process indicator LED on: defrosting in progress LED blinks: dripping in progress LED compressor indicator LED on: compressor off LED blinks: –...
  • Page 23 Installation and operation LED indicator of Fahrenheit scale LED on: the temperature measurement unit are degrees Fahrenheit LED ON/Standby indicator LED on: the appliance is off (Standby) Setting value increase button — manual defrosting Setting value decrease button ON/OFF / Standby switch Programming Button Digital Display When the appliance is switched on through pressing the...
  • Page 24 Installation and operation LED indicator light blinks. 3. Within 15 seconds, press the key briefly. The digital display shows the parameters: r1 (min. temperature) and r2 (max. temperature). 4. To confirm, press the key briefly or refrain from inputting any data for 15 seconds.
  • Page 25 Installation and operation Automatic Defrosting By factory default setting, the appliance is set to execute the defrosting cycle every 6 hours. The first defrosting cycle is commenced, when the appliance is switched on for the first time. The defrosting lasts for 20 minutes. The next defrosting cycle is commenced after 6 hours.

  • Page 26: Cleaning And Maintenance

    Cleaning and Maintenance Cleaning and Maintenance Safety Instructions for Cleaning • Before cleaning, disconnect the appliance from the power supply. • Leave the appliance to cool down completely. • Make sure water does not enter the appliance. Do not immerse the appliance in water or other liquids during cleaning.

  • Page 27: Maintenance

    Cleaning and Maintenance Defrosting and Cleaning Deep Freezer 700903 ATTENTION! Never damage the cooling circuit. Do not use pointed, sharp or any other mechanical aids to accelerate defrosting. Never use electrical appliances such as a hair dryer, heat blower, etc., or an open flame to defrost the appliance.

  • Page 28: Possible Malfunctions

    Possible Malfunctions Possible Malfunctions Mögliche The table below contains descriptions of possible causes and solutions to malfunctions or errors during operation of the appliance. When malfunction cannot be removed, contact the technical service. In such a case, provide article number, model name and serial number. These data may be found in the rating plate.
  • Page 29 Possible Malfunctions Error Possible Cause Solution Cooling efficiency Food products that are too Always let hot dishes cool down worm are placed in the to room temperature first appliance sufficient Appliance is overfilled Reduce amount of food products in the appliance Too little clearance between Provide for sufficient clearance objects inside the appliance...

  • Page 30: Disposal

    Disposal Disposal Electrical Appliance Electric appliances are marked with this symbol. Electrical appliances must be disposed of and recycled in a correct and environmentally friendly manner. You must not dispose of electric appliances with household waste. Disconnect the appliance from the power supply and remove power cord from the appliance.
