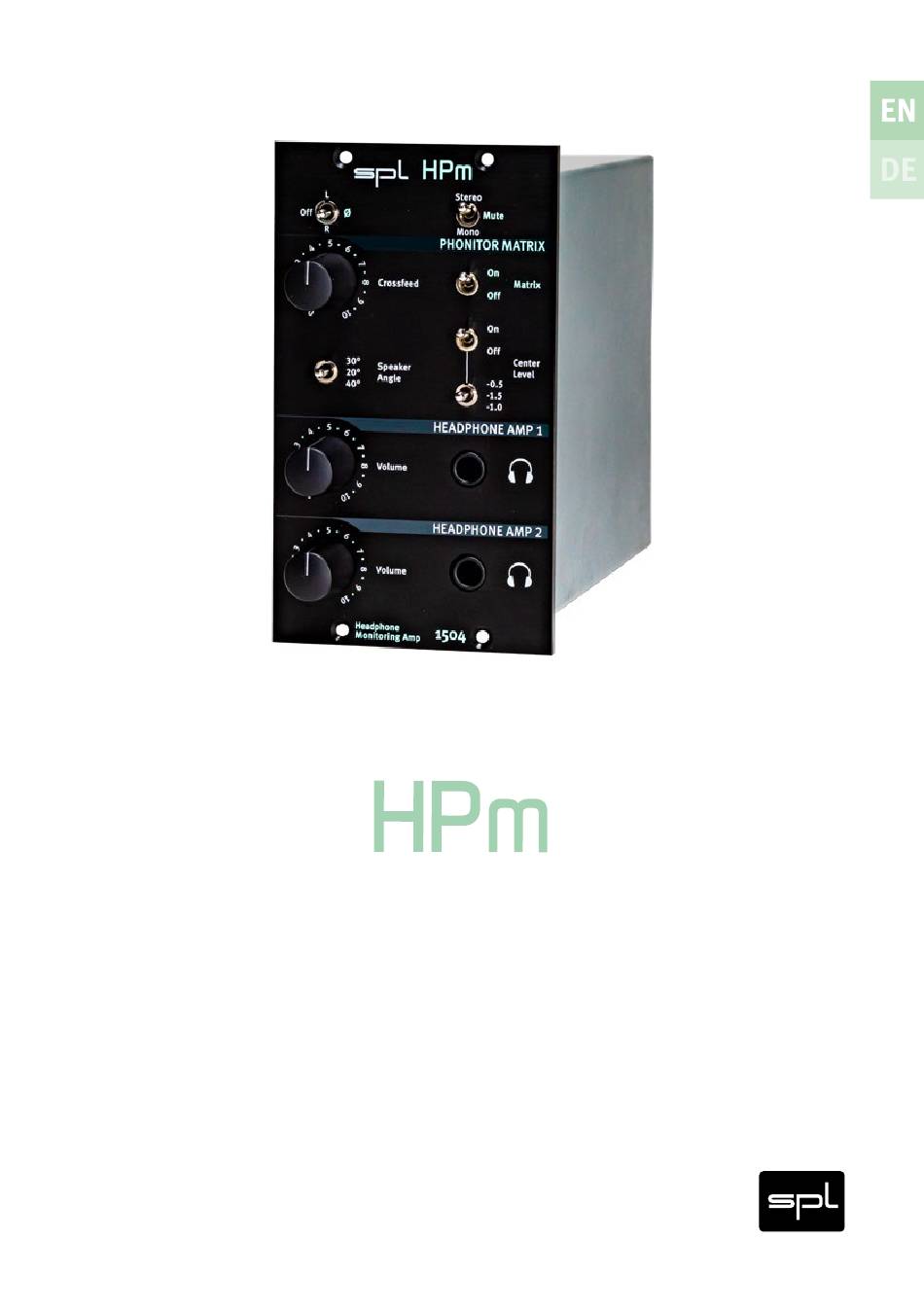

- Page 1 Headphone Monitoring Amplifier Headphone monitoring amplifier with Phonitor Matrix for two headphones as 500 Series module...
-
Page 2: Specifications
Input impedance: 10 kΩ Output Impedance: 150 Ω Headphone Outputs, 1/4" (6,35 mm) TRS Jacks Max output power (600 Ω) +18 dBu Max output power (300 Ω) +15 dBu Max output power (32 Ω) +5 dBu HPm – 500 Series... -
Page 3: Scope Of Delivery
• For the installation or exchange of HPm, your 500 Series rack should be switched off and the power cable should not be connected. • Insert the HPm module into two adjacent free slots of your rack. Make sure the connectors of the HPm is precisely aligned with the rack connectors. -
Page 4: Control Elements
With HPm, this parameter, which we call “Center” in the Phonitor Matrix, can also be adjusted in three settings. You can choose between an attenuation of -0.5dB, -1 dB or -1.5 dB. - Page 5 Matrix On/Off Crossfeed Matrix Crossfeed Center 30° Center-Level Speaker Speaker-Angle Level 20° Angle -0.5 40° -1.5 -1.0 HEADPHONE AMP 1 HEADPHONE 1 Volume 1 Volume HEADPHONE AMP 2 Volume 2 HEADPHONE 2 Volume 1504 Headphone Monitoring Amp HPm – 500 Series...
-
Page 6: Security Advices
Do not put burning items, such as candles, on the fications of the connection. Other connections can unit. A burning item may fall over and cause a fire. lead to health risks and damage the equipment. HPm – 500 Series... - Page 7 The company names and product names in this manual are the trademarks or registered trade- marks of their respective companies. SPL and the SPL Logo are registered trademarks of SPL electronics GmbH. SPL cannot be held responsible for damage caused by improper use or modification of the device or data that is lost or destroyed.
- Page 8 SPL electronics GmbH Sohlweg 80 41372 Niederkrüchten GERMANY SPL can of course also be found on Facebook, Instagram, Twitter and Youtube and we are happy to welcome new friends, followers and viewers. Website & Blog: www.spl.audio Videos: youtube.spl.audio Instagram: instagram.spl.audio...
