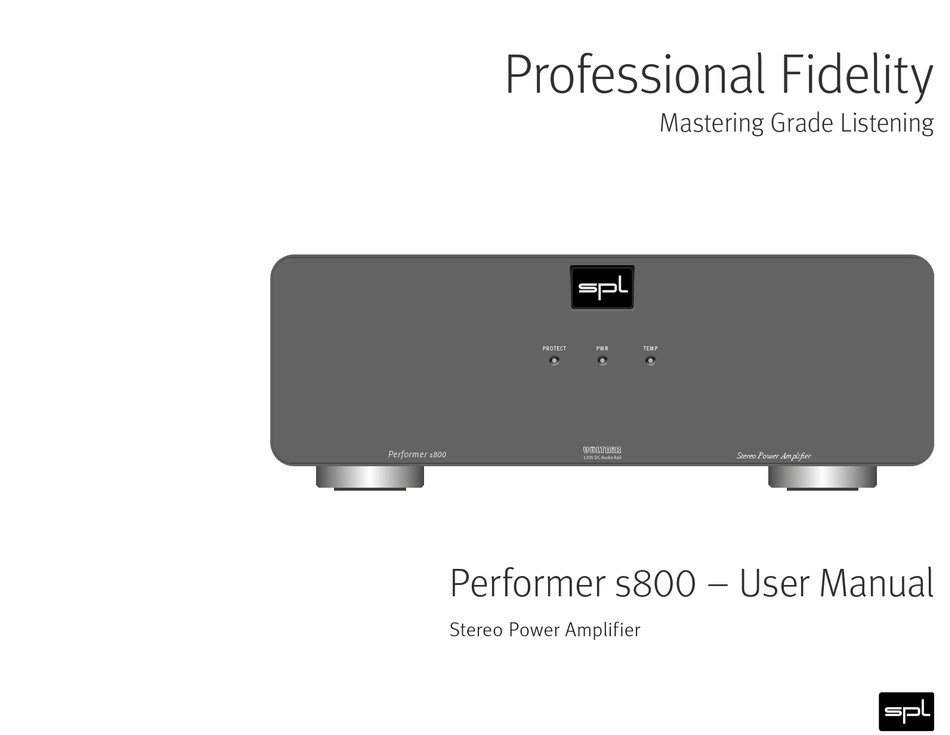

- Page 1 Professional Fidelity Mastering Grade Listening PROTECT TEMP VOLTAiR Stereo Power Amplifier Performer s800 120V DC Audio Rail Performer s800 – User Manual Stereo Power Amplifier...
- Page 2 Performer s800. The Performer s800 amplifier is an ultra-compact power amplifier that delivers 2 x 285 W to 4 ohms loudspeak- ers. In bridge mode it delivers 450 W into 4 or 8 ohms.
-
Page 3: Table Of Contents
Content Specifications Line Inputs & Line Outputs Speaker outputs Getting started Output power Front view Output voltage Rear view (Stereo Mode) Output impedance Rear view (Bridge Mode) Damping factor Frequency response VOLTAiR – 120V Rail Technology Signal-to-noise ratio Comparisons Gain Inputs Total harmonic distortion Slave Thru... -
Page 4: Getting Started
Getting started Read thoroughly and follow the instructions as well as the security advices of the Quickstart which is enclosed in the scope of delivery! You can also download the Quickstart here. By pressing the -Button you get to the table of contents. By pressing the -Button you get to the front view of the unit. -
Page 5: Front View
Front view Protection LED Temperature LED PROTECT TEMP VOLTAiR Stereo Power Amplifier Performer s800 120V DC Audio Rail Power LED... -
Page 6: Rear View (Stereo Mode)
Minimum Load: 8 Mono 3,5mm BRIDGE MODE Jack Stereo Mode Stereo Mode Connect to SPL Voltage Selection: C A U T I O N X L R W I R I N G Preamplifier/DAC 1. Remove Fuse Holder AMP CTL output Serial 2. -
Page 7: Rear View (Bridge Mode)
Note: Trims are deactivated Mono Minimum Load: 8 3,5mm BRIDGE MODE Jack Bridge Mode Connect to SPL Voltage Selection: Preamplifier/DAC C A U T I O N X L R W I R I N G 1. Remove Fuse Holder AMP CTL output Serial 2. -
Page 8: Voltair - 120V Rail Technology
VOLTAiR – 120V Rail Technology VOLTAiR is the synonym for our 120V Rail Technology within the Professional Fidelity series. The audio signals are processed with an unequalled +/-60V DC, which corresponds to twice that of discrete operational amplifiers and four-times that of semiconductor operational amplifiers. VOLTAiR Technology reaches outstanding technical and sonic performances. -
Page 9: Comparisons
Operating Voltage Max. Audio Level Volt 120 V 141,4 129,1 36 V 30 V 124,2 OPA 134@30 V OPA 134@36 V SPL-OP@120 V + / - 15 Volt + / - 18 Volt + / - 60 Volt... - Page 10 50%. The operating level most commonly used for audio equipment is +/- 15 volts. Dynamic Range THD&N -105 -106 33,2 -107 -109 22,5 21,5 -111 -111,7 -113 -114,2 -115 TL 071@30 V OPA 134@36 V SPL-OP@120 V OPA 134@30 V OPA 134@36 V SPL-OP@120 V...
-
Page 11: Inputs
SPEA Inputs The Performer s800 is equipped with XLR inputs (8, 12) for balanced connection to a pre- amp. Full output power (2 x 285 W RMS into 4 ohms or 2 x 185 W RMS into 8 ohms) is per- formed at +6 dBu at the input. -
Page 12: Slave Thru
BRIDGE – In Bridge INPUT R Slave Thru used. SPEA The input is passively fed to the SLAVE THRU (9, 13) output for bi-wiring applications. Trim The input can be lowered with the TRIM switch (10, 14) from 0 dB to -5.5 dB in 0.5 dB steps. -
Page 13: Speaker Outputs
Speaker outputs You can connect 4 or 8 ohms loudspeakers to the speaker outputs – (11, 15). You can either use the ø4 mm cable hole (screwable) or the BRIDGE MODE – banana plugs of the gold-plated loudspeaker binding posts. In Bridge Mode Make sure not to mix up the polarity of the loudspeaker outputs. -
Page 14: Bridge Mode
BRIDGE – In Bridge Mode The Performer s800 can be operated in bridge mode to combine both channel amps for maximum power (450 W INPUT R is not used. RMS into 4 or 8 ohms). Only use the left input then. -
Page 15: Protection Circuits
If the Performer s800 repetitively switches off due to a DC detection please contact your dealer. Overheating protection circuit At about 70° C at the heat sink, the Performer s800 will switch off. After the temperature has fallen below 55° C, the amplifier automatically switches on again. The TEMP LED (2) on the front indicates the overheating. -
Page 16: Amp Ctl (Amplifier Control)
AMP CTL (Amplifier Control) Performer s800 If you use the Performer s800 via AMP CTL with a SPL Phonitor x or SPL Director as a pre- Mono amp, the Performer s800 can be switched between standby and operation together with the... -
Page 17: Specifications
Specifications Line Inputs & Line Outputs • Neutrik XLR, balanced, Pin 2 = (+) • Input impedance: 10 kohms • Input trimming: 0 dB to -5.5 dB in 0.5 dB steps • Input sensitivity: +6 dBu • Output impedance (Slave Thru) is defined by the connected device •... -
Page 18: Output Voltage
Output voltage • 74 V Peak-to-Peak (stereo) • 180 V Peak-to-Peak (bridge) • 35 V RMS (stereo) • 86 V RMS (bridge) Output impedance • < 0.031, 20 Hz to 20 kHz (stereo) • < 0,043, 20 Hz to 20 kHz (bridge) Damping factor •... -
Page 19: Signal-To-Noise Ratio
Signal-to-noise ratio • > 118 dB (wide-band, unweighted, referred to full power output) • > 123 dB (A-weighted) Gain • 26 dB (stereo) • 32 dB (bridge) Total harmonic distortion • < 0,03% at 1 kHz, at 185 W, 8 ohms •... -
Page 20: Internal Voltage
Internal Voltage • +/- 60 V Power supply • Mains voltage: 230 V AC / 50 Hz; 115 V AC / 60 Hz • Fuses: 230 V: T 4 A; 115 V: T 8 A • Power consumption: max 900 VA •... -
Page 21: Important Notes
Technical specifications are subject to change. © 2016 SPL electronics GmbH. This document is the property of SPL and may not be copied or reproduced in any manner, in part or fully, without prior authorization by SPL. Sound Performance Lab (SPL) continuously strives to improve its products and reserves the right to modify the product described in this manual at any time without prior notice.
