Summary of Contents for SPL Performer m1000

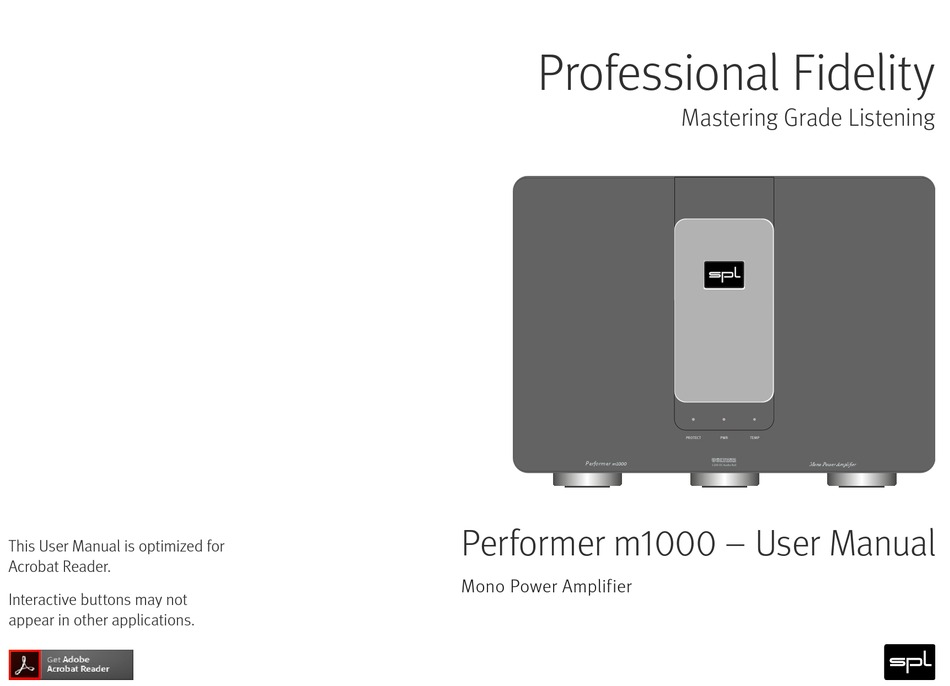

  • Page 1 Professional Fidelity Mastering Grade Listening PROTECT TEMP VOLTAiR Performer Mono Power Amplifier m1000 120V DC Audio Rail Performer m1000 – User Manual This User Manual is optimized for Acrobat Reader. Mono Power Amplifier Interactive buttons may not appear in other applications.
  • Page 2 750W into 4 ohms and 420 W into 8 ohms with ease. VOLTAiR technology is what we also call the SPL 120V Rail Technology within the Professional Fidelity series. This makes the Performer m1000 an outstandig device in terms of dynamic range, signal-to-noise ratio and headroom delivering an exceptional sound experience with invincible serenity, transparency and realness.
  • Page 3: Table Of Contents

    Content Specifications Line Input & Line Output Speaker output Getting started Output power (Sine at 1kHz) Front view Output voltage Rear view Output impedance VOLTAiR – 120V Rail Technology Damping factor Frequency response Comparisons Signal-to-noise ratio Ornamental inlays Gain Input Total harmonic distortion Slave Thru Internal Voltage...
  • Page 4: Getting Started

    Getting started Read thoroughly and follow the instructions as well as the security advices of the Quickstart which is enclosed in the scope of delivery! You can also download the Quickstart here. By pressing the -Button you get to the table of contents. By pressing the -Button you get to the front view of the unit.

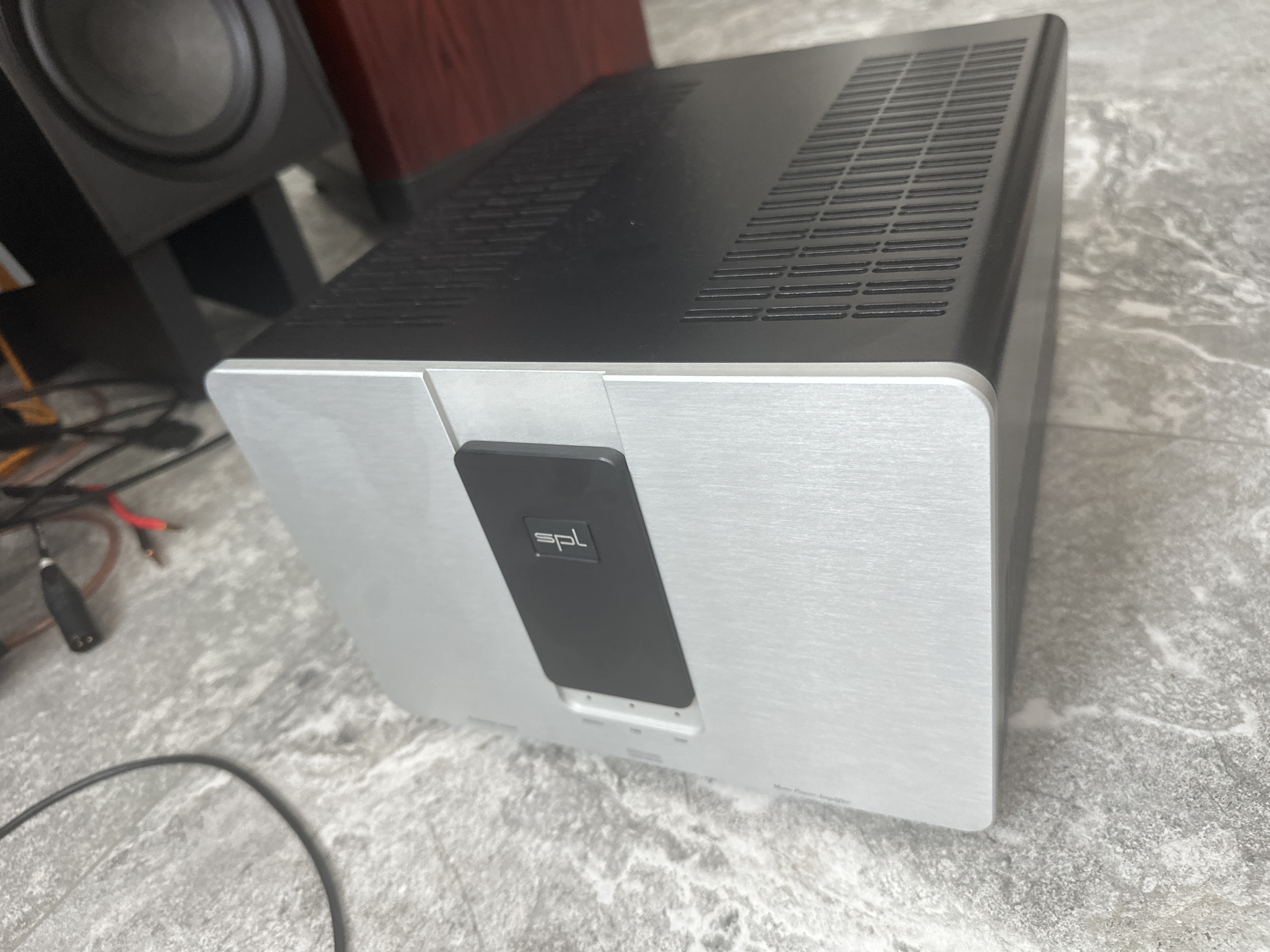

  • Page 5: Front View

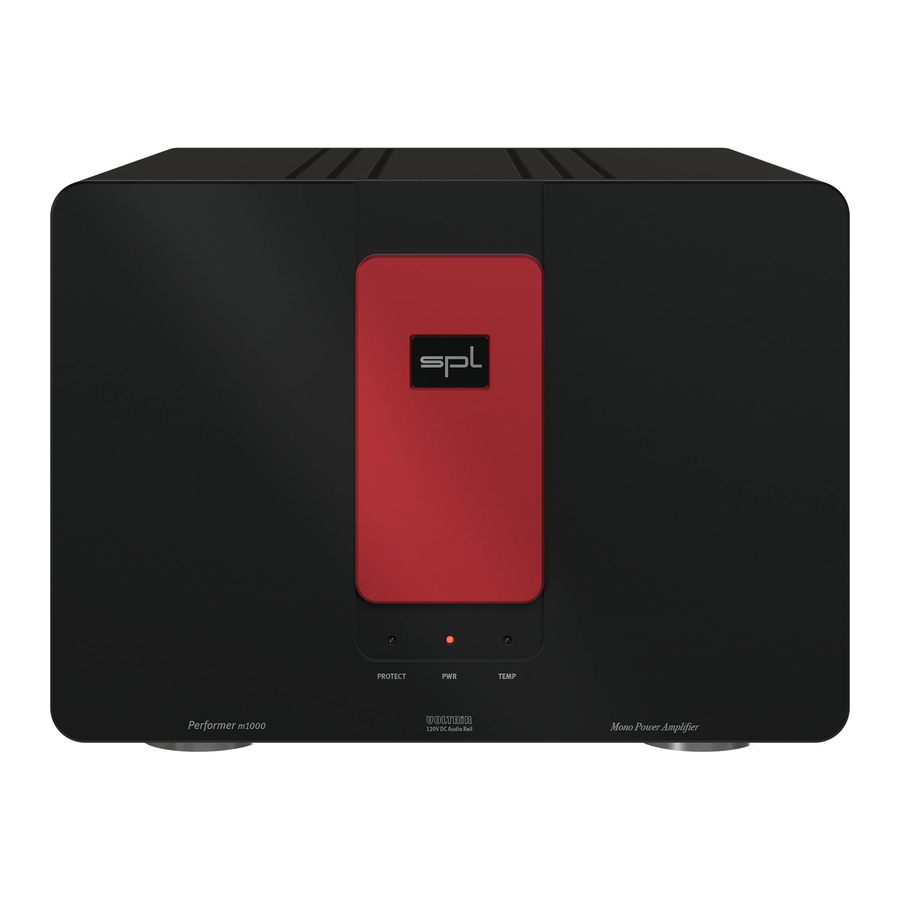

    Front view Ornamental Inlay PROTECT TEMP VOLTAiR Mono Power Amplifier Performer m1000 120V DC Audio Rail Protection LED Temperature LED Power LED...
  • Page 6: Rear View

    INPUT – Minimum Load: SPEAKER OUTPUT ~ 115V AC / ~230V AC, 50 Hz / 60 Hz, P max. 1375VA Performer m1000 Serial C A U T I O N Number RISK OF ELECTRIC SHOCK D O N O T O P E N AVIS: RISQUE DE CHOC ÉLECTRIQUE •...
  • Page 7: Voltair - 120V Rail Technology

    Music sounds absolutely natural. SPL’s 120V Rail Technology is the internal audio processing voltage (+/- 60V DC). It is not to be confused with the external mains voltage (e.g. 115V or 230V AC).
  • Page 8: Comparisons

    Operating Voltage Dynamic Range Volt 120 V 141,4 30 V 124,2 OPA 134@30 V SPL-OP@120 V + / - 15 Volt + / - 60 Volt...
  • Page 9 130%. The operating level most commonly used for audio equipment is +/- 15 volts. Max. Audio Level THD&N -105 -106 33,2 -107 -109 21,5 -111 -113 -114,2 -115 TL 071@30 V SPL-OP@120 V OPA 134@30 V SPL-OP@120 V...
  • Page 10: Ornamental Inlays

    Ornamental inlays The Performer m1000 comes with three ornamental inlays: in black, red and silver. They can be combined with the chosen color of the main front panel. A neodymium magnet holds the ornamental inlay in place. This allows easy exchange and gives you the unique opportunity to style your power amplifier.
  • Page 11: Input

    Input TRIM The Performer m1000 is equipped with an XLR input (7) for balanced connection to a preamp. XLR WIRING: Full output power (1000W RMS into 2 ohms, 750W RMS into 4 ohms or 420W into 8 ohms) is Pin 1 = GND Pin 2 = Hot (+) performed at +6 dBu at the input.
  • Page 12: Slave Thru

    Pin 3 = Cold (–) allows to level speakers with different efficiency to equal loudness. SPEAKER OUTPUT INPUT Minimum Load: Connect to AMP CTL output of SPL Preamplifier/DAC for remote power on/off SPEAKER OUTPUT Use 12 V Trigger AMP CTL/12V TRIGGER...
  • Page 13: Speaker Output

    SPEAKER OUTPUT plugs of the gold-plated loudspeaker binding posts. Make sure not to mix up the polarity of the loudspeaker output. Connect to AMP CTL output of SPL Preamplifier/DAC for remote power on/off Use 12 V Trigger AMP CTL/12V TRIGGER...
  • Page 14: Protection Circuits

    The Performer m1000 has protection circuits against DC (direct current) voltage at the output and against overheating. DC Protection If DC is detected at the output, the Performer m1000 automatically switches off. DC voltage can be an indication for a defective power stage. The ProtectLED (3) on the front indicates that the protection circuit is activated and the power stage has been switched off.
  • Page 15: Overheating Protection Circuit

    The Performer m1000 is actively cooled with six temperature controlled fans. The noise of the fans does not exceed 19 dB – therefore the fans are inaudable. In the unlikely event of overheating the Performer m1000 will switch off at about 70° C at the heat sink and the Temp LED (2) on the front indicates the overheating.
  • Page 16: Amp Ctl (Standby / Amplifier Control)

    Power LED In standby the Power LED is dimly lit. If the Performer m1000 is in operation, the Power LED lights up brightly. If the Performer m1000 is off, e.g. the mains switch is off, the Power LED is off.
  • Page 17: Specifications

    Specifications Line Input & Line Output • Neutrik XLR, balanced, Pin 2 = (+) • Input impedance: 10 kohms • Input trimming: 0 dB to -5.5 dB in 0.5 dB steps • Input sensitivity: +6 dBu • Output impedance (Slave Thru) is defined by the connected device Speaker output •...
  • Page 18: Output Voltage

    Output voltage • 180 V Peak-to-Peak • 64,6 V RMS Output impedance • < 0.031, 20 Hz to 20 kHz Damping factor • > 280 at 1 kHz and 8 ohms Frequency response • 10 Hz to 80 kHz...
  • Page 19: Signal-To-Noise Ratio

    Signal-to-noise ratio • > 118 dB (wide-band, unweighted, referred to full power output) • > 123 dB (A-weighted) Gain • 26 dB Total harmonic distortion • < 0,03% at 1 kHz, at 420 W, 8 ohms • < 0,05% at 1 kHz, at 750 W, 4 ohms •...
  • Page 20: Internal Voltage

    Internal Voltage XLR WIRING: • +/- 60 V Pin 1 = GND Pin 2 = Hot (+) Pin 3 = Cold (–) Power supply • Mains voltage: 230 V AC / 50 Hz; 115 V AC / 60 Hz • Fuses: 230 V: T 6.3 A;...
  • Page 21: Important Notes

    Technical specifications are subject to change. © 2018 SPL electronics GmbH. This document is the property of SPL and may not be copied or reproduced in any manner, in part or fully, without prior authorization by SPL. Sound Performance Lab (SPL) continuously strives to improve its products and reserves the right to modify the product described in this manual at any time without prior notice.
