Meridian 861v8 User Manual page 44

40
Installing the 861
Reference Digital
Surround Controller

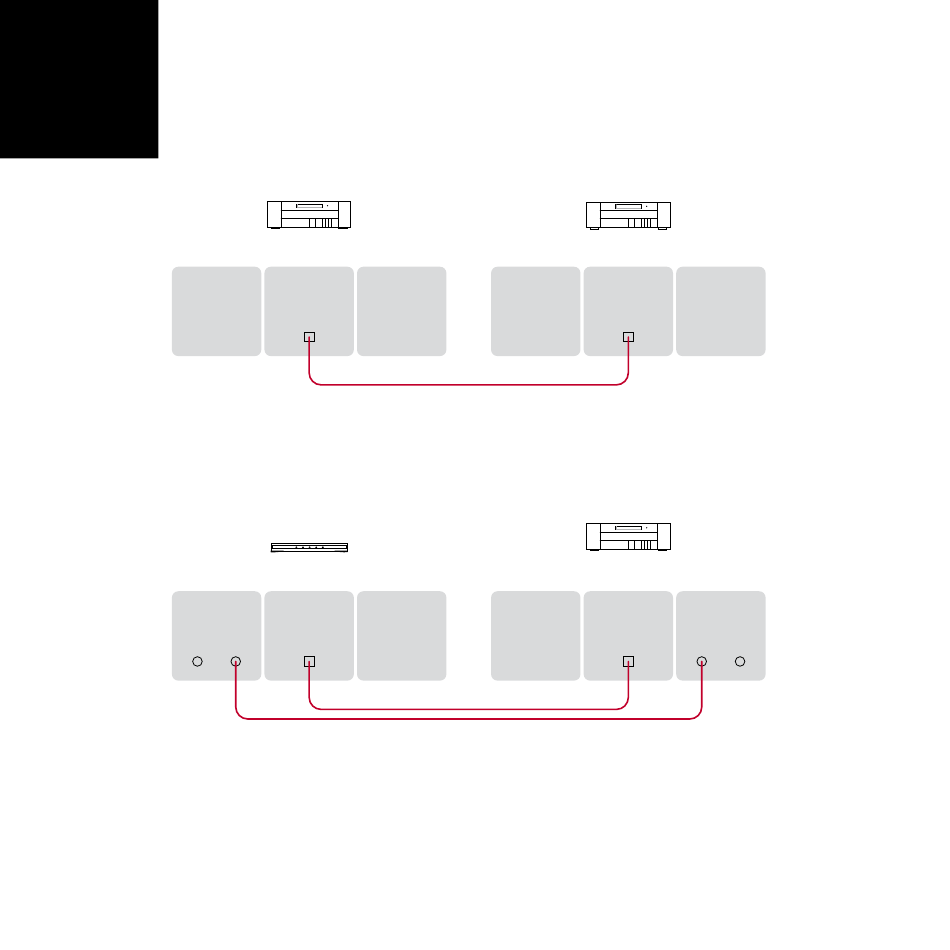

To connect to a digital source using SpeakerLink (eg 808)
• Connect the DIGITAL output from the 808 to the
SpeakerLink input on the digital surround controller,
using a Meridian SpeakerLink lead.
To connect to a Meridian HD621 HDMI Audio Processor
MERIDIAN
COMMS
The 861 provides an MMHR multichannel input which
can be used with the HD621 HDMI Audio Processor.
• Connect the MMHR output from the HD612 to the
MMHR input on the 861, using an MMHR lead.
808 Signature Reference CD Player
SPEAKERLINK
OUTPUT
HD621 HDMI Audio Processor
MMHR
OUT
861 Reference Digital Surround Controller
SPEAKERLINK
SpeakerLink lead
861 Reference Digital Surround Controller
MMHR Lead
• Connect together the COMMS sockets using a
Comms lead.
INPUT
MERIDIAN
MMHR
COMMS
IN
Meridian
Comms lead
