Installing the 861

Unpacking

Reference Digital
Surround Controller
The 861 Reference Digital Surround Controller is
supplied with the following accessories:
• MSR+ remote control with batteries, manual, and
spare key caps.
• Meridian Comms lead.
• Power cord.
• This manual.
If any of these items are missing please contact your
dealer.
NOTE: You should retain the packaging in case you
need to transport the unit.
Analogue
SpeakerLink
inputs A1-A6
outputs
and B1-B6

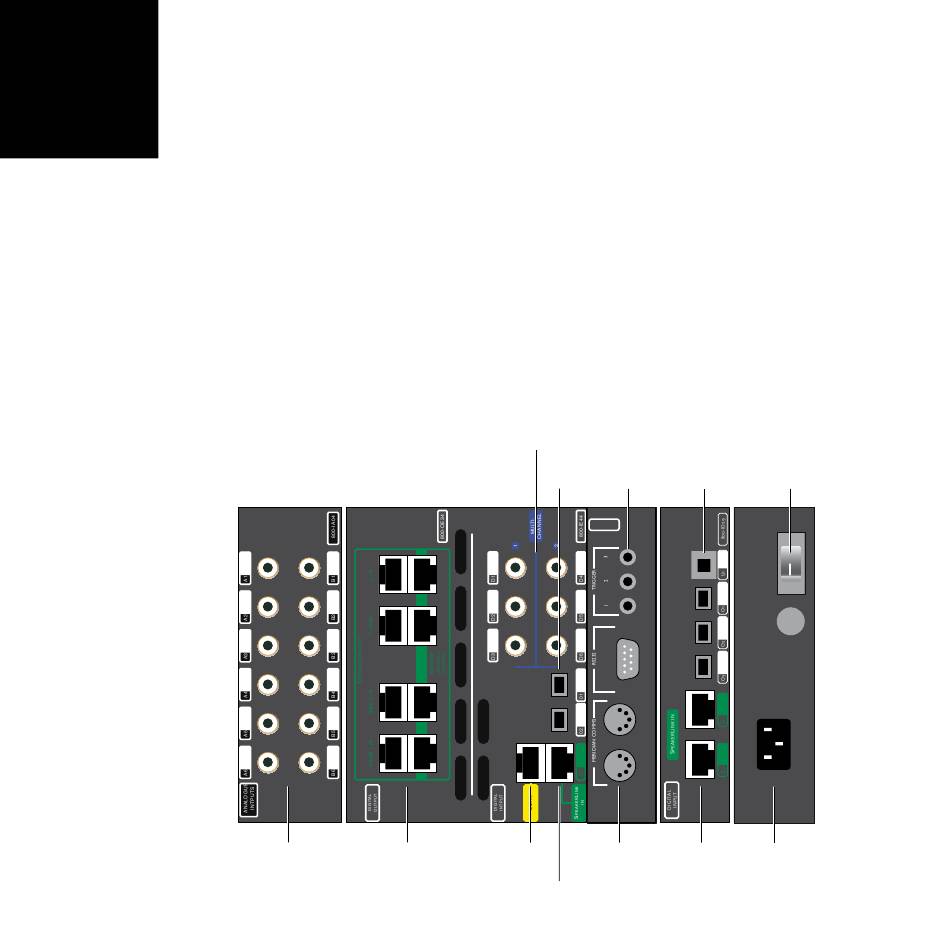

Back panel
The following diagram gives details of the back panel
connections on a standard 861. Note that your unit
may include optional cards to provide additional inputs
and/or outputs:
Digital coax
inputs
Optical inputs
Optical Trigger
O1-O3 and
inputs outputs USB input U1
COMPUTER
MMHR Meridian SpeakerLink
input Comms
SL1 and SL2
SpeakerLink
input
Switch and
fuse
Power
inputs
