INSTRUCTIONS FOR FITTING ADDITIONAL ANALOGUE
OUTPUT CARDS TO A MERIDIAN 861 (0A00/01, 0A10/11)

INTRODUCTION

The addition of OA00 or OA01 to an 861 allows for the connection of four
configurable standard analogue outputs. The addition of OA10 or OA11 to an 861
allows for the connection of four configurable balanced analogue outputs.
This sheet is intended as an installation guide for the fitting of these cards to a
Meridian 861.

WARNINGS

1. The power cord must be disconnected when any casing is removed.
2. Static sensitive parts are revealed when fitting these modules.

TOOLS REQUIRED

No. 0 pozidrive screwdriver
3/16 inch flat blade screwdriver

JUMPER SETTINGS

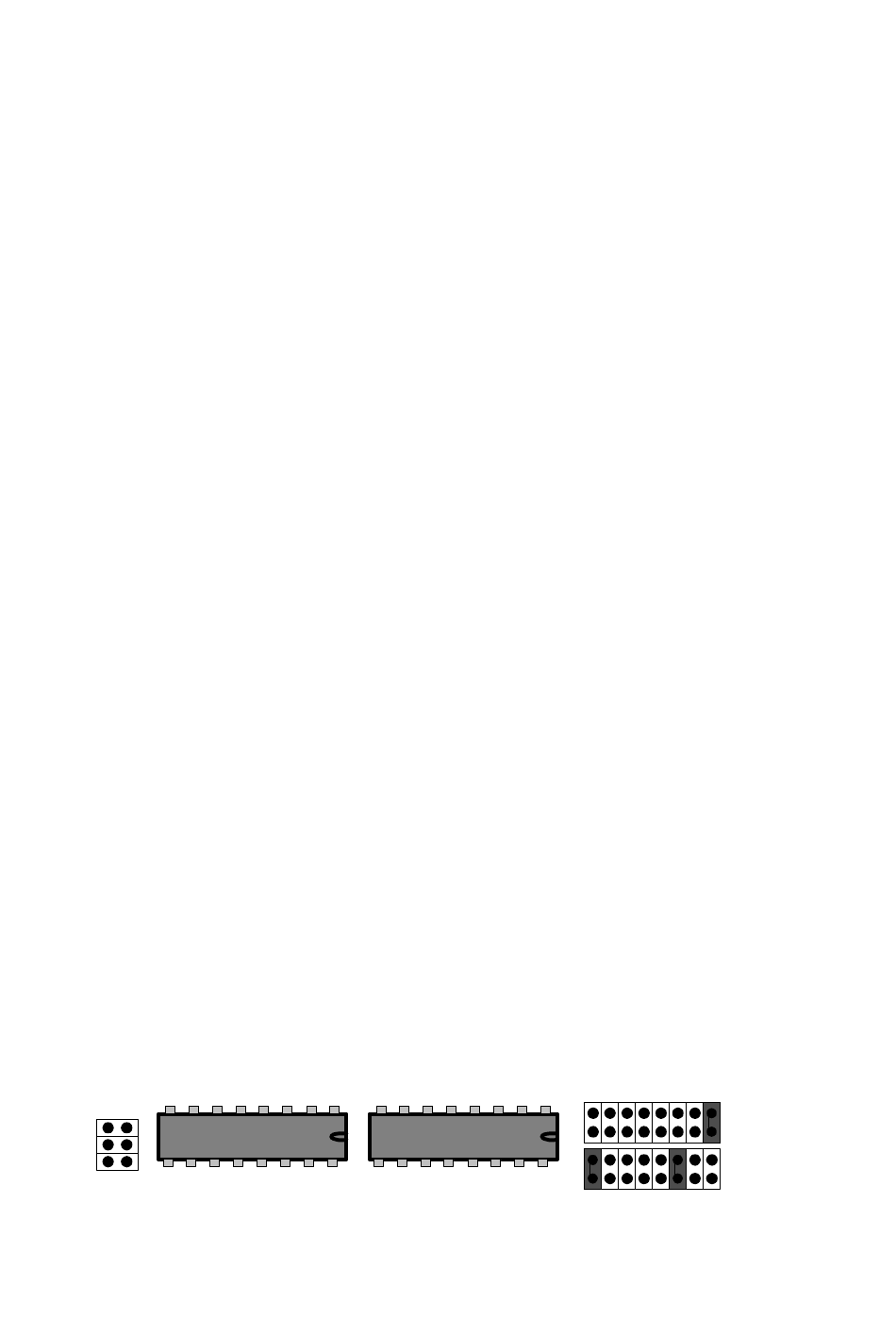

The Analogue Output Cards can be configured for various combinations of speaker
outputs by setting jumpers. The positions for these jumpers are located near the 96-
way backplane connection on the card.
NB If your unit has a serial number 100017 or lower, please consult your local
Meridian representative for a slight modification to these instructions.
The card is factory set to Setting 1.
Setting 1:
1=Main Left,
2=Main Right,
3=Centre,
4= Mono/Centre/LFE Sub.
Page 1
1.0, 13/11/97
