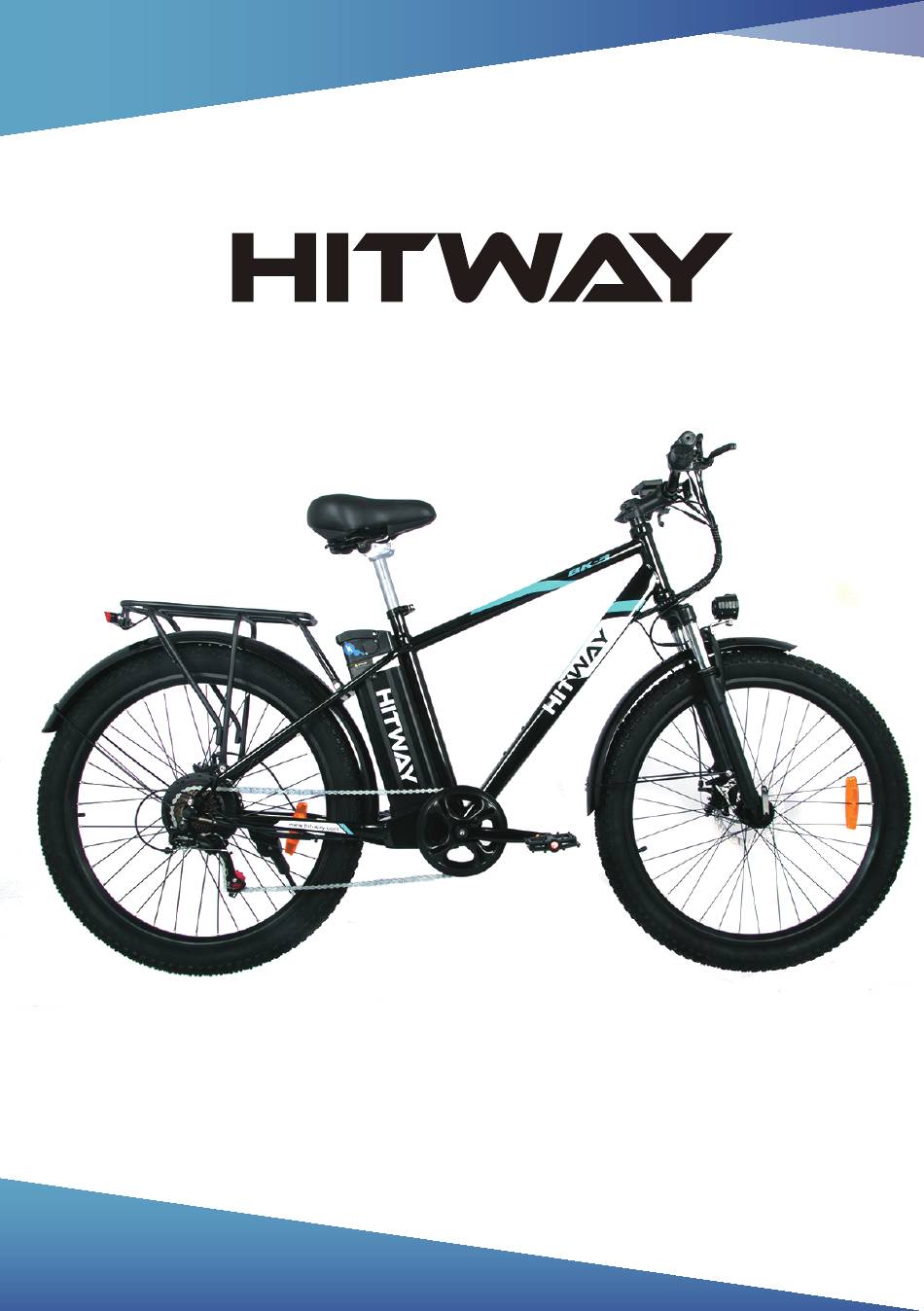

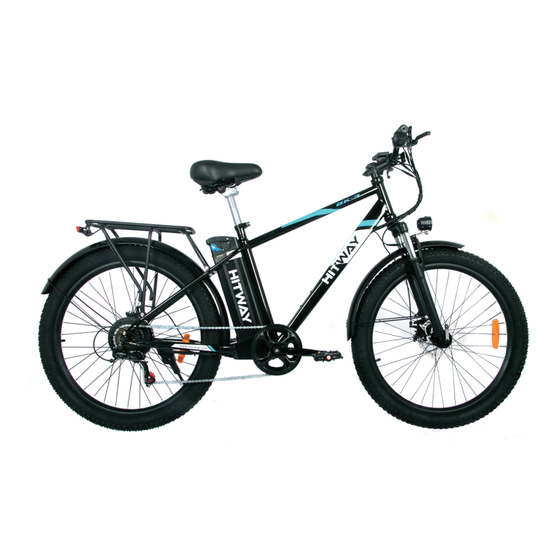

- Page 1 EN V1.2.2 Model: BK3M Operation Manual...
- Page 2 Step 3: Click the "Ask a Question" button. Choose your topic from list displayed. Step 4: Select Contact seller. *If you purchased HITWAY products by other platforms or channels, please also find the corresponding seller contact support. Thanks for your support and patience!
- Page 3 LANGUAGE LIST I Attentions.............1-2 II Product Function Diagram........3-5 III Product Parameters...........6-7 IV Manual Control Instrument Panel Instruction..8-12...
-
Page 4: I Attentions
ATTENTIONS Battery and Charging: Battery and Charging: Charge at 0℃～45℃, discharge at -20℃～60℃, keep the battery dry. Do not put the battery Charge at 0℃～45℃, discharge at -20℃～60℃, keep the battery dry. Do not put the battery in acidic or alkaline liquid. Avoid rain and keep away from fire, heat and high temperature in acidic or alkaline liquid. - Page 5 After use, the bike can not be parked in the building hall, evacuation stairs, safety exits, After use, the bike can not be parked in the building hall, evacuation stairs, safety exits, and allowed to ride with more than the maximum load of the body (the maximum load is and allowed to ride with more than the maximum load of the body (the maximum load is 120 KG) After use, the bike can not be parked in the building hall, evacuation stairs, safety 120 KG) After use, the bike can not be parked in the building hall, evacuation stairs, safety...
-
Page 6: Product Function Diagram
PRODUCT FUNCTION DIAGRAM Figure 1 (Whole vehicle diagram) Note: The product upgrade may cause the actual product you receive to be different from the sample in the photo, please don't worry, the specific functions are the same and will not affect your normal use. - Page 7 Function introduction: (Picture 1) 1. Charging: Unscrew the plastic cover on the battery (Picture 1), connect the charger to start charging, when the battery is full and the indicator light of the charger changes from red to green, it means it is fully charged. (Picture2) (Picture 3) 2.
- Page 8 3. Power display: After powering on, the dashboard lights up to display the power, and the power is divided into 5 grids, corresponding to high, medium and low power. 4. Headlights: Refer to Picture 3, long press the button to turn on/off the headlights.
-
Page 9: Product Parameters
PRODUCT PARAMETERS Parameter Standard Version Carbon Structural Steel Body Material Iron Color Gloss Black 1870mm*630mm*1100mm Unfolding Size Outlook & Dimension Spoked wheel Hub Form Wheel Size 26inch 1560mm*240mm*840mm Package Size Gross/Net 37.5kgs/30kgs(82.67lbs/66.13lbs) Maximum Load 120kg (264lbs) 32km/h (20mph) Maximum Speed 55KM-120KM(Affected by load, temperature, road conditions, riding Performance... - Page 10 Battery Type 18650 lithium ion power battery 14Ah Battery Capacity Battery Rated Voltage Motor Rated Power 750W Motor Form Assist mode Electrical Specifi- 26inch/high speed gear/spoke cations Motor Type wheel brushless motor Motor Rated No-Load Speed 390±10r/min Charger Output 54.6V 2.0A Charger Input 100~240V 50/60Hz 3.0A Undervoltage Protection...
-
Page 11: Manual Control Instrument Panel Instruction
MANUAL CONTROL INSTRUMENT PANEL INSTRUCTION Function description: 1. Display function Speed display, power assist display, power indicator, fault prompt, mileage display, voltage display, single boot time, 3.75mile/h boost, cruise control, brake indication, headlight display 2. Control, set function Power switch control, headlight switch control, 3.75mile/h booster setting（WALK mode） , cruise control setting, 3-speed booster ratio setting, speed display switching, mileage and single boot time and voltage display switching. - Page 12 Display content introduction 1.Voltage status level POWER 2.Multifunctional display area Total mileage ODO, single mileage TRIP (unit: mile, km), single boot time TIME, battery voltage VOL 3.Speed display area AVG：Average speed, MAX: maximum speed, SPEED: current speed; unit Mp/h, km/h 4.Bike power-assisted gear adjustment , 0-3 digital display and gear bar display;...
- Page 13 6.Instrument Status Code Meaning Status Code State Meaning Normal Status Battery Undervoltage Motor Failure Controller Failure Communication Reception Failure Communication Sending Failure Button Introduction The specific combination of buttons is as follows Use Introduction Button operation is divided into short press and long press. Specific operation explanation I 、...
- Page 14 2. In the power-on state, press and hold the button to turn it off. II 、Change the assist gear In power-on state 1. Short press button, assist gear will be + 1 2. Short press button, assist gear will be - 1 III 、Switch speed display area content 1.
- Page 15 2. When the bike is in the power-assisted running state, press and hold the button to enter the cruise control mode. Press any brake or turn the accelerator to exit cruise mode. 3. Press and hold button to turn the headlights on or off. V、Switch the content of the multi-function display area 1.
