- Page 1 ZEN-15 COMMERCIAL LOUDSPEAKERS 5” Outdoor Speaker USER MANUAL 50-0448-0100 ZEN-15...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. PRECAUTIONS..........................3 1.1 Important Notice ......................... 3 1.2 Key Safety Directions ........................ 4 1.3 Cleaning Directions ........................4 2. WARRANTY & ENVIRONMENT ....................5 3. PACKAGE CONTENTS ....................... 5 4. DESCRIPTION & FEATURES ....................6 4.1 Main Features ..........................6 5. -
Page 3: Precautions
WARNING: Ecler products have a long lifetime of more than 10 years. This product must never be discarded as unsorted urban waste, but must be taken to the nearest electrical and electronic waste treatment centre. -
Page 4: Key Safety Directions
1.2 Key Safety Directions Read the following directions. 11. Only use attachments/accessories specified by the manufacturer. Keep the following directions. 12. Unplug the device during lightening Heed all warnings. sorts or when unused for long periods of Follow all directions. time. -
Page 5: Warranty & Environment
Recycling materials and using non-contaminant components are also top priorities in our green crusade. Ecler has deeply evaluated and analyzed the environmental impacts of all the processes involved in the production of this product, including packaging, and has alleviated, reduced and/or compensated for them. -
Page 6: Description & Features

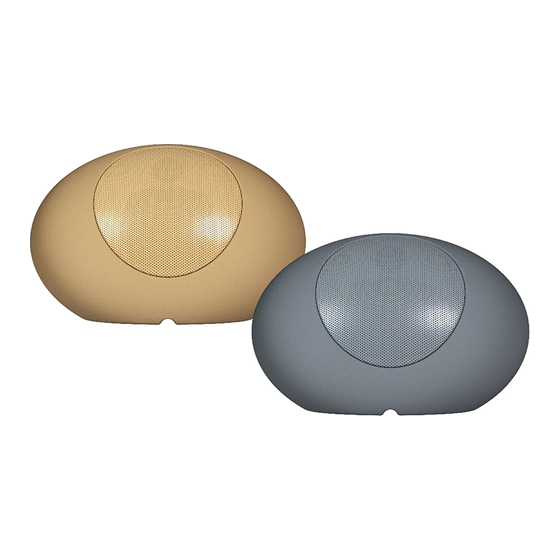

4. DESCRIPTION & FEATURES ZEN-15 is an above-ground mounting loudspeaker with an elegant stone shape seamlessly blends the world of audio technology with the aesthetics of nature. Crafted to resemble a rugged, weathered stone, this discreet outdoor audio solution effortlessly integrates into outdoor environments, providing a harmonious balance between functionality and visual appeal. -
Page 7: Connection & Installation Diagram
5.1 Connection & Installation Diagram... -
Page 8: Recommended Amplifier
6. RECOMMENDED AMPLIFIER The output power of the recommended amplifier for ZEN-15 is 140W RMS. 7. POSITIONING & INSTALLATION 7.1 Positioning Consider following general rules. Place the speaker on a solid and firm surface. No obstacles should stand between the enclosures and the audience. -
Page 9: Technical Data
8. TECHNICAL DATA 8.1 Technical Specifications ZEN-15 SYSTEM Effective Freq. Range 70Hz-20kHz (-10dB) Coverage angle 191°x150° (HxV) Power handling 70W RMS / 280W Peak Sensitivity 84dB (1W/1m) Maximum SPL 102dB continuous / 108dB peak Power options 100V: 60W / 8Ω... -
Page 10: Mechanical Diagram
8.2 Mechanical Diagram All measurements are in mm. - Page 11 NEEC AUDIO BARCELONA S.L. reserves the right to make changes or improvements in the design or manufacturing that may affect these product specifications. For technical queries contact your supplier, distributor or complete the contact form on our website, Support / Technical requests. Motors, 166‐168 08038 Barcelona, Spain Tel. (+34) 932238403 information@ecler.com www.ecler.com...
