ZK-D2110
User Manual
Walk Through Metal Detector
ZK-D2110
Date: March 2024
Doc Version: 1.0
English
Thank you for choosing our product. Please read the instructions
carefully before operation. Follow these instructions to ensure that the
product is functioning properly. The images shown in this manual are for
illustrative purposes only.
For further details, please visit our Company's website
www.zkteco.com.
User Manual
Contents 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ZK-D2110 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ZKTeco ZK-D2110

Summary of Contents for ZKTeco ZK-D2110

  • Page 1 ZK-D2110 User Manual User Manual Walk Through Metal Detector ZK-D2110 Date: March 2024 Doc Version: 1.0 English Thank you for choosing our product. Please read the instructions carefully before operation. Follow these instructions to ensure that the product is functioning properly. The images shown in this manual are for illustrative purposes only.
  • Page 2 Copyright © 2024 ZKTECO CO., LTD. All rights reserved. Without the prior written consent of ZKTeco, no portion of this manual can be copied or forwarded in any way or form. All parts of this manual belong to ZKTeco and its subsidiaries (hereinafter the "Company" or "ZKTeco").
  • Page 3 ZKTeco in no event shall be liable to the user or any third party for any incidental, consequential, indirect, special, or exemplary damages, including, without...
  • Page 4 ZK-D2110 User Manual ZKTeco shall in no way be responsible (i) in case the machine/unit/equipment malfunctions due to any non-compliance of the instructions contained in this manual (ii) in case of operation of the machine/unit/equipment beyond the rate limits (iii) in case of operation of the machine and equipment in conditions different from the prescribed conditions of the manual.
  • Page 5 ZK-D2110 User Manual About the Company ZKTeco is one of the world’s largest manufacturer of RFID and Biometric (Fingerprint, Facial, Finger-vein) readers. Product offerings include Access Control readers and panels, Near & Far-range Facial Recognition Cameras, Elevator/floor access controllers, Turnstiles, License Plate Recognition (LPR) gate controllers and Consumer products including battery-operated fingerprint and face-reader Door Locks.

  • Page 6: Table Of Contents

    3.3.4 ELECTROMAGNETIC RADIATION AND INTERFERENCE......12 3.3.5 PARALLEL INSTALLATION ................13 INSTALLATION STEPS ..................13 PERFORMANCE AND TECHNICAL FEATURES ..........15 CONTROL PANEL ................... 16 DETECTION ZONES ..................17 ADJUSTMENT OF DETECTION ZONE’S SENSITIVITY ........18 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.
  • Page 7 MODIFY PASSWORD ..................24 7.12 NETWORK SETTINGS ..................24 7.13 LANGUAGE .......................25 7.14 RESTORE ......................25 7.15 ABOUT .......................26 7.16 DEFAULT PARAMETERS ...................26 TROUBLESHOOTING ..................... 27 PACKING LIST......................28 WARRANTY CARD ....................29 P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.

  • Page 8: Overview

    Introduction ZK-D2110 is a walk-through metal-detector that is used for security screening at access points in the factory, prison, and metro. ZK-D2110 is very high sensitivity to all metal contraband, include non-ferrous and ferrous metals. It used to detect the concealed metal weapons on a person’s body.

  • Page 9: Components

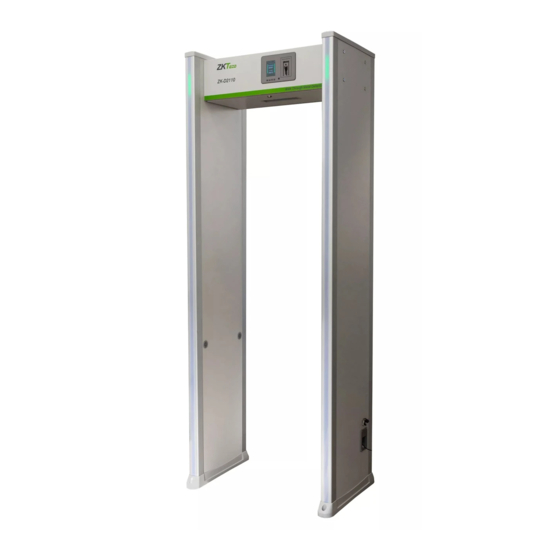

    ZK-D2110 User Manual Components 1. Main Unit 2. LED Alarm Zones 3. Built-in Probe 4. Infrared Sensors 5. Waterproof Foot Cover 6. Power-line Interface 7. Network Interface P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.

  • Page 10: Product Specifications

    ZK-D2110 User Manual Product Specifications Dimensions P a g e Copyright©2024 ZKTECO CO., LTD. All rights reserved.

  • Page 11: Technical Specifications

    Mobile App: ZK Metal Detector App (Android OS Support Software and MS Window OS only, need to install by individual apk and exe file) / ZKBio SIS P a g e | 10 Copyright©2024 ZKTECO CO., LTD. All rights reserved.

  • Page 12: Installation Setup

    Before passing through the metal detector, the pedestrians must remove  all the carried metal objects (such as keys, mobile phone, watch, coins, etc.), P a g e | 11 Copyright©2024 ZKTECO CO., LTD. All rights reserved.

  • Page 13: Installation Site

    The parameters that define the distance are determined by the installation environment and the parameters vary for different installation environments. The sources of electromagnetic radiation and electromagnetic interference are given below: P a g e | 12 Copyright©2024 ZKTECO CO., LTD. All rights reserved.

  • Page 14: Parallel Installation

    Then lift the Walk-through metal detector vertically and place it in the required area. Finally, plug in the power cable to start working. P a g e | 13 Copyright©2024 ZKTECO CO., LTD. All rights reserved.
  • Page 15 ZK-D2110 User Manual P a g e | 14 Copyright©2024 ZKTECO CO., LTD. All rights reserved.

  • Page 16: Performance And Technical Features

    Adjustable Sensitivity: ZK-D2110 detection zones have 256 sensitivity levels (0 to 255). You can preset the metal size, by excluding the false alarm of coins, keys, jewelry, belt buckle, etc.

  • Page 17: Control Panel

    : Adjustment (increment) key to increase the parameter values. OK: Opens the Menu interface, saves the settings, and exits the menu. Note: There is a network interface on the left door panel of ZK-D2110. P a g e | 16...

  • Page 18: Detection Zones

    ZK-D2110 User Manual Detection Zones The ZK-D2110 detectors can detect a wide range of threat objects/weapons composed of magnetic, non-magnetic metals and alloys. Chassis panel: The screen shows the number of people passing the detector and the number of alarms.

  • Page 19: Adjustment Of Detection Zone's Sensitivity

    After implementing the above adjustments, the metal which smaller than the sample will not alarm, but the metal objects bigger than the sample can be detected accurately. P a g e | 18 Copyright©2024 ZKTECO CO., LTD. All rights reserved.

  • Page 20: Operational Procedure

    Press the OK button on the Control panel to open the main menu. MENU Sensitivity Channel Buzzer Alarm Time Date & Time Sens Range Application Detect-mode Storage Relay Password Network Language Restore About P a g e | 19 Copyright©2024 ZKTECO CO., LTD. All rights reserved.

  • Page 21: Sensitivity Adjustment

    In the main menu, select Channel and then press OK. The channel range is from 1 to 40. The default value is 14. Press “” and “” to select the Channel and then press OK to save the settings. Channel 01——40 P a g e | 20 Copyright©2024 ZKTECO CO., LTD. All rights reserved.

  • Page 22: Buzzer Settings

    Press “” and “” to adjust the time. Press OK after setting the time. Then press ESC and then switch to date. Set the date and then press OK to save the changes. P a g e | 21 Copyright©2024 ZKTECO CO., LTD. All rights reserved.

  • Page 23: Sensitivity Range

    In the main menu, select Application and then press OK to confirm. Press “” and “” to adjust the real-time application area. Press OK after setting the application area. Application Airport Customs Port Prison Detention Conference Train Station Motor Station P a g e | 22 Copyright©2024 ZKTECO CO., LTD. All rights reserved.

  • Page 24: Detect-Mode

    “” to select the required function. When “Close” is selected, the relay function will be disabled. When “No Metal” is selected, the detector will send a signal to the P a g e | 23 Copyright©2024 ZKTECO CO., LTD. All rights reserved.

  • Page 25: Modify Password

    Address. Press OK enter the next digit or ESC set back the previous digit. After the last digit is modified, press OK to save the settings. Network Name F 0 0 0 0 1 255.255. 255.255 P a g e | 24 Copyright©2024 ZKTECO CO., LTD. All rights reserved.

  • Page 26: Language

    In the main menu, select Restore to restore the factory settings. Select "Yes" and press OK to restore the original factory settings. Select "Cancel" or press ESC to cancel the operation. Restore Cancel P a g e | 25 Copyright©2024 ZKTECO CO., LTD. All rights reserved.

  • Page 27: About

    Channel Buzzer Alarm Time 1.0 s Application Area Train Station Data Saving Save System Password 100000 Relay Settings Close Network Settings Name: F00001 IP: 255.255.255.255 GWIP: 192.168.1.1 P a g e | 26 Copyright©2024 ZKTECO CO., LTD. All rights reserved.

  • Page 28: Troubleshooting

    Make sure that the installation location is stable and free from physical  movements. If the false alarm is not caused by the environment, reduce the sensitivity level of all zones. Change the frequency. Change the installation location. P a g e | 27 Copyright©2024 ZKTECO CO., LTD. All rights reserved.

  • Page 29: Packing List

    1 set Hexagon Socket Set Screw 8 pcs Inner Hexagon 1 pc User Manual Main Unit 1 pc Door Panel 2 sets Infrared Remote Control 1 pc P a g e | 28 Copyright©2024 ZKTECO CO., LTD. All rights reserved.

  • Page 30: Warranty Card

    This card will not be issued again if it is lost. Model Number Date of Acquisition User Post Code Address User’s Phone Number P a g e | 29 Copyright©2024 ZKTECO CO., LTD. All rights reserved.
  • Page 31 ZK-D2110 User Manual Date of Maintenance Record of Maintenance Technician P a g e | 30 Copyright©2024 ZKTECO CO., LTD. All rights reserved.
  • Page 32 ZKTeco Industrial Park, No. 32, Industrial Road, Tangxia Town, Dongguan, China. Phone : +86 769 - 82109991 : +86 755 - 89602394 www.zkteco.com Copyright@2024 ZKTECO CO., LTD. All rights reserved.
