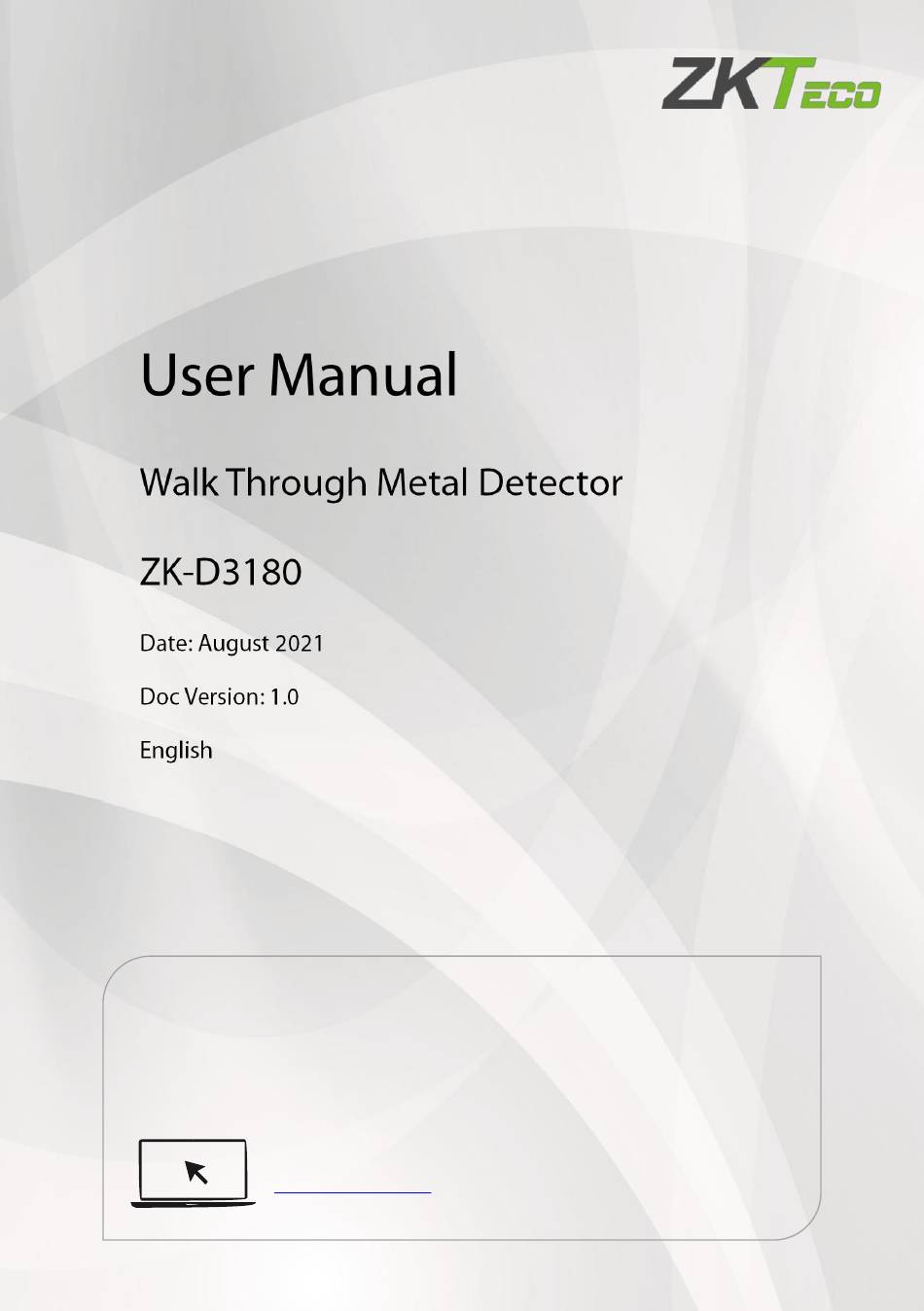

ZKTeco ZK-D3180 User Manual

Walk through metal detector

Hide thumbs

Table Of Contents

Table of Contents

Quick Links

ZK-D4330

Thank you for choosing our product. Please read the instructions

carefully before operation. Follow these instructions to ensure that the

product is functioning properly. The images shown in this manual are

for illustrative purposes only.

For further details, please visit our Company's website

www.zkteco.com.

User Manual

Contents 1

Table of Contents

Need help?

Do you have a question about the ZK-D3180 and is the answer not in the manual?

Questions and answers

Summary of Contents for ZKTeco ZK-D3180

Page 1 Thank you for choosing our product. Please read the instructions carefully before operation. Follow these instructions to ensure that the product is functioning properly. The images shown in this manual are for illustrative purposes only. For further details, please visit our Company’s website www.zkteco.com. Contents 1...
Page 2 Copyright © 2021 ZKTECO CO., LTD. All rights reserved. Without the prior written consent of ZKTeco, no portion of this manual can be copied or forwarded in any way or form. All parts of this manual belong to ZKTeco and its subsidiaries (hereinafter the "Company" or "ZKTeco").
Page 3 ZK-D3180 User Manual ZKTeco in no event shall be liable to the user or any third party for any incidental, consequential, indirect, special, or exemplary damages, including, without limitation, loss of business, loss of profits, business interruption, loss of business information or any pecuniary...
Page 4 User Manual About the Company ZKTeco is one of the world’s largest manufacturer of RFID and Biometric (Fingerprint, Facial, Finger-vein) readers. Product offerings include Access Control readers and panels, Near & Far-range Facial Recognition Cameras, Elevator/floor access controllers, Turnstiles, License Plate Recognition (LPR) gate controllers and Consumer products including battery-operated fingerprint and face-reader Door Locks.
Page 5: Table Of Contents
PERFORMANCE AND TECHNICAL FEATURES ..........17 DETECTION ZONES ..................... 18 ABOUT THE DETECTION ZONES ..............18 ADJUSTMENT OF DETECTION ZONE’S SENSITIVITY ........19 CONTROL PANEL DESCRIPTION ................ 20 Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 4...
Page 6 SECURITY LEVEL....................34 SCENARIO......................35 8.10 LOG QUERY ...................... 35 8.11 SYSTEM SETTINGS ................... 36 8.12 DEFAULT PARAMETERS................... 43 TROUBLESHOOTING ....................44 PACKING LIST ....................... 45 WARRANTY CARD ......................46 Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 5...
Page 7: Overview
Overview Introduction ZK-D3180 metal-detector is a walk-through metal-detector that is used for security screening at access points in the prisons, courthouses, and airports. Metal-detectors are highly sensitive to magnetic metals and have a high detection capability, with less ability to detect non-magnetic metals.
Page 8: Components
ZK-D3180 User Manual Components 1. Host Front Beam 3. Rear Beam Alarm Indicator Post 5. Built-in Coil Infrared Sensors Waterproof Foot Cover 8. Power Interface Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 7...
Page 9: Product Specifications
Side View Technical Specifications Feature Specifications DC 12V, 3A Power -20°C to 55°C Operating Temperature 5.6KHz to 10KHz Operating Frequency 2226(H)x845(W)x580(D)mm External Dimensions 2000(H)x710(W)x580(D)mm Channel 55kg Weight Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 8...
Page 10: Installation Setup
If the detector alarms when someone passes through, that means there is/are some metal object(s) hidden in the body. The security guard can use a hand-held metal detector to accurately detect the hidden position according to the alarm zones. Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 9...
Page 11: Installation Site
The distance varies according to the actual working environment, it is not recommended to mount three detectors in parallel, the frequency can be adjusted according to the environment. Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 10...
Page 12: Installation Steps
Step 2: Connect the rear beam with the left and right door panels with bolts, as shown in the figure 3-2 below (note that the bolts are not tightened at this time). Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 11...
Page 13 Step 3: Install the adjustable metal bracket on the host. The screws and holes on both sides of the bracket can fix and adjust the display angle of the host, as shown in the figure 3-3 below. Figure 3-3 Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 12...
Page 14 Step 5: Pass the Host Signal Line, the Linkage Signal Line and the Network Interface Line through the opening of the front beam, as shown in the figure 3-5 below. Figure 3-5 Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 13...
Page 15 Step 7: Insert the left and right signal wire plugs, as shown in the figure 3-7 below (pay attention to distinguish the left and right signal wires). Figure 3-7 Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 14...
Page 16 Step 9: Connect the front cross beam with the left and right door panels with bolts and tighten all the bolts, as shown in the figure 3-9 below. Figure 3-9 Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 15...
Page 17 Step 10: Lift and move the security gate to the designated working position, connect the side power cord, and press the power switch to enter the working state, as shown in the figure 3-10 below. Figure 3-10 Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 16...
Page 18: Performance And Technical Features
Micro Processor Technology: The Microprocessor Control Unit generates the electromagnetic waves for scanning. The scanning rate can be precisely controlled. Adjustable Sensitivity: ZK-D3180 detection zones have 1 to 500 sensitivity levels. You can preset the metal size for excluding items like coins, keys, jewelry, buckle, etc.
Page 20: Adjustment Of Detection Zone's Sensitivity
After implementing the above adjustments, the metal which smaller than the sample will not alarm, but the metal objects bigger than the sample can be detected accurately. Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 19...
Page 21: Control Panel Description
Selects a menu item or decreases a value. Enters a menu item or save settings. OK Button Power on or off the device. Power Button Light Infrared remote signal receive terminal. Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 20...
Page 22: Remote Control Description
Selects a menu item or increases a value. UP / LEFT Selects a menu item or decreases a value. DOWN / RIGHT Menu key, confirmation key and adjustment value. ENTER Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 21...
Page 23: Operational Procedure
For the first operation of the device, please enter the factory password of the device: 100000, and select "Confirm" after completion. When the prompt "Verify Succeed", the verification is completed. Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 22...
Page 24 [OK] button to set the value, press the [▲]/ [▼] button to switch, select "Confirm" and then press the [OK] button to save and exit. After entering the password successfully, you will enter the main menu interface as shown below: Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 23...
Page 25: Sensitivity Adjustment
Mode, Relay Mode, and Custom ID etc. 8.3Sensitivity Adjustment Select Sensitivity on the Main Menu interface, and press OK to set the sensitivity level of each detection zone, as shown in the following: Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 24...
Page 26 1-500, and the default value is 460. Note: You need to set up independent defense zones in the Defense Zone Settings interface first. Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 25...
Page 27: Zone Mode
Operation: Press the [OK] button to enter the zone setting interface, then press the [▲]/ [▼] button to select, press [OK] button to save and exit. Remark: Different independent zones, the Zone Sensitivity setting interface is as follows: Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 26...
Page 28: Channel Settings
User Manual 8.5Channel Settings Select Channel on the Main Menu interface, and press OK to enter the band setting interface, as shown in the following:  Manual Setting Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 27...
Page 29 Operation: Press the [OK] button to enter the auto setting interface and the device will execute the automatic setting. When it prompts "Settings Completed", it will complete the automatic setting of the frequency band and jump to the main menu. Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 28...
Page 30: Alarm Settings
[⏎] button to exit to the upper menu without saving the current value.  Delay Select Delay on the Alarm setting interface, and press OK to enter the alarm delay duration setting, as shown in the following: Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 29...
Page 31 Operation: Press the [OK] button to enter the ring tone setting interface, then press the [▲]/ [▼] button to select, press [OK] button to save and exit. Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 30...
Page 32 [⏎] button to exit to the upper menu without saving the current value.  Alarm Mode Select Alarm Mode on the Alarm setting interface, and press OK to enter the alarm mode setting interface, as shown in the following: Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 31...
Page 33: Auto Testing
As shown in the following:  Zone Test Select Zone Test on the Alarm setting interface, and press OK to enter the partition test. The test example is shown below. Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 32...
Page 34  Speaker Test Select Speaker Test on the Alarm setting interface, and press OK to enter the voice test. The test example is shown below. Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 33...
Page 35: Security Level
[OK] button to save and exit. 8.9Scenario Select Scenario on the Main Menu interface, and press OK to enter the application scenario setting interface, as shown in the following: Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 34...
Page 36: Log Query
Press the [⏎] button to exit the record query. 8.11 System Settings Select System on the Main Menu interface, and press OK to enter the system settings interface, as shown in the following: Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 35...
Page 37 "Confirm" and press [OK] button to save and exit.  Screen Sleep Select Screen Sleep on the System setting interface, and press OK to enter the screen hibernation setting interface, as shown in the following: Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 36...
Page 38 Operation: Press the [OK] button to enter the system Date & Time setting, then press the [▲]/ [▼] button to select. Press [OK] button to set the value, select "Confirm" and press the [OK] button to save and exit. Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 37...
Page 39 It is used to set whether to save the number of alarm records after the device is turned off, select "Yes" to save, select "No" to clear, and select "Manually reset the count" to clear count manually. Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 38...
Page 40  Detect Mode Select Detect Mode on the System setting interface, and press OK to enter the detect mode setting interface, as shown in the following: Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 39...
Page 41 In this mode, when the metal content carried is less than the alarm threshold, the relay will be triggered to output a switch signal when Normal open the machine does not alarm; Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 40...
Page 43: Default Parameters
All Zone Alarm Mode High Security Level None Application Area Screen Hibernation 120s Language English Save Records Infrared Detection Mode Detect Mode None Relay Mode 123456 Custom ID Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 42...
Page 44: Troubleshooting
Make sure that the installation location is stable and free from physical movements. If the false alarm is not caused by the environment, reduce the sensitivity level of all zones. Change the frequency. Change the installation location. Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 43...
Page 45: Packing List
Power Adapter 1 set Remote Control 1 pc Torx Thumb Screw 2 pcs Allen Screw 4 pcs Hexagonal Tool 1 pc Bolt 8 pcs User Manual 1 pc Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 44...
Page 46: Warranty Card
This card will not be issued again if it is lost. Model Number Date of Acquisition User Post Code Address User’s Phone Number Copyright©2021 ZKTECO CO., LTD. All rights reserved. P a g e | 45...
