Isotra VERANDA HRV52 Manual

Hide thumbs Also See for VERANDA HRV52:

Advertisement

Table of Contents

en
Shading for
winter gardenS
and pergolaS

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the VERANDA HRV52 and is the answer not in the manual?

Questions and answers

Related Manuals for Isotra VERANDA HRV52

Summary of Contents for Isotra VERANDA HRV52

  • Page 1 Shading for winter gardenS and pergolaS...
  • Page 2 69-78 Measerement and Assembly A mark symbolising long tradition, inestimable investment into development, the use of quality materials, state-of the-art technologies, reliable work from hundreds of employees and numerous other parameters, contrituting one entity - the final product of ISOTRA.
  • Page 3 VERANDY Veranda HRV52 Shading of large spaces of winter gardens ▲ Thermo regulation and protection effect ▲ Possibility to connect up to 4 pcs (do not have ▲ common box) Box is produced from extruded aluminum profiles ▲...

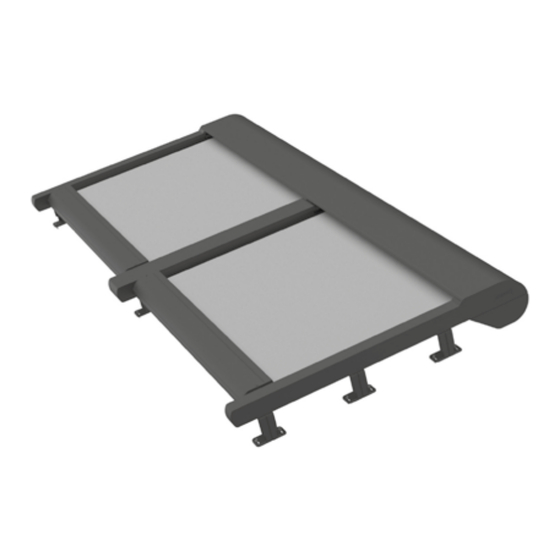

  • Page 4: Basic Product Specification

    VERANDA HRV52 10/400 10/20 10/10 Basic Product Specification 620/5 620/15 260/300 360/310 620/9 10/40 10/370 10/30 10/330 VERANDA HRV52 2-01402-0000 610/121/100 610/130 10/380 610/14 610/7 610/16 610/49 610/121/80 610/121/90 10/390 610/53 610/6 610/8 Control Motor – tubular motor 230V (50 Hz) with automatic post-regulation, this means the motor slows at approx. 10 cm before the bottom bar closes against the roller box so that it stops without forcibly hitting it.
  • Page 5 - position item name order number - abbreviation 1 abbreviation 2 Profiles - VERANDA see Profiles - VERANDA HRV52 Fabric for SCREEN see screen fabric sampler – Soltis 92 20-25, 30-35 Fabric for VERANDAS see awning fabric sampler...
  • Page 6 The box holder is a part of the box stiffening bracket set(VRH 224, 2-01562-0000), which is recommended to be used from 4-meter box Abb. 3 : Der Kasten Zwischenrolle für die schräge Fläche width of the Veranda HRV52. al : Rohr aus extrudiertem Aluminium, Ø50mm, Wanddicke, lackiert.
  • Page 7 VERANDY Fabric clip profile Material : consists of extruded PVC clips Function : attaching the fabric in the fabric slot without the use of screws, so that the fabric can be removed from the front instead of sliding off sideways Diameter of the PVC fabric retainer : 3 mm Advantage : quick and easy fabric changing Roller - aluminium, dia.
  • Page 8 2. Die Profile che Angaben Wintergartenbeschattung VZ720 2.1. Die Führungsschienen Guide rails - Material : Stranggepreßtes Aluminium, lackiert. Material : extruded aluminium, powdercoated - Farbe : Standardmäßig weiß (RAL9016), Harolbraun (vergleichbar mit RAL8019) oder Haral (s. Preisliste) Two types : peziell zur Anbringung außen auf dem Wintergarten entworfen.
  • Page 9 VERANDY Guide Fixing Brackets Standard support (6-014630-0000) Material : aluminium Colour : coated to match the frame Function : used for any type of glass-covered conservatory framework and for all wooden pergolas and veranda systems. 90 93 90 93 75,5 90 93 24,5 46 26,9...
  • Page 10 mm - 200 mm - 300 mm - 400 mm Alu 120 mm - 200 mm - 300 mm - 400 mm AFBEELDING - ABBILDUNG Brut - Brut - Blank - Blank 050360 050357 RAL - RAL - RAL - RAL 050360G FIGURE - FIGURE Brackets for intermediate roll...
  • Page 11 VERANDY Technical options – verandas coupling Type Maximum width (m) Number of Number Max. area 16,5 verandas of motors Type 1 1 veranda 25 m Type 2 2 verandas 50 m Type 3 3 verandas 75 m Type 4 4 verandas 100 m (* )also optional with 2 motors Coupling Two Side Guides...

  • Page 12: Motor Control

    Brush 6,7x1500 EC (height 15 mm) SC 250/15 6-001314-1500 Brush 6,7x1800 EC (height 18 mm) SC 250/18 6-001314-1800 Types of motors (BECKER) for Veranda HRV52 item name trade name - abbreviation 2 order number - abbreviation 1 Motor BECKER 50 E 40/17 17BE...
  • Page 13 VERANDY VERANDA HRV52 Measurement and Assembly Measurement The total width = centre of side guide to centre of side guide. The outside of the box is always 40mm (2x20mm) larger than the middle of the guide rail or the middle of the attachment points.
  • Page 14 Attention: Only couple the spindles as allowed. Given that the power of the motor is selected according to the number of blinds to be operated, the number of blinds connected up must match the number allowed for the motor. For this reason, end brackets not supplied with a connector are covered by a self-adhesive patch. 9.
  • Page 15 VERANDY 14. Positioning the cables Lift the box and the end profile to the same height as the guide rails, and insert the endprofile a short way into the rail. Insert the pin of the mounting bracket into the aperture of the guide rail. Make sure that the cord and the carriage fit snugly Then pull the cable at point E and the pin will automatically slide into the guide rail.
  • Page 16 20. Controle of the right angles Set the veranda to bottom position. Screw down the base supports permanently. The guide rails and the box should stand at right angles to each other. You can check this by using a large try square or the 60-80-100 rule as shown in figure. A better, and much more precise, way is to measure the diagonals of the separate sections and of the entire construction.
  • Page 17 VERANDY 25. Electrical connections There are 4 wires from the motor. Yellow-green (earth), blue (neut- ral), brown and black (raise and lower) From the fuse box, there are 3 wires. Yellow-green (earth), blue (ne- utral), and phase. Connect the wires as shown in the diagram. The phase wire from the fuse box should be connected to terminal L.
  • Page 18 Method for coupling 2 guide rails In some cases we have to couple 2 guide rails (when 2 or more systems are mounted beside one another. This can be done in different ways. Technische Angaben Wintergartenbeschatt Mounting the base attachment point in the middle The coupling plate is fixed directly underneath both guide rails.
  • Page 19 VERANDY Veranda HRV08-ZIP Fabric stays stretched longer due to innovative ZIP system ▲ with metal spring Compact box helps to create timeless design of Veranda ▲ Possibility to connect up to 4 pcs together (common box ▲ up to 6 m width of the blind) System variability (fabric can be rolled sideways, bottom- ▲...

  • Page 20: Basic Product Specification

    VERANDA HRV08-ZIP Basic Product Specification 610/230 10/20 610/560 610/100 610/240 610/100 10/400 610/100 610/170 10/10 260/80 10/280 10/340 610/220 610/210 260/90 380 310 610/560 610/600/51 610/600/54 610/90 610/600/64 610/150 610/140 610/600/65 610/600/62 610/600/63 610/600/53 VERANDA HRV08-ZIP 2-01403-0000 610/600/61 Control Motor – tubular motor 230V (50 Hz) fitted far left and/or far right as required. As standard there is supplied 3 meters long cable (optionally 5 or 10 m), a single-pole surface-mounted switch and plug.
  • Page 21 VERANDY VERANDA HRV08-ZIP(2-01403-0000) position item name trade name - abbreviation 2 order number - abbreviation 1 Profiles – VERANDA HRV08-ZIP see Profiles - VERANDA HRV08-ZIP Screen fabric see Soltis 92 screen fabric sampler Fabric for Verandas see awnings fabric sampler Side cap - LEFT VRH 004 6-014684-0000 Side cap - central RIGHT...
  • Page 22 Guiding - rail HRV08-ZIP - left (2-01405-PU11L) position item name trade name - abbreviation 2 order number - abbreviation 1 610/90 Guiding channel profile VRH 088 6-014691-0000 610/100 Guiding channel profile - cap VRH 089 6-014692-0000 610/110 Guding channel profile - double VRH 086 6-014693-0000 610/140...
  • Page 23 VERANDY VERANDA HRV08-ZIP Basic Product Specification       OMSCHRIJVING - UMSCHREIBUNG AFBEELDING - ABBILDUNG  The box ART. NR. SPECIFICATION - SPECIFICATIONS FIGURE - FIGURE Material: extruded aluminium with powder coating KAST CAISSON Wall thickness: 2 mm KASTTEIL Dimensions: 134 mm x 118 mm ...
  • Page 24 The fabric roll dia. 67x1,25 mm - 6 m (6-014720-0000) Material: circular extruded tube made of aluminium, with a groove for attaching the fabric.    Function: rolling the fabric up and down Diameter: Ø67 x 1.8 mm. The separable guide rails ...
  • Page 25 dekkap zijgeleider rechts VZ080 uverture glissière droite VZ080 r links VZ080 VERANDY gauche VZ080 ndcap side guide right VZ080 e left VZ080 Guide rail covers ppe führungsschiene rechts VZ080 iene links VZ080 Material: high-pressure-cast aluminium with powder coating. Colour: colour of frame Din 912 - M4 x 12 mm - Blank - Blank 050639...
  • Page 26 Raised brackets Bracket VL Av (2-01410-PU11X) Bracket VL Bv (2-01411-PU11X) Bracket VL Cv (2-01412-PU11X) The clearance between the guide rail and the glass profiles can be increased by means of elevated sup ports. When doing this, take into account the fact that the veranda profiles, when using elevated supports, will be subject to heavier loads. For this reason, they can only be used when there is no danger of them twisting.
  • Page 27 VERANDY Coupling of 2 lateral guides Coupling duo set: • Consists of: The coupling plate and coupling angle with the requisite screws, nuts and washers. • Function: - When using an elevated support in the middle, the profile of the elevated support is directly fixed to the coupling plate. In that case, the upper part of the elevated support will not be used.
  • Page 28 Control Drive via tubular motor 230 Volt (50Hz) fitted far left or far right as required. Control location when viewed from the outside. As standard there is delivered 3 m long cable and a single-pole surface-mounted switch. Optionally: • Cable 5 or 10 m • The distance can be increased by fitting a junction box • without switch • Motor with automatic readjustment; blind will always be completely closed (Orea WT):...

  • Page 29: Motor Control

    VERANDY Motor control Types of motors VERANDA HRV08-ZIP item name trade name - abbreviation 2 order number - abbreviation 1 Motor OREA 50 WT 40/17 MR 096/40 6-001550-0040 Motor OREA 60 WT 55/17 MR 096/55 6-001550-0055 Motor OREA 60 WT 70/17 MR 096/70 6-001550-0070 Motor OREA 60 WT 85/17...
  • Page 30 VERANDA HRV08-ZIP Measurement and assembly 1. Measurement The total width = centre of veranda profile to centre of veranda profile. The outside of the box is always 40 mm (2 x 20 mm) wider than the centre of the guide rails or the centre of the attachment supports. The drop: measured from the back of the box at the top against the wall to the front of the guide rail, including the cover.
  • Page 31 VERANDY Assembly The HRV08-ZIP can be fitted in various ways. Here we will des cribe the various types of fitting. The choice of these types of fitting has an effect on such things as the technical possibili ties, drainage holes and so on. Assembly MT1 –...
  • Page 33 VERANDY...
  • Page 35 VERANDY...
  • Page 37 VERANDY...
  • Page 39 VERANDY...
  • Page 41 VERANDY Veranda HRV80–ZIP Ideal for large glazed areas up to the 25 m ▲ size in a single frame Less sunlight on vertical glazed areas thanks ▲ to an overlap Compact box: 245 (W) × 175 (H) ▲ Taut fabric thanks to the ZIP system ▲...

  • Page 42: Basic Product Specification

    VERANDA HRV80-ZIP Basic product specification VERANDA HRV80-ZIP 2-01532-0000 Controls Serves for opening and retracting the veranda. All box sizes can only be controlled by motor. Motor – tubular motor 230 V (50 Hz) located on the far left or far right, as necessary. The standard supply includes a 3-metre cable (optionally 10 m), Sunea IO motor type without push buttons, being controlled by an IO transmitter (can also be without the wall-mounted IO transmitter).
  • Page 43 VERANDY VERANDA HRV80-ZIP (2-01532-0000) position item name trade name - abbreviation 2 order number - abbreviation 1 see Multi-piece sections – VERANDA Multi-piece sections – VERANDA HRV80-ZIP 11/230 Winding cylinder, diameter 110×1.25 mm VRH 166 6-015978-0000 Reversing wheel for side board – 28×8 mm VRH 094 6-014597-0000 Terminal board for HI-TEC cord complete...
  • Page 44 Guiding – rail HRV80-ZIP – LEFT (2-01533-PU11L) position item name trade name - abbreviation 2 order number - abbreviation 1 900/100 Guide rail cap – left 6-015966-0000 VRH 155 900/150 Guide rail end piece – left 6-015962-0000 VRH 151 Guiding – rail HRV80-ZIP – RIGHT (2-01533-PU11P) position item name trade name - abbreviation 2...
  • Page 45 VERANDY Veranda HRV80–ZIP Basic product specification Section BOX Material: extruded aluminium, powder-coated. Wall thickness: 2.5 mm. Dimensions: 245 mm × 175 mm Consists of two parts: • removable tapered upper section or cover, • fixed bottom section. The fabric guiding section is attached to the fixed section that leads the fabric from the box.
  • Page 46 Winding cylinder Material: galvanised-steel tube with a groove for attaching the fabric. Function: unwinding and winding of the fabric Up to the width of 4000 mm – the shaft diameter is 85 mm From the width of 4001 mm – the shaft diameter is 110 mm Guide rails Material: extruded aluminium, powder-coated Wall thickness: 1.5 mm...
  • Page 47 VERANDY Side board Material: cast aluminium, powder-coated. Colour: same as the frame colour Dimensions: 214 × 175 mm There are two types of brackets: side and connecting Side board LEFT / RIGHT Central side board – LEFT / RIGHT Sliding blocks Material: injection-moulded plastic Function: • Connecting the extension pole and guide rails, fitted with...
  • Page 48 Tension system Material: castors, axles, etc. are made of non-corroding materials. Function: The fabric and bottom section can be kept under constant tension using a spring, castors and Ø 2.7 mm cord. This keeps the fabric at a certain distance from the glass roof when unwound, so that there is a venti- lation space between the fabric and the roof (to eliminate accumulated heat).
  • Page 49 VERANDY Wall attachment Other installation options: If it is impossible to use attachment methods A or B, you can use a wall attachment option. There are 3 standardised L-sections available that can be provided in any desired length (while Cv flat supports must always be used). The following sizes are available: • Type L1 = 50 × 30 × 3 mm • Type L2 = 100 × 50 × 3 mm...
  • Page 50 Coupling set: The set consists of the coupling plate and the coupling angle with corresponding fasteners. Function: - When using a raised bracket in the middle, the section of the raised bracket is directly attached to the coupling plate. In that case, the upper part of the raised bracket will not be used.
  • Page 51 VERANDY Controls The installation is driven by a tubular motor 230 V (50 Hz) located on the far left or far right, as necessary. Control location when viewed from the outside. The standard supply includes the Sunea IO motor type without push buttons, being controlled by an IO transmitter, a 3-metre supply cable, and a wall-mounted, single-pole switch.
  • Page 52 Motor control Types of motors VERANDA HRV80-ZIP item name trade name - abbreviation 2 order number - abbreviation 1 Motor OREA 50 WT 40/17 MR 096/40 6-001550-0040 Motor OREA 60 WT 55/17 MR 096/55 6-001550-0055 Motor OREA 60 WT 70/17 MR 096/70 6-001550-0070 Motor OREA 60 WT 85/17...
  • Page 53 Make sure the box and the bottom profile can always be opened and that the mechanical parts inside are accessible at all times. Should you fail to follow this rule, ISOTRA cannot be held responsible for the cost of demolition work!
  • Page 54 4. Measuring Overall width = from the centre of the guide rail to the centre of the guide rail. The outer part of the box is always 40 mm (2× 20 mm) wider than the centre of the guide rails or the centre of the attachment brackets. Drop: measured from the rear part of the box on the upper side touching the wall to the front side of the guide rail including the cover.
  • Page 55 VERANDY 7. LED osvětlení boxu Verandy – volitelné příslušenství - remove the aluminium clip profile from the bottom side of the profile - LED strip is attached, and the opening is covered with a small diffuser profile - required power supply 230V AC / 24V DC - each part of the box is equipped with a LED strip and a diffuser, always with its own external power supply, which is located outside the box.
  • Page 56 The use of the support profile according Support profile to the type of the bracket type used Standard type SA bracket (2-01408-PU11) cannot be used Standard type SB bracket (2-01409-PU11) cannot be used Raised type AV bracket (2-01410-PU11) Raised type BV bracket (2-01411-PU11) Raised type CV bracket (2-01412-PU11) 9.
  • Page 57 VERANDY SA bottom bracket – Alu SB upper bracket – Alu Upper side of the bracket – Alu...
  • Page 58 Cv raised bracket – Alu Bv raised bracket foot – Alu Av raised bracket foot – Alu...
  • Page 59 VERANDY...
  • Page 61 VERANDY...
  • Page 63 VERANDY PULL...
  • Page 65 VERANDY...
  • Page 67 VERANDY...
  • Page 68 Veranda HRV80–ZIP-2P Elegant thanks to a simple design ▲ Completely closed box, ensuring that the fabric ▲ colours will remain bright for many years Perfectly completes any terrace thanks to the flexible ▲ stand positioning The fabric remains taut thanks to the innovative ZIP system ▲...

  • Page 69: Basic Product Specification

    VERANDY VERANDA HRV80–ZIP-2P Basic product specification VERANDA HRV80-ZIP-2P 2-01532-0001 Controls Serves for opening and retracting the veranda. All box sizes can only be controlled by motor. Motor - tubular motor 230 V (50 Hz) located on the far left or far right, as necessary. The standard supply includes a 3-metre cable (optionally 10 ...
  • Page 70 VERANDA HRV80–ZIP-2P (2-01532-0001) trade name - position item name order number - abbreviation 1 abbreviation 2 Multi-piece sections – VERANDA see Multi-piece sections - VERANDA HRV80-ZIP-2P 11/230 Winding cylinder, diameter 110×1.25 mm VRH 166 6-015978-0000 Reversing wheel for side board – 28×8 mm VRH 094 6-014597-0000 Terminal board for HI-TEC cord complete...
  • Page 71 VERANDY Multi-part sections – VERANDA HRV80–ZIP-2P (3-03390-0085) position item name trade name - abbreviation 2 order number - abbreviation 1 10/10 Section BOX – rear VRH 147 6-015958-0000 10/20 Section BOX – lower VRH 148 6-015959-0000 10/30 Lower section LED – 7.0m VRH 149/1 6-015960-0007 10/130...
  • Page 72 Veranda HRV80–ZIP-2P Basic product specification Section BOX Material: extruded aluminium. Wall thickness: 2.5 mm. Dimensions: 245 mm × 175 mm. Consists of two parts: • removable tapered upper section or cover, • fixed bottom section. The fabric guiding section is attached to the fixed section that leads the fabric from the box.
  • Page 73 VERANDY Winding cylinder Material: galvanised-steel tube with a groove for attaching the fabric. Function: unwinding and winding of the fabric. Up to the width of 4000 mm - the shaft diameter is 85 mm. From the width of 4001 mm - the shaft diameter is 110 mm. Guide rails STANDARD Material: extruded aluminium.
  • Page 74 Stands Material: extruded aluminium, powder-coated. Wall thickness: 2 mm. Dimensions: 65 mm × 65 mm. Function: • The stand is equipped with pins to be used for placing the cross bar. • The stand with the flange is to be attached to a foot. Cross bar Material: extruded aluminium, powder-coated. Wall thickness: 2 mm Dimensions: 65 mm × 65 mm The installation of the stands is facilitated thanks to the openings. The bar is covered on both ends.
  • Page 75 VERANDY Guide rail covers Material: cast aluminium, powder-coated. Colour: same as the frame colour. Function: • Covering the guide rails • Guiding the cord Tension system Material: castors, axles, etc. are made of non-corroding materials. Function: The fabric and bottom section can be kept under constant tension using a spring, castors and Ø 2.7 mm cord. Connecting parts Material: Corrosion-resistant material.
  • Page 76 Articulated joints Material: aluminium, powder-coated. Consists of two parts bolted together. Wall bracket part 1 Material: stainless steel with a spindle and retainer rings. Wall bracket part 2 Material: aluminium, powder-coated. Stand connecting bracket Material: stainless steel with two clamps and socket head screws. Securing plate of the wall bracket: • Material: stainless steel (RVS) • Function: t he box is hung on the wall bracket part 2 using the bracket part 1. Then, to the wall...
  • Page 77 VERANDY width width width width H1 – Height H2 – Clearance U – Projection Note: In coupled systems, the intermediate stands are always fixed directly below the central guide rail. Controls The installation is driven by a tubular motor 230 V (50 Hz) located on the far left or far right, as necessary. Control location when viewed from the outside.

  • Page 78: Motor Controls

    VERANDA HRV80-ZIP - 1P outlet A outlet B 1. General information To a great extent, the HRV80-ZIP-2P veranda screen allows regulating the sunlight penetration into a  room and thus avoids unpleasant high amount of  light and heat. The fabric is protected when rolled in the box which is closed by bottom section in ...
  • Page 79 VERANDY Types of motors (BECKER) for Veranda HRV80-ZIP-2P item name trade name - abbreviation 2 order number - abbreviation 1 Motor BECKER 50 E 40/17 17BE 6-017852-0040 Motor BECKER 60 E 60/17 17BE 6-017852-0060 Motor BECKER 50 E 40/17 BC40 6-017852-0040 Motor BECKER 60 E 60/17 BE60...
  • Page 80 Make sure the box and the bottom profile can always be opened and that the mechanical parts inside are accessible at all times. Should you fail to follow this rule, ISOTRA cannot be held responsible for the cost of demolition work! 3.1 Wall bracket (standard)
  • Page 81 VERANDY 4. Measuring Guidelines for correct measuring Ensure the system is perfectly parallel and squared. An accurate measurement ensures a quicker and easier assembly. Ensure exact levelling of the system. Ensure that the foundation is sufficiently solid to install the foot supports. Be careful with relatively weak walls: the standard fixings are not part of the supply.
  • Page 82 CAUTION. CHECK WHETHER THE STRUCTURE INCLINATION IS GREATER THAN OR EQUAL TO THE VALUE SPECIFIED IN THE ABO- VE TABLE IN ORDER TO ENSURE GOOD WATER DRAINING ON THE FRONT SIDE. If the system inclination (A) is insufficient for good water draining, ISOTRA only guarantees the product function as sun screen; in this case, complaint cannot be filed against the company in case of a breakdown or damage caused by poor water draining.
  • Page 83 Make sure it is possible to open the box and lower section at all times to provide access to the mechanical parts inside. If this rule is not followed, ISOTRA cannot be held responsible for the cost of demolition work!
  • Page 84 OPTIONS Wall insert If necessary, it is possible to place a wall insert to the gap between the box and the wall to create a water-tight seal. Aluminium sections are placed on each side and complemented with cover sheets. A rubber band is inserted to the section where it touches the box. • tilting: can be easily removed to access the box • has the same colour as the rest of the structure Wall insert –...
  • Page 85 VERANDY Installation of side cover...
  • Page 86 5. Design The fabric has zippers on the sides, and if the guide rails are properly installed, these zippers ensure the fabric remains taut in any position of the bottom section thanks to the strain between the zipper and the guide rails. Cracking may be heard when retracting the screen, which is caused by the fabric tension and by pushing the air from under the fabric when winding up.
  • Page 87 VERANDY Support profile The support profile is always installed in a fixed position, in the centre of the guide rails. LED lighting can be installed in the support profile • The profile can be adjusted in the range of 20o in both directions •...
  • Page 88 Control: 1. Dimmable IO control: LED lighting can be controlled by all IO controllers 2. RTS control: The lighting can be controlled by all RTS controllers 3. With no control: The included power cable can be connected to a switch (switch is not included)
  • Page 89 VERANDY...
  • Page 91 VERANDY...
  • Page 93 VERANDY...
  • Page 94 PULL...
  • Page 95 VERANDY...
  • Page 97 VERANDY...
  • Page 99 VERANDY...
  • Page 101 VERANDY...
  • Page 103 VERANDY Notes:...
  • Page 104 ISOTRA a.s. ISOTRA Partner Bílovecká 2411/1, 746 01 opava Czech republic tel.: +420 553 685 111 e-mail: isotra@isotra.com www.isotra.com released: 08/2024...

This manual is also suitable for:

Veranda hrv08-zipVeranda hrv80-zipVeranda hrv80-zip-2p
