Page 1

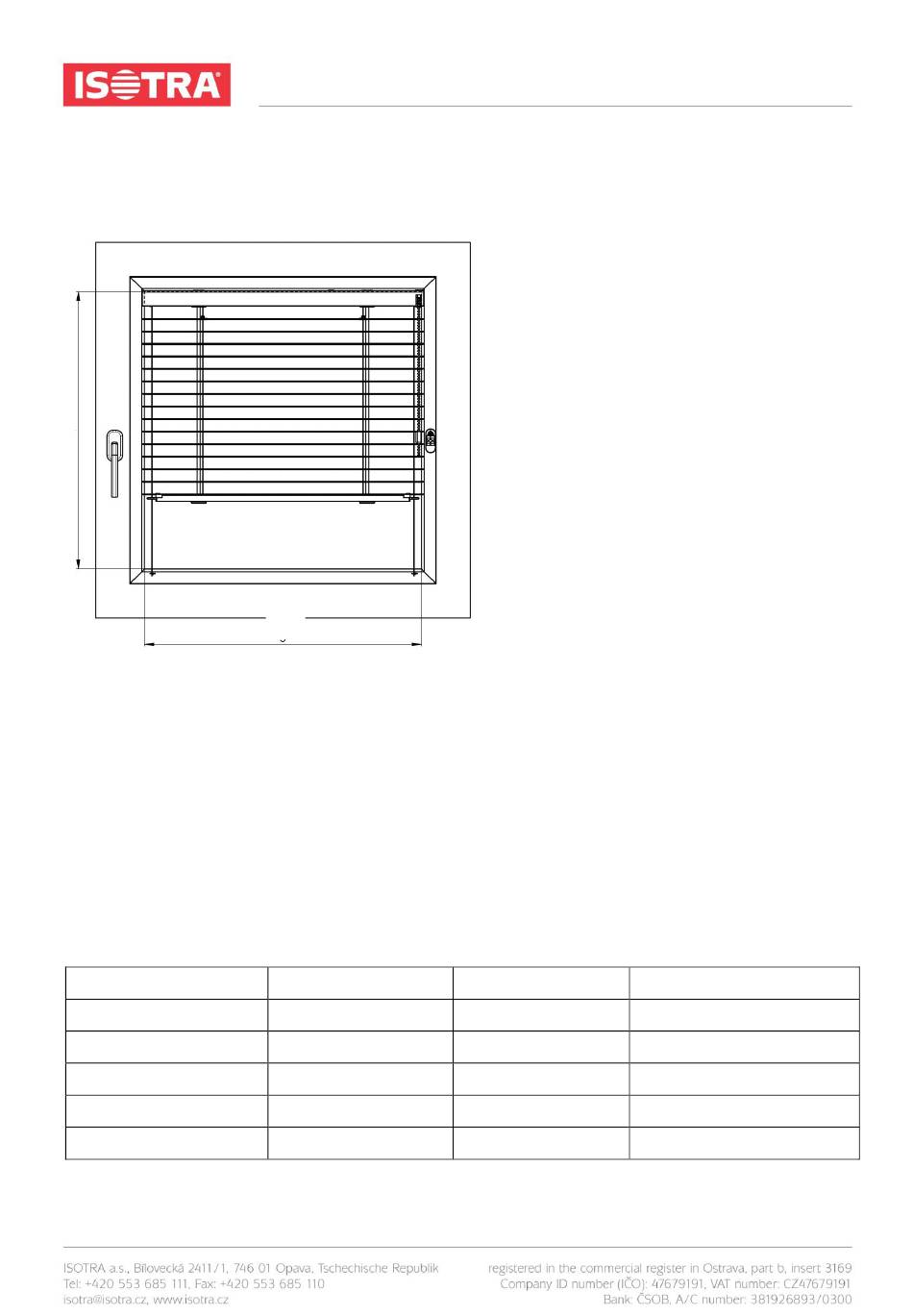

The standard width of the SYSTEM 25 blind is written in below chart, with a tolerance of ± 1 mm. It is recommended to consult with the manufacturer for dimensions outside the stated limits.
Page 2
If it is necessary to be changed, it is not possible to change it for any System 25 blind.
Page 3
MEASUREMENT AND ASSEMBLY MANUAL • screws are located into the oval holes on the holder. For wooden windows the holes are pre-drilled to prevent cutting the glazing bar. • drill holes for the tightening pins of the leading nylons upwards into the lower part of the glazing bar If the shape or the size of the glazing bar does not allow drilling holes for the tightening pins into the glazing bar from upwards, choose the option of drilling the holes for pins into the face of the glazing bar.
Page 4
MEASUREMENT AND ASSEMBLY MANUAL Then click the upper cover profile with the side covers into the basic profile holders; it must be kept in the plastic holder and must be located symmetrically in the centre of the window. • secure the chain limiter; plastic windows and wooden Euro windows can only be secured into the glazing bar and the holder for fixation of the lever must be mounted for the version with the lever.
Page 5
MEASUREMENT AND ASSEMBLY MANUAL APPLY ONE HALF OF THE COUPLER TO EACH END OF THE CHAIN AND THEN LOCK BOTH COUPLER HALVES. If a fixed tensioning system – pulley – is used: The pull cord length must be limited as follows: 1) If installation height (H0) is not specified, and i) if the blind height (H) is less than or equal to 2.5 m, the length of the pull cord(s) (H2) shall be less than or equal to 1 m (see Fig.): H2 ≤...
Page 6
MEASUREMENT AND ASSEMBLY MANUAL If installation height (H ) is specified, the distance from the floor to the bottom part of the pull cord(s) (H ) shall be at least 1.5 m (see Fig.): H > 1.5 m. The pull cords shall meet the following requirements: In case of two pull cords: the pull cords must never entangle.
Page 7
MEASUREMENT AND ASSEMBLY MANUAL ILLUSTRATIVE ASSEMBLY OF THE BLIND WITHOUT THE COVER PROFILE ASSEMBLY ASSEMBLY WITH COVER PROFILE (CONSTRUCTION - CHAIN, CORD, HANDLE, ENGINE) Validity of the manual: 1. 9. 2014...
Page 8
If it is necessary to be changed, it is not possible to change it for any System 25 blind.
Page 9
MEASUREMENT AND ASSEMBLY MANUAL ILLUSTRATIVE ASSEMBLY OF THE BLIND WITHOUT THE COVER PROFILE Validity of the manual: 1. 9. 2014...
