Userʼs
Manual
Thank you for purchasing the 720941 Optical Transceiver Module. This manual focuses on the handling
precautions of the 720941. To ensure correct use, please read this manual thoroughly before operation. Keep this
manual in a safe place. Also, the contents of this manual are subject to change without prior notice as a result of
improvements to the product's performance and functionality. Refer to our website to view our latest manuals.
The 720941 Optical Transceiver Module is a dedicated accessory for the /C50 option of the DL950 ScopeCorder.
For information on the optical transceiver module, see also the manual of the DL950 (IM DL950-02EN, IM DL950-
03EN).
Checking the Package Contents
After receiving the product and opening the package, check the following contents before use.

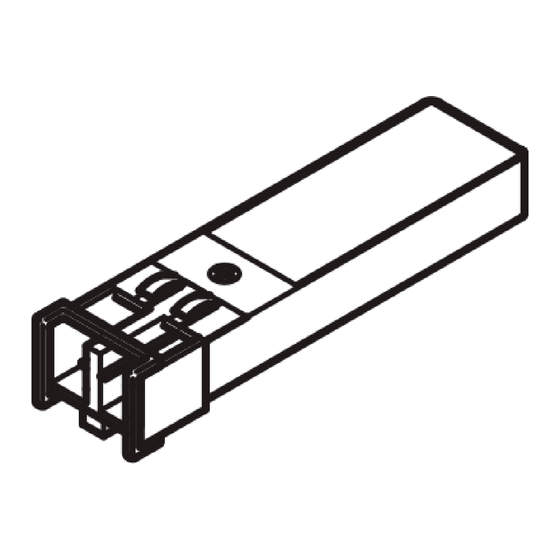

Optical Transceiver Module
720941
Name
Optical Transceiver Module
Manuals
Conventions Used in This Manual
Improper handling or use can lead to injury to the user or damage to the instrument. This
symbol appears on the instrument to indicate that the user must refer to the user's manual
for special instructions. The same symbol appears in the corresponding place in the user's
manual to identify those instructions. In the manual, the symbol is used in conjunction with
the word "WARNING" or "CAUTION."
Calls attention to actions or conditions that could cause serious or fatal injury to the user,
WARNING
and precautions that can be taken to prevent such occurrences.
Calls attention to actions or conditions that could cause light injury to the user or damage to
CAUTION
the instrument or user's data, and precautions that can be taken to prevent such occurrences.
Note
Calls attention to information that is important for the proper operation of the instrument.
French
Une manipulation ou une utilisation incorrectes risquent de blesser l'utilisateur ou
d'endommager l'instrument. Ce symbole apparaît sur l'instrument pour indiquer à l'utilisateur
qu'il doit se reporter au manuel de l'utilisateur afin d'y lire les instructions spécifiques
correspondantes. Ce même symbole apparaît à la section correspondante du manuel de
l'utilisateur pour signaler lesdites instructions. Dans le manuel de l'utilisateur, ce symbole
est accompagné des termes AVERTISSEMENT et ATTENTION.
Attire l'attention sur des gestes ou des conditions susceptibles de provoquer des
AVERTISSEMENT
blessures graves (voire mortelles), et sur les précautions de sécurité pouvant
prévenir de tels accidents.
Attire l'attention sur des gestes ou des conditions susceptibles de provoquer des
ATTENTION
blessures légères ou d'endommager l'instrument ou les données de l'utilisateur, et
sur les précautions de sécurité susceptibles de prévenir de tels accidents.
Safety Precautions
This product is designed to be used by a person with specialized knowledge. The general safety
precautions described herein must be observed during all phases of operation. If the instrument is used
in a manner not specified in this manual, the protection provided by the instrument may be impaired.
YOKOGAWA assumes no liability for the customer's failure to comply with these requirements. This
manual is part of the product and contains important information. Store this manual in a safe place
close to the instrument so that you can refer to it immediately. Keep this manual until you dispose of the
instrument.
Model 720941
Optical Transceiver Module
Model or Manual Number
720941
IM 720941-01EN
IM 720941-92Z1
PIM 113-01Z2
2nd Edition: January 2023 (YMI)
All Rights Reserved, Copyright © 2021 Yokogawa Test & Measurement Corporation
Printed in Japan
Manuals
• IM 720941-01EN (this manual)
• IM 720941-92Z1
• PIM 113-01Z2
Notes
1000BASE-SX SFP module 850nm
This manual
Document for China
List of worldwide contacts
IM 720941-01EN 1/2
2nd Edition
*IM 720941-01EN/2*
