DESCRIPTION

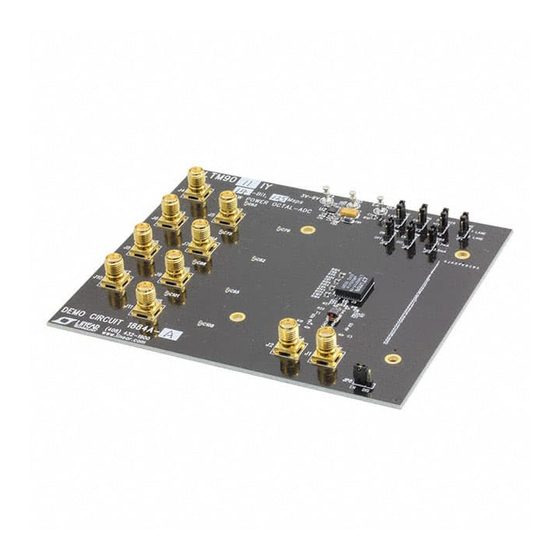

DC1884 supports the LTM
family.
The versions of the 1884A demo board are listed in Table 1.
Depending on the required resolution and sample rate,
the DC1884 is supplied with the appropriate ADC. The
circuitry on the analog inputs is optimized for analog input
Table 1. DC1884 Variants
DC1884 VARIANTS
1884A-A
1884A-B
1884A-C
1884A-D
1884A-E
1884A-F
PERFORMANCE SUMMARY
PARAMETER
Supply Voltage – DC1884A
Analog Input Range
Logic Input Voltages
Logic Output Voltages (Differential)
Sampling Frequency (Convert Clock Frequency) See Table 1
Encode Clock Level
Encode Clock Level
Resolution
Input Frequency Range
SFDR
SNR
LTM9009-14, LTM9008-14, LTM9007-14,
®
9011 high speed, octal ADC
ADC PART NUMBER RESOLUTION
LTM9011-14
LTM9010-14
LTM9009-14
LTM9008-14
LTM9007-14
LTM9006-14
(T = 25°C)
A
CONDITION
Depending on Sampling Rate and the A/D Converter
Provided, This Supply Must Provide Up to 700mA
Depending on SENSE Pin Voltage
Minimum Logic High
Maximum Logic Low
Nominal Logic Levels (100Ω Load, 3.5mA Mode)
Minimum Logic Levels (100Ω Load, 3.5mA Mode)
Single-Ended Encode Mode (ENC
Differential Encode Mode (ENC
See Table 1
See Table 1
See Applicable Data Sheet
See Applicable Data Sheet
DEMO MANUAL DC1884A
LTM9011-14, LTM9010-14,
LTM9006-14: 14-Bit, 125/105/80/
65/40/25Msps Octal ADC Family
frequencies from 1MHz to 70MHz. Refer to the data sheet
for proper input networks for different input frequencies.
Design fi les for this circuit board are available at
http://www.linear.com/demo
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks of Linear
Technology Corporation. All other trademarks are the property of their respective owners.
MAXIMUM SAMPLE RATE
14-Bit 125Msps
14-Bit 105Msps
14-Bit 80Msps
14-Bit 65Msps
14-Bit 40Msps
14-Bit 25Msps
–
Tied to GND)
–
Not Tied to GND)
INPUT FREQUENCY
1MHz to 70MHz
1MHz to 70MHz
1MHz to 70MHz
1MHz to 70MHz
1MHz to 70MHz
1MHz to 70MHz
VALUE
Optimized for 3.5V
[3.3V to 6V Minimum/Maximum]
1V to 2V
P-P P-P
1.3V
0.6V
350mV/1.25V Common Mode
247mV/1.25V Common Mode
0V to 3.6V
0.2V to 3.6V
dc1884af
1
