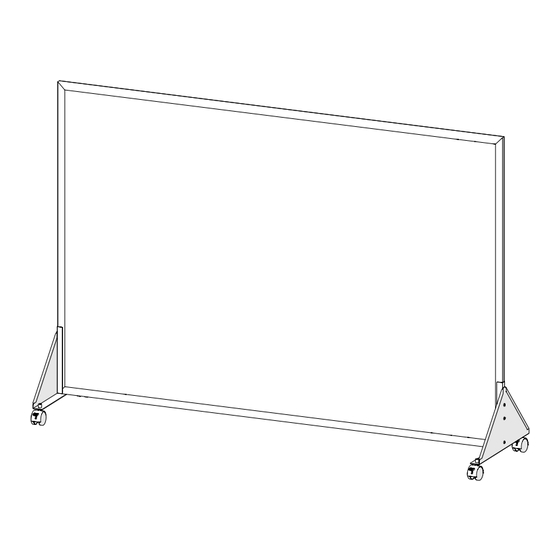

- Page 1 Preschool Divider 646X, 648X, 650X ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE ENSEMBLAJE INSTRUCTIONS DE MONTAGE DO NOT THROW AWAY! NO LA TIRE NE PAS JETER UPDATED AS OF: 05/12/2023 1 of 5...
- Page 2 Parts List Hardware P1 - Panel A - M5 x 16mm Screw B - Locking Casters P2 - Triangle Assebly UPDATED AS OF: 05/12/2023 2 of 5...
-
Page 3: Warranty
WARNINGS AND DISCLAIMERS ADVERTENCIAS Y RENUNCIAS AVERTISSEMENTS Review full assembly instructions and Previo a comenzar el proceso de Avant de commencer l’ assamblage check that all parts are present before ensamblaje favor revisar veuillez consulter instructions beginning assembly. Heavy or large instrucciones y asegurarse que cuenta con complètes et vérifier si vous avez toutes furniture may require multiple persons in... - Page 4 Laying the panel on a flat elevated surface, use the 4 M5 x 16mm screws to (A) attach STEP 1 the triangle assembly (P2) to the bottom corner of the panel (P1). Repeat for the second triangle Assembly on the other bottom corner of the panel. Insert locking casters(B) into the holes on the triangle assembly.
- Page 5 COMPLETE THIS COMPLETES ASSEMBLY INSTRUCTION UPDATED AS OF: 05/12/2023 5 of 5...
