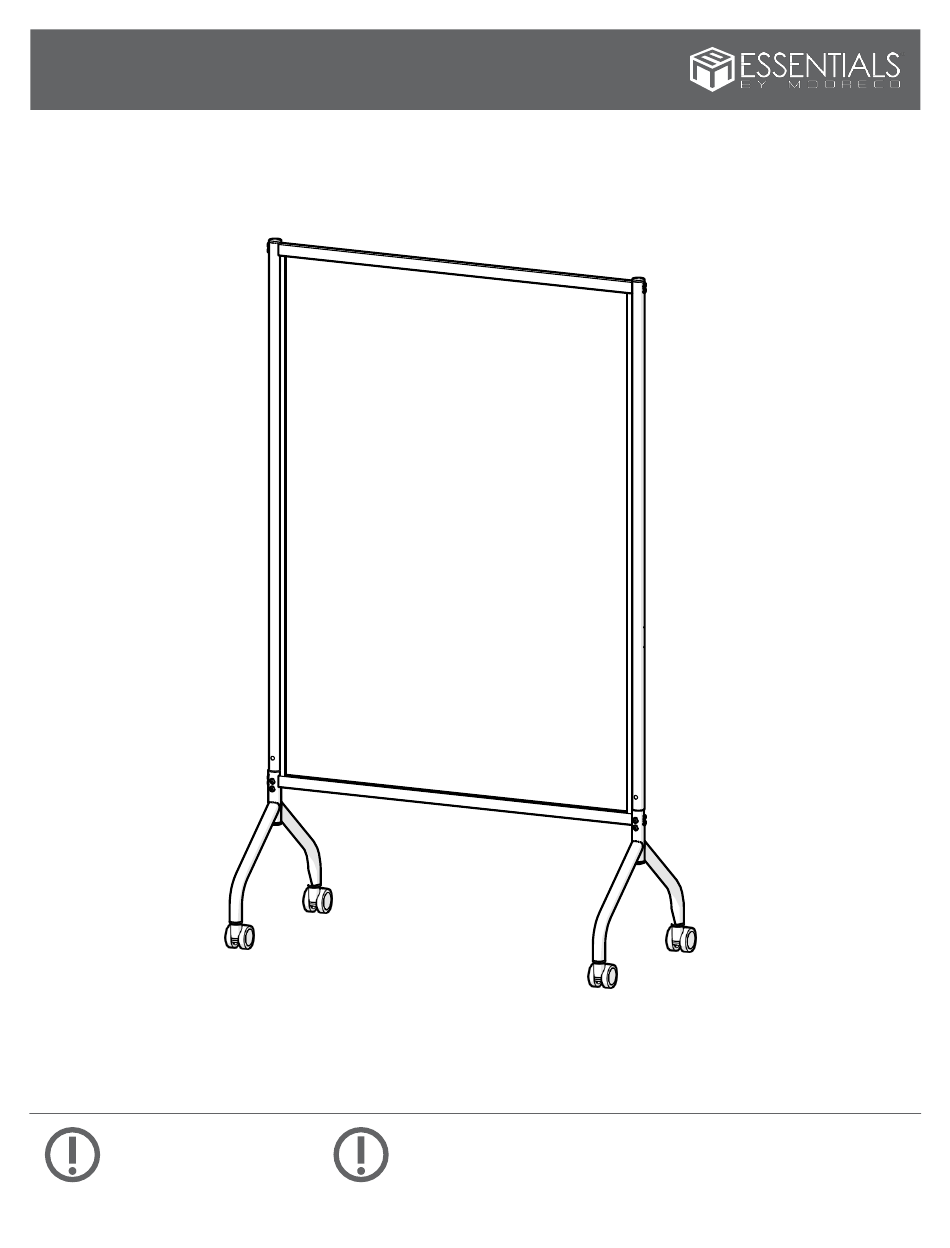

- Page 1 Mobile Clear Markerboard Part Number: 62541-CLEAR, 62506-CLEAR ASSEMBLY INSTRUCTIONS INSTRUCCIONES DE ENSEMBLAJE INSTRUCTIONS DE MONTAGE NO LA TIRE NE PAS JETER DO NOT THROW AWAY! UPDATED AS OF: 1 of 6 06/23/2020...
- Page 2 Parts Hardware P1 - Panel Assembly A - Locking Caster B - Non-Locking Caster P2 - Leg C - M6 x 12mm D - M6 x 35mm E - Allen Wrench ASSEMBLY INSTRUCTIONS DO NOT THROW AWAY! INSTRUCCIONES DE ENSEMBLAJE NO LA TIRE INSTRUCTIONS DE MONTAGE NE PAS JETER...
- Page 3 OVERVIEW Tools Included: UPDATED AS OF: 3 of 6 06/23/2020...
- Page 4 WARNINGS AND DISCLAIMERS ADVERTENCIAS Y RENUNCIAS AVERTISSEMENTS Previo a comenzar el proceso de Avant de commencer l’ assamblage Review full assembly instructions and check that all parts are present before ensamblaje favor de revisar las veuillez consulter instructions beginning assembly. Heavy or large instrucciones y asegurarse que cuenta con complètes et vérifier si vous avez toutes furniture may require multiple persons in todas las partes y materiales necesarios.
- Page 5 STEP 1 Remove screws from bottom of Panel Assembly. STEP 2 Fit Legs onto Panel Assembly. Rotate Legs to line up with holes in Panel Assembly upright tubes. UPDATED AS OF: 5 of 6 06/23/2020...
- Page 6 STEP 3 Replace all screws removed in Step 1 to secure Legs. STEP 4 Screw in Locking and Non-Locking Casters to Legs. THIS COMPLETES ASSEMBLY INSTRUCTION UPDATED AS OF: 6 of 6 06/23/2020...
